Description:

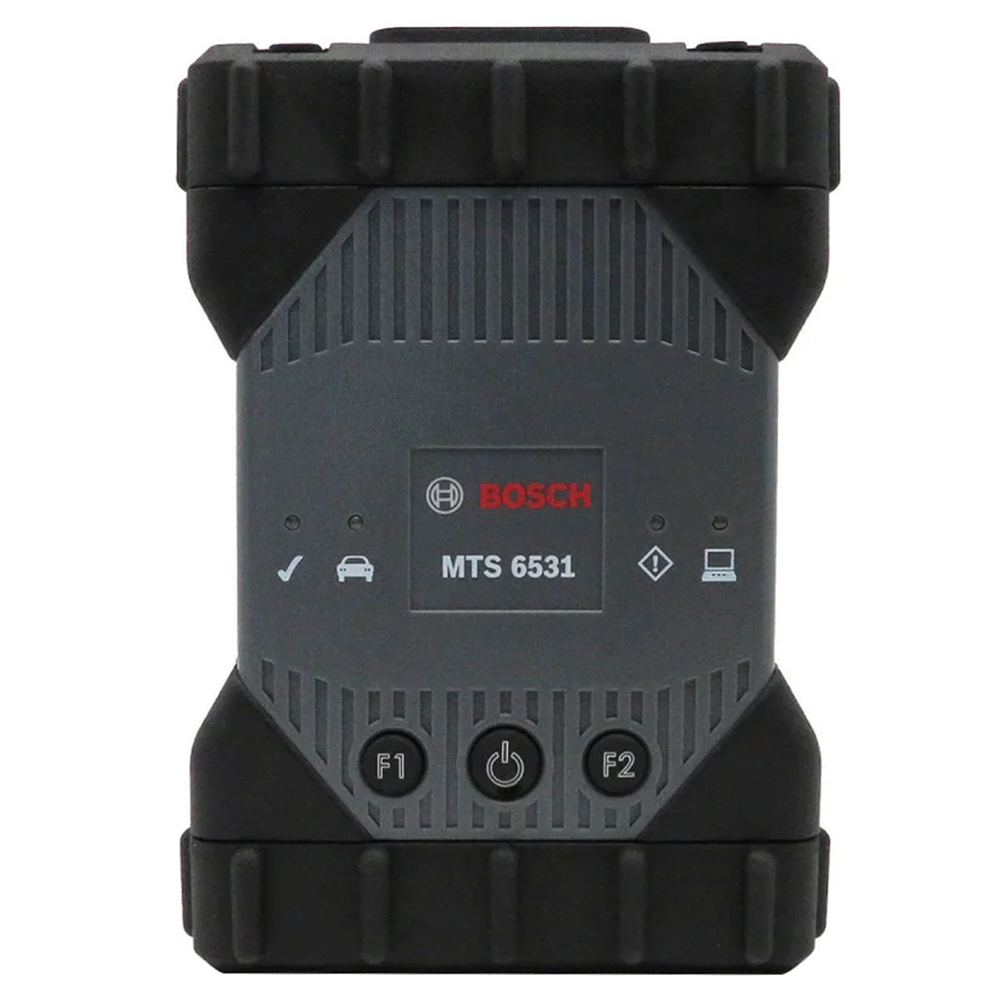

Original Bosch VCI MTS-6531 offers flexibility for current vehicle architectures including DoIP and CAN-FD.



Original Bosch MTS-6531 VCI Interface sets the industry benchmark for J2534 VCI pass-through performance with its fast processor, optimized software structure, and faster boot-up. The software also facilitates reliable strategies for securely reprogramming immobilizer systems.



Bosch MTS 6531 VCI supports DoIP(Diagnostics over IP), CAN FD(CAN with Flexible Data Rate) and 3 independent CAN Controllers. These features enable MTS 6531 to support the latest, most advanced vehicle electrical architectures, including support for 24-volt systems used in light and heavy trucks.



Bosch VCI MTS-6531 is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems.



Features:



1. Workshop Efficiency:

Setting an industry benchmark for J2534 VCI pass-through performance with its 800MHz processor, optimized software structure and faster boot up time. In addition,the VCl software facilitates secure immobilizer system reprogramming strategies.



2. Embedded Applications:

The Bosch MTS 6531 VCI includes an embedded runtime framework which enables the VCI to run embedded applications. This enables a wide range of use cases. e.g.: drive recorder, parking lot re-flash (standalone reflash), and diagnostic runtime.



3. Hardware Features:

Bosch VCI MTS-6531 supports an extended temperature range of -20°C to +70°C, sleep/wake modes, IP54 protection and is capable of storing data in the VCI. e.g.: drive recorder log files.



4. Workshop Flexibility- Embedded Web-Server:

Embedded web server supports external browser-based display devices via HTML for an extended range of service bay use cases.



5. Support for Future Vehicle Architectures:

DolP (Diagnostics over IP), CAN FD (Flexible Data Rate CAN) and three independent CAN Controllers enable the MTS 6531 to support the newest and most advanced vehicle electrical architectures.



6. Expandable Support for Vehicle Protocols:

Bosch MTS6531 can support virtually any vehicle communication protocol including current industry standard protocols as well as OEM Proprietary and legacy protocols. The expansion board provides a cost effective path for adding OEM required protocols as well as new protocols in the future.



7. Advanced Security Features:

Bosch MTS 6531 VCI prevents unauthorized access to the VCI itself or the vehicle it is connected to. It is also protected against cloning.



8. Support of 24V System:

Bosch VCI MTS 6531 input voltage range is from 6V to 32V. Bosch MTS 6531 can support 24 volts systems used in light and heavy trucks.



Supported Standards:



ISO 22900-2: - Diagnostic Protocol Data Unit (D-PDU API)

J2534-1 Pass-Thru Programming

J2534-2 Optional Pass-Thru Extended Features



VCI Manager (PC Software):



Device Busy / Wireless / Detection Indication

Software and Firmware Update Tool

Wired / Wireless Connection Management



VCI Physical Layer Interfaces:



3 CAN-FD Channels

1). Channel1 at 125/250/500/1000kbps

2). Channel 2 at 125/250/500/1000kbps

3). Channel 3 at 125/250/500/1000kbps



2 UART channels (K & L Lines)

J1850

J1708



Protocol Interfaces:



SAE J1939 (3 independent channels)

SAE J1708/J1587

SAEJ1850 VPW/PWM

SAE 2740 (GM UART)

SAE J2818-KWP1281

SAE J2284 at 125/250/500kbps

SAE J2411 (GM Single Wire CAN)

SAE J2610

ISO13400- DoIP

ISO 15765

ISO 14230- KWP 2K

ISO 9141-2

ISO11898-1CAN-FD

ISO 11898-3 (Fault Tolerant CAN)

GMW 3110 (GM LAN)

ISO11992-1DW CAN



PC Host Interfaces:



USB 2.0 - Type B Port

802.11 b/g/n WiFi

Ethernet 10/100



Other Interfaces:



Pin Voltage Measurement

Programming Voltage Generator

Internal Temperature Sensor

Wake up and Sleep Functions

IP54 Compliant

Power via DLC or USB Type-B Port



Packing List:

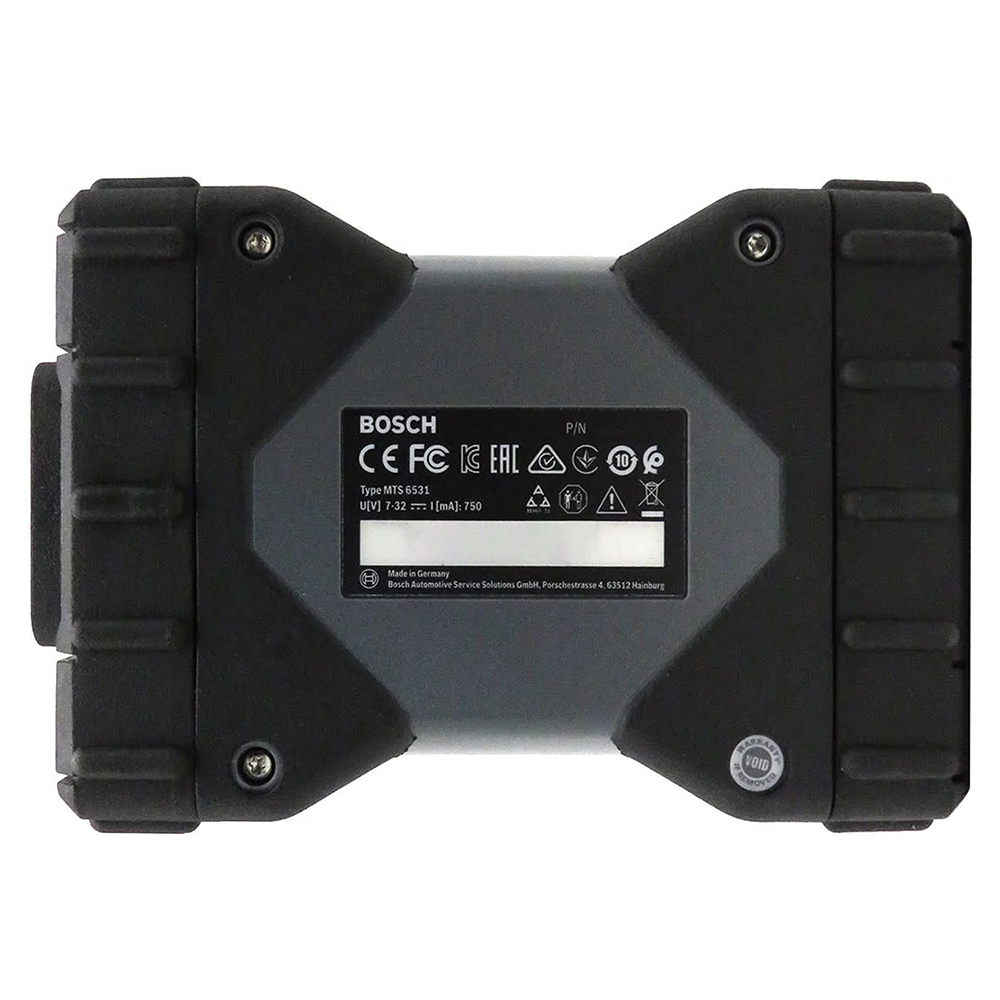

BOSCH MTS-6531 VCI (Part No.: 1699200338)

2m 16-Pin DLC Cable (Part No.: 1699200366)

3m Rugged USB Cable (Part No.: F00K108653)

3m Ethernet Cable (Part No.: 1684465811)

Wi-Fi USB Adapter (2 pcs) (Part No.: 1689989305)

Instructions & Quick Start Guide
