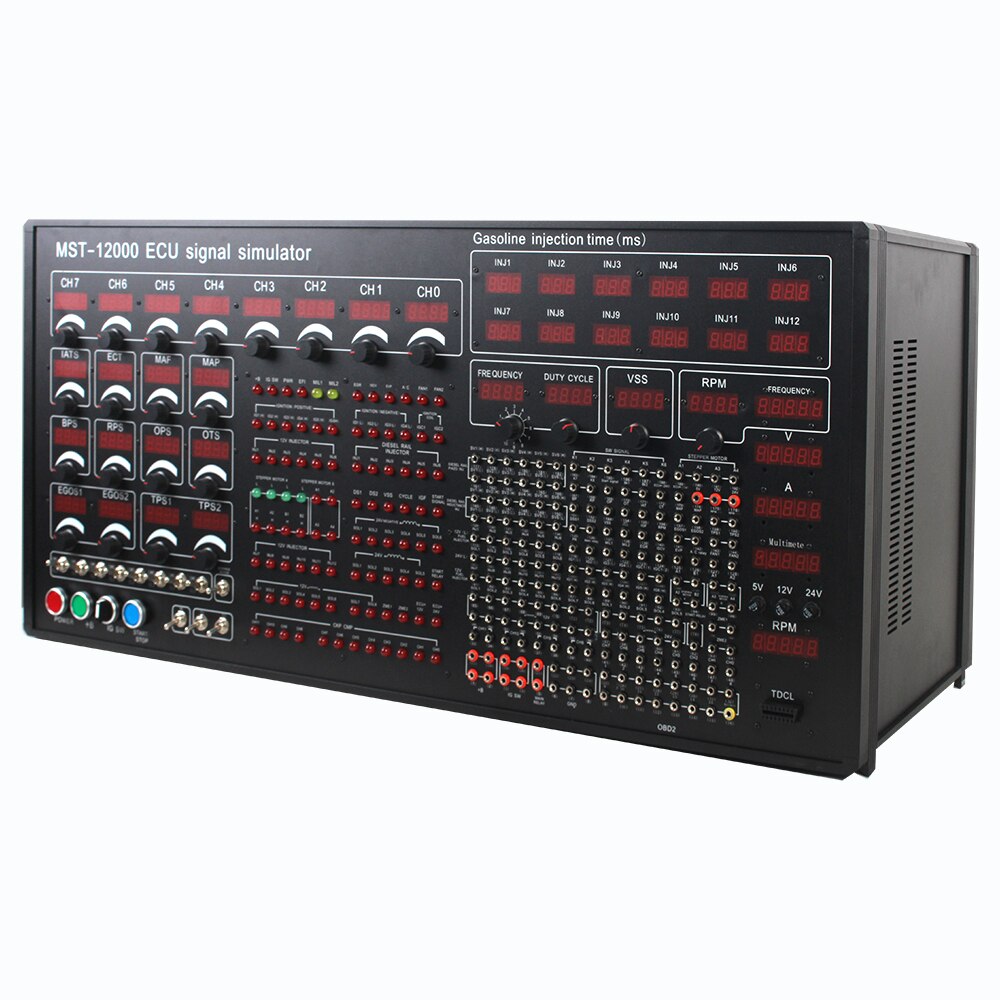

Name: MST-12000 Universal Automotive Test Platform and ECU Signal Simulation



Description:



MST-12000 Universal Automotive Test Platform and ECU Signal Simulation.



Highlights:



1. The all cars crankshaft signal simulation expert:

Twelve way set arbitrary waveform output, can produce all of current car engine crankshaft, camshaft signal (Hall, Magnetoelectric, Photoelectric Signal), waveform data will be pre-served by computer for long term.



2. All magnetoelectric crankshaft signal will be isolated by transformer, ensure no interference between signals.



3. The whole series of car sensor signal simulation expert:

The rotational speed signal, the speed signal (Hall, Magnetoelectric, Photoelectric Signal), the ABS wheel speed signal, oxygen sensor signal, throttle valve, the accelerator pedal signal, air flow meter, the intake pressure sensor (analog, digital), knock sensor etc signals simulation.



4. The all cars actuator drive expert:

Tachometer, odometer, blower control module, ignition module, frequency and pulse width control solenoid valve, car audio power amplifier.



5. The All cars actuator simulation expert:

Diesel common rail injector, rail pressure control valve, ignition coil, injector, idle stepper motor, ultrasonic generator, etc actuator simulation.



Functions:



The user can set crankshaft of different types according to different independent engine control system.



1). The signal output (applicable to all car models of computer driven)

2). Automatic transmission input/output shaft signal simulation

3). Set to write into the waveform data directly

4). Engine revolving speed signal output

5). The speed signal output (hall signals, magnetoelectric)

6). Three or four channel ABS wheel speed signal output

7). ECU working current test

8). EGR solenoid valve simulation

9). CANP canister purge solenoid simulation

10). Tachometer simulation and drive

11). Blower control module driver

12). Auxiliary air regulator simulation

13). Stepping motor simulation(Four/Six line)

14). Fuel injector simulation

15). Ignition coil simulation

16). The ignition module simulation

17). Reversing radar (ultrasonic) probe drive

18). The shift valve of automatic transmission simulation

19). Diesel injector simulation

20). Rail pressure regulator simulation

21). Shift quality valve simulation

22). Oil pressure regulating valve simulation

23). Water temperature, air temperature, outdoor temperature and evaporation temperature sensor signal simulation

24). Oxygen sensor signal simulation (manual)

25). The accelerator pedal double channel signal simulation

26). Throttle signal simulation

27). CANP canister purge solenoid simulation

28). Air flow meter, manifold Absolute Pressure Sensor (analog, digital) signal simulation

29). Brake switch simulation

30). Clutch switch simulation

31). A\C request signal simulation

32). A\C relay simulation

33). Fuel pump relay simulation

34). Radiator fan relay simulation

35). Audio signal output, power amplifier drive

36). Steering pressure switch simulation

37). Fuel injection pulse width measurement

38). Central door lock server simulation

39). Anti theft resistance simulation

40). Knock sensor signal simulation

41). ECU working current test

42). User extensional functions



Parameters:



1. Can set the waveform output: It can set twelve channels waveform output arbitrary, can simultaneously output crankshaft 1 º angle signal, the signal of cylinder detection, TDC of cylinder 1 signal, camshaft signal, phase precision. This machine is applied to crankshaft and camshaft signal simulation of all vehicles worldwide; also applies to the crankshaft and camshaft signal input, output simulation, and all of the automatic transmission input, output shaft signal simulation; ABS three or four channel wheel speed signal simulation; computer set the waveform, and waveform can be long-term preservation;



2. Output signals: magnetoelectric signals, hall, photoelectric signal;



3. Duty cycle drive: duty cycle 1 ~ 99% continuous adjusting, frequency of 11 files regulation



4. The sensor signal simulation: resistance of 100 ~10000 Ohm, voltage 0V~5V * 40V~1.5V



5. Actuator drive simulation: 69 channel output simultaneously



Applications:



1. Automobile sensor dynamic diagnosis, automobile engine, transmission, ABS, air conditioning, anti theft and other computer repair, auto teaching AIDS model driven, automobile production development;



2. The utility model is suitable for Germany, the United States, Japan, South Korea, and other domestic mini models etc hundreds of models.

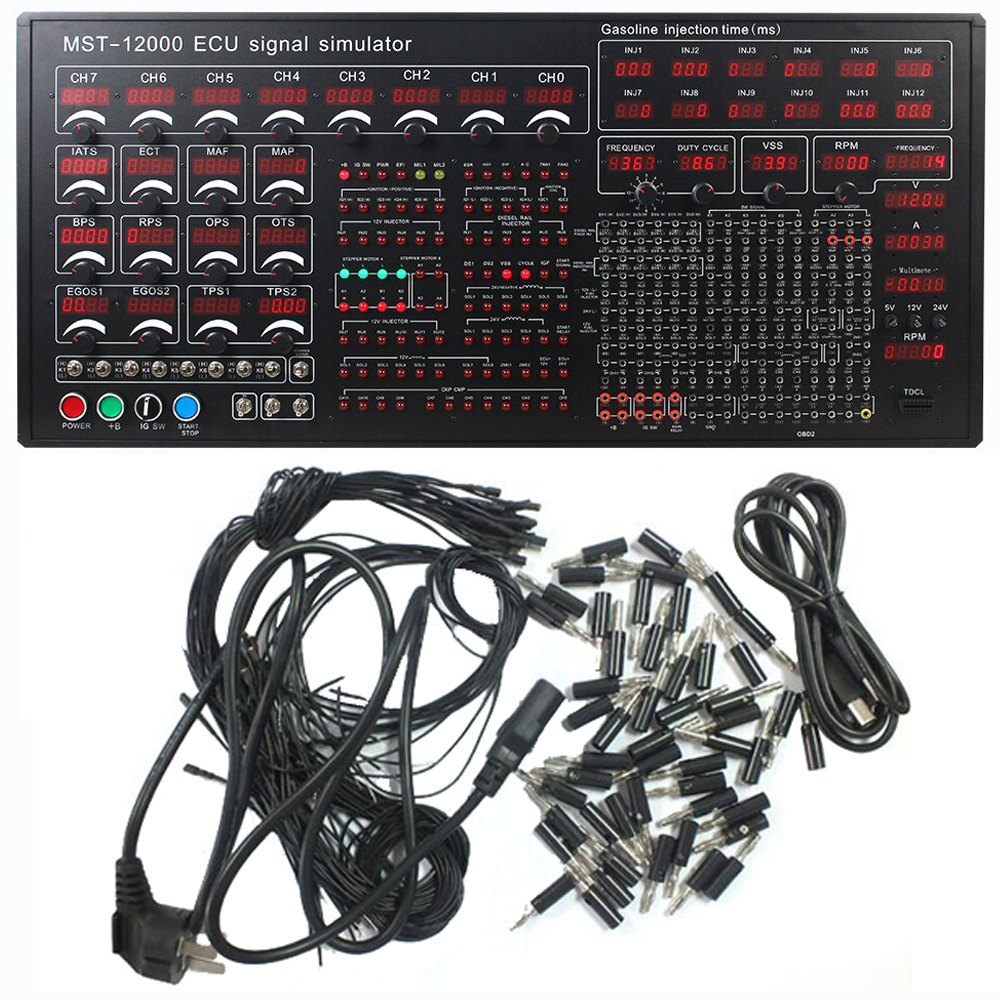

Packing List:



MST 2000 ECU Signal Simulator

USB cable

Connection cable(60 pcs)

Power cable

Software CD
