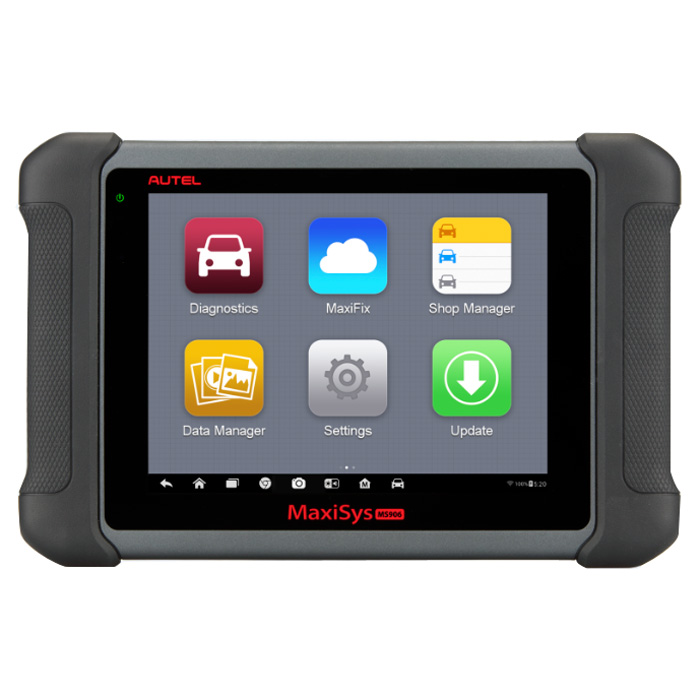

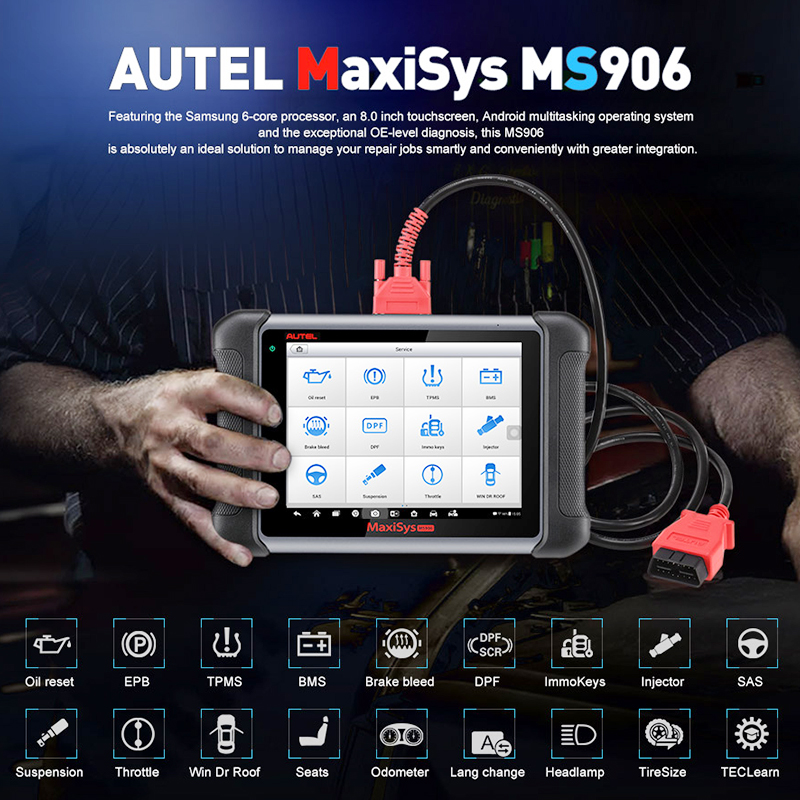

Name: Autel MaxiSys MS906

Description:

Autel MaxiSys MS906 Auto Diagnostic Scanner is updated generation of Autel MaxiDAS DS708 and it has better functions than Autel MaxiDAS DS708 with a larger Display and faster running speed.

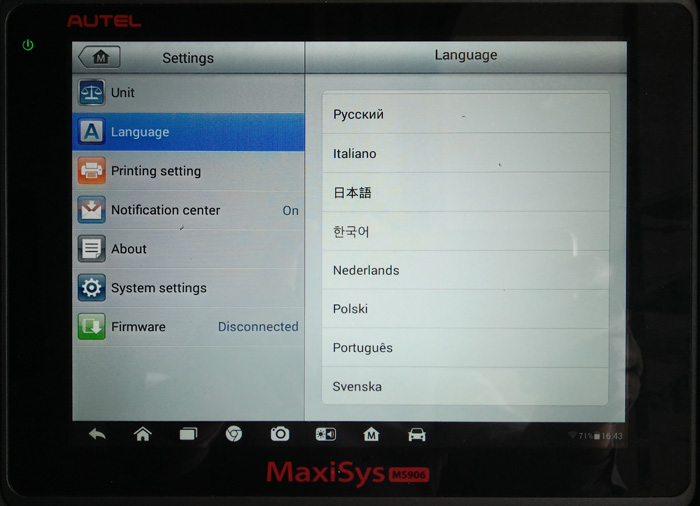

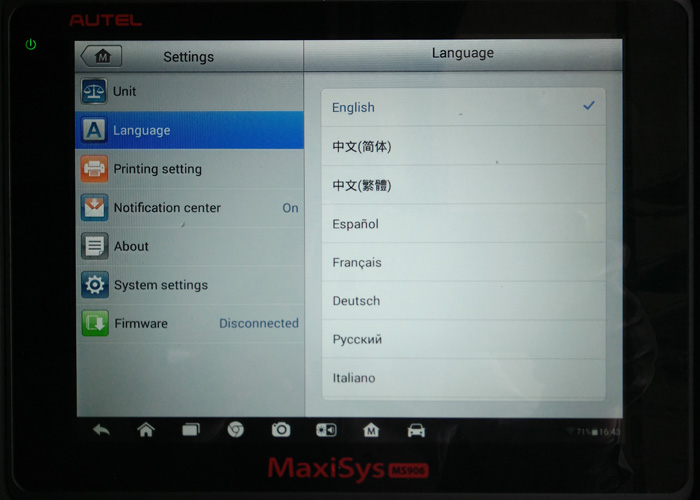

Operation Menu Supported Languages:

English, Spanish, French, German, Japanese, Portuguese

Hardware:

1. Extraordinarily powerful Samsung Exynos Hexa-core processor
2. 8.0’ 1024*768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
3. Internal reliable 32GB SSD for better performance

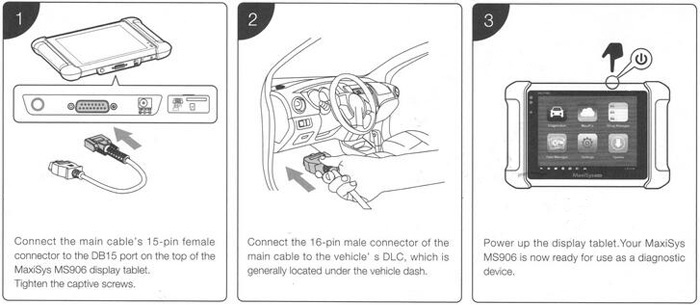

4. Extremely easy-to-use with integrated vehicle communication interface
5. Built-in 8-megapixel rear camera with autofocus and flashlight
6. 802.11b/g/n Wi-Fi to access your favorite web resources
7. Unique ergonomic design with rubberized outer protection and a rugged internal housing
8. Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation

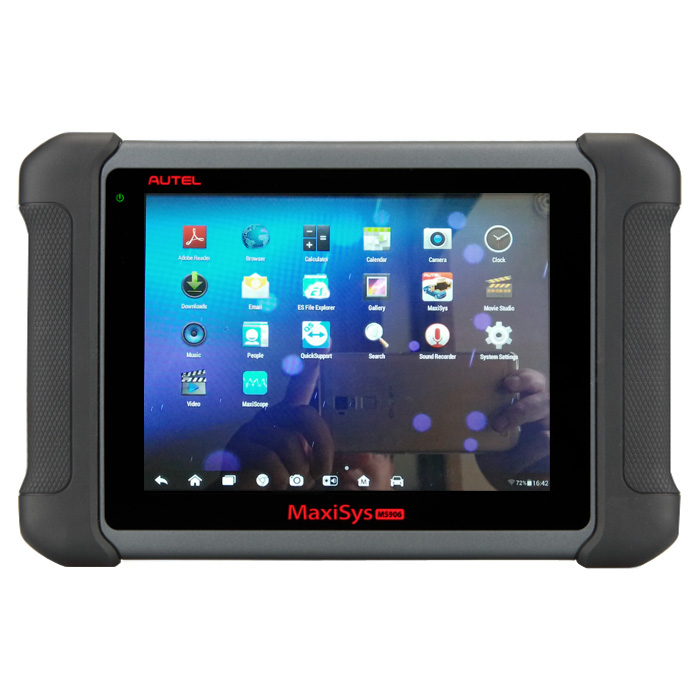

9. Open source Android Operating System for fast boot-up and multitasking
10. Easy and intuitive navigation makes finding what you need simple and fast

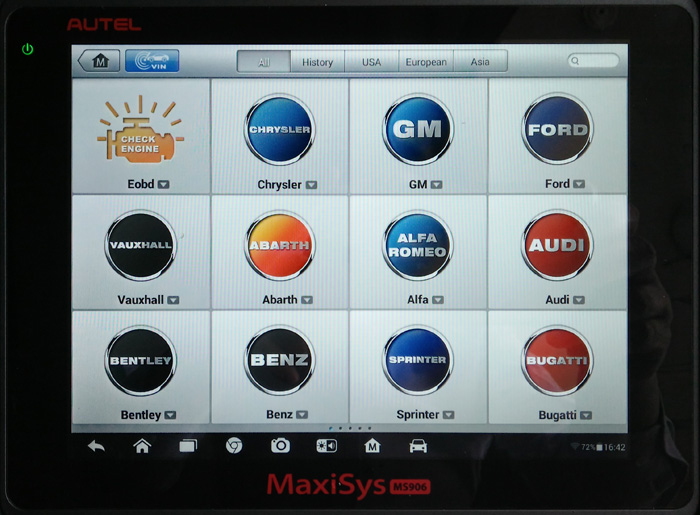

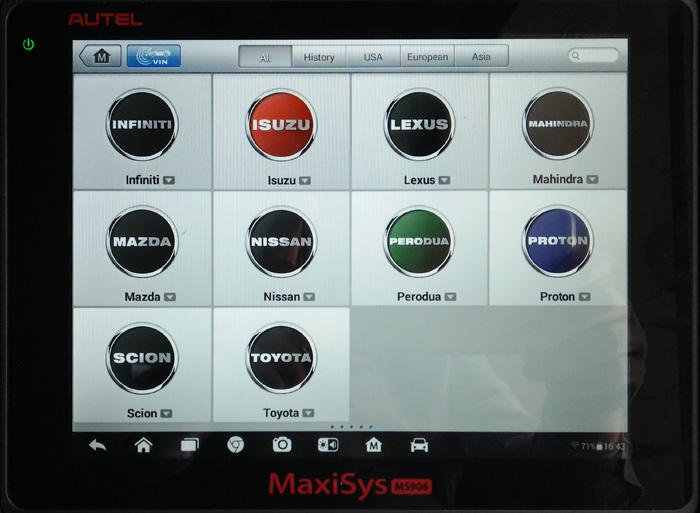

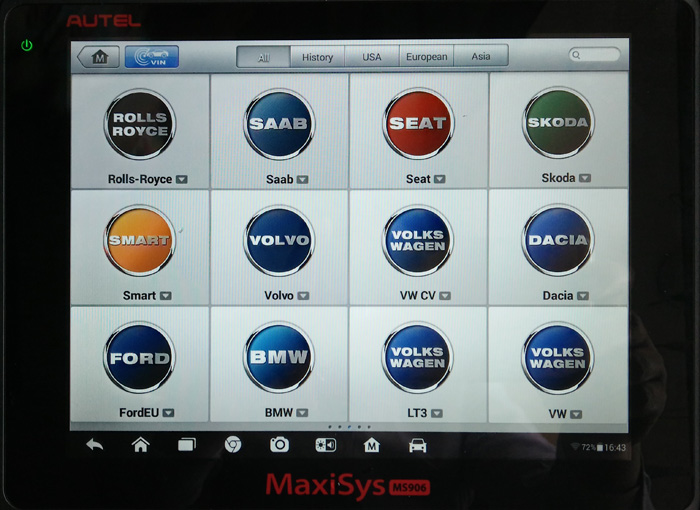

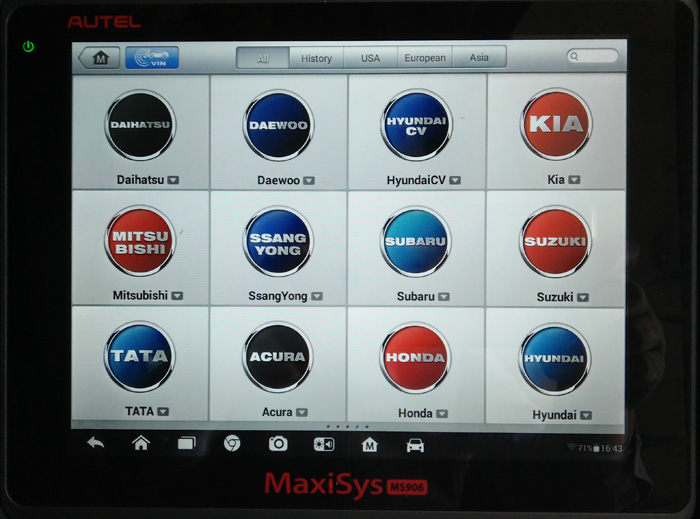

11. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
12. Exceptional OE-Level system coverage for all electronic systems
13. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
14. Smart AutoVIN technology for identifying vehicles easily
15. Automatic system and software updates with real-time push message notifications via Wi-Fi
16. Instant remote control tech support anytime, anywhere
17. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
18. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
19. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
20. Convenient data management system for managing internal program applications and reviewing data

Software:

1. Open source Android Operating System for fast boot-up and multitasking.
2. Easy and intuitive navigation makes finding what you need simple and fast.

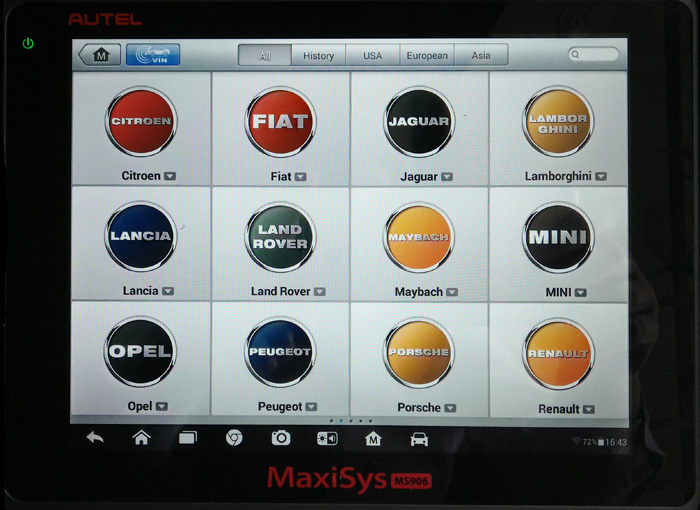

3. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.

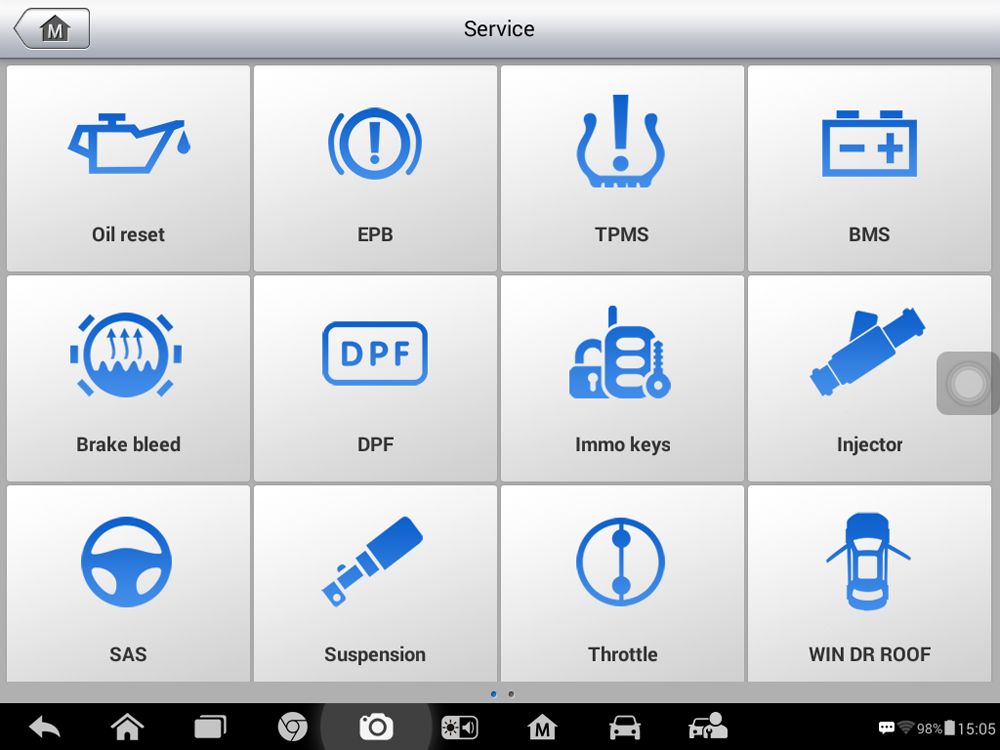

4. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding.
5. Displays live data in text, graph, analog and digital gauge for easy data review and analysis.
6. Configures display options, sets triggers, records and playbacks results with one touch.
7. Records and playbacks live data to pinpoint troubles of sensors and components.
8. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
9. Remote technical support for convenient demonstration, training and increased customer satisfaction.
10. Prints out recorded data anytime and anywhere with Wi-Fi technology.
11. Automatic Wi-Fi updates available when new software releases.

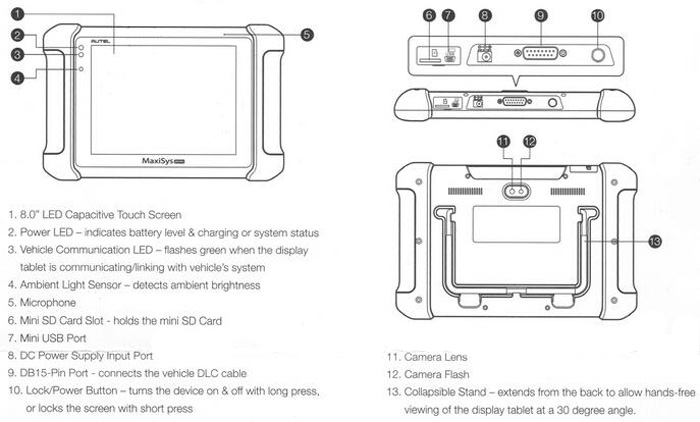

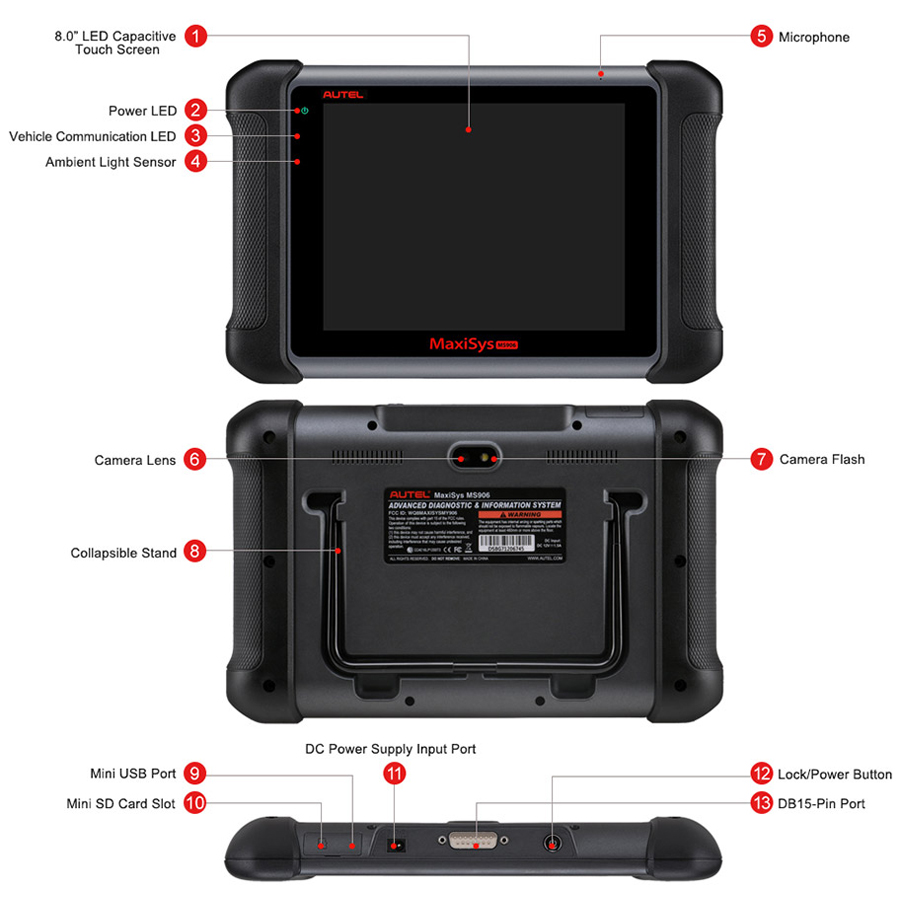

Specifications:

Operating System: Android™ 4.4.2, KitKat
Processor: Samsung Exynos 6-Core Processor (1.3GHz quad-core ARM Cortex-A7 + 1.7GHz dual-core ARM Cortex-A15)
Memory: 2 GB RAM & 32 GB ROM
Display : 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity: Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Single Speaker
Power and Battery: 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage: DC 12V (9-35V)
Power Consumption: 5W
Operating Temperature: -10 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade

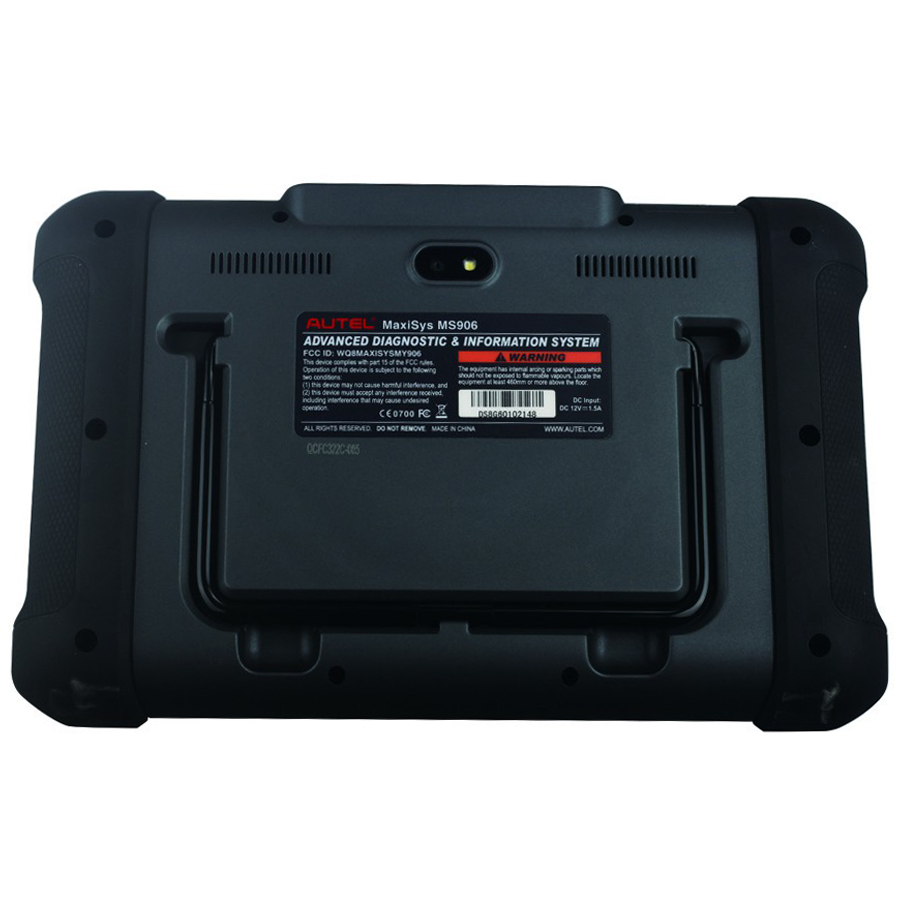

Housing: Rubberized outer protection and rugged internal housing
Dimensions (W*H*D): 270.8 *176*36mm
Net Weight: 0.96Kg

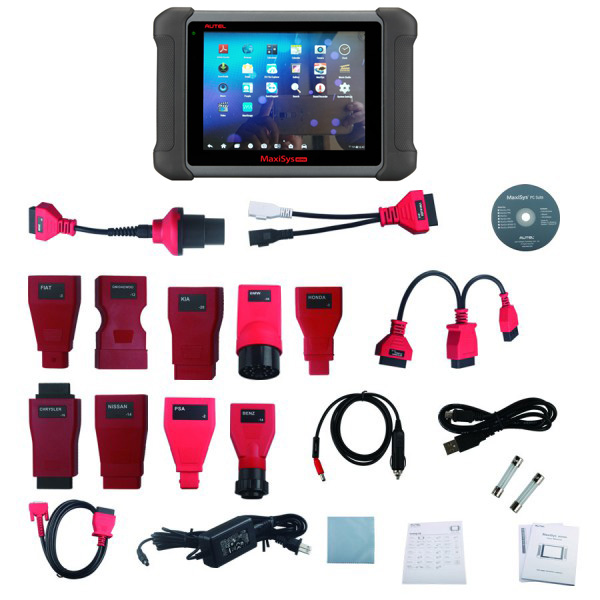

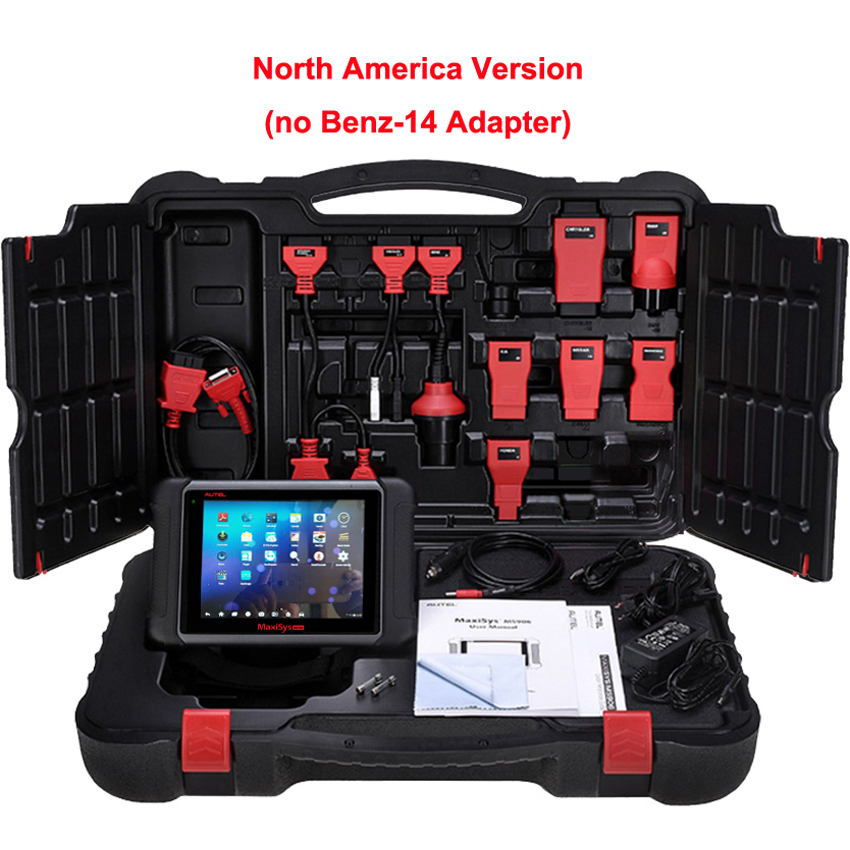

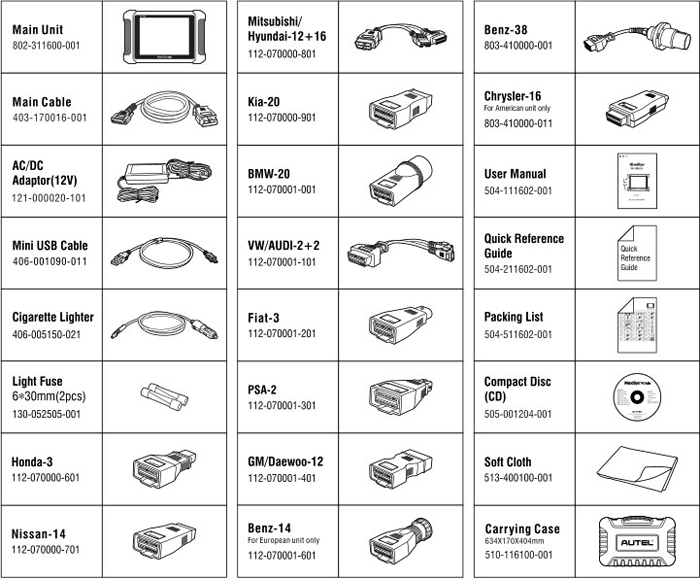

Packing List:

Autel MaxiSys MS906
Main Cable
Adapter for Kia-20
Adapter for Mitsubishi/Hyundai-12+16
Adapter for Nissan-14
Adapter for Honda-3
Adapter for VW/Audi-2+2
Adapter for GM/Daewoo-12
Adapter for PSA-2
Adapter for Fiat-3
Adapter for BMW-20
Adapter for Benz-38

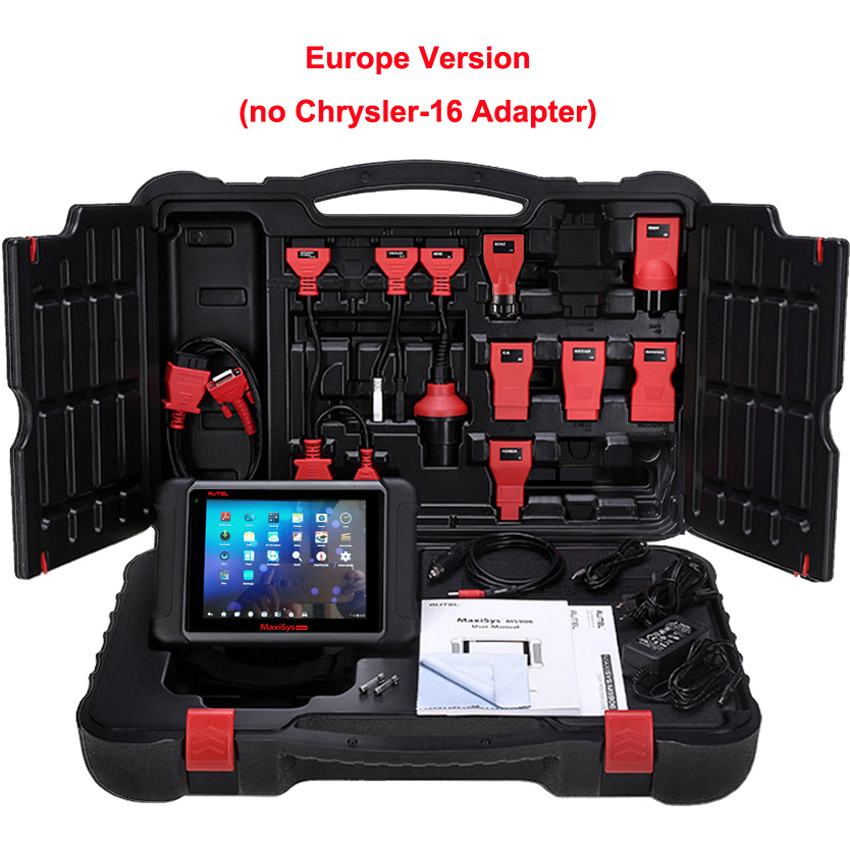

Adapter for Benz-14 (for EU only)
Adapter for Chrysler-16 (for NA only)
Cigarette Lighter
Light Fuse
AC/DC external power adapter
Quick reference guide
Compact disc (CD)
User manual
Soft cloth
Packing list

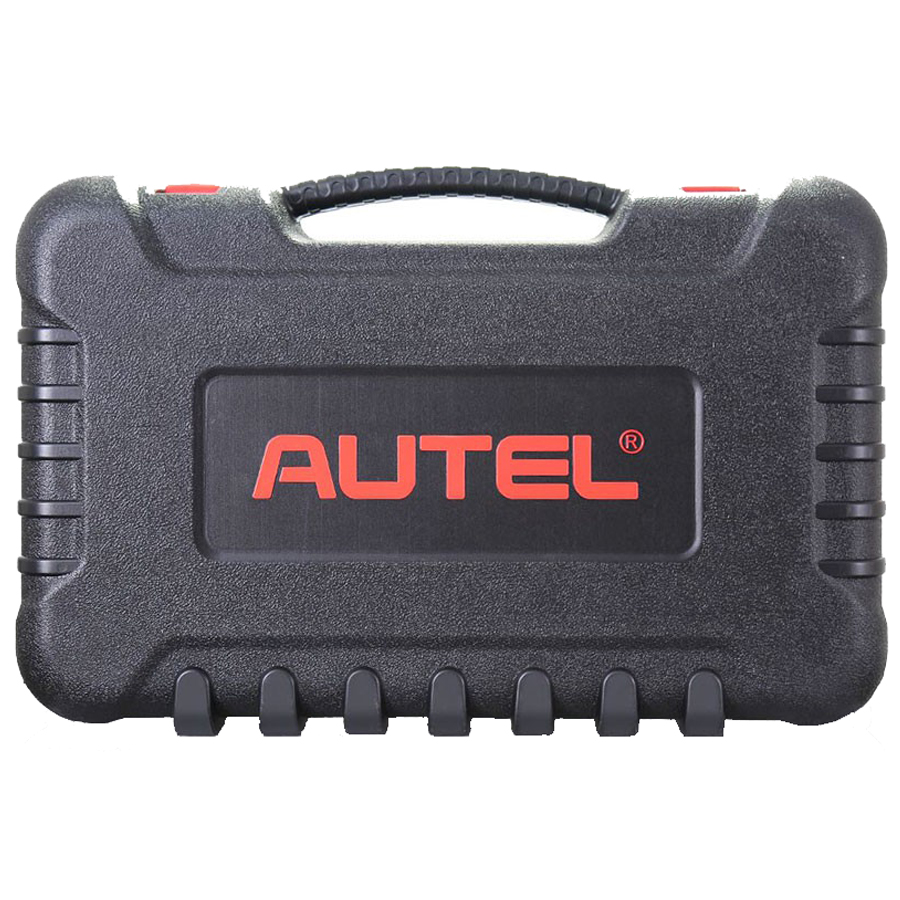

Carrying case
