Name: Autel TESKIT Tesla Diagnostic Cables
Description:
Autel Diagnostics Cable Kit for Tesla S and X models. This kit of 3 cables enable Autel MaxiSys tablet scanner users to connect with Tesla S and X vehicles to activate factory mode and perform system diagnostics.
Autel TESKIT Tesla Diagnostic Adapter Cables is compatible with Autel MaxiSys Ultra, MS919, MS909, Elite, Elite II, MS908S, MS908S Pro, MS906BT, MS906TS, MS906S, MS906, MS906 Pro, MS906 Pro-TS, D1 Pro.
Supported Models: Tesla S and Tesla X

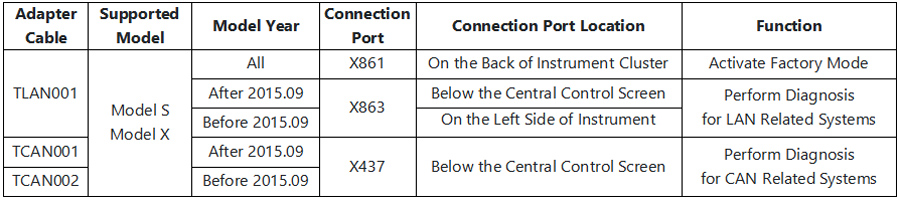

Functions:

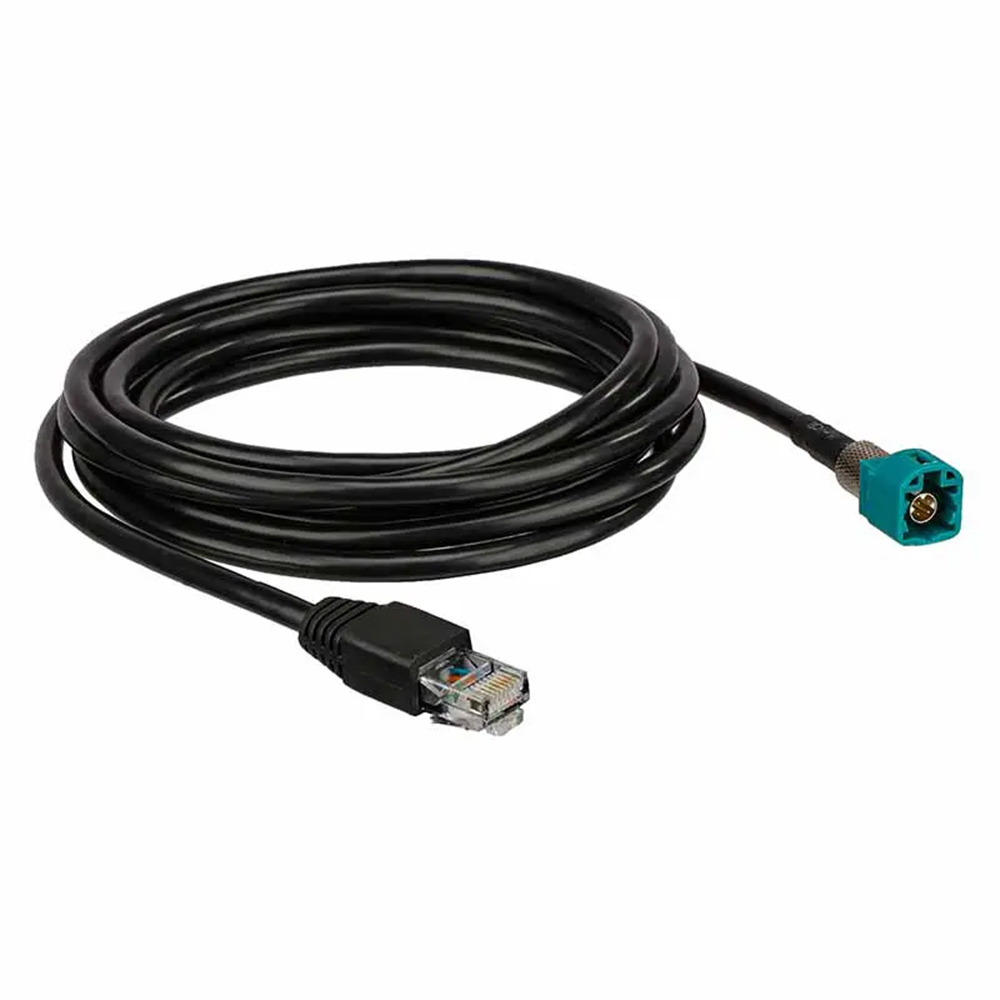

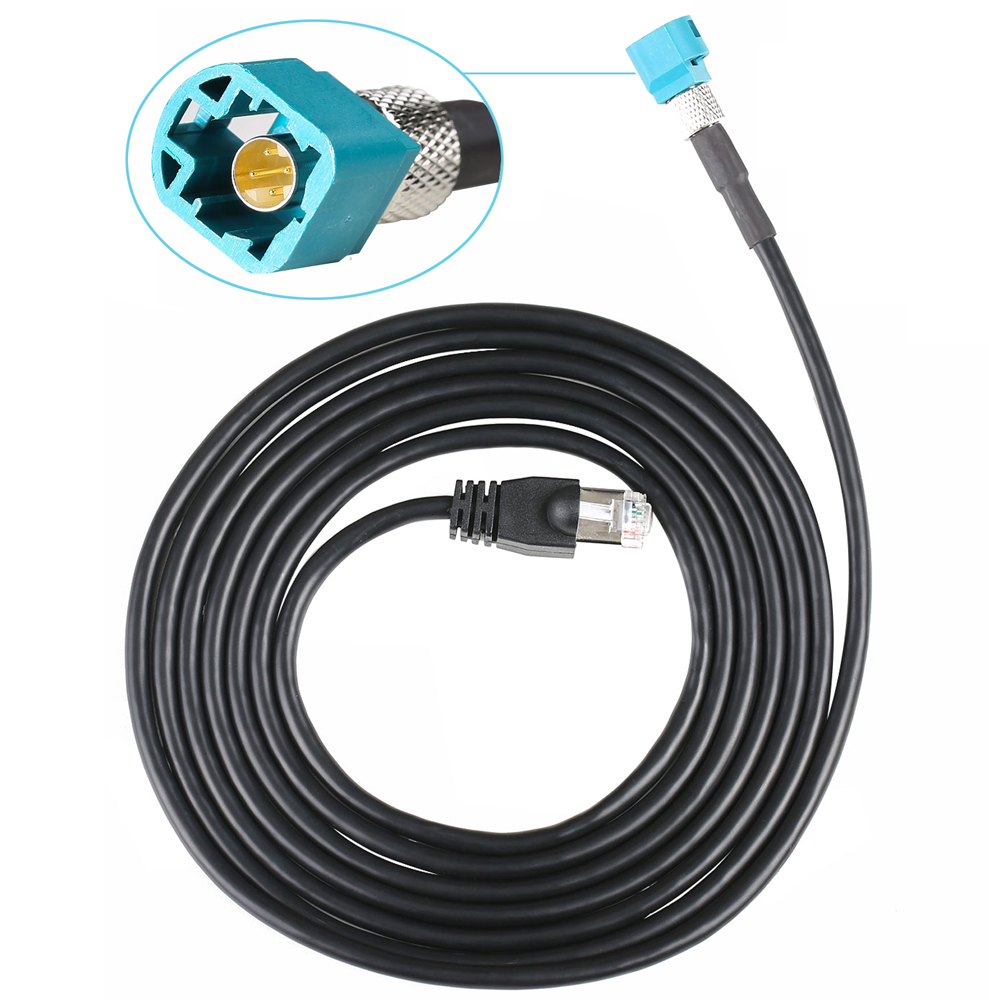

TLAN001 Cable
Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled).
Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015.09 vehicles.
Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015.09 vehicles.

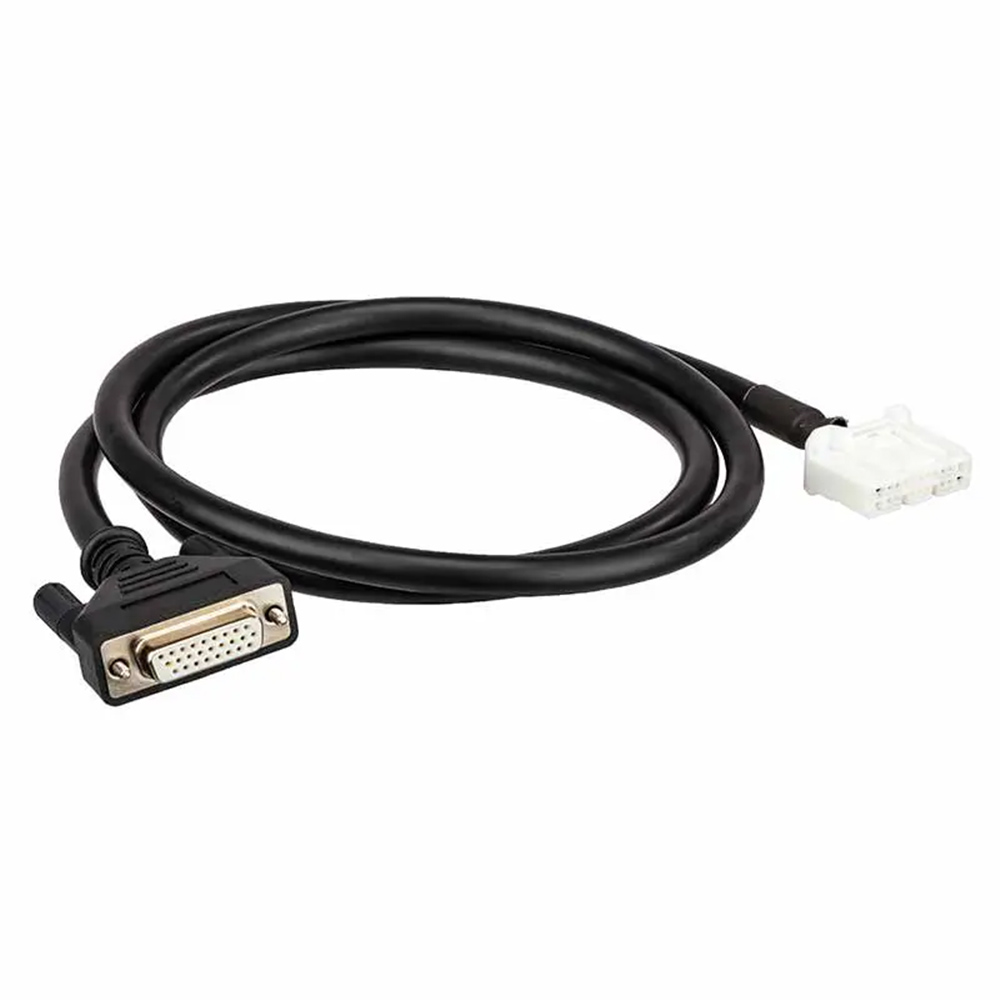

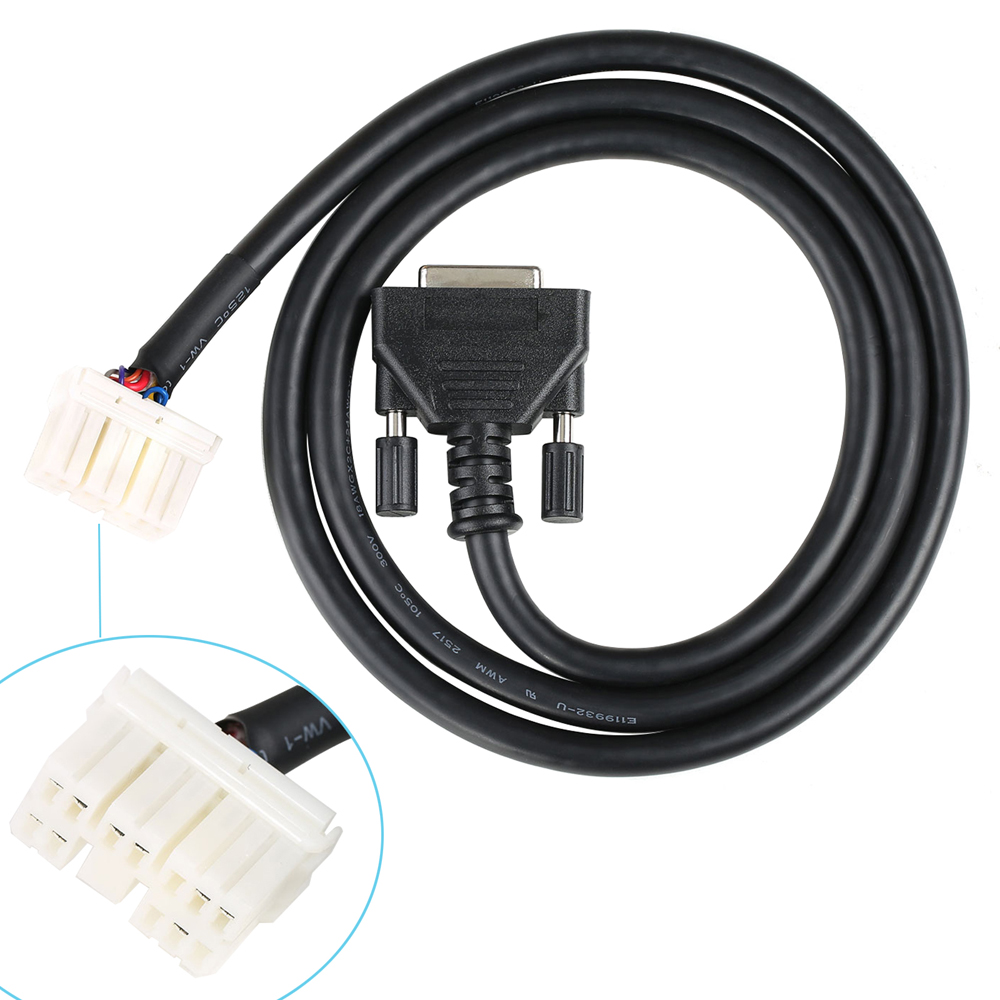

TCAN001 Cable
Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015.09 vehicles.

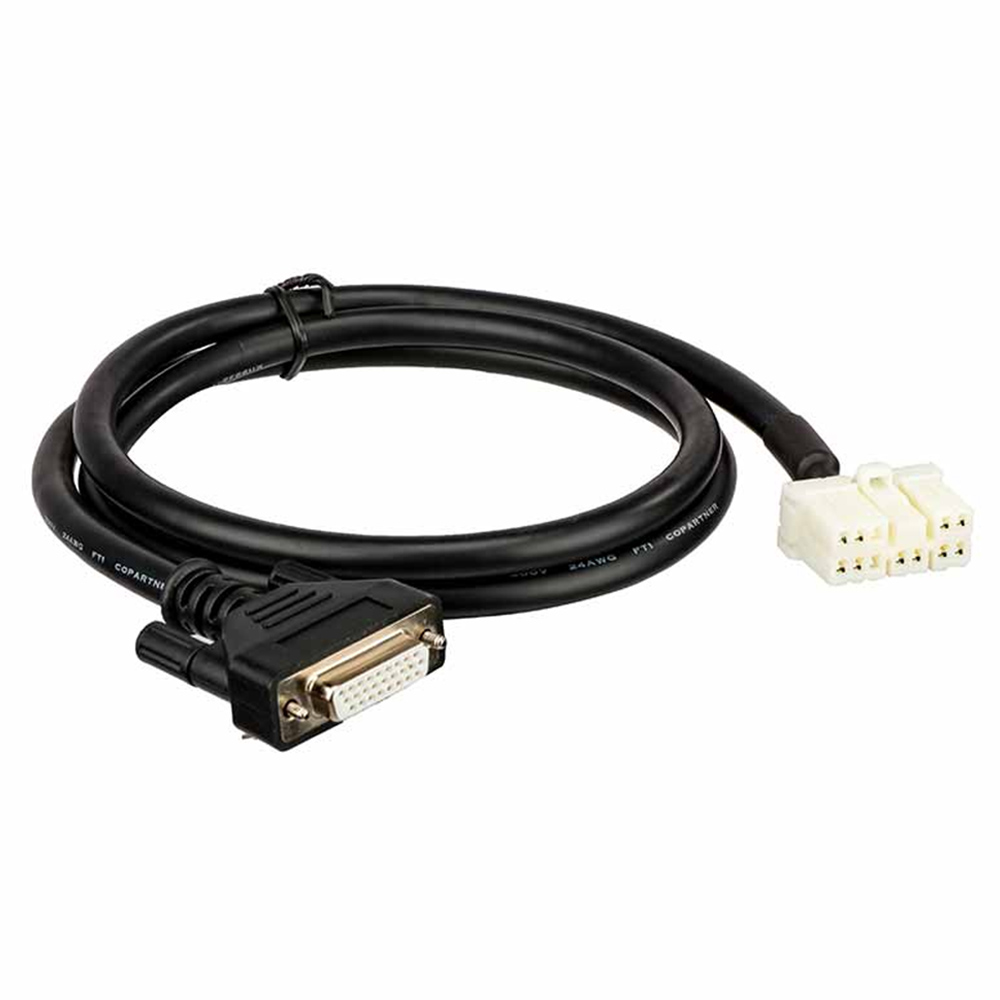

TCAN002 Cable:
Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015.09 vehicles.

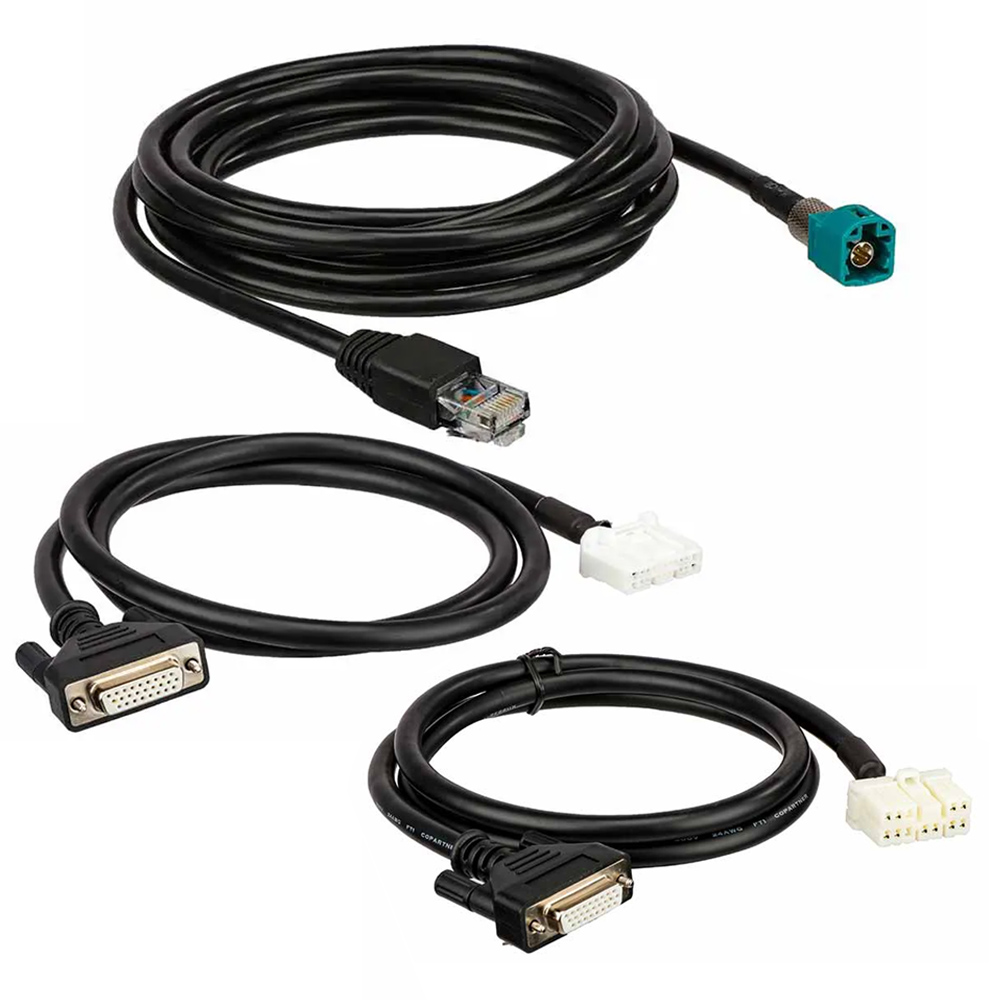

Packing List:
TLAN001 Cable
TCAN001 Cable
TCAN002 Cable
Packing Box
 |
