Name: Autel MaxiSys MS906BT

Description:

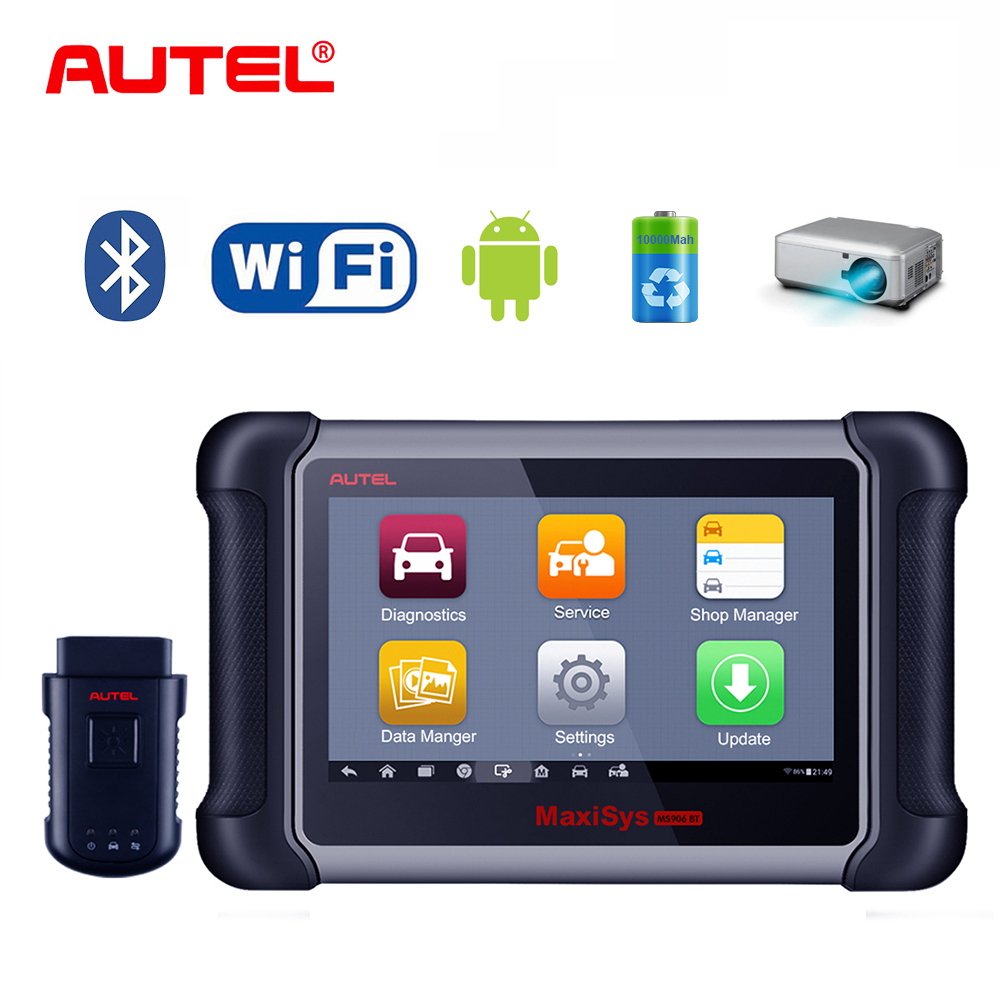

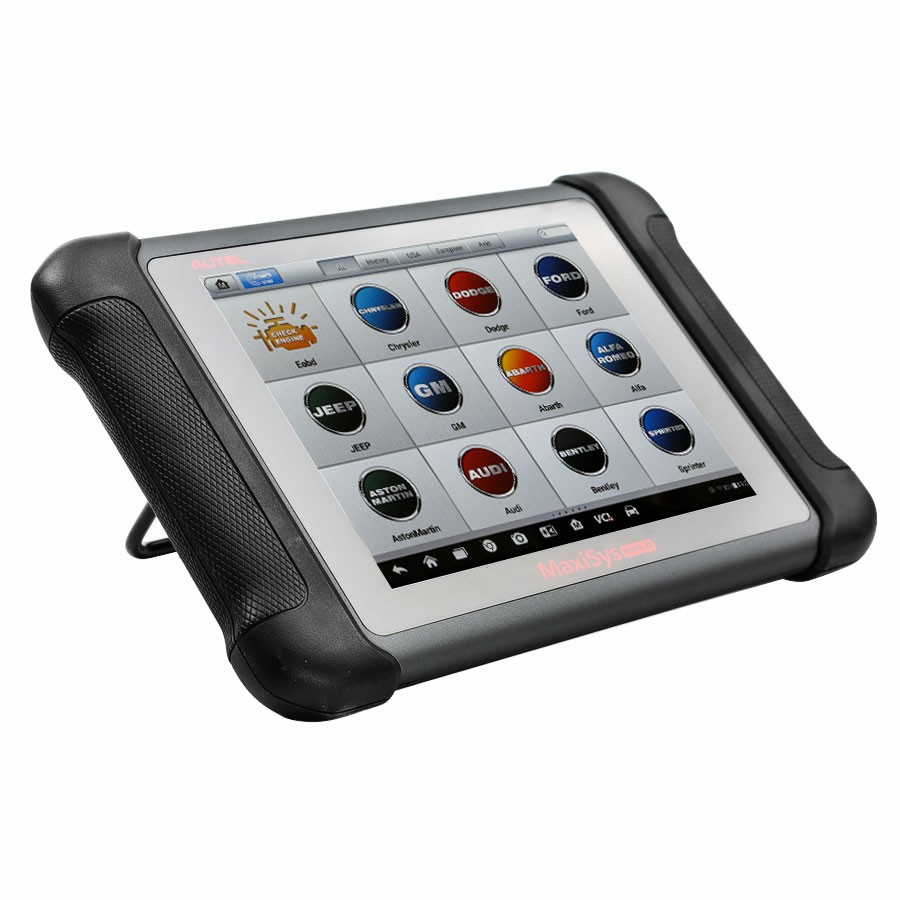

Autel MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8 inch capacitive HD touch screen, and long-distance wireless communication, the Autel MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.

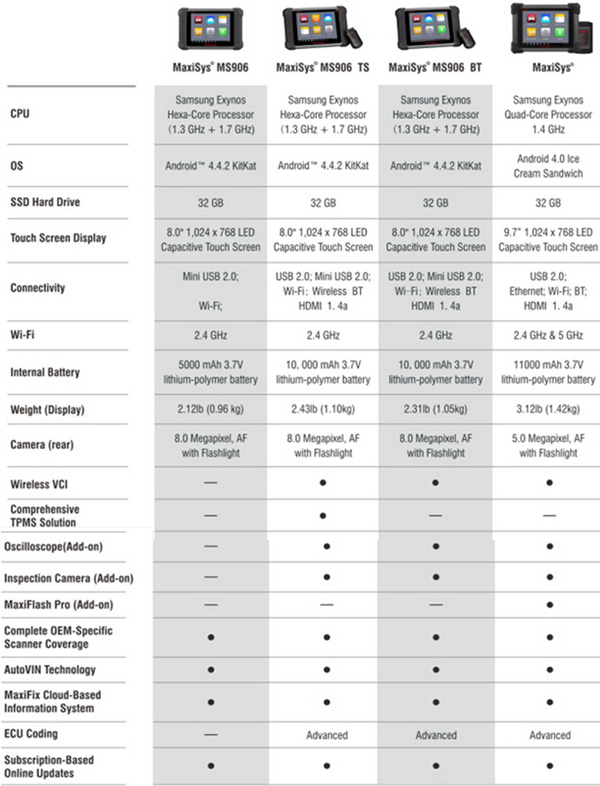

Comparison between Autel MS906BT and Autel MS906:

1. MS906BT supports Bluetooth, allowing diagnosis wirelessly.
2. MS906BT diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops.
3. MS906BT supports oscilloscope and digital inspection camera add-ons which are not supported by MS906.
4. Finally, MS906BT has the capability to perform coding for covered vehicles.
5. MS906TS is added TPMS function based on MS906BT.

Features:

1. Extraordinarily powerful Samsung Exynos Hexa-core processor
2. 8.0 inch 1024*768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
3. Internal reliable 32GB SSD for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. 802.11b/g/n WiFi to access your favorite web resources
6. Unique ergonomic design with rubberized outer protection and a rugged internal housing
7. Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation

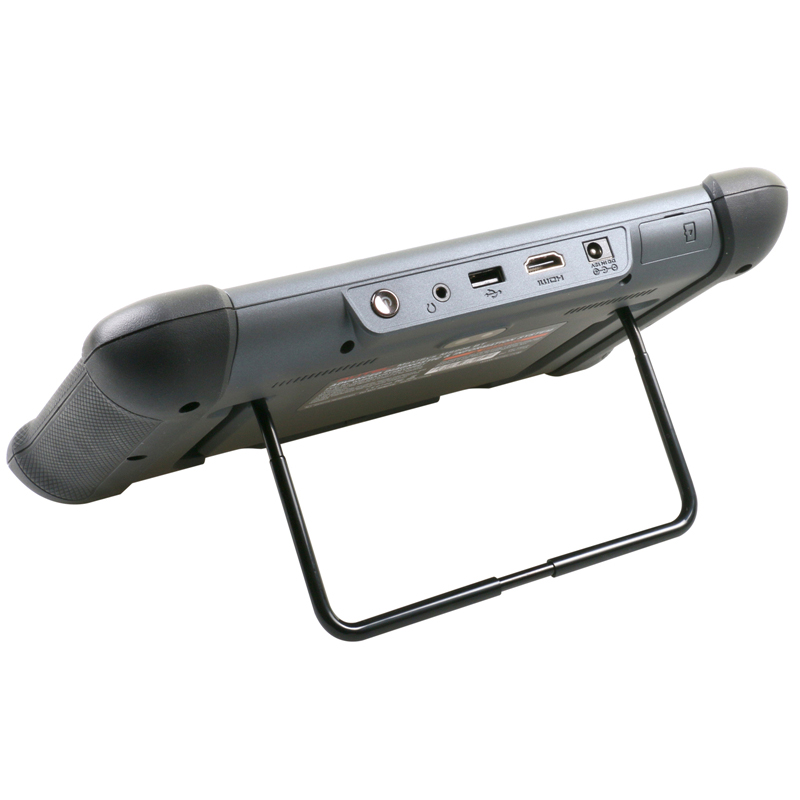

8. USB, audio and auxiliary ports make it easy to connect accessories

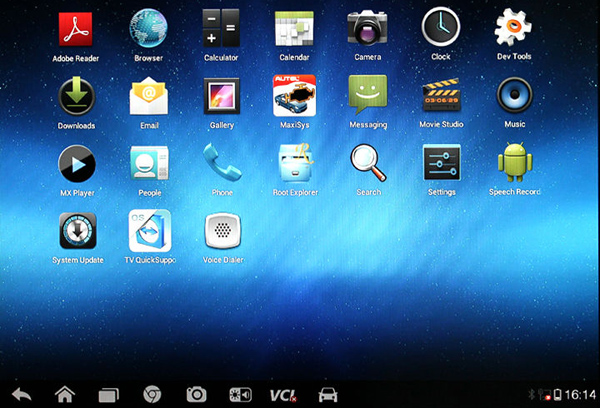

9. Open source Android Operating System for fast boot-up and multitasking
10. Easy and intuitive navigation makes finding what you need simple and fast

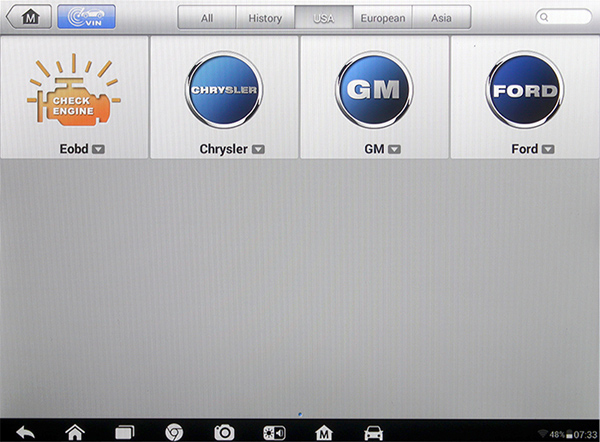

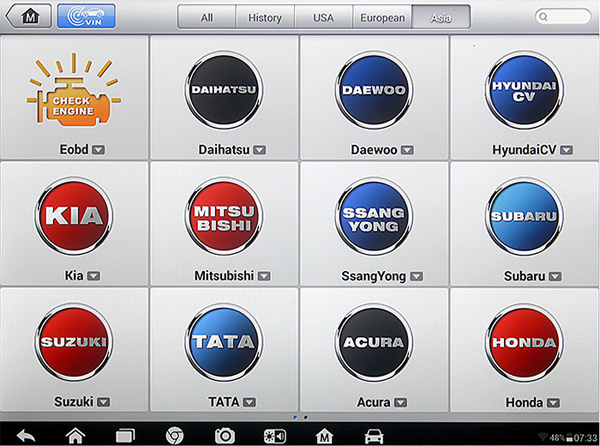

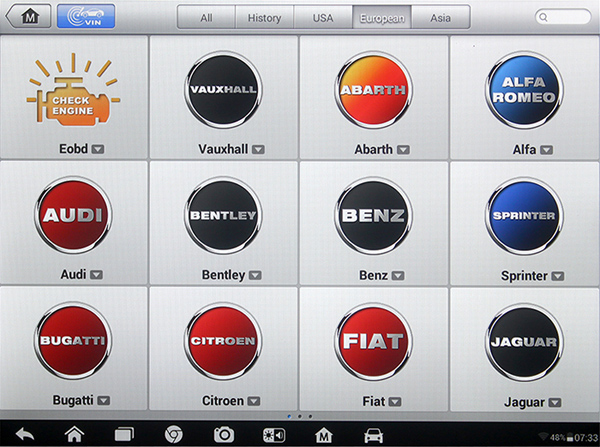

11. The most extensive complete system coverage for more than 80 US, Asian and European makes and models

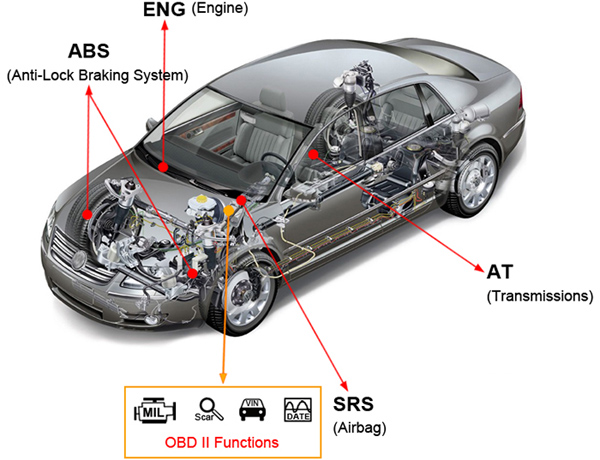

12. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
13. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.

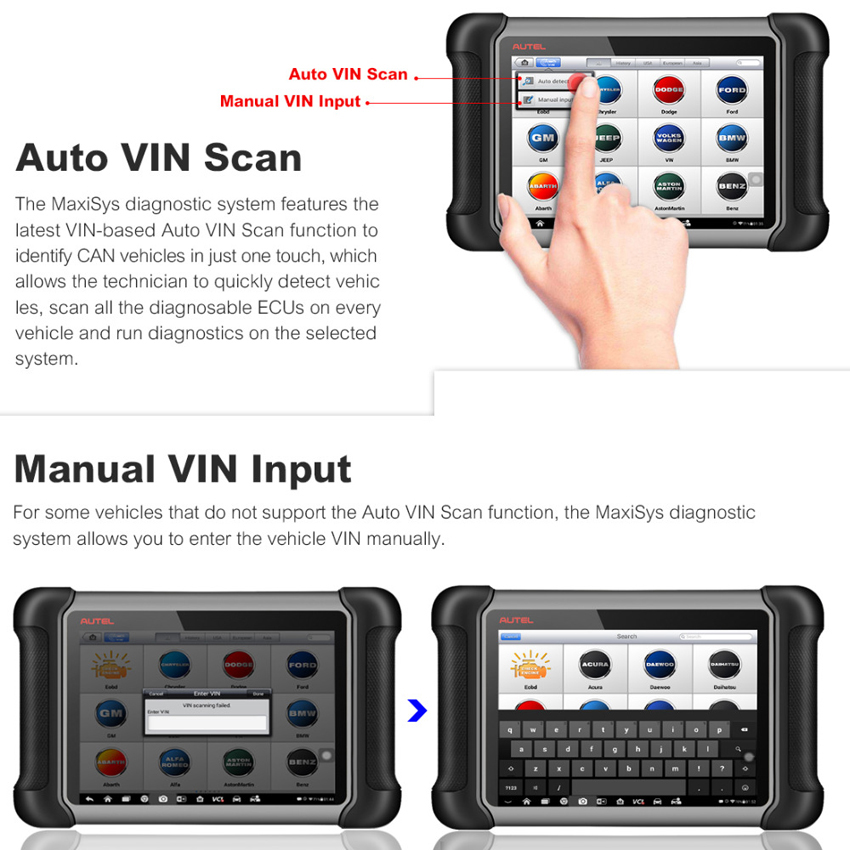

14. Smart AutoVIN technology for identifying vehicle easily
15. Automatic system and software updates with real-time push message notifications via internet
16. Instant remote control tech support anytime, anywhere
17. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
18. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
19. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

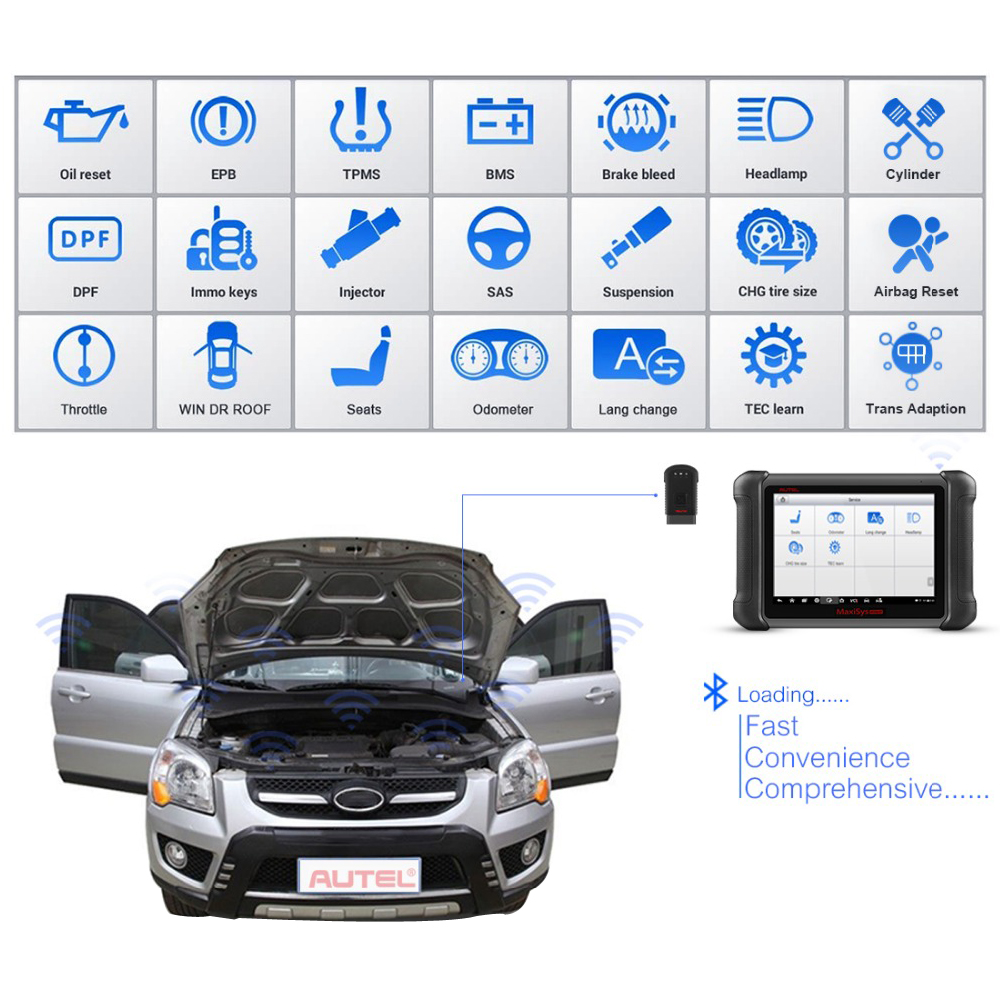

20. Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
21. Convenient data management system for managing internal program applications and reviewing data

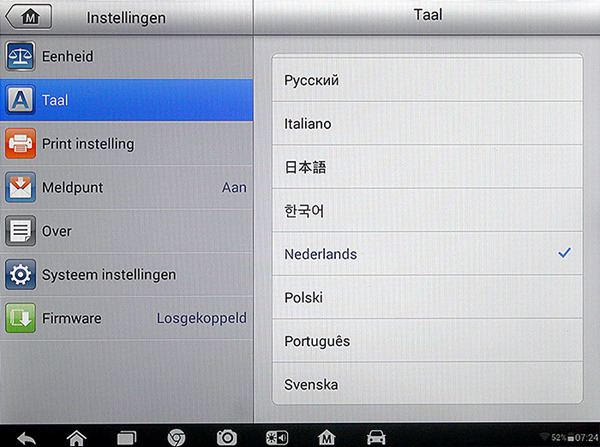

Supported Languages: English, Spanish

Specifications:

Operating System: Android 4.4.2, KitKat
Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory: 2 GB RAM & 32 GB ROM
Display: 8.0 inch LED capacitive touch screen with 1024x768P resolution

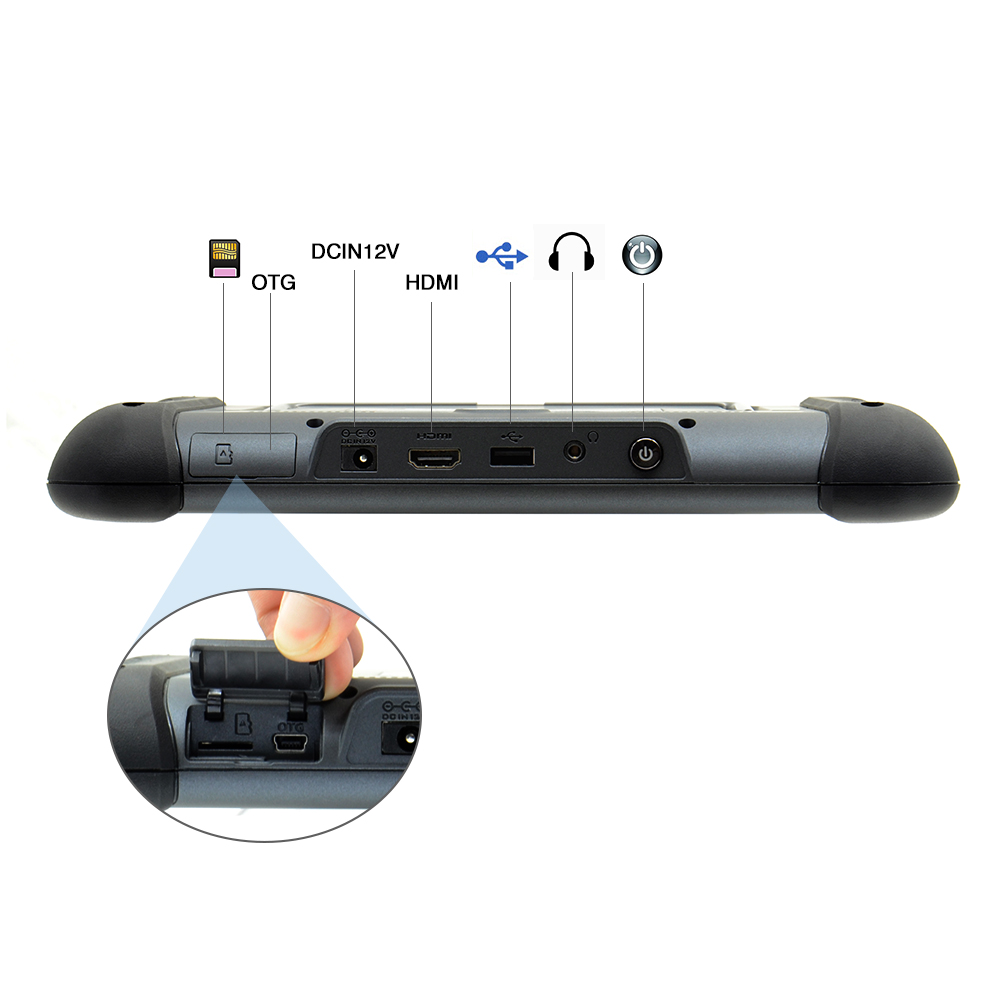

Connectivity: WiFi (802.11 b/g/n); USB: 2.0; Mini USB 2.0; Wireless BT V2.1+EDR; Class1; HDMI 1.4a; SD Card (support up to 32 GB)
Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Single Speaker; 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12V AC/DC power supply
Input Voltage: 12 V (9-35V)
Power Consumption: 5W
Operating Temperature : -10 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Dimensions (W*H*D): 270.8*176.0*36.0mm
Net Weight: 1.05 Kg

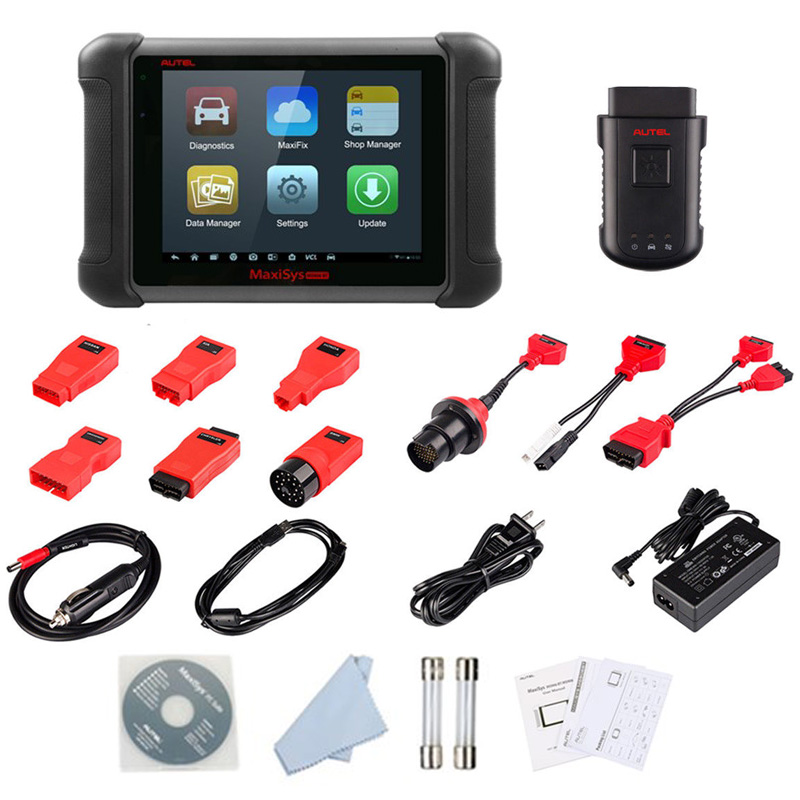

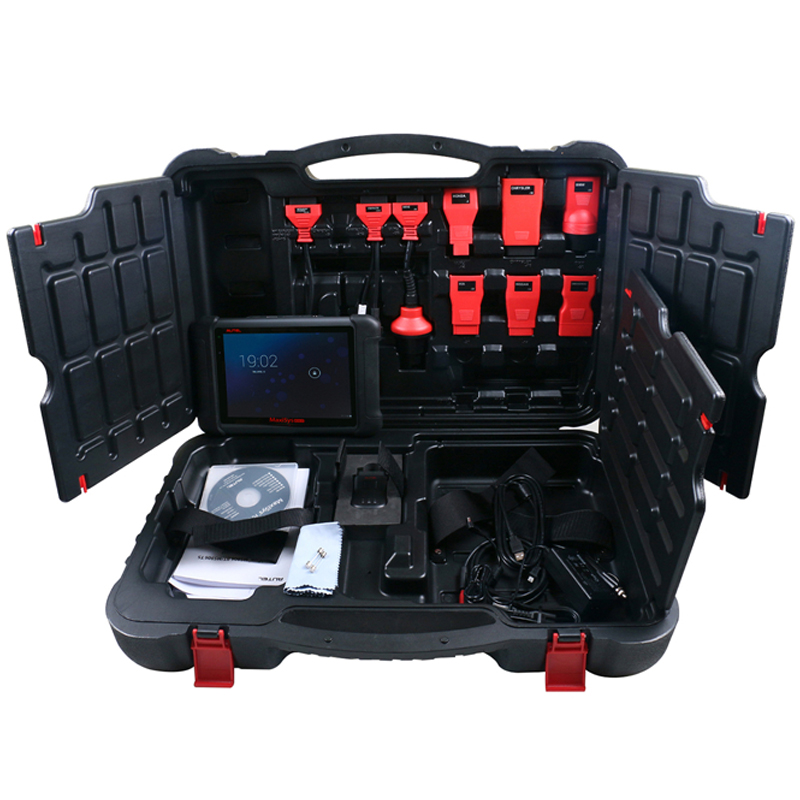

Packing List:

Autel MaxiSys MS906BT

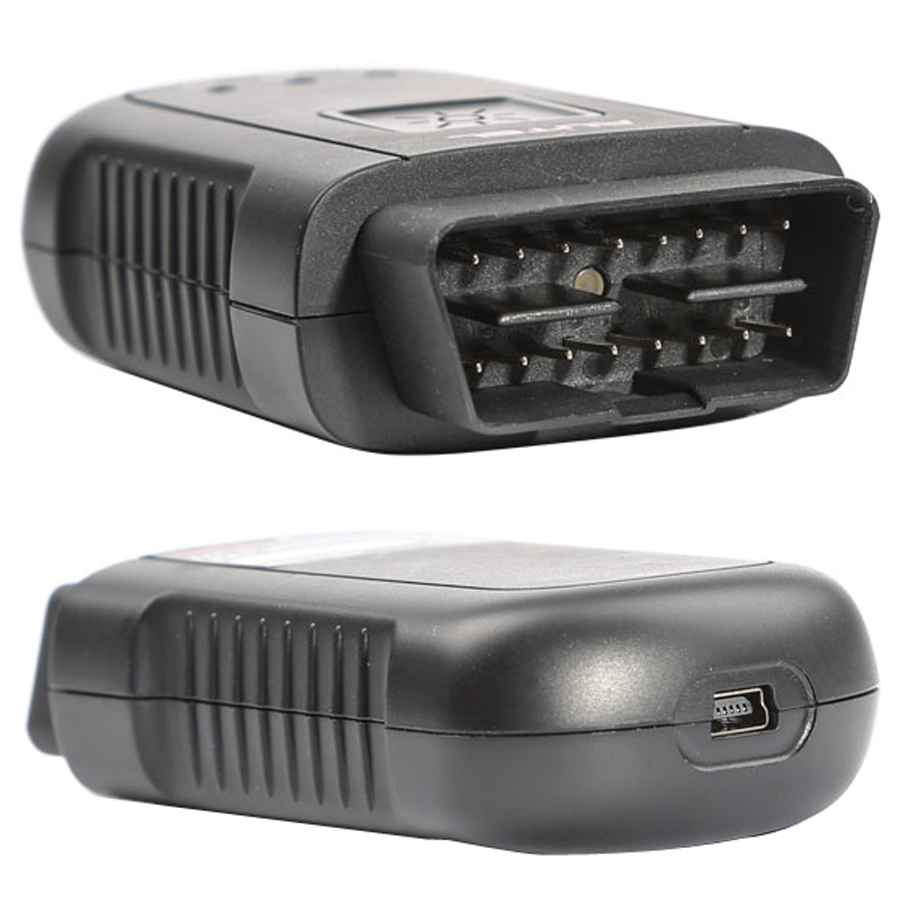

MaxiVCI V100
Mini USB Cable
Cigarette Lighter Cable
Adapter for BMW-20
Adapter for Benz-38
Adapter for Benz-14 (for EU only)
Adapter for Chrysler-16 (for NA only)
Adapter for VW/Audi-2+2
Adapter for GM/Daewoo-12
Adapter for Kia-20
Adapter for Mitsubishi/Hyundai-12+16
Adapter for Nissan-14
Adapter for Honda-3
AC/DC External Power Adapter
Light Fuse
CD
User Manual
Soft Cloth
Quick Reference Guide
Packing List
Carrying Case
