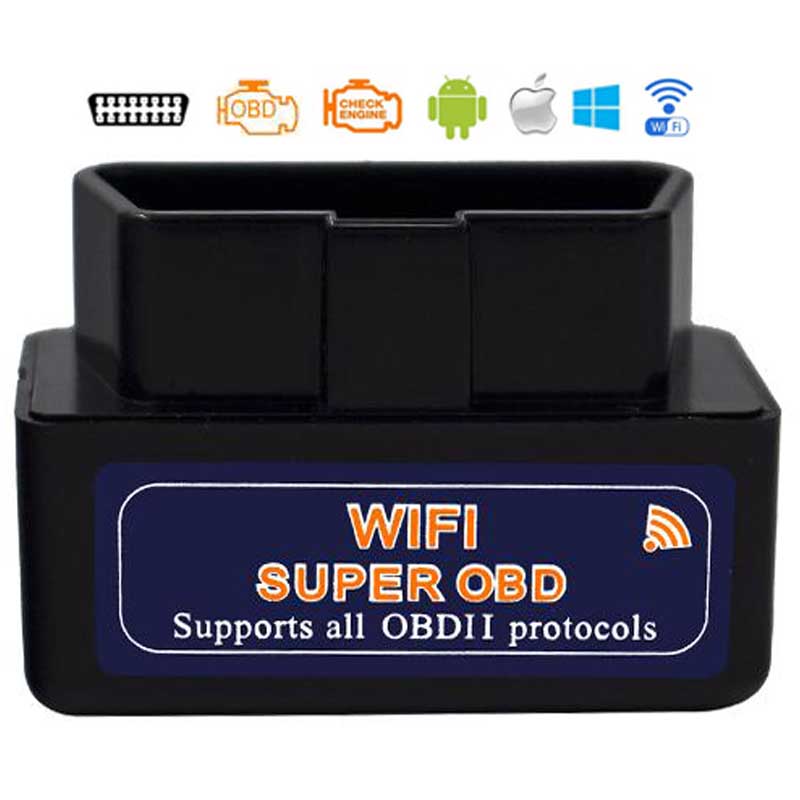

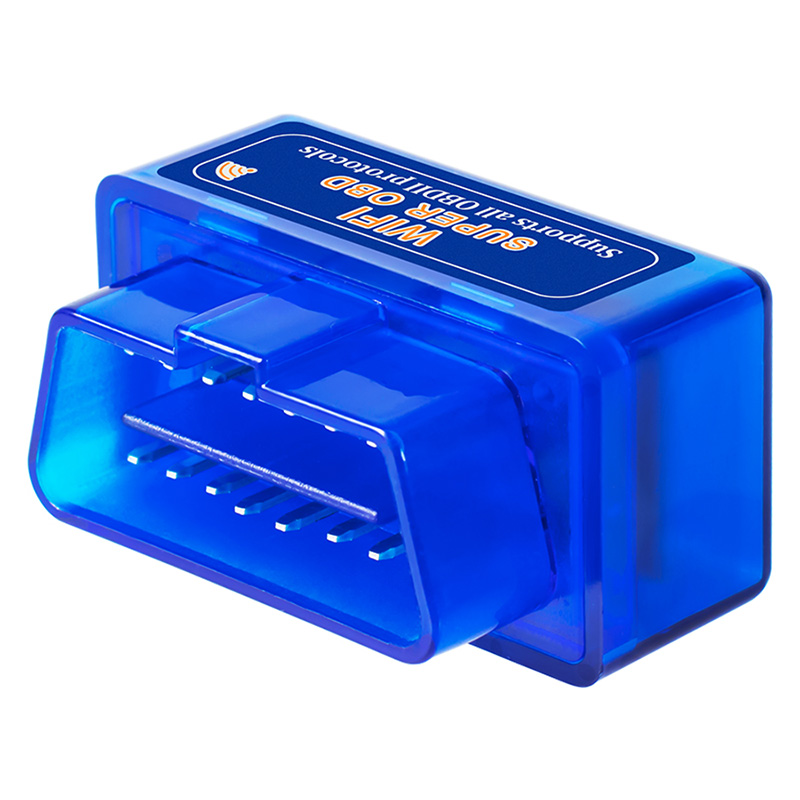

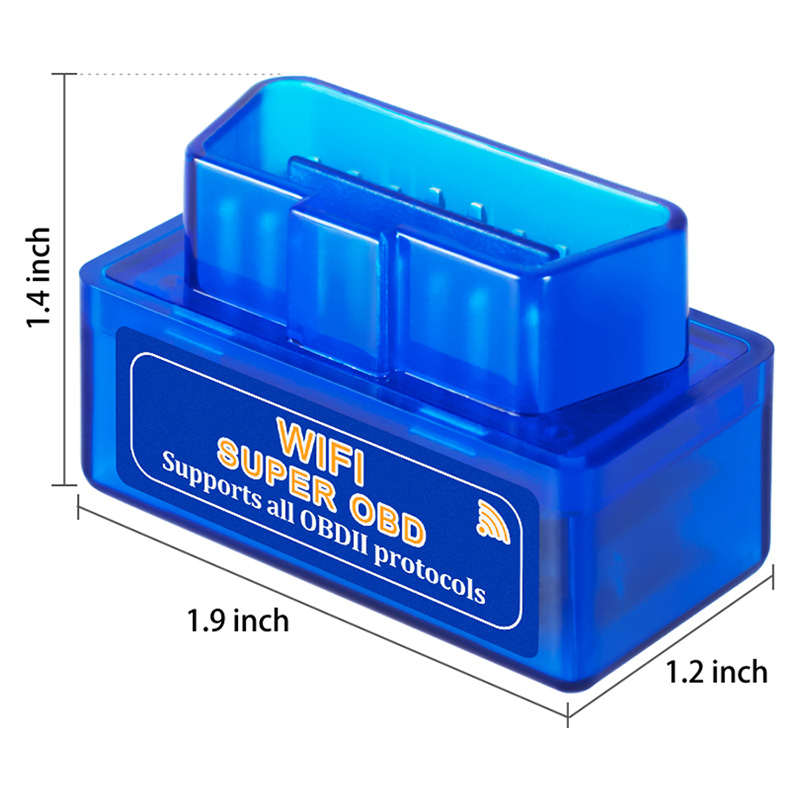

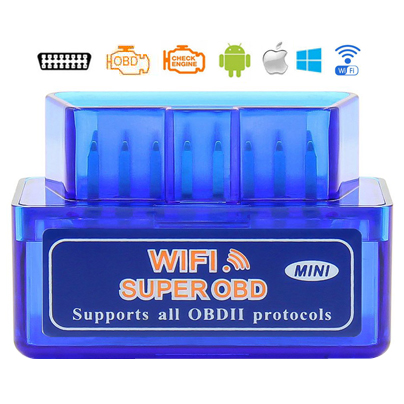

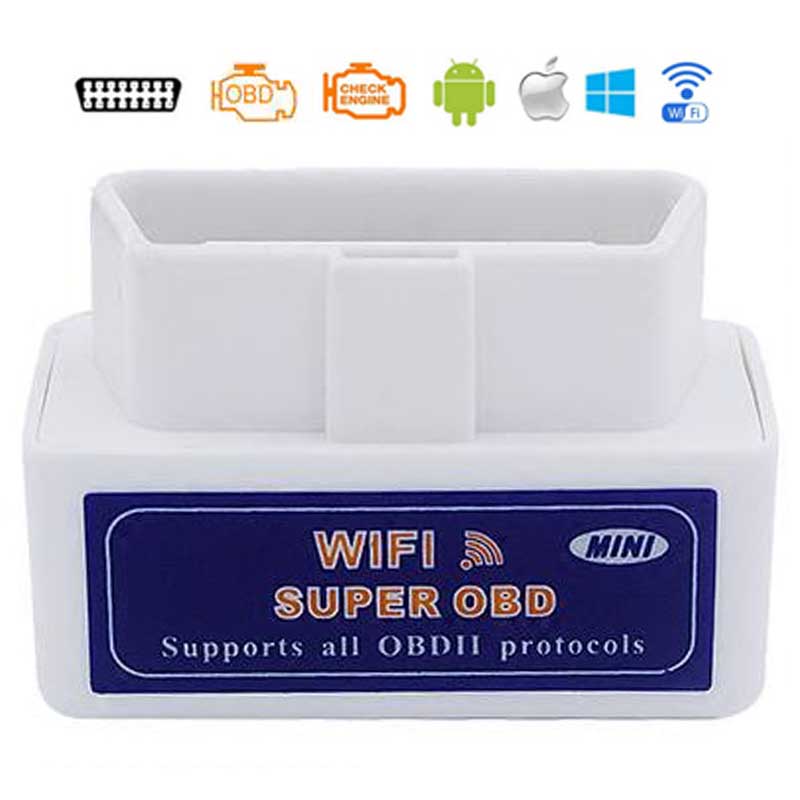

Name: WiFi Super OBD Mini ELM327 for iOS Android Windows

Description:

WiFi ELM327 Super OBD interface is able to detect and interpret OBD2 / EOBD protocols automatically. It also provides support for high speed communications and a low power sleep mode.

It use AT commands to communicate with a host device (PC, notebook, mobile phone).

There are plenty of available software packages which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc.

You can even write your own software on a specified hardware platform if you want, because the AT commands are fully documented and very well explained.

With proper software installed, you may have following parameters read out from your vehicle:

Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Supported Protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1939

Notice:

1. We offer only PC version software & instructions manual.
2. For iOS base software are not included. You must buy from Apple App Store!
3. It only works with car (It does not support truck or diesel vehicle).
4. ELM 327 WiFi is not universal, it can not support all of the cars especially cars before 2005 year. It is compatible with 1996 and later vehicles which are OBD2 or EBOD compliant.
5. It is wireless and worked only through WIFI.
6. Connecting to your iPhone / iPod Touch via WIFI connection in adHoc mode.
