Name: Launch X431 PRO MINI Bluetooth with 2 Years Free Update Online
Description:
Launch X-431 PRO MINI is an Android-based vehicle trouble code diagnostic tool. Through the simple Bluetooth communication between the VCI module and X-431 PRO MINI, it achieves full car model and full system vehicle trouble code diagnosis which includes Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions.
X431 RRO MINI inherits from LAUNCH advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Moreover, it supports WiFi connection which enables you surf the Internet, update the diagnostic software online and perform remote diagnosis etc, getting your job fixed faster and easier.
Software Update: 2 years free update online
Features:
1. 16 Special Functions
2. Wide Car Model Coverage: Support all ECUs of 12V EFI car models, covering more than 150 car series and ten thousands of car models.
3. Accurate Diagnosis: X-431 PRO MINI functions (such as DTCs, Data Streams, Actuation Test) reach the level of original factories.
4. Quick Test: Support quick diagnosis and one-click DTC clearing for all car systems.
5. Data Stream and Waveform Recording and Playback
6. Remote Diagnosis
7. Online Help: Provide detailed DTC online help so that maintenance technicians can quickly rectify faults and improve diagnosis efficiency.
8. One-click Software Upgrade: free update online for 2 years
9. Multi-languages: support more than 20 languages
Main Functions:
1. All System Diagnosis:
Launch X431 PRO MINI achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test , Special Functions, Matching Engine System, Steering System, SRS System, Security System, Air Conditions System, Brake System, Battery System, EPB System, TPMS System, Chassis System, ABS System, Transmission System.
2. Bi-Directional / Active Test:
This diagnostic tool supports active test (bi-directional control) to request information or command a module to perform specific tests and functions, such as turning the fuel pump on and off, cycling the a/c clutch on and off.
3. Key FOB Programming:
Matching used to disable the lost vehicle keys and programming a new replacement key FOB.
4. ECU Coding:
Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH pro mini is equipped with advanced ECU coding function for addressing the following issues:
1). After you replace the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.
2). ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.
Functions:

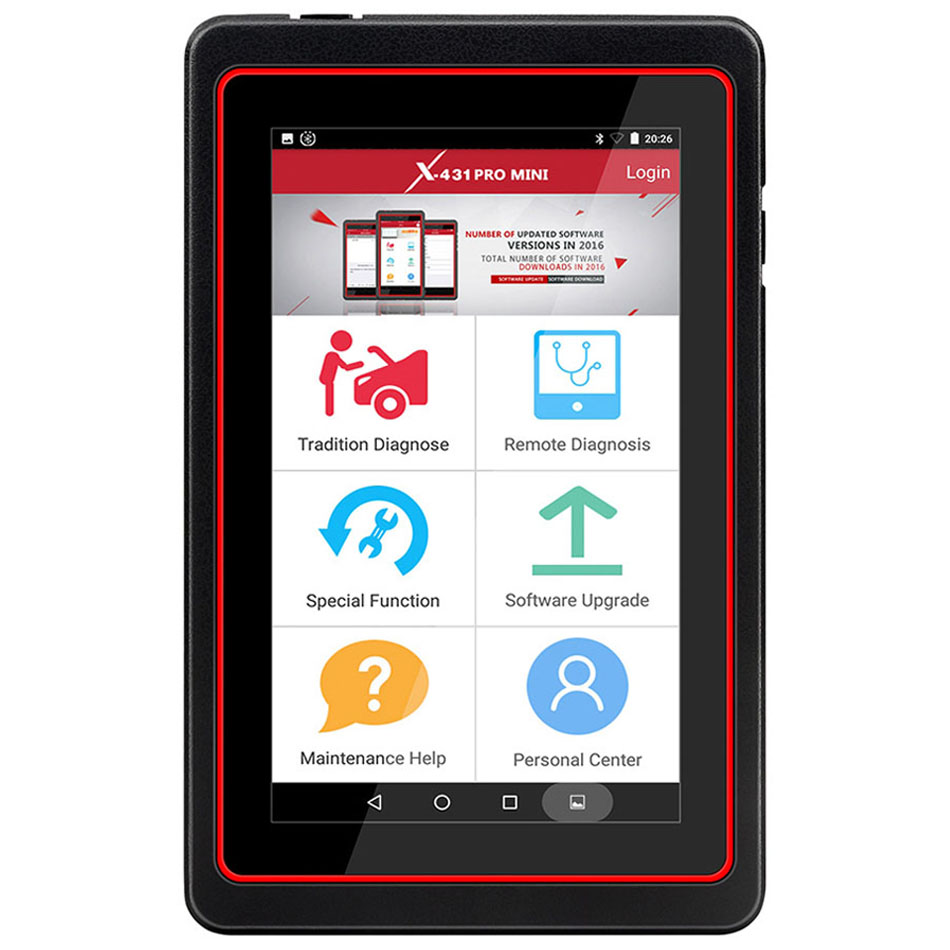

1. Diagnostic Tool:
1). Diagnose
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese cars. Diagnosis functions include: Read DTCs, Clear DTCs, Read data stream, Special functions etc.
Specially designed for Android platform with clear and user-friendly interface.
Via Bluetooth, it is simple for the VCI module to communicate with X-431 PRO MINI.
Package comes with an exclusive X-431 PRO MINI protective sleeve to prevent it from being damaged.
2). One-click Update
Lets you update your diagnostic software more efficiently. To obtain better function and update service, advise you update the software regularly.
3). Repair Data
Provides abundant automotive handbook, repair case and wiring diagrams for reference and retrieval.
4). Remote Diagnosis
Configures X-431 PRO MINI as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.
2. Browser: built-in WiFi module makes surfing on the Internet freely.
3. Email: allows you to send and receive emails.
4. Settings: to configure your personalized X-431 PRO MINI through it.
5. Applications: other android based applications can be customized to install or uninstall.
6. Special functions:
Launch X-431 PRO MINI can program and code the electronic control system of prevailing vehicle models, also perform special functions, including:
Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset
Gear Learning
Immobilizer Matching
Fuel Injector Coding
Add 5 More Reset Functions
You can find following 5 reset functions in the car diagnostic software:
Air Suspension Reset
Gearbox Reset
Sunroof RESET
AFS Reset (Adaptive Front lighting System)
EGR Reset
7. Wide Vehicle Coverage
X-431 PRO MINI supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi. Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis
8. Powerful Diagnosis: Accurate
Launch has rich experience of automotive diagnostic technology (for more than 20 years). It also develops original equipments for a vast majority of Chinese brands of automotive factories, so that X-431 PRO MINI performs diagnosis (fault code, data stream, action test and other functions) as the dealership.
9. Powerful Diagnosis: Fast
X-431 PRO MINI can perform full system diagnosis and one button to clear codes at a high speed. It’s easy to operate.
10. Data Stream Record and Playback
Record and playback the data stream help you analyze the trouble when driving and solve it.
11. VINSCAN
Automatic scan (OBD VIN) and manual input (INPUT VIN) are available.
12. View History
Generally once a vehicle diagnosis is performed, X-431 PRO MINI will record the every details of diagnostic process. The History function provides a quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.
13. Maintenance Help:
Including: How-to Videos, operation skills and user manual, Q&A, Quick start guide etc.
Specifications:

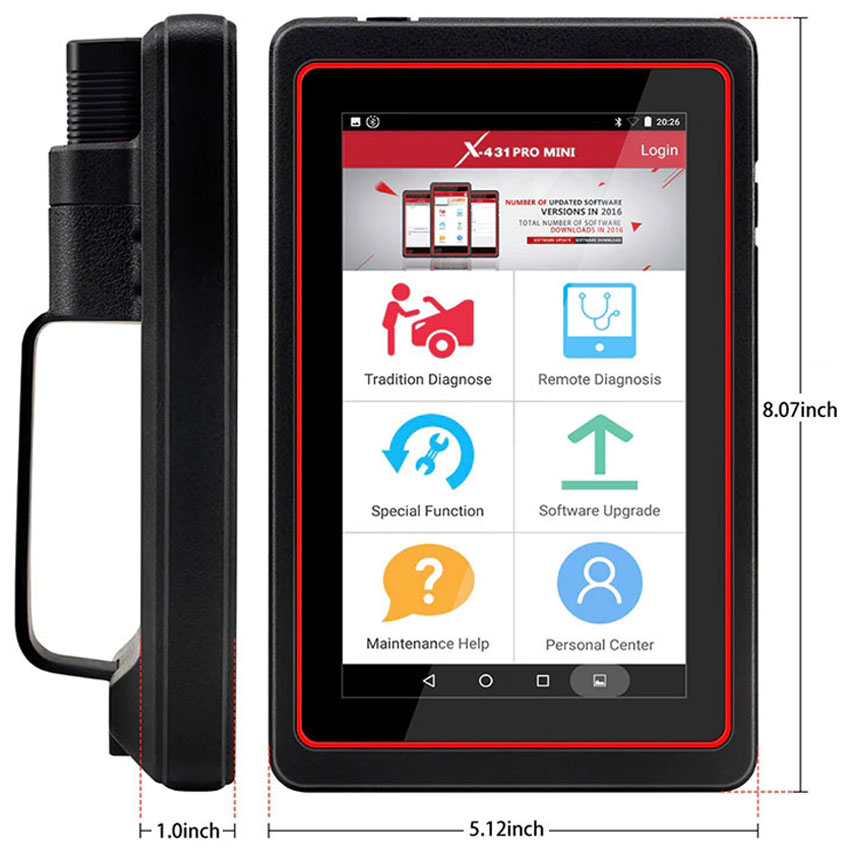

X431 PRO MINI:
Operating system: Android 7.0
Processor :Quad core 1.3GHz
Memory: 2GB
Storage: 32GB
LCD Screen: 6.9 inch with 1024*600 pixel resolution
Camera: front-facing 2MP camera + rear-facing 5MP camera
Battery: 3.7V/3000mh rechargeable polymer lithium battery
Connectivity: WLAN 802.11b/g/n; Bluetooth 4.1
Working Temperature: 0 to 45 degree centigrade
Storage Temperature: -10 to 50 degree centigrade
DBScar III Adapter:
The brand-new DBScar 3 Adapter is small size and can be easily plugged into the handset to diagnose and matching, it tests car models stably, it supports CAN diagnosis and USB data transfer.
Size: 69*40*18mm
Operating Voltage: DC 9V to 18V
Test Voltage: DC12V
Typical Power Consumption: ≤2W
Bluetooth Distance: 100m
Connectivity: Bluetooth + Wire
Operating Temperature: -10 to 50 degree centigrade
Red Indicator: turns red when connected to power supply;
Blue Indicator: turns blue then wireless Bluetooth work;
USB Work: turns green when the connector is connected to the USB cable

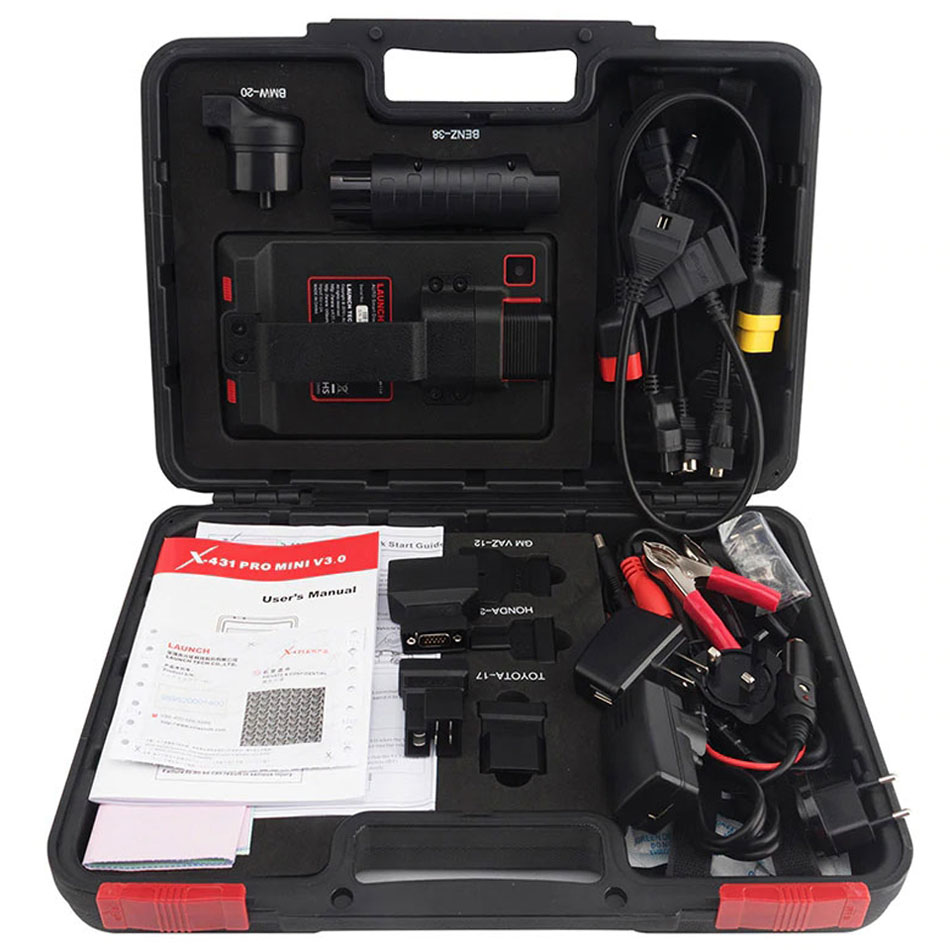

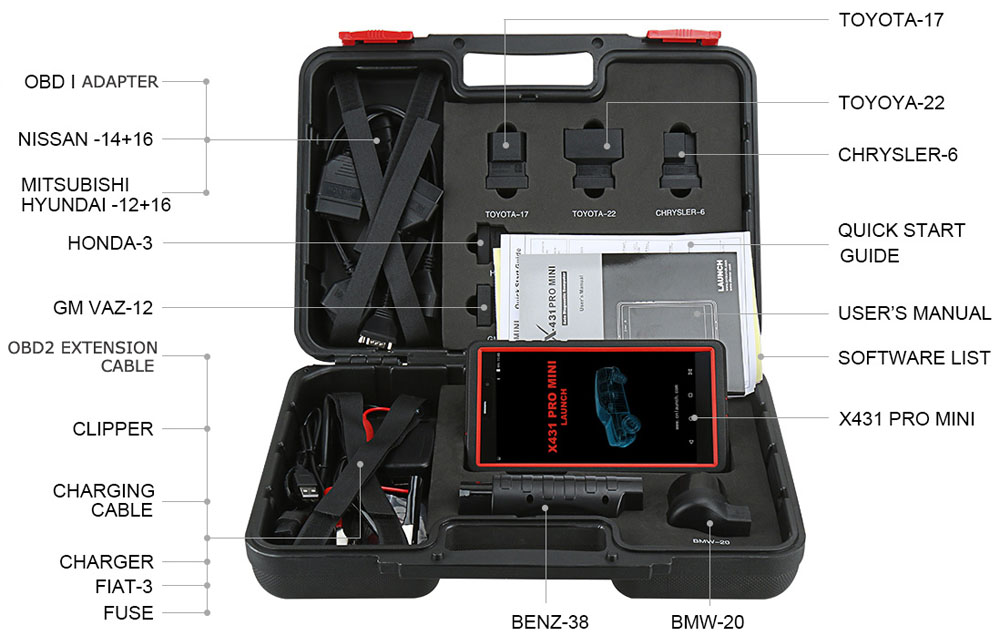

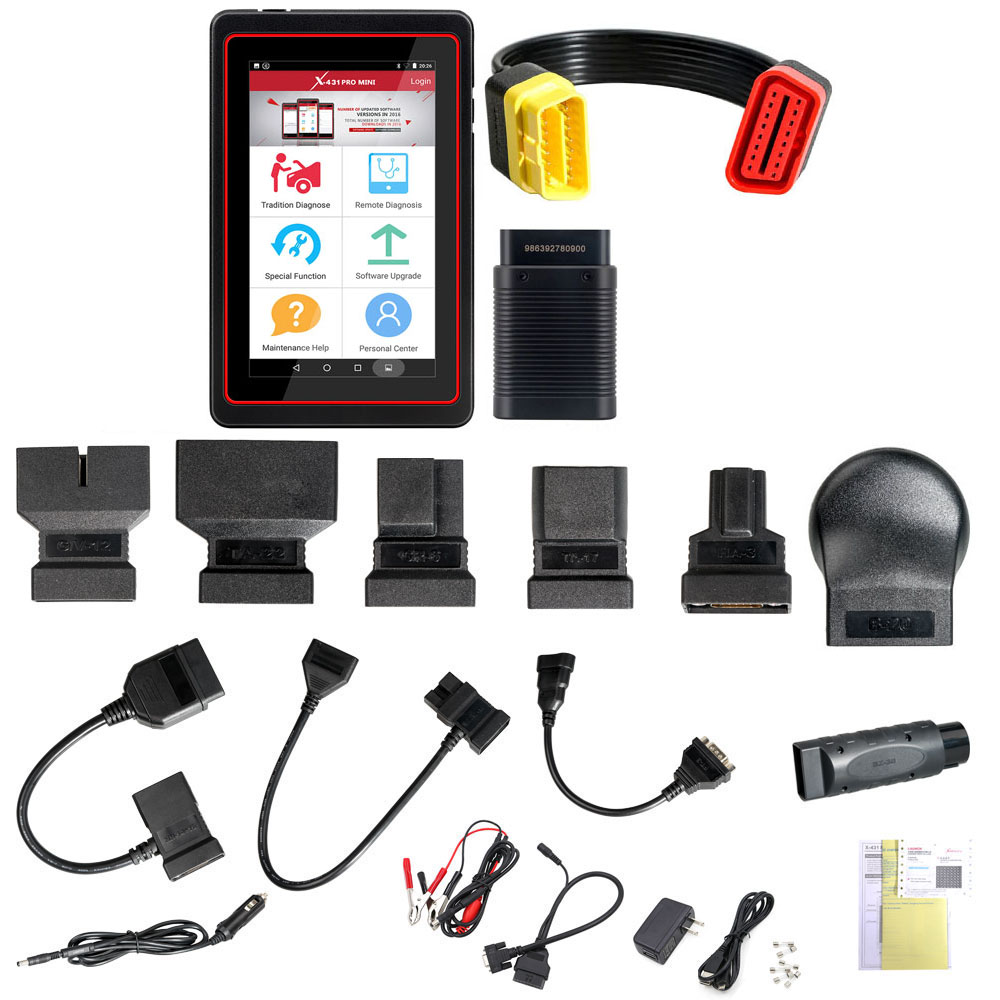

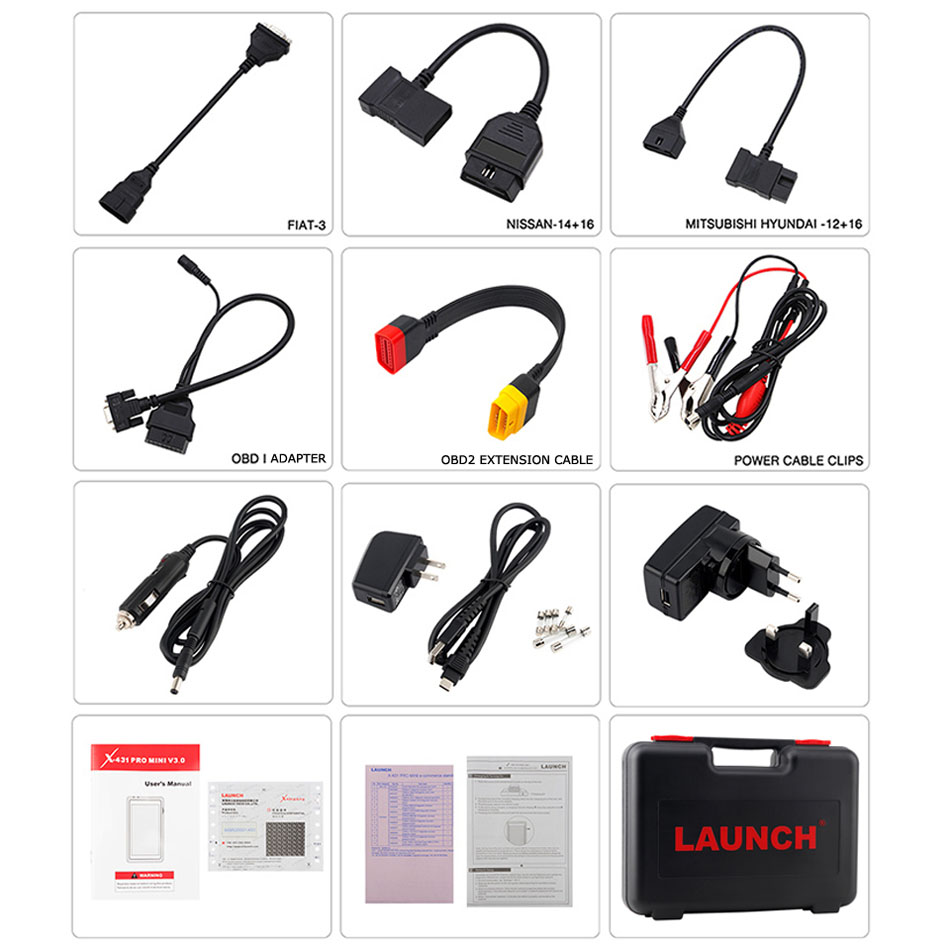

Packing List:
Launch X-431 PRO MINI
VCI Module (for connecting OBD-II vehicles)
OBD I adaptor (for connecting the non-16pin diagnostic connector and VCI Module)

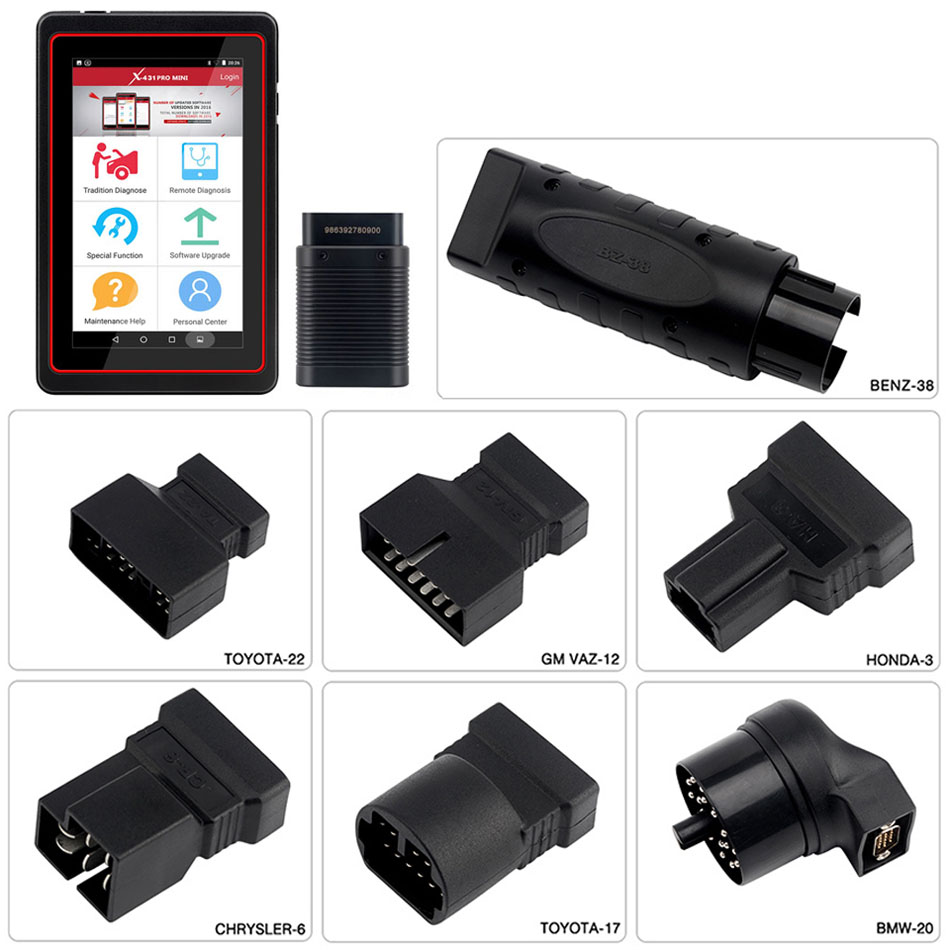

BENZ-38 Adapter
BMW-20 Adapter
TOYOTA-17 Adapter
TOYOTA-22 Adapter
NISSAN-14+16 Adapter
MITSUBISHI/HYUNDAI-12+16 Adapter
HONDA-3 Adapter
CHRYSLER-6 Adapter
GM/VAZ-12 Adapter
FIAT-3 Adapter Battery Cable Clips
OBD II Extension Cable
Power Adapters
Fuse(4 pcs)
User Manual
Quick Start Guide
Software List
Packing List
Password Envelope
Plastic Toolbox
Packing Box

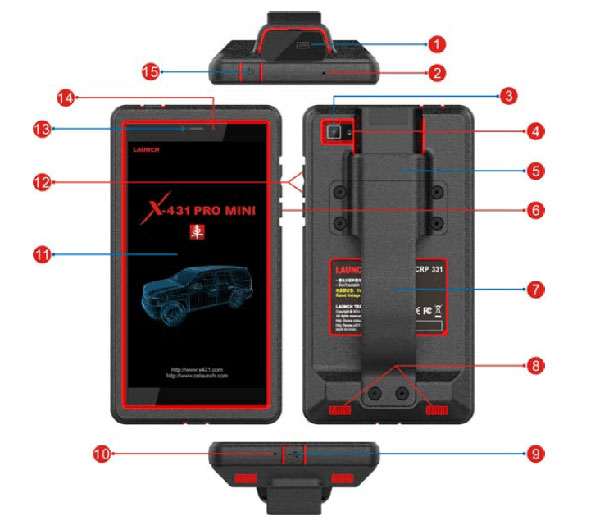

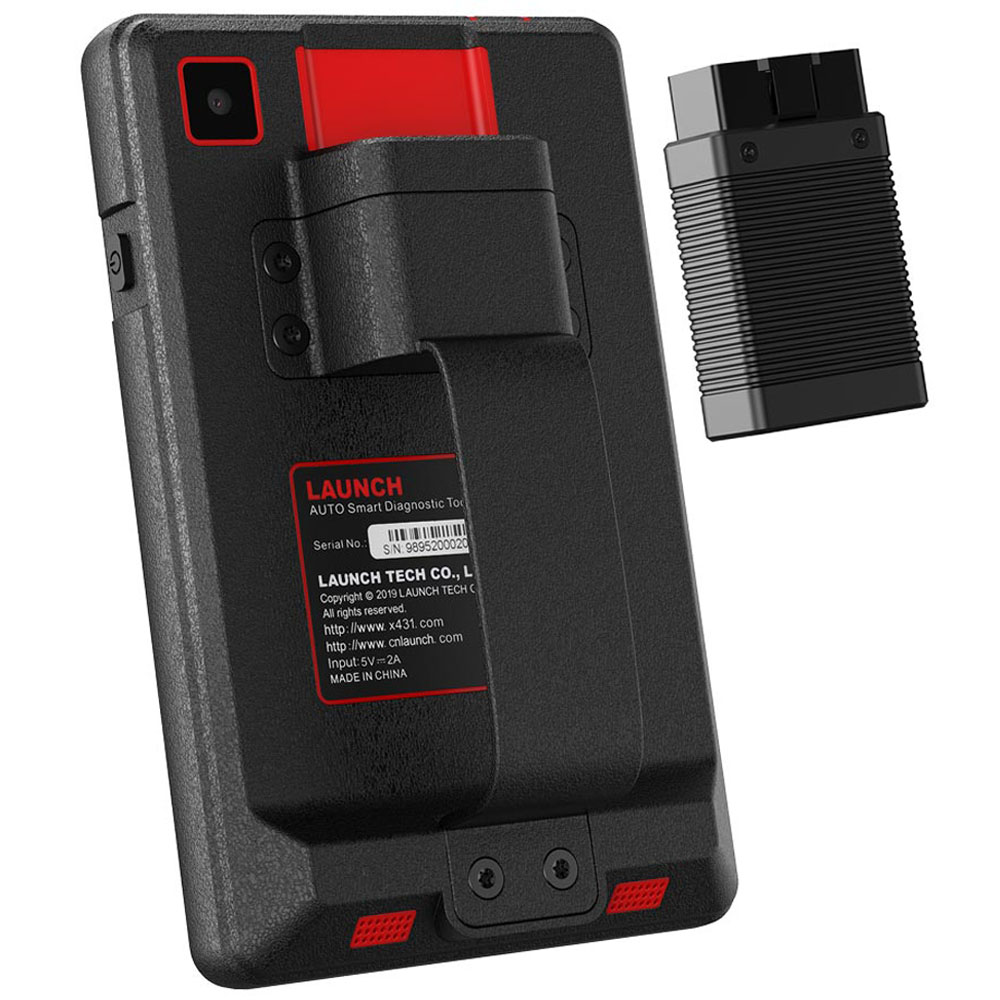

1. VCI Module
2. Reset Hole
3. Rear Camera
4. Camera Flash
5. Slot for VCI Module
6. Power/Screen Lock Key(in off mode, press it to turn on X-431 PRO MINI; in on mode, turn off X-431 PRO MINI with long press or lock screen with short press.)
7. Carrying Strap
8. Air Intake Vent
9. USB/Charging Port to connect to the power adapter for charging.
10. Microphone
11. LCD Screen
12. Volume +/- Key(to print the screen, hold and press the Power and Volume – Key same time until a snapshot pops up on the screen. Captured snapshot is saved in the “Screenshots” folder.)
13. Speaker
14. Front Camera
15. Earphone Jack
|
