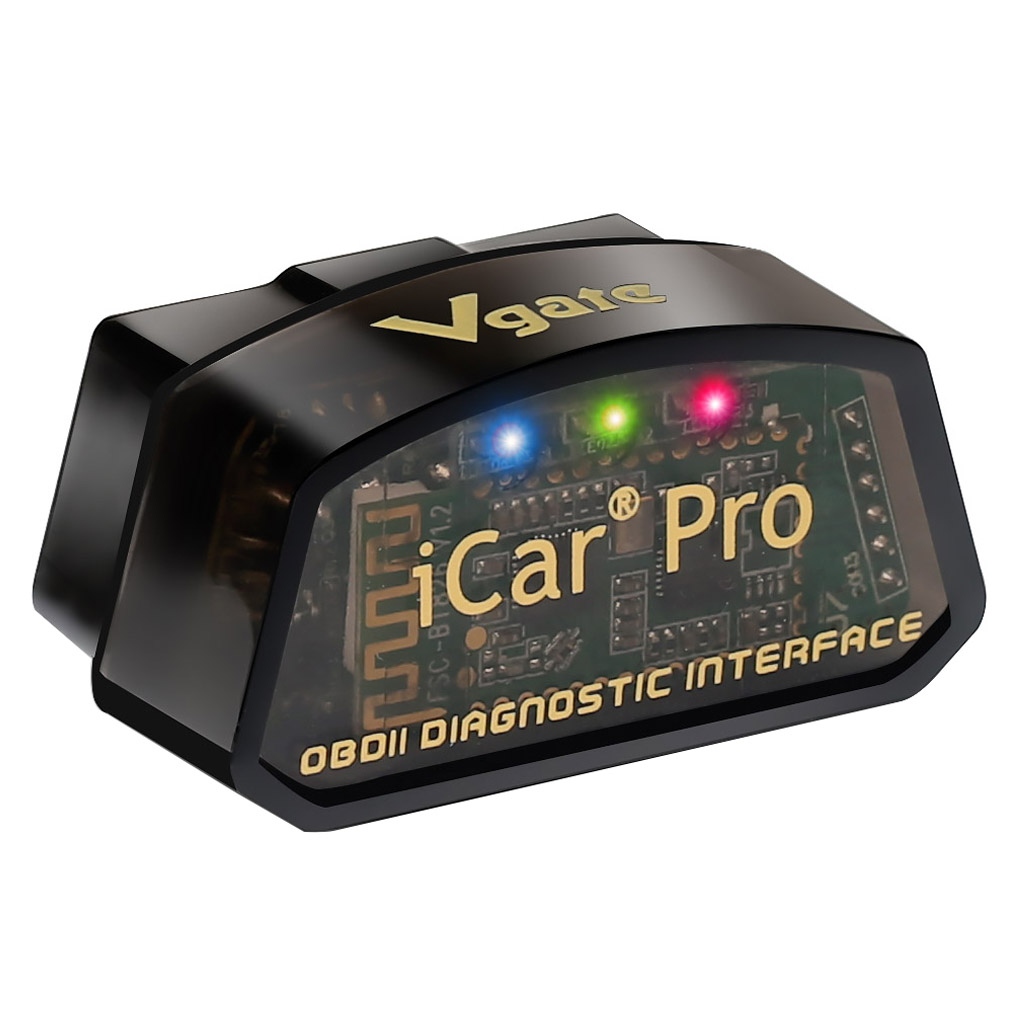

Name: Vgate iCar Pro Bluetooth 4.0 OBD-II Scanner for Android & iOS

Description:

Vgate iCar Pro OBD2 Adapter is a high-quality automotive Bluetooth 4.0 OBD-II Scanner for Android and iOS>

Vgate iCar Pro is compliant with full OBD-II/EOBD specifications. It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption.

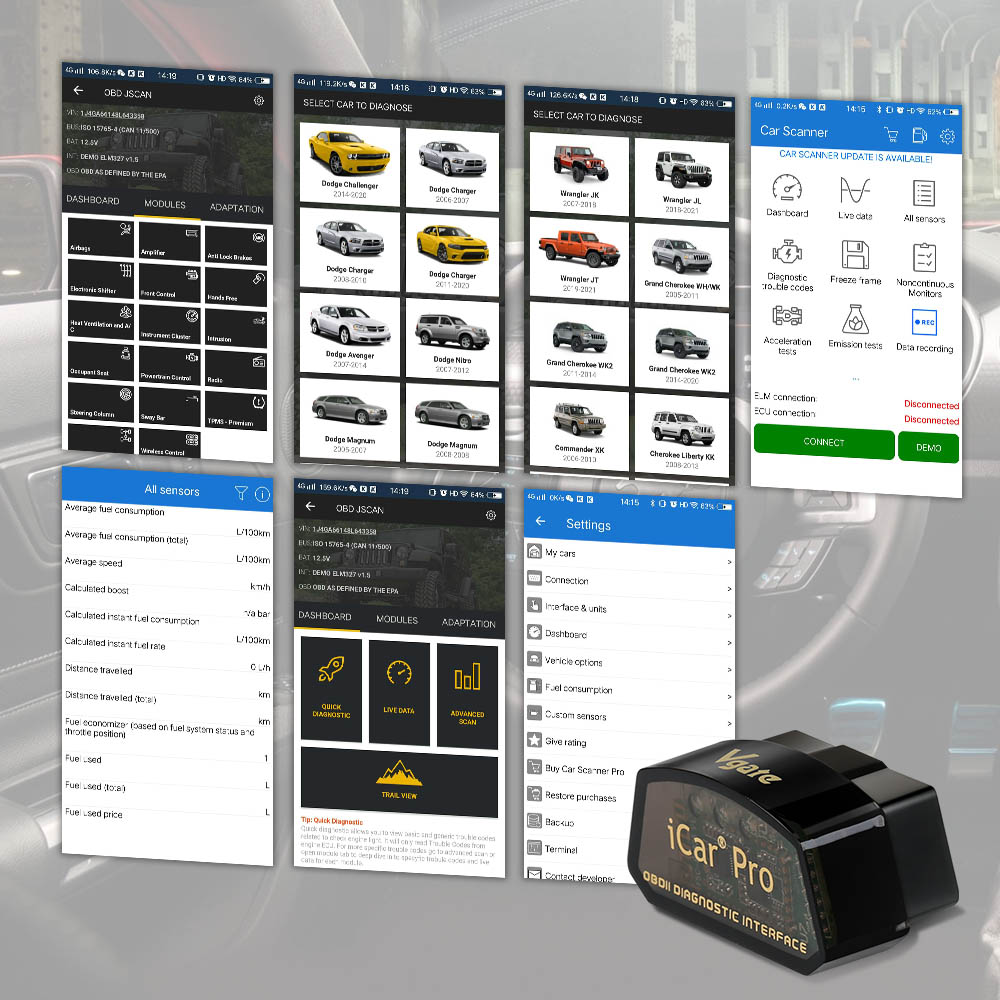

It supports various OBD-II apps.

Features:

1. CLEAR CHECK ENGINE LIGHT - Vgate iCar Pro code reader will help you save money and accurately diagnose check engine light problem. It is very easy to use.

2. EASY FITMENT - The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the iCar Pro in.

3. FIT AND FORGET - It really is possible to fit and forget because it is micro size and unique power saving functionality that protects your battery.

4. WORKS WITH HUNDREDS OF APPS - The Vgate iCar Pro Bluetooth works with the most popular OBD apps. Please find download instruction for Android device in product description.

5. 2 YEAR WARRANTY - We offer a 2 year warranty as standard. If you have any problem with the device simply send it back and we will dispatch a brand new replacement the following working day.

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (Over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure

Supported Cars:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

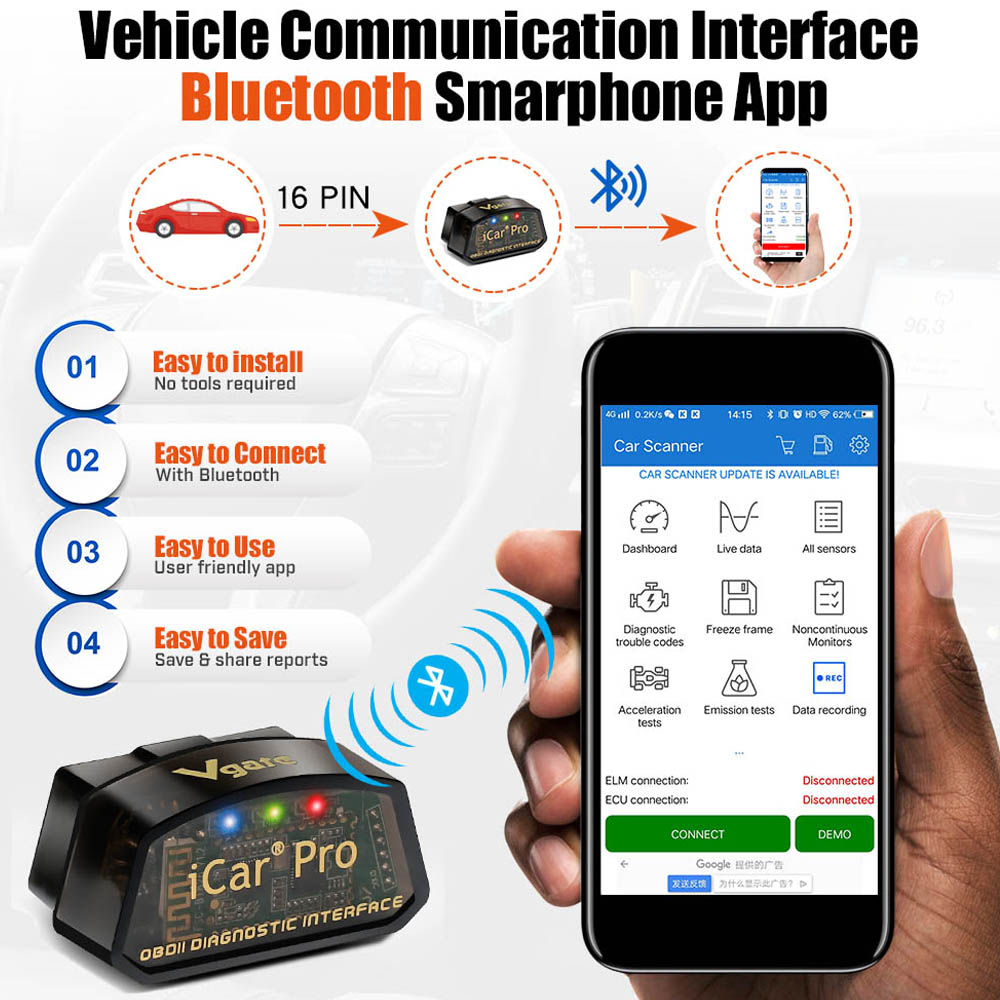

How to pair Bluetooth?

For Android Users:

Home screen
Go to setting page
Select V-LINK Default password is “1234”
Device paired
Run Torque app
Go to Torque app OBD-II adapter setting
Choose connection type>Bluetooth
Choose Bluetooth device>V-LINK
Exit Torque app completely
Run Torque app
Connected

For iOS Users:

Home screen
Go to setting page
Click on Bluetooth function
(Device name is invisible)
Run Accurate app
Go to Accurate app setting page
Select Bluetooth and connect
Exit Accurate app and run again
Connected

Specifications:

Supply Voltage: 11.5V—15V
Supply Current: <200Ma
Standby Current: <30Ma  (TONWON Pro =<3Ma)
Operating Temperature: -40 to 85 degree centigrade
Operating Humidity: 5% to 95% RH non-dewfall

Supported OBD-II Protocols:

SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)
USER1 CAN(11*bit ID,125* Kbaud)
USER2 CAN(11*bit ID,50* kbaud)

Tips before your purchase:

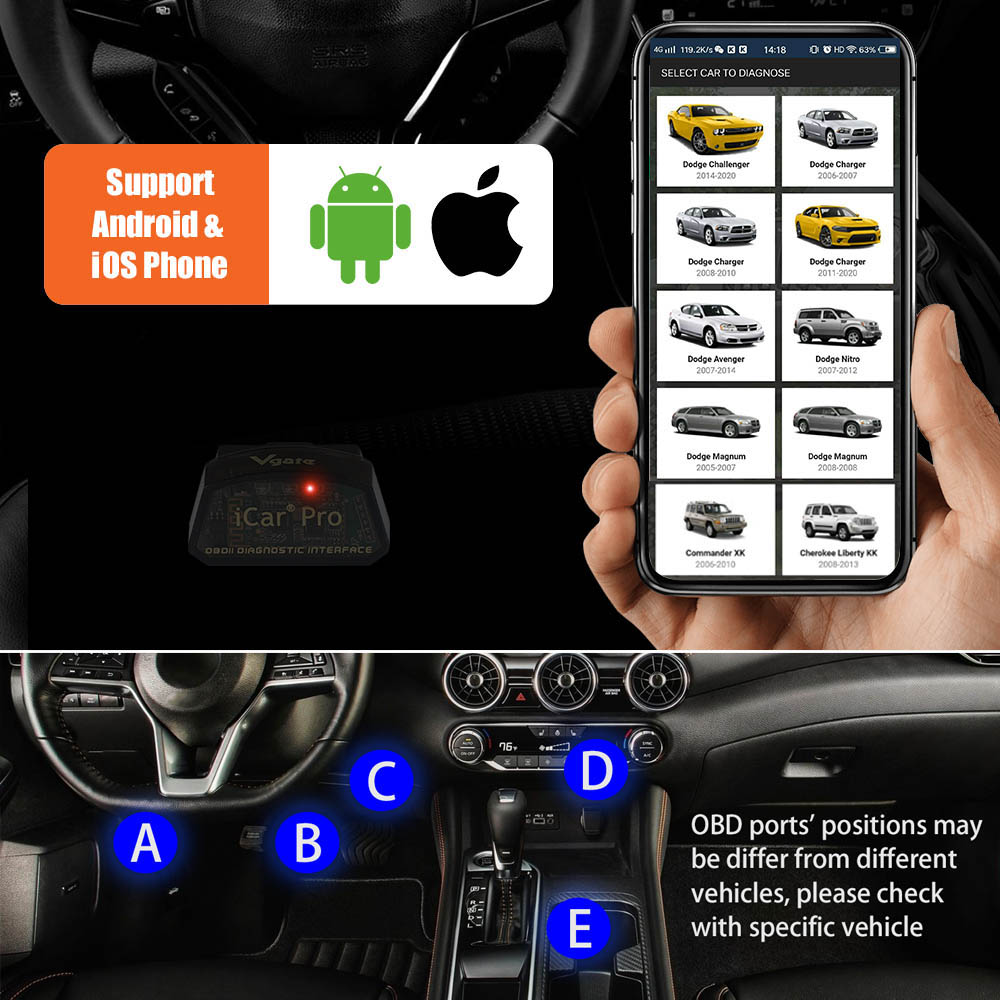

For your vehicle to be OBD-II compliant it must have a 16-pin DLC (Data Link
Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD-II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle under the hood in the engine compartment that clearly states: OBD II compliant or certified.

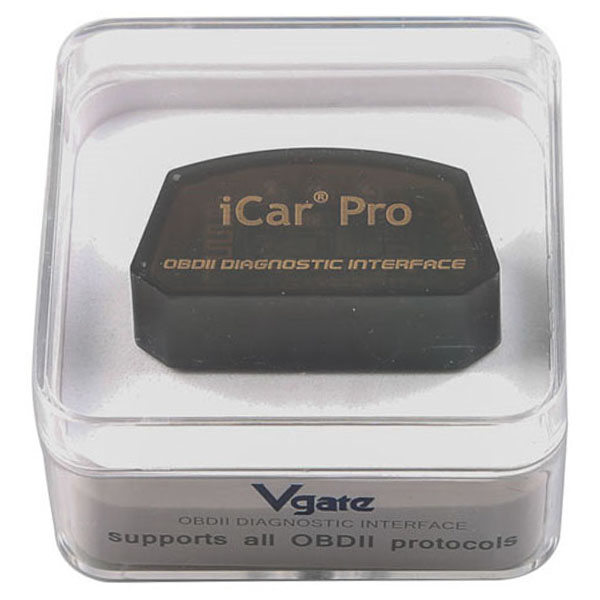

Packing List:

Vgate iCar Pro Bluetooth 4.0
Quick Start Guide
Packing Box
