Description:

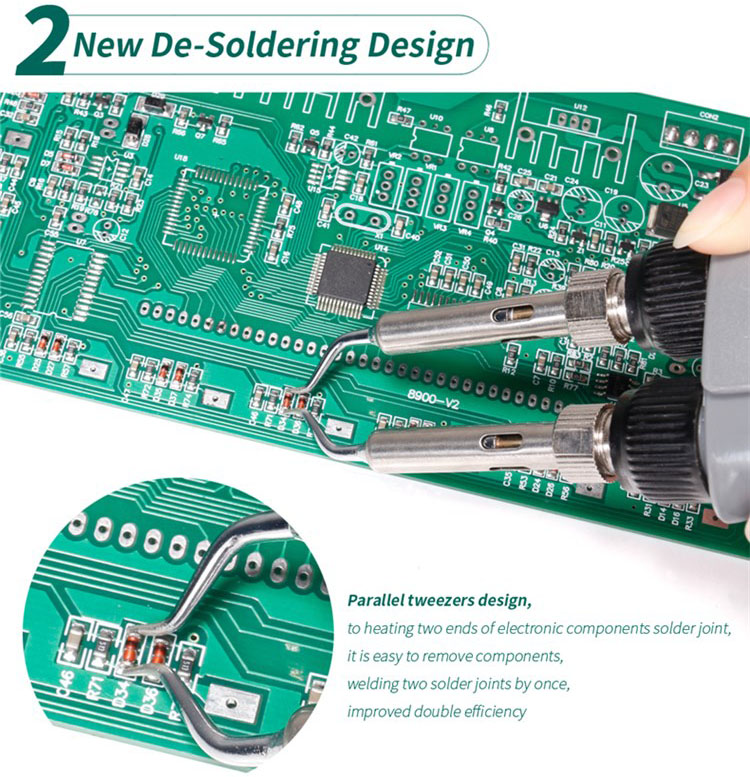

1. High-power heater, tweezers parallel design. When need to remove the electronic components, you can use the parallel tweezers to heating the components and weld joints. It is easily and quickly to removed element without prejudice to the case of peripheral devices. It is used for different weld joints de-soldering, more suitable for large joints, especially for factory batch job, one time can weld two points, it is high efficiency.



2. Programmable temperature control, PID technology, the most high-precision PID implant procedures, tracking and detection of high-speed machine tweezers actual temperature and corrected. Magic temperature compensation speed so that the temperature error is small, temperature stability and temperature compensation is much faster than the same type of product.

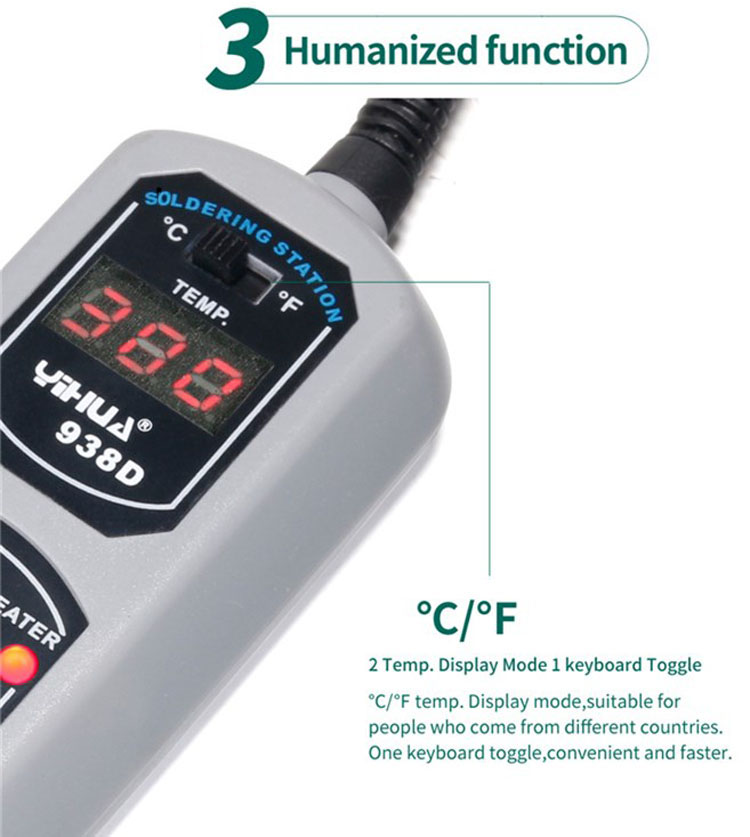

3. To meet the market needs of different regions, the addition of Fahrenheit / Celsius temperature conversion function, the user can choose according to customary interest.

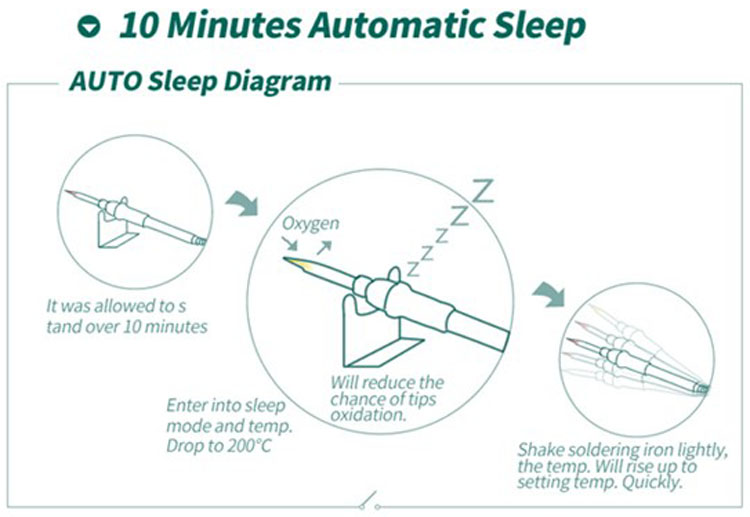

4. 10 minutes fixed sleep function, up to 10 minutes without the use of iron, automatically enter sleep mode, energy and prolong tip life.

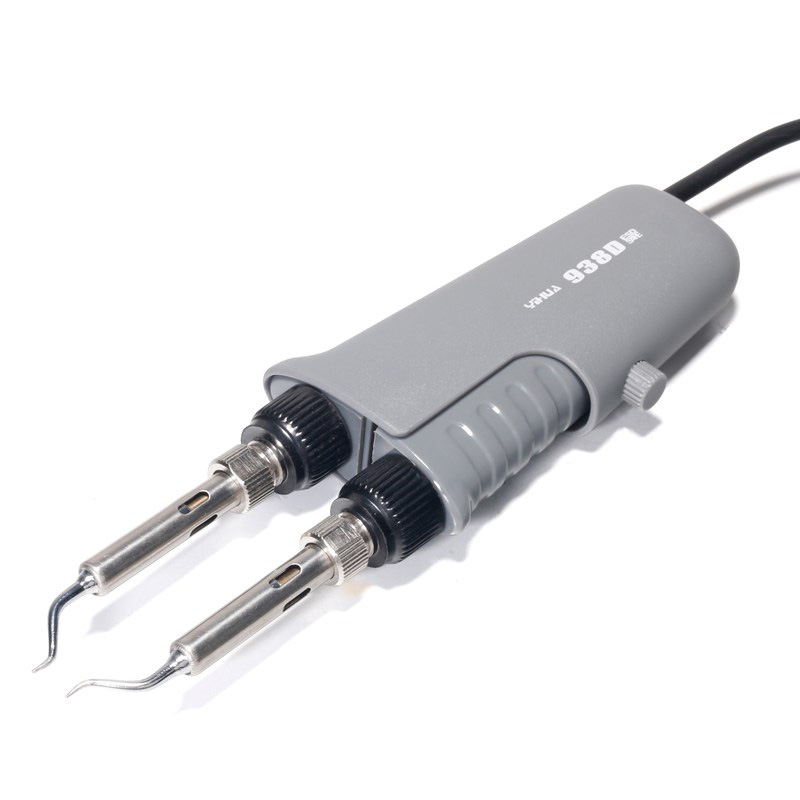

5. Parallel electric tweezers design, very convenient for small electronic components, chip, chip removal and installation of welded components. When you need to remove the parallel electric tweezers can be used directly on the welding points across the resistor components for heating



Specifications:



Voltage: AC 220V±10% 50Hz/AC 110V±10% 60Hz

Power: 120W

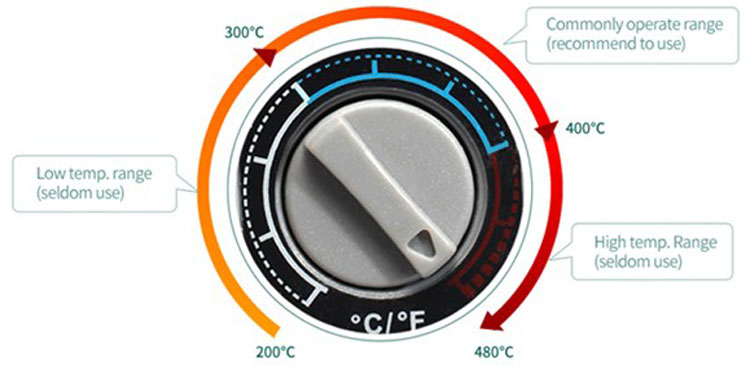

Temperature Range: 200 to 480 degree centigrade

Stability of Temperature: ±2 degree centigrade (static state)

Work Temperature: 0 to 40 degree centigrade

Storage Temperature -20 to 80 degree centigrade

Storage Humidity: 35% to 45%

Nozzle to Ground Resistance: <2Ω

Nozzle to Ground Potential: <2mV

Temperature Display: LED digital display

Celsius/Fahrenheit Temperature Conversion: support

Auto Sleep: auto enter sleep mode if no operation in 10 minutes



Packing List:

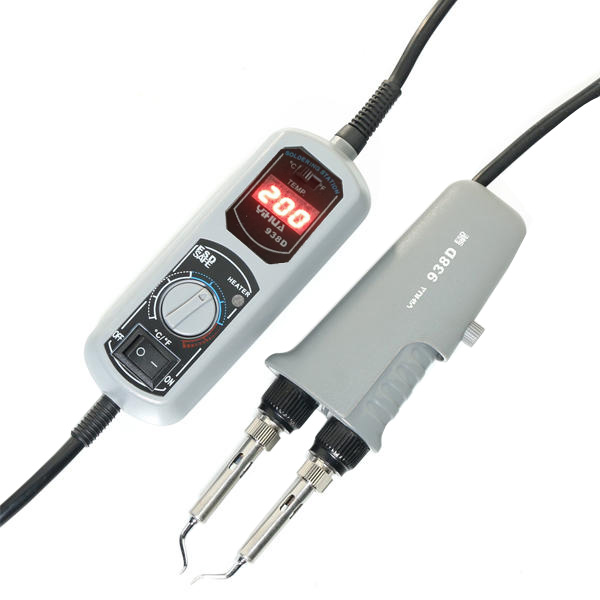

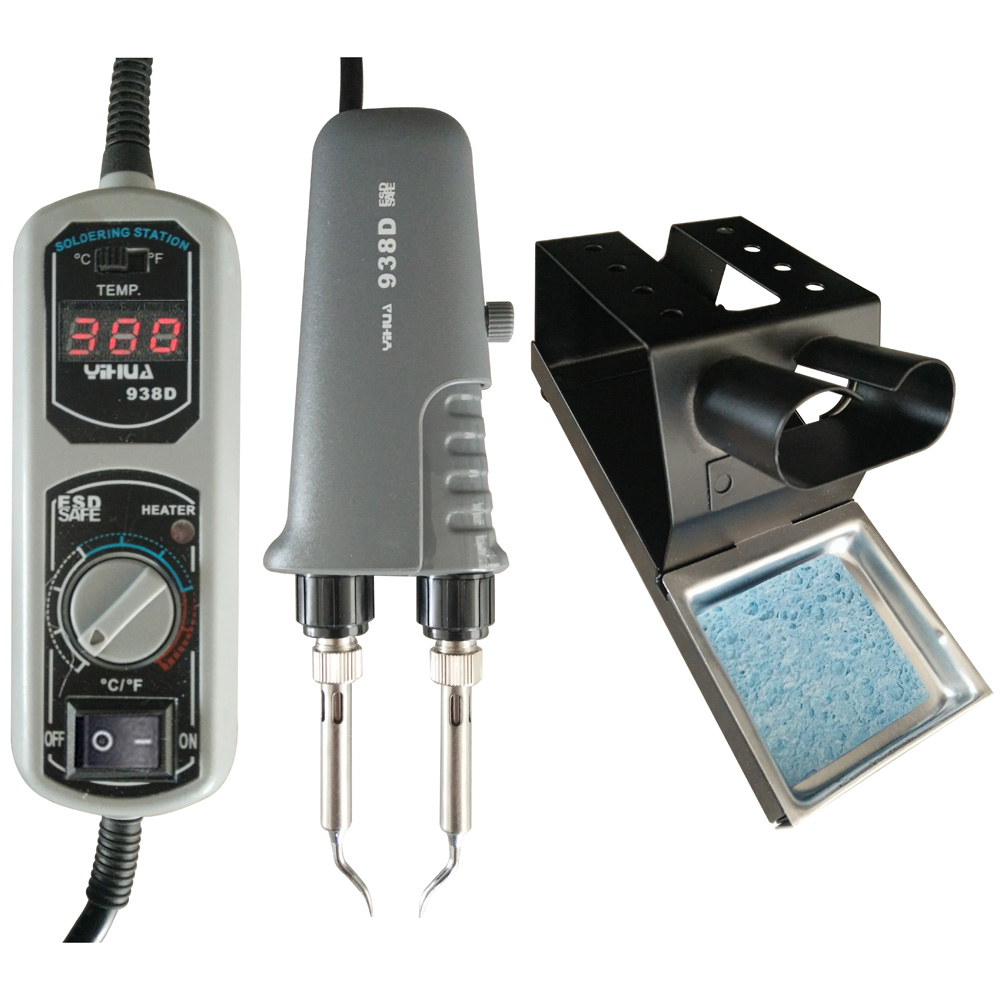

YIHUA 938D Portable Hot Tweezers Mini Soldering Station

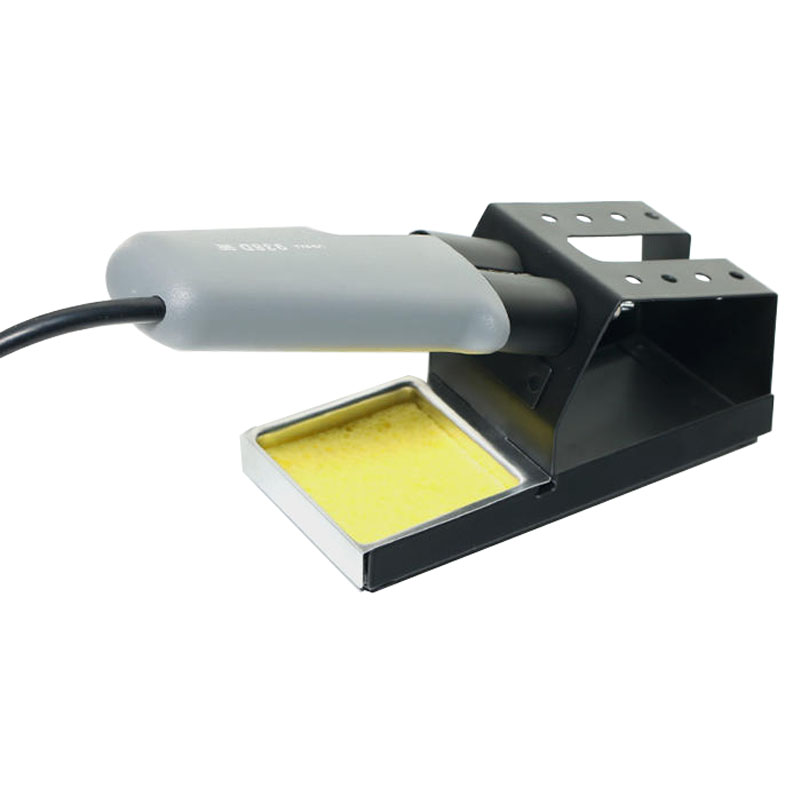

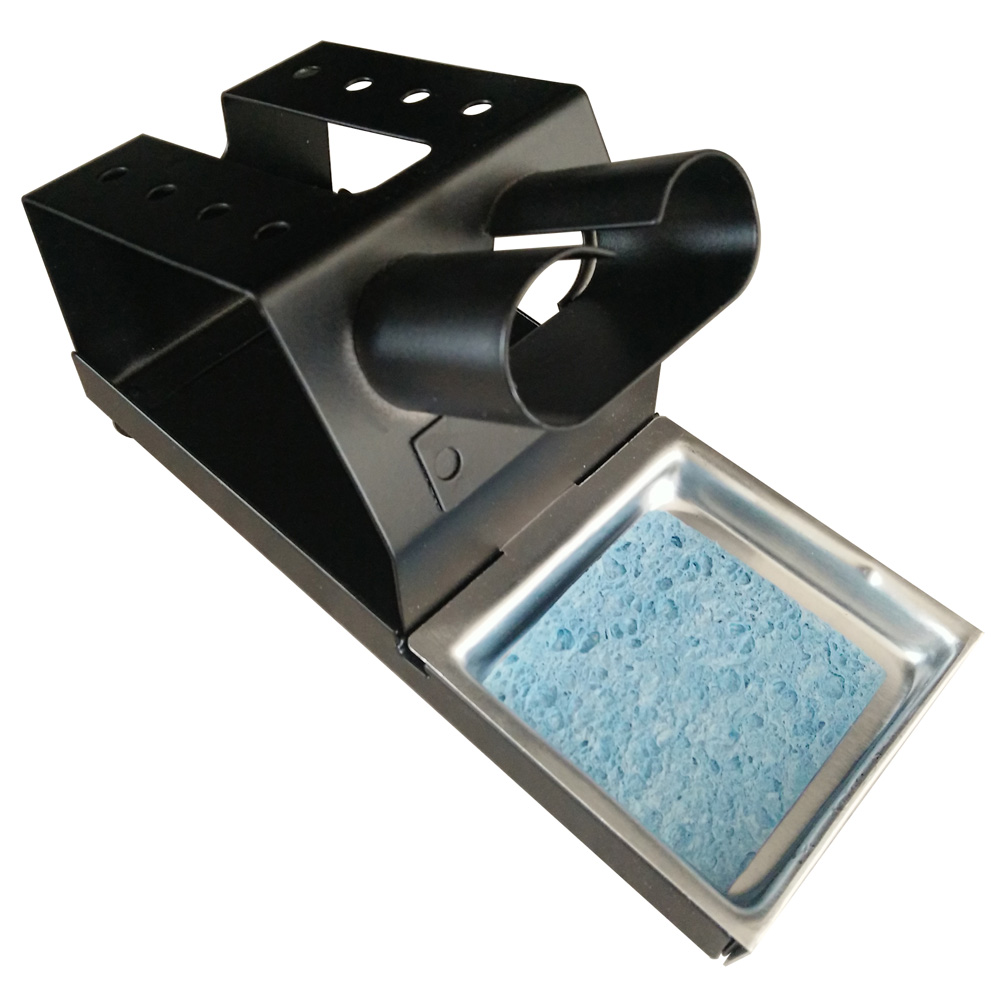

Stand

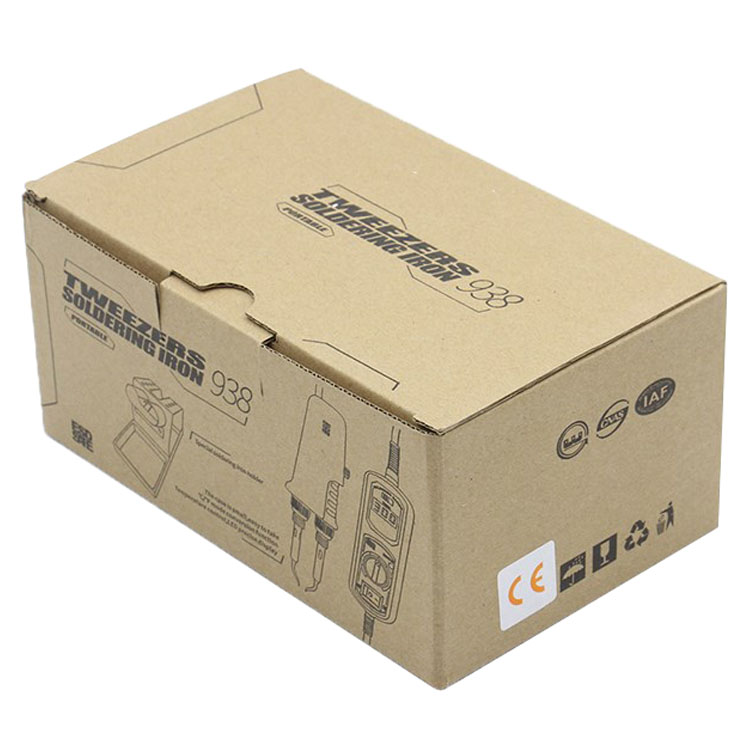

Packing Box
