Description:

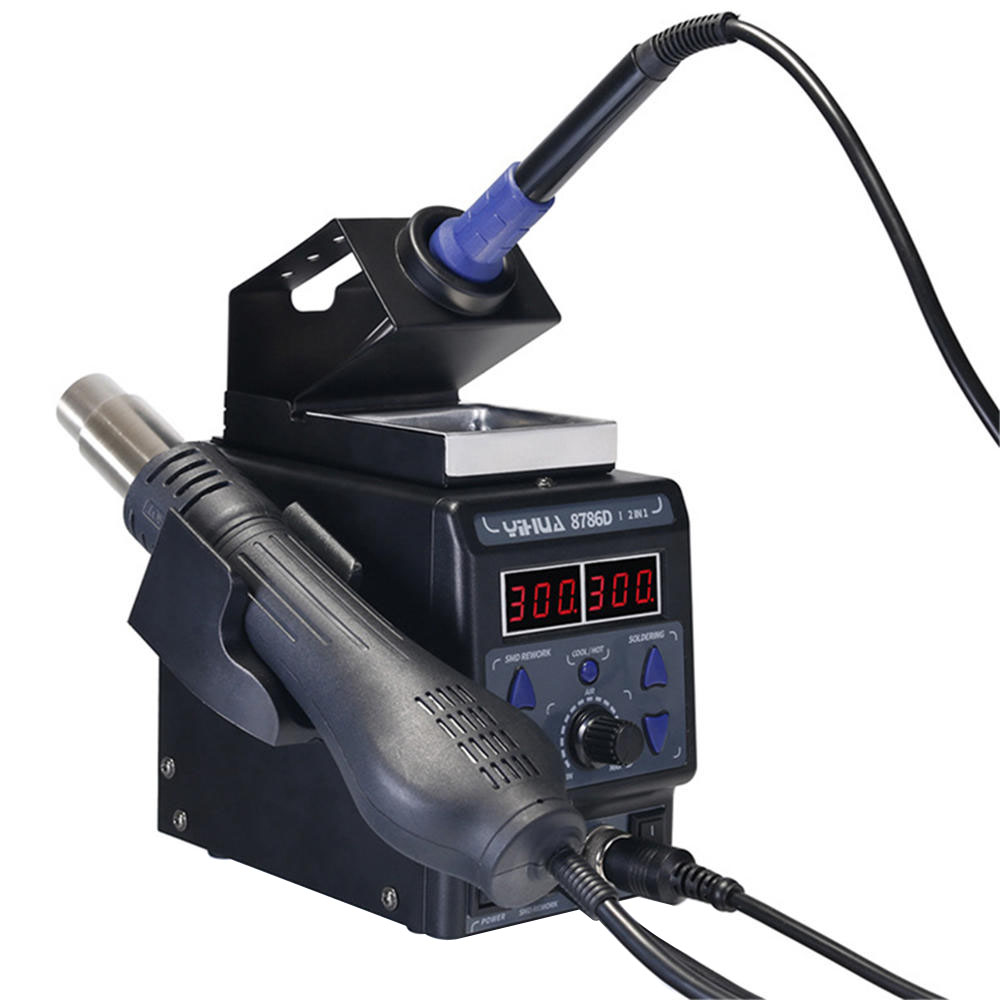

YIHUA 8786D I Upgrade Rework Station Digital Display Iron SMD Heat Hot Air Soldering Station Welding. 110V and 220V are available.



Features:



1. Digital Temperature Correction

At the same time, press and hold the air gun (soldering iron) temperature button for 2 seconds. When the air gun(soldering iron) number appears small dot, it can be corrected by the temperature button. At the same time, press and hold the air gun(soldering iron) temperature button to save and exit.



2. Cold Air Function (cold air can lower the hot air temperature faster )



3. 10 Minutes Automatic Sleep

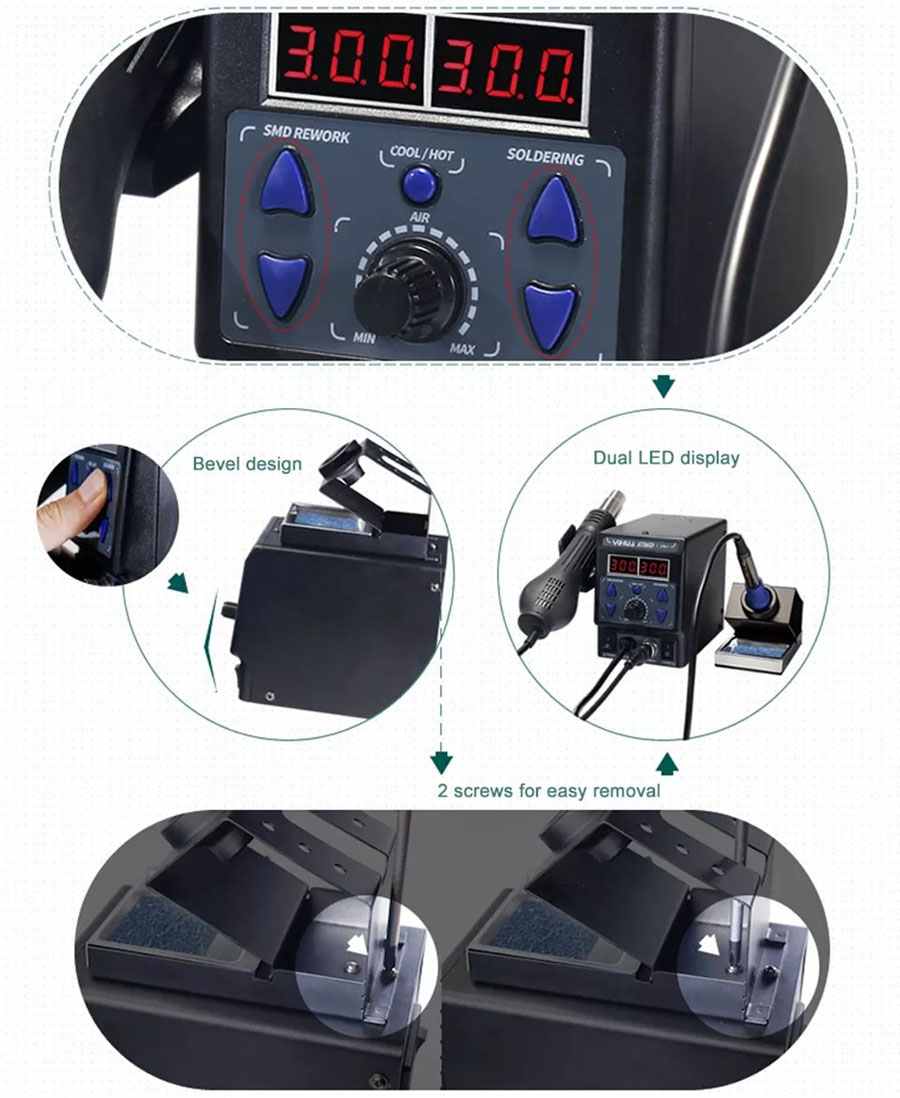

4. Design panel 85 degree tilt, more convenient to operate.

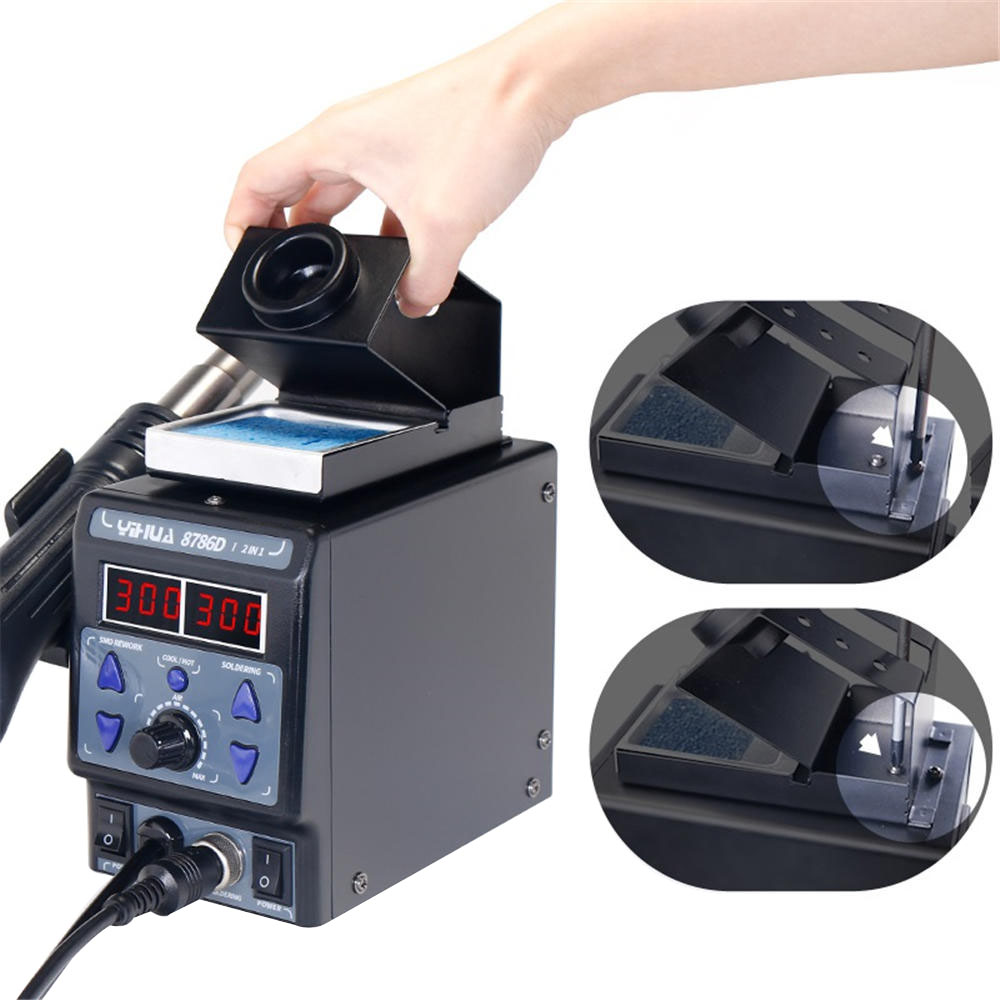

5. The iron holder can be set on machine, stable and save space on working table.



6. Hot and cold air switching. 1-Key to switch display Hot Air Gun and Soldering Iron



7. LED indicator:

Red Light is: soldering iron display status

Blue Light: hot air gun display status

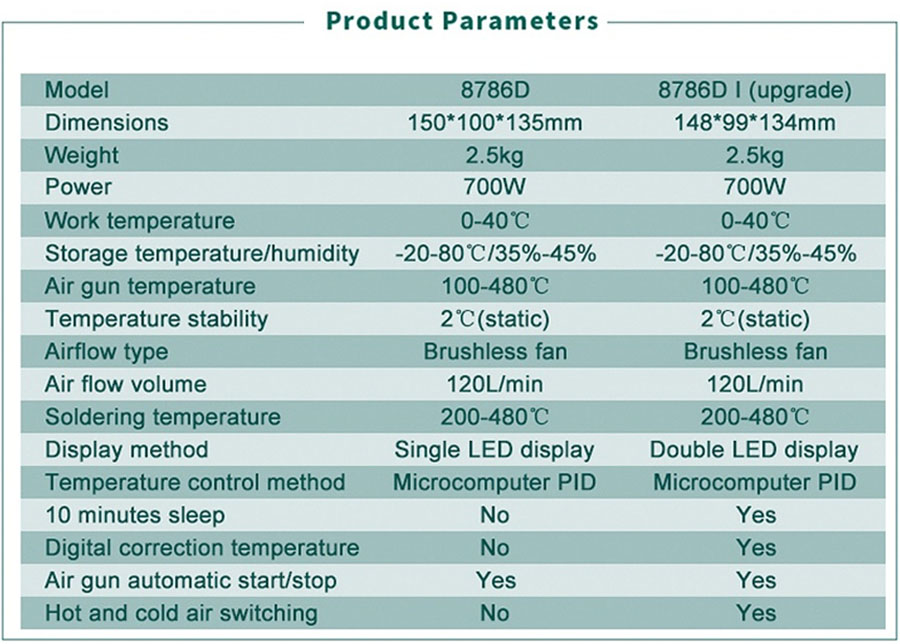

Specifications:



Model: 8786D I (upgrade)

Power: 700W

Temperature Stability: 2 degree centigrade (Static)

Airflow Type: brushless fan

Airflow Volume: 120L/min

Soldering Temperature: 200 to 480 degree centigrade

Display Method: dual LED display

Temperature Control Method: microcomputer PID

10 Minutes Auto Sleep Mode: supported

Digital Correction Temperature: supported

Air Gun Automatic Start/Stop: supported

Hot and Cold air Switching: supported

Storage Temperature: -20 to 80 degree centigrade @ Humidity: 35% to 45%

Dimensions: 148*99*134mm

Weight: 2.5Kg

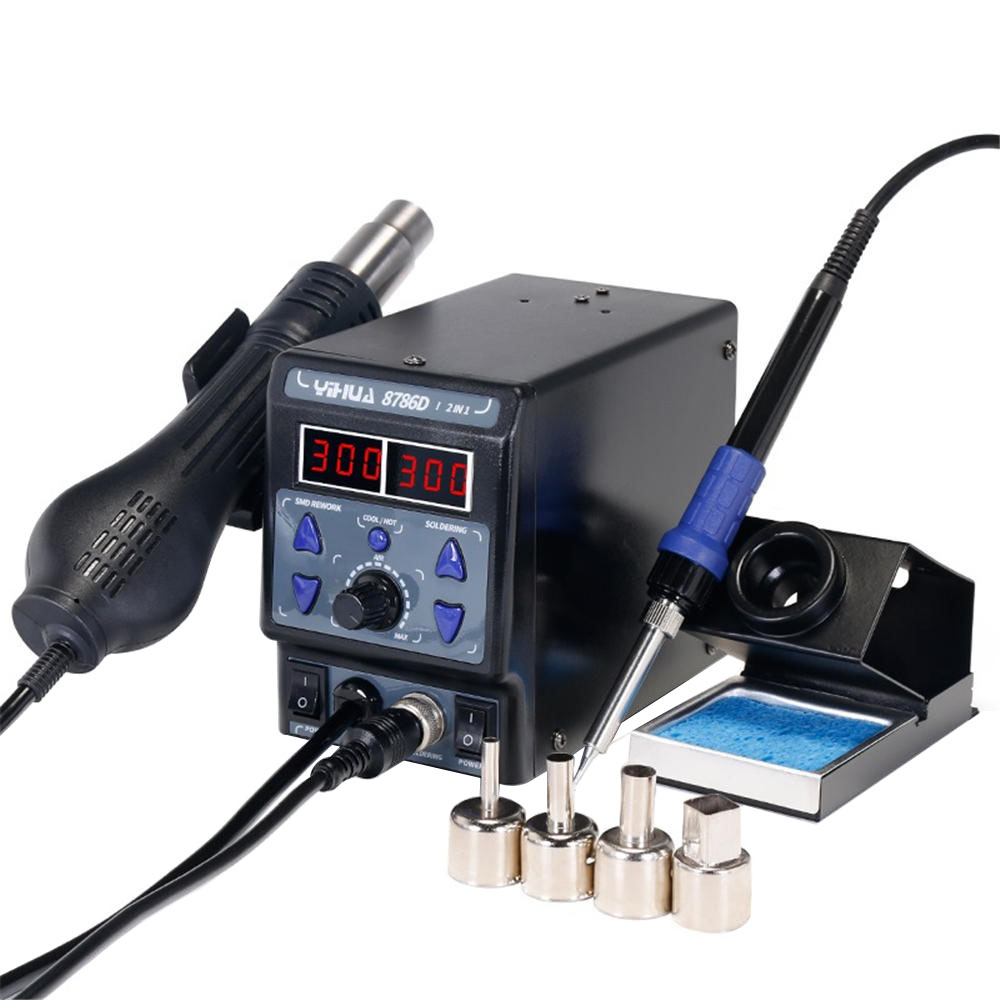

Packing List:



YIHUA 8786D I Upgrade Rework Station

Iron Holder (includes sponge)

Nozzle (4 pcs)

Packing Box
