7. BMW DME/DDE ISN reading and writing in boot mode
Packing Box
.jpg)

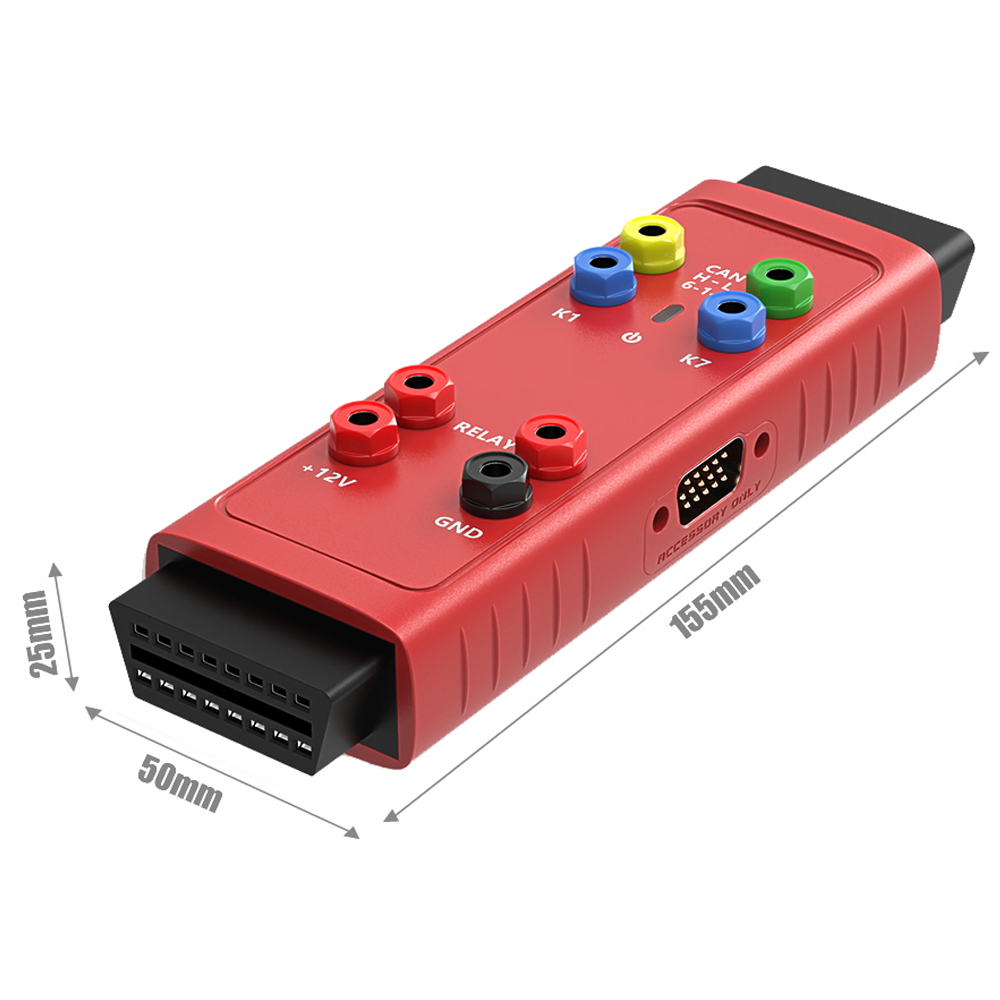

1. DC Port - for 12 DV power supply
2. CAN-H Port - universal CAN BUS interface, connects with OBD2 Pin 6
3. K1 Port - universal K-line interface connects with OBD2 Pin 1
4. Status Indicator - indicates the current operating status
5. Relay Port - connect with dedicated relay cables
6. +12V Power Port - universal power input/output port

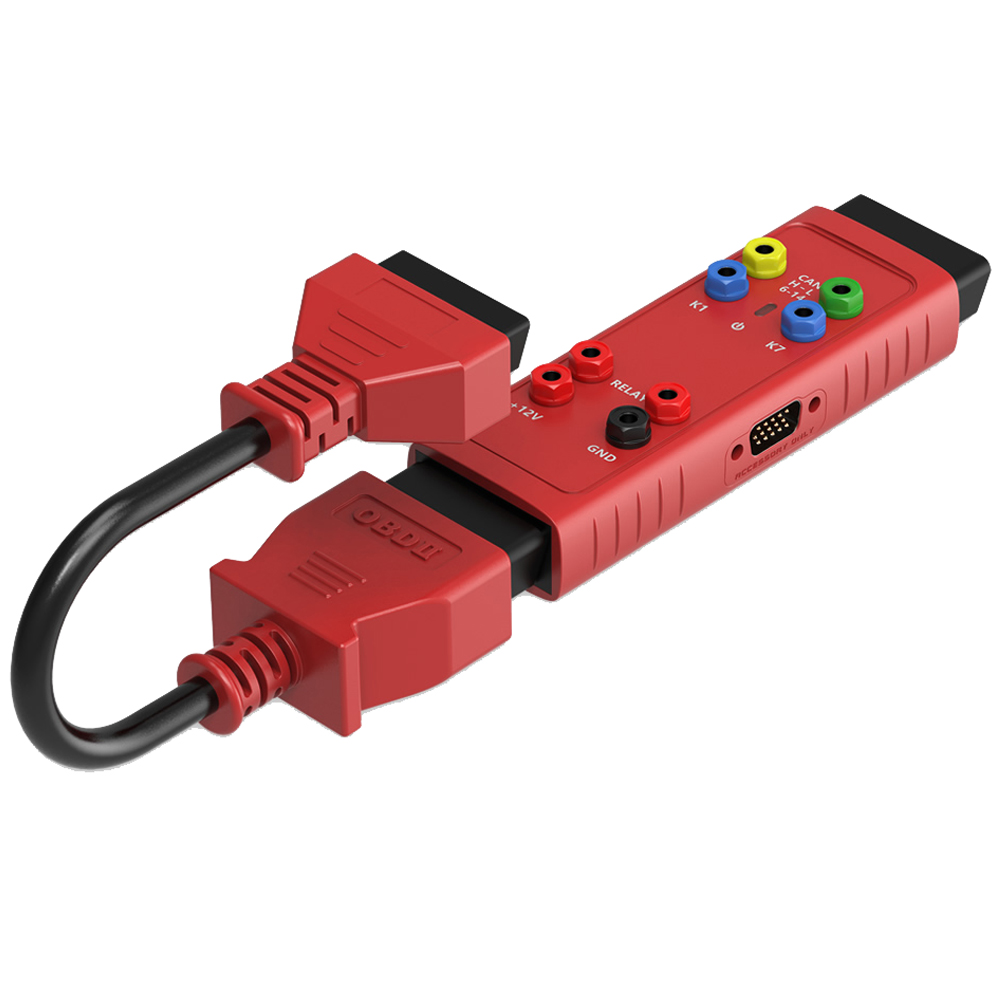

7. OBD-II Male Connector - connects to the vehicle OBD2 directly or via a dedicated extension cable
8. OBD-II Female Connector - connects to the main cable of Autel Diagnostic Tablet
9. CAN-L Port - universal CAN BUS interface, connects with OBD2 Pin 14
10. K7 Port - universal K-line interface connects with OBD2 Pin 7
11. GND Port - universal power input/output port
12. DB15 Port – for dedicated BD15 cable for reading and writing multiple types of ECUs
USD
