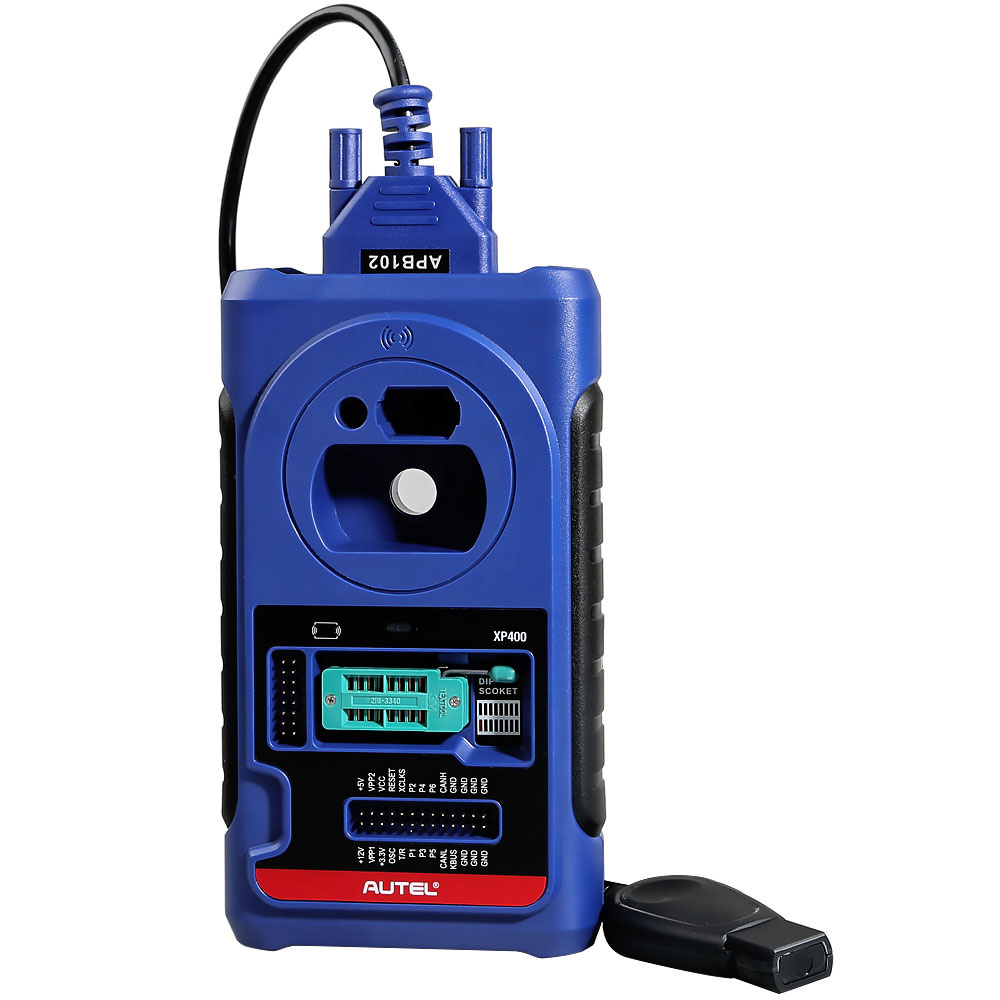

Name: Autel XP400 Key & Chip Programmer for Autel MaxiIM IM608 / IM508
Description:
Autel XP400 Key and Chip Programmer for Autel MaxiIM IM608 / Autel MaxiIM IM508 for supporting MCU, ECU, EEPROM Reading and Writing, Mercedes Infrared Key Reading & Writing, Finding the Control Frequency and IC Card Reading & Writing.
Why Do Yu Need Autel XP400?
1. If your original XP400 for Autel IM608 / IM600 is broken, you can buy a new one to replace the broken one.

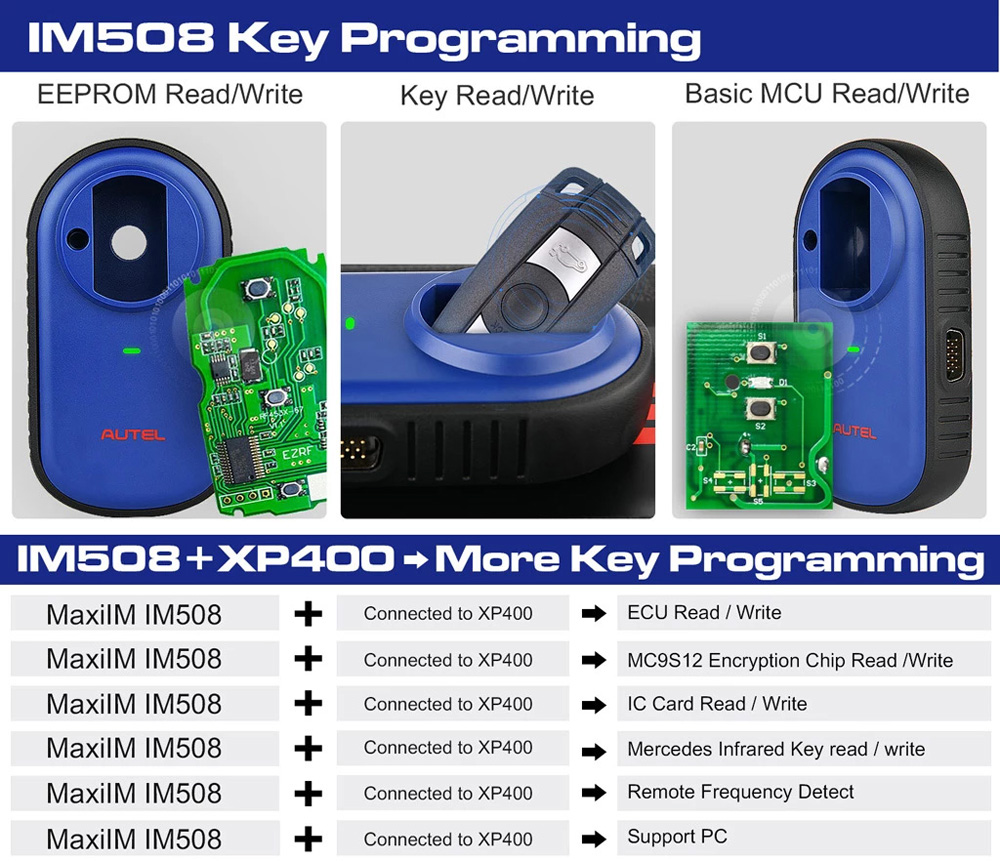

2. With Autel XP400, You can release more function on IM508:
1). If you have a Autel MaxiIM IM508 or Auro Otosys IM100, you can buy XP400 to do advanced IMMO reprogramming like Autel MaxiIM IM608 / Autel MaxiIM IM600.
2). Detailed functions comparison between XP400 and XP200, please refer to bellow chart:
Functions:
Support PC
MCU / EEPROM Chips Read / Write
ECU Read / Write
MC9S12 Encryption Chip Read / Write
Key Read / Write
Mercedes Infrared Key Read / Write
Remote Frequency Detect
IC Card Read / Write

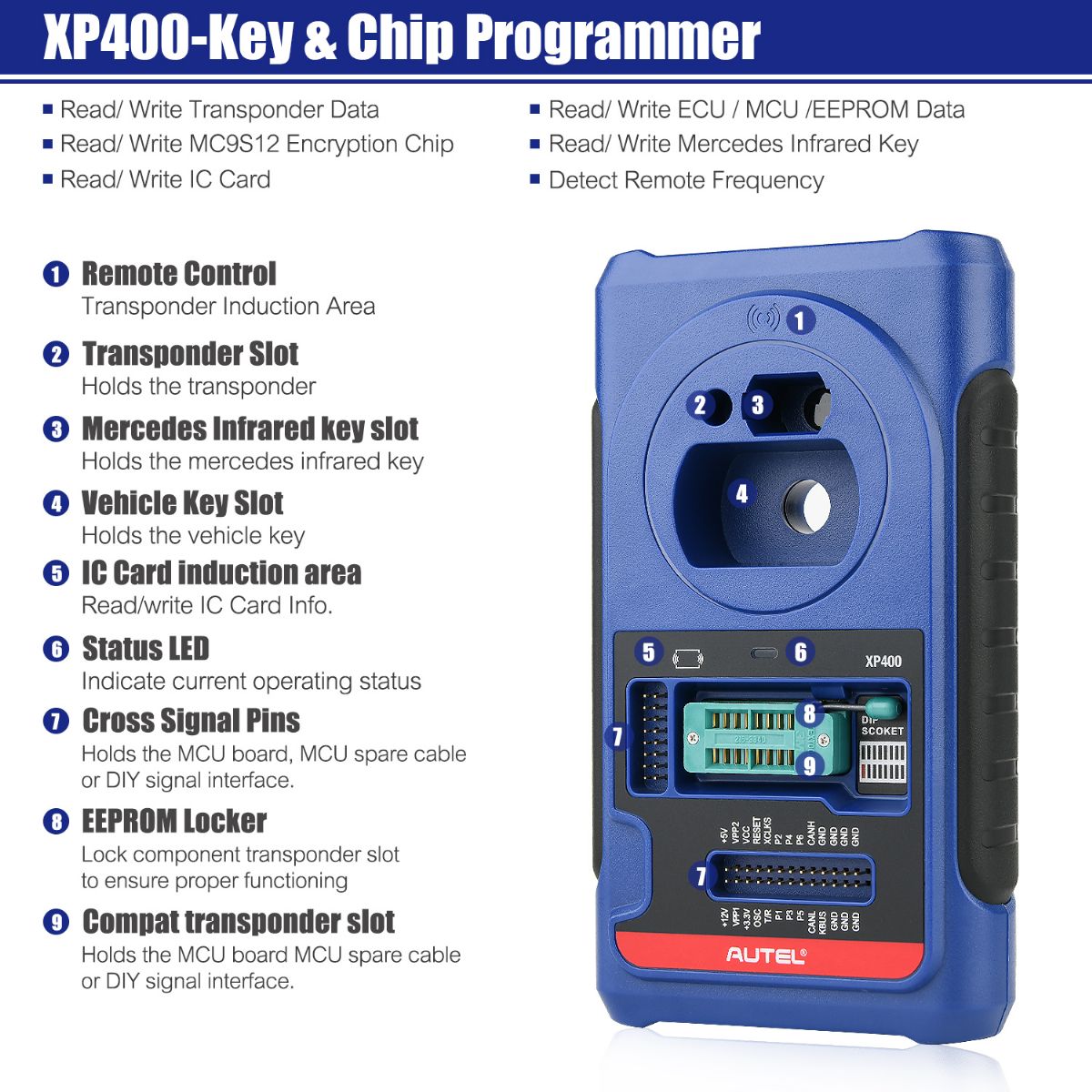

Operation Introductions:

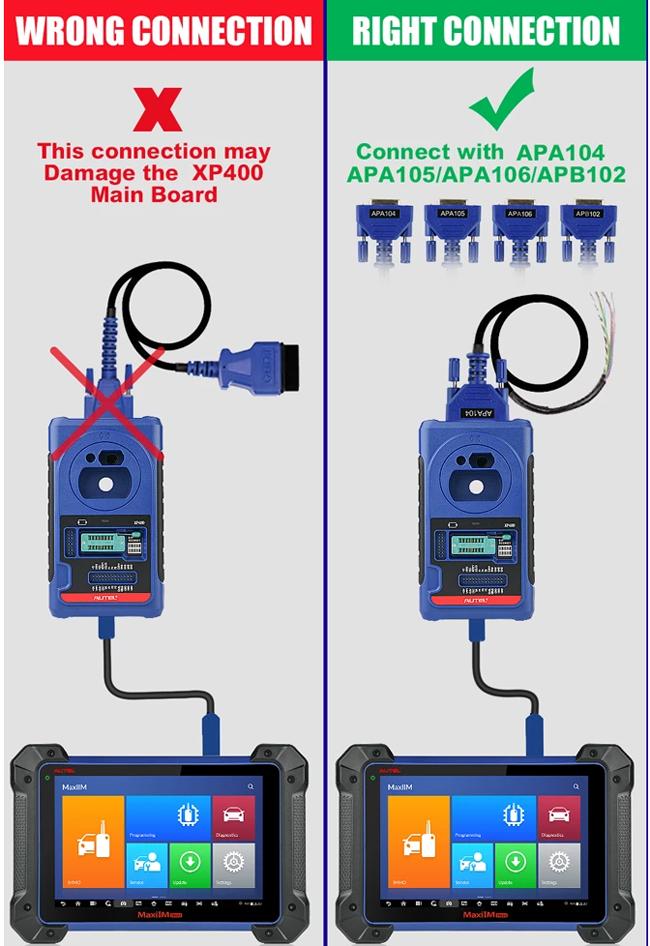

Connect the Autel IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions.

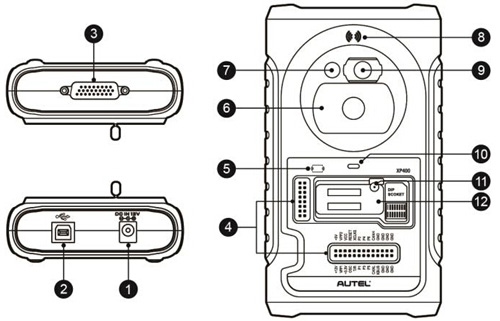

1. DC Port – Provides 12V DC power supply.
2. USB Port – Provides data communication and 5V DC power supply for handheld device, PC and XP400.

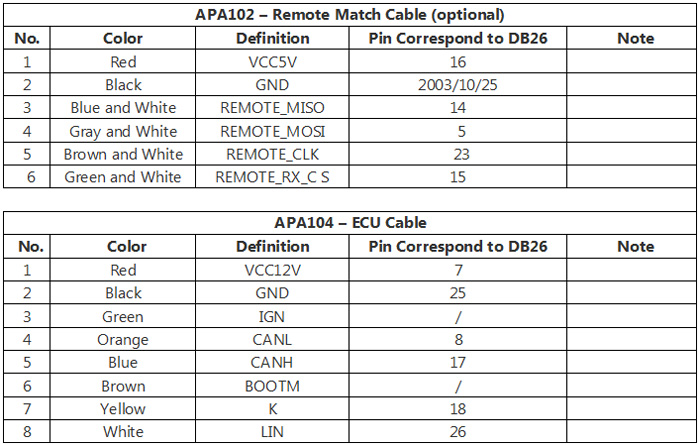

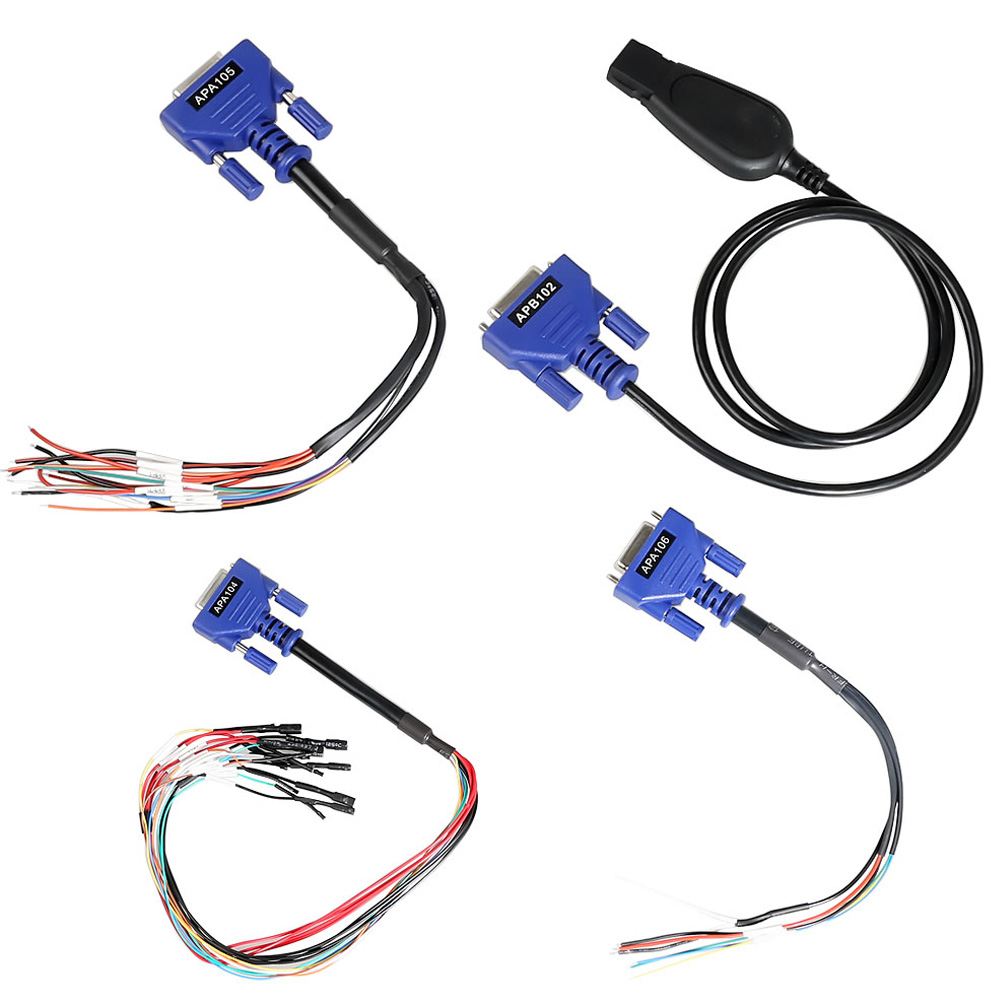

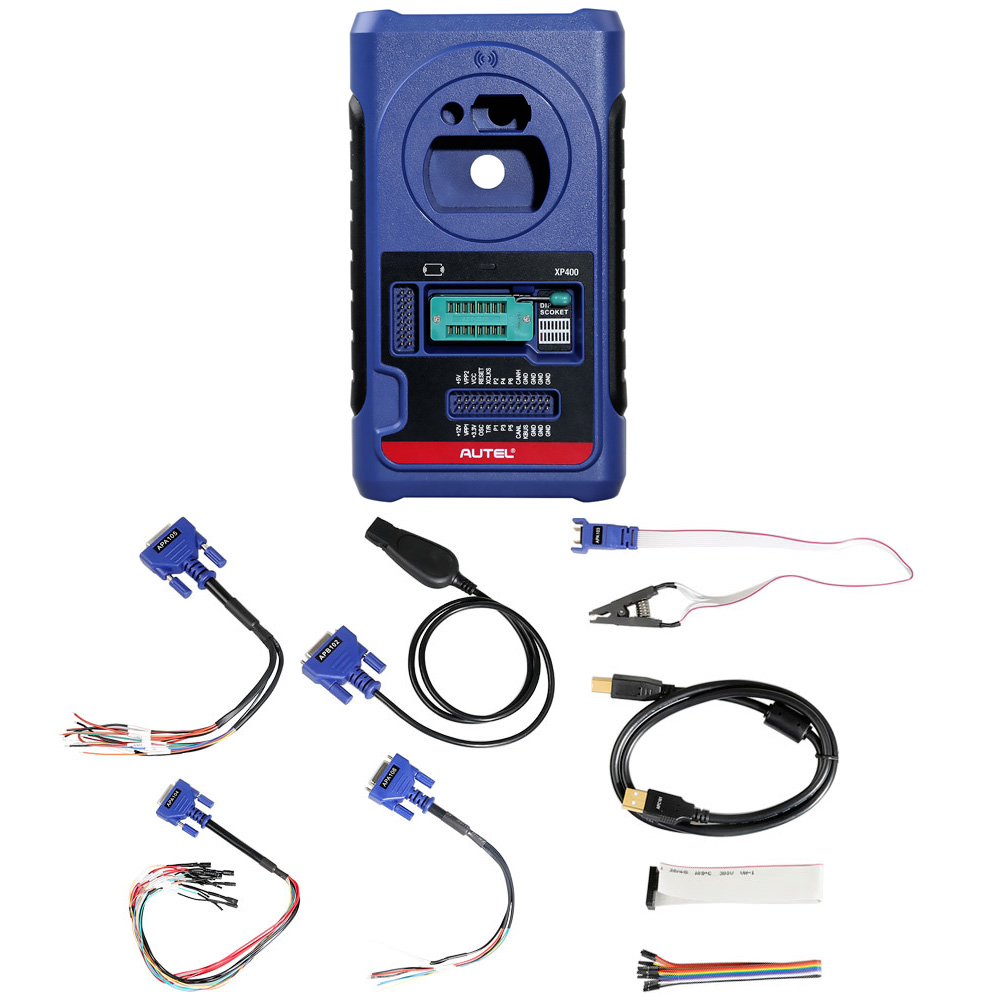

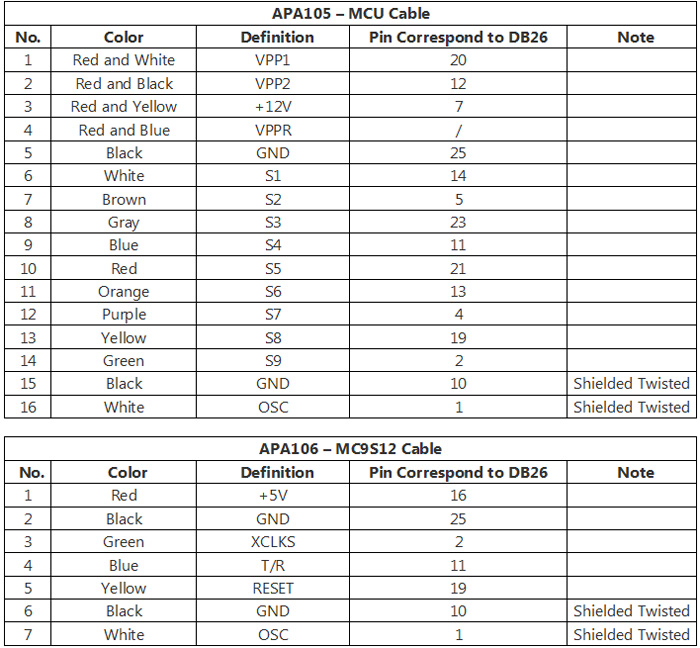

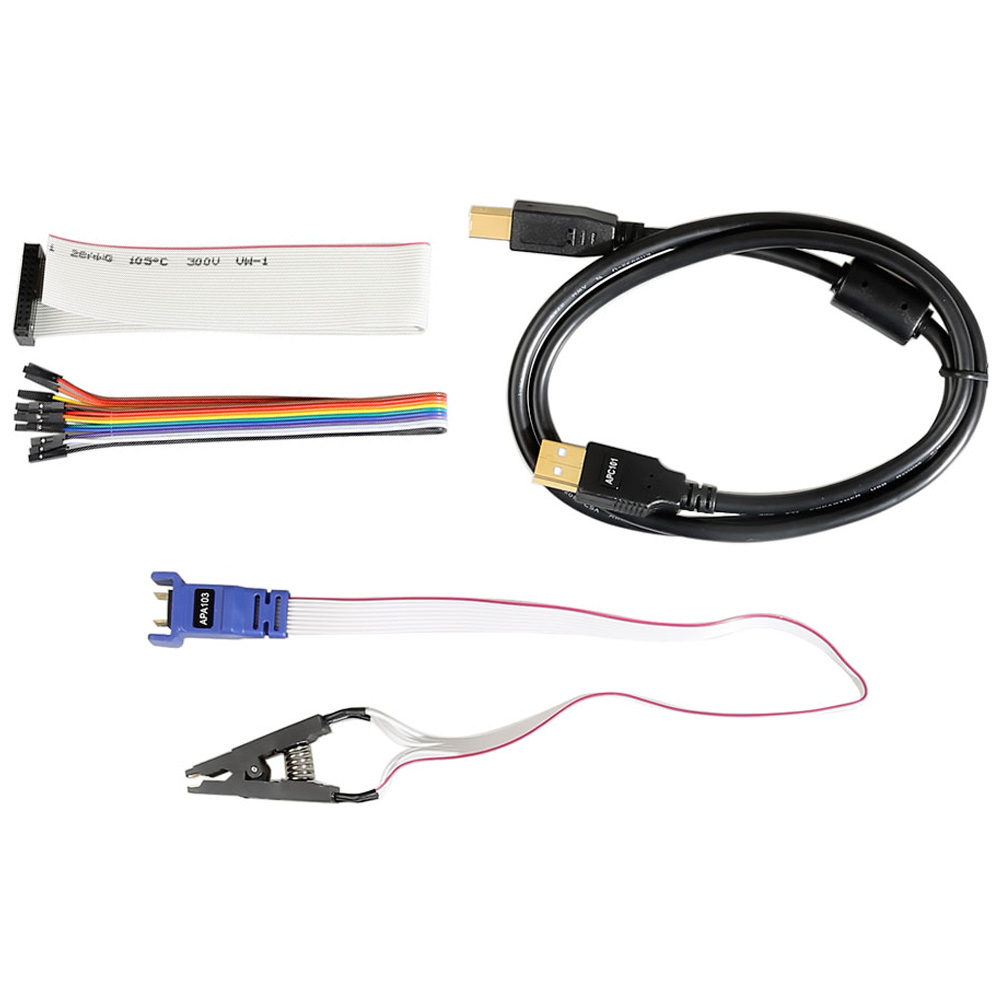

3. DB 26-Pin Port – Connects with 5 cables:
Mercedes Infrared Cable
APA102 – Remote Match Cable (optional)
APA104 – ECU Cable
APA105– MCU Cable
APA106 – MC9S12 Cable
4. Cross Signal Pins – Holds the MCU board, MCU spare cable or DIY signal interface.
5. IC Card Induction Area
6. Vehicle Key Slot – Holds the vehicle key.
7. Transponder Slot – Holds the transponder.
8. Remote Control Transponder Induction Area
9. Mercedes Infrared Key Slot – Holds the Mercedes infrared key.
10. Status LED – Indicates the current operating status.
11. Locker – Locks the EEPROM component transponder slot to ensure proper functioning.
12. EEPROM Component Transponder Slot – Holds the EEPROM plug-in transponder or EEPROM socket.
LED Status:
Green Light: powered on and default
Red Light: error
Green Flash: communication
Specifications:
Port: mini USB, VGA_DB15
Input Voltage: 5 VDC
Operating Current: < 250mA
Maximum Consumption: 1W
Operating Temperature: -10 to 60 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Device Dimensions (L*W*H):130* 68* 28mm
Package Dimensions (L*W*H): 201*167*75mm
|
