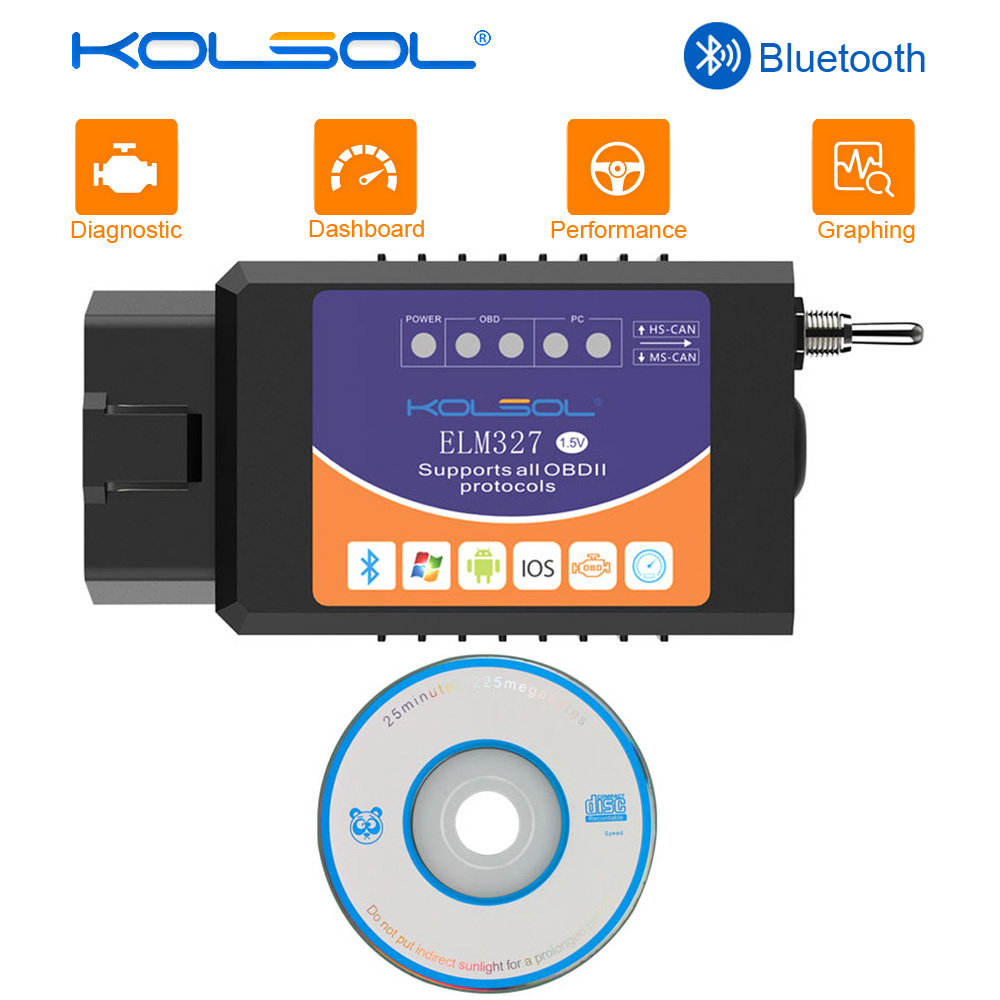

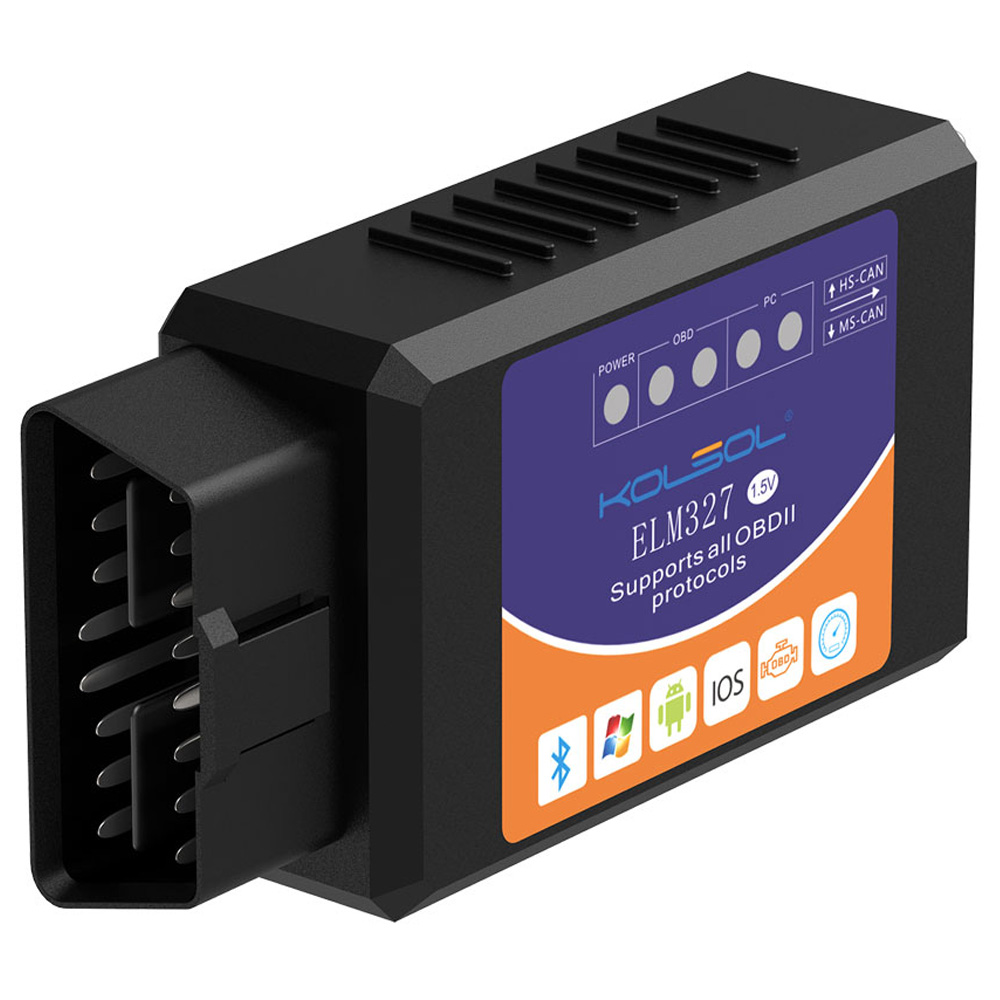

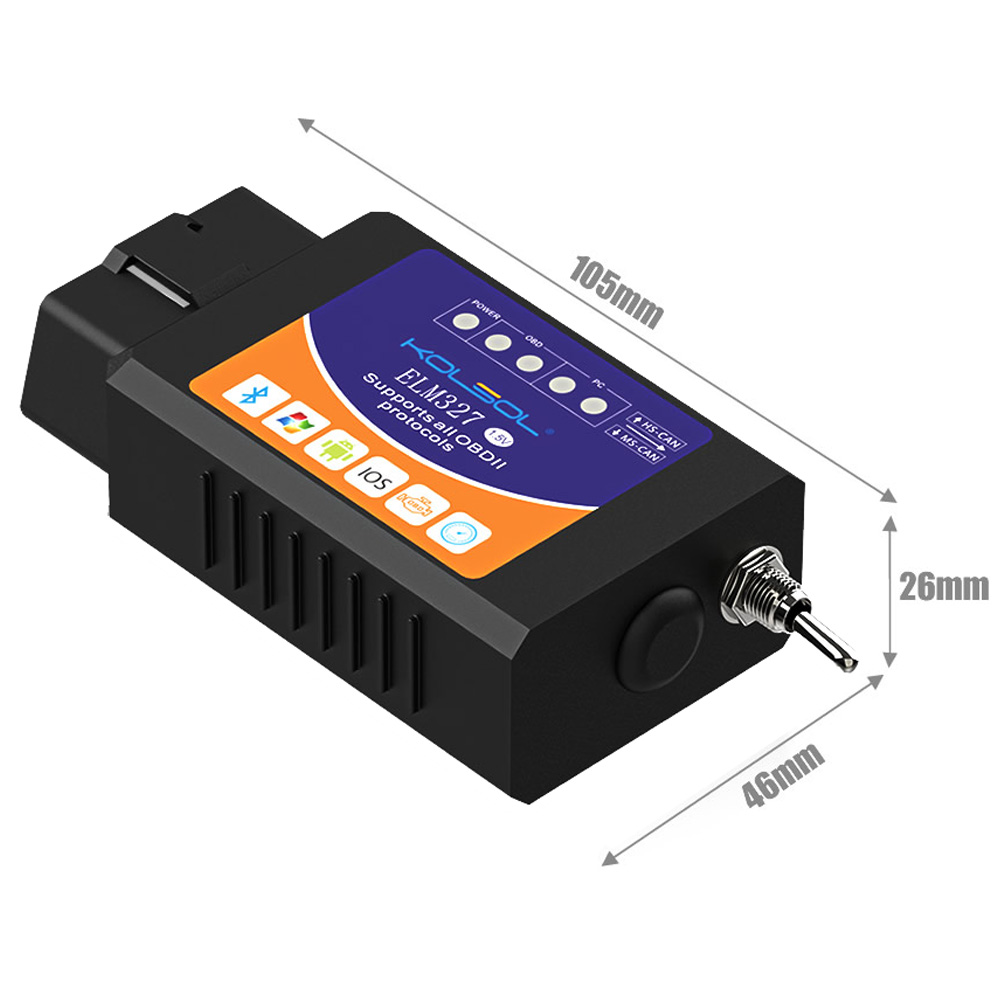

Name: KOLSOL ELM327 Bluetooth OBD2 Scanner V1.5
Description:
KOLSOL ELM327 Bluetooth OBD2 Scanner V1.5 ELM327 with Switch modified for Ford CH340+25K80 chip HS-CAN / MS-CAN
Highlights:
The newly developed wireless scan tool.
It supports all OBD-II protocols.
Bluetooth connection.
Wireless Bluetooth Distance: 5 to 10 meter
Retrieve Fault Codes (DTCs) and clear Check Engine lights.

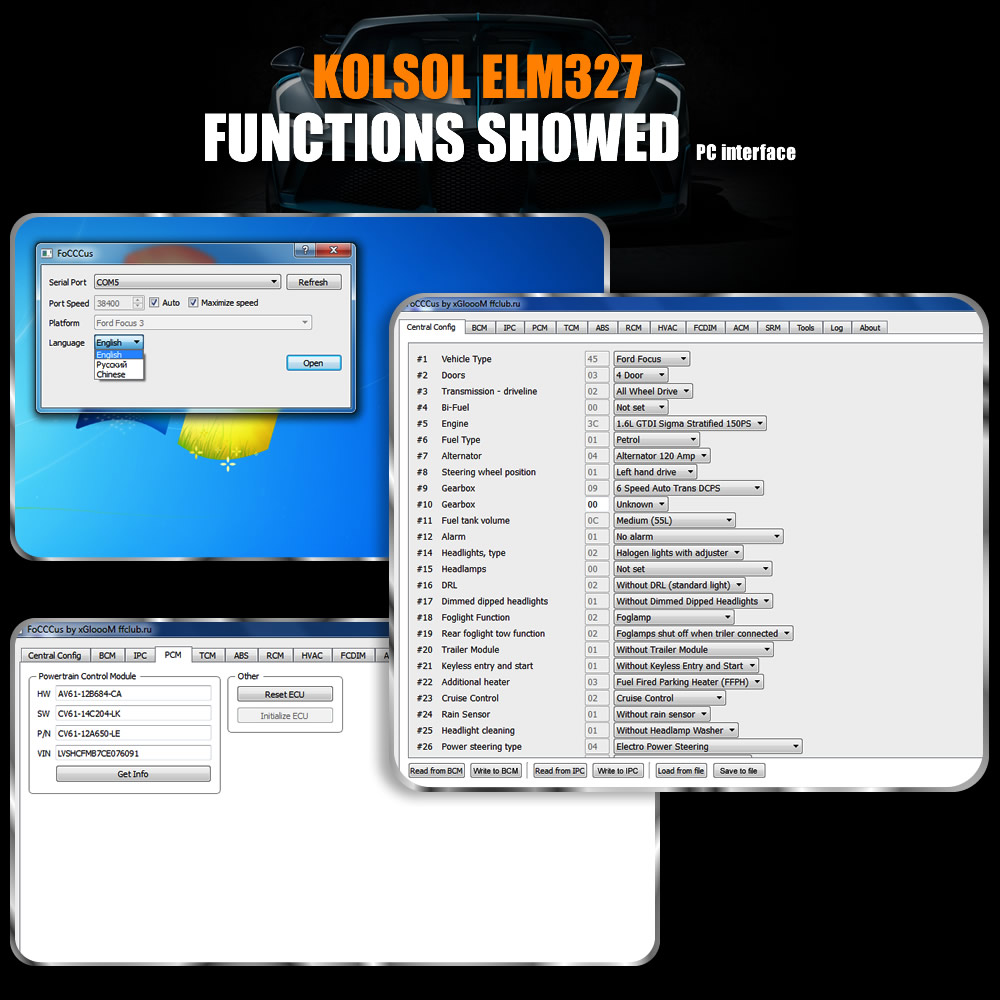

Support Ford models open hidden function.
In addition to adding functionality to Ford, the device is also available as a regular OBD2 / EOBD code reader on all supported vehicles.
Support different kinds of devices to use this scan tool: Android phones, Symbian phones, Windows XP / Windows 7 32bite computers.

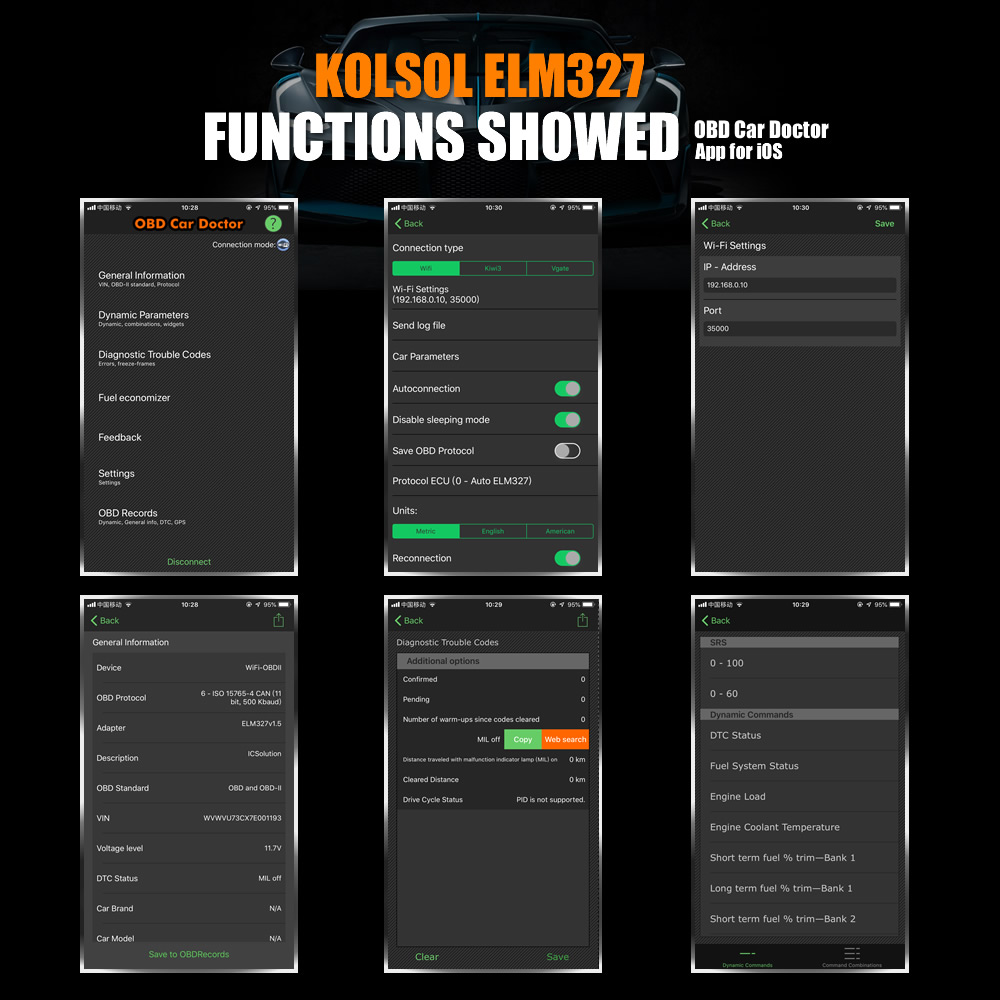

Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...
Supported Languages: English, French, German, Spanish, Turkish, Italian, Polish, Czech, Danish, Hungarian, Croatian, Serbian
Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 00 Kbaud)
7. ISO15765-4 CAN (29bit ID, 00 Kbaud)
8. ISO15765-4 CAN (11bit ID, 50 Kbaud)
9. ISO15765-4 CAN (29bit ID, 50 Kbaud)
A. SAE J1939 CAN (29bit ID, 50* Kbaud)
B. USER1 CAN (11*bit ID, 25* Kbaud)
C. USER2 CAN (11*bit ID, 0* Kbaud)
*default settings (user adjustable)
Supported OS: Windows XP, Windows 7/8, iOS, Android, Symbian .
Packing List:
KOLSOL ELM327 Bluetooth OBD2 Scanner V1.5
Software CD
|
