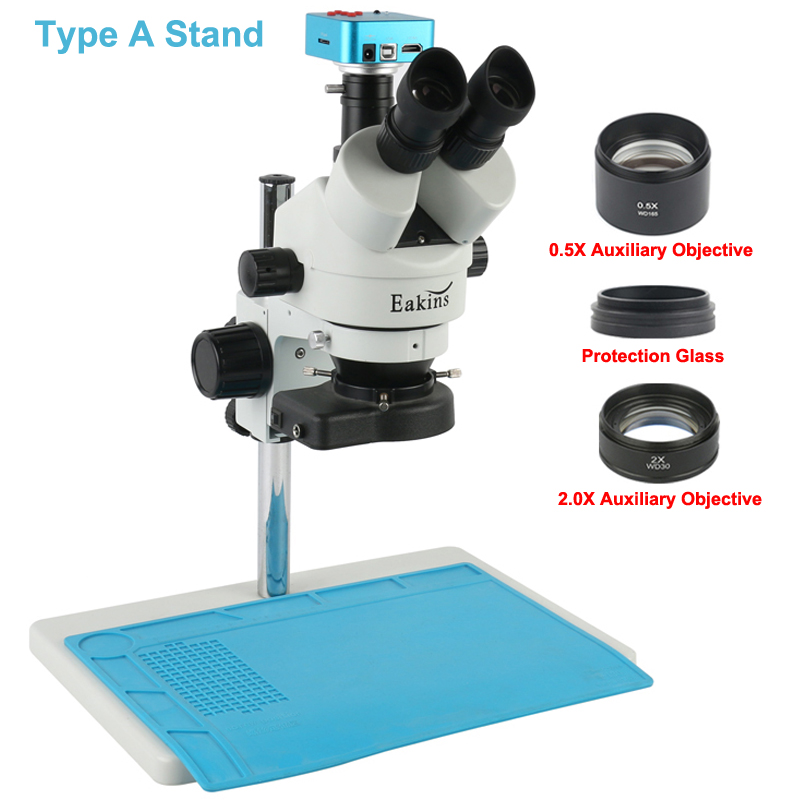

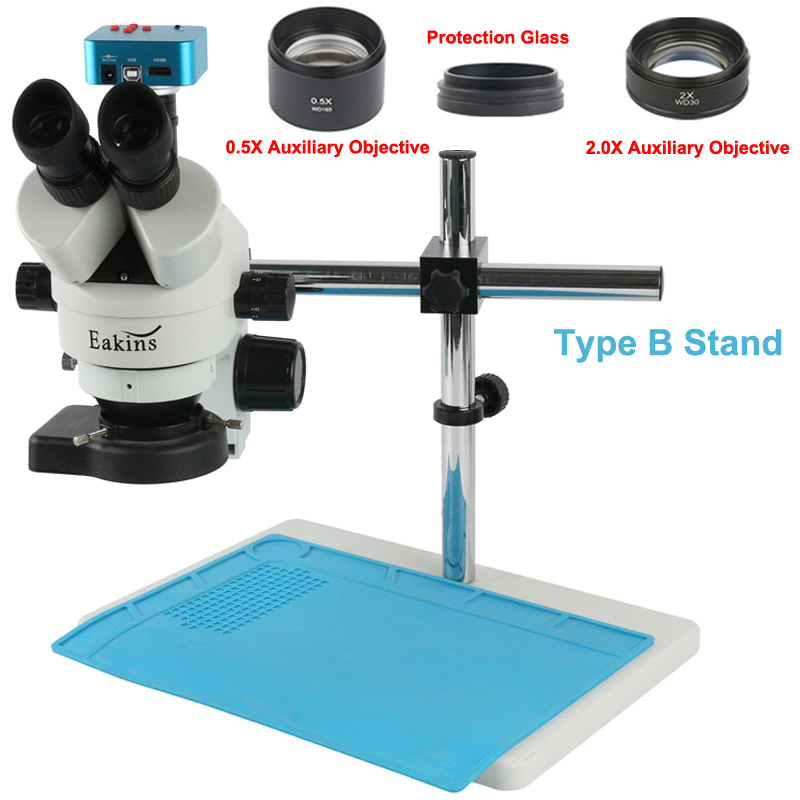

Name: 3.5X-90X Industrial Stereo Trinocular Microscope
Description:
3.5X-90X Industrial Stereo Trinocular Microscope with 38MP 2K HDMI Video Microscope + 2.0X / 0.5X Objective Lens for PCB soldering repair.
Features:
High Quality; High Resolution; Clear Images
2K 38.0MP 1/2.33 inch big size Japan CMOS
TF Card Video Recorder
Photo Model / Video Model

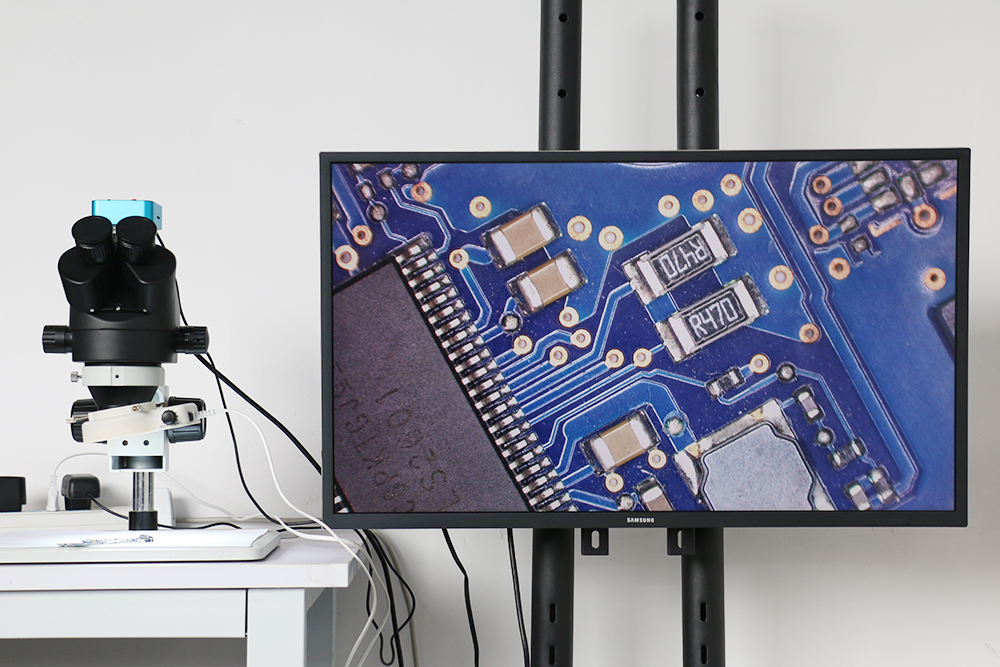

Industry CMOS Camera. It can show the live image directly on any HDMI monitor, projector or TV.
Build in digital crosshairs and color control, add line in the pictures, freeze, Mirror, Rotate, Negative Supply USB2.0, HDMI HD Video, Two output ports.
Advantages:
Excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
7X – 45X super wide zoom magnification power
Bright cold light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopter
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specifications:

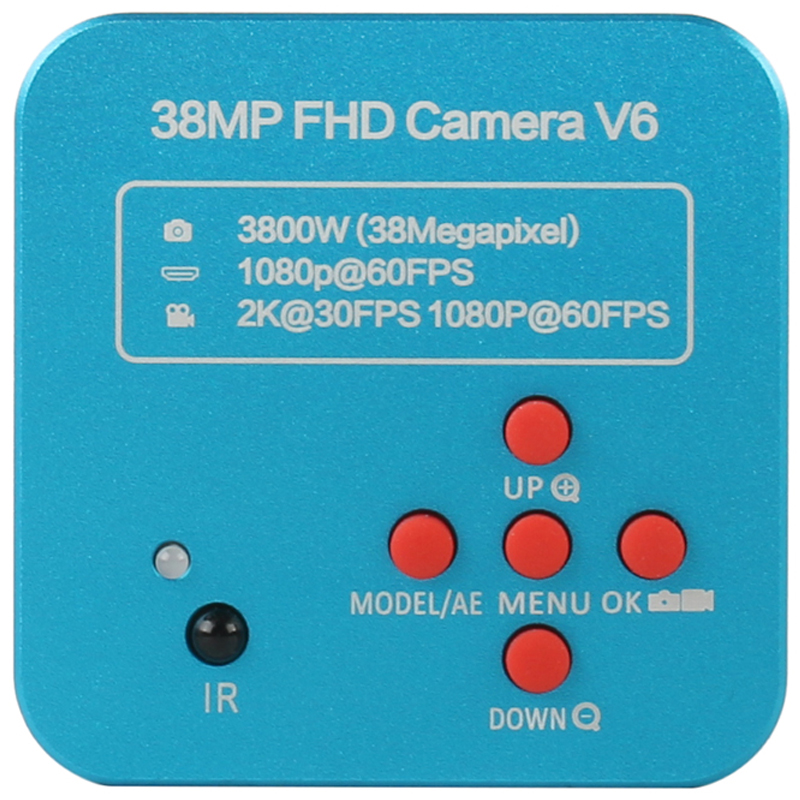

Image Sensor: 38 megapixel Panasonic sensor
Frame Rate: 60F/S @ HDMI output
Movie Size: 2K(25fps) / 1080P(60fps) / 720P(60fps) (Note: If you need to record 2K video, you need to use the SDHC class10 TF card.)
Housing: all metal
Support: C-Mount lens
White Balance: Auto / Manual
Digital Magnification: 5 times digital zoom
Brightness Control: Auto / Manual
Color: R/G/B adjustable
Freeze: supported
Film and Record: supported
Cross Cursor: support multi-color, size adjustable
Horizontal and Vertical Line: 4 pcs of horizontal lines / vertical lines; moveable SNR support
TF Card: maximum 32G
Video Format: MOV

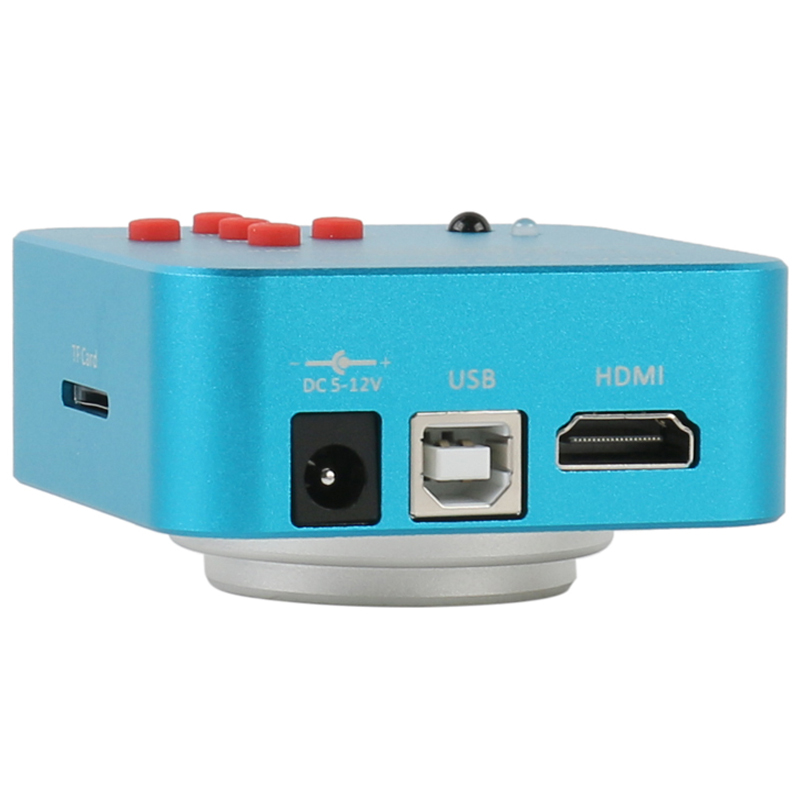

HDMI Interface: standard HDMI output (type A)
Image Resolution: 6912*5184 (for TF Card), 1920*1080 (for PC)
Video Resolution: 1920 *1080 @ 30FPS (for HDMI)
Video Format: AVI
White Balance: Auto
Light: Auto
Negative: supported
Button: Left / Right / Up / Down
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100% adjustable; high brightness
Variable intensity control
Power input: 100-240V; 50-60HZ
Supported lens diameter: 30 - 120mm
Packing List:

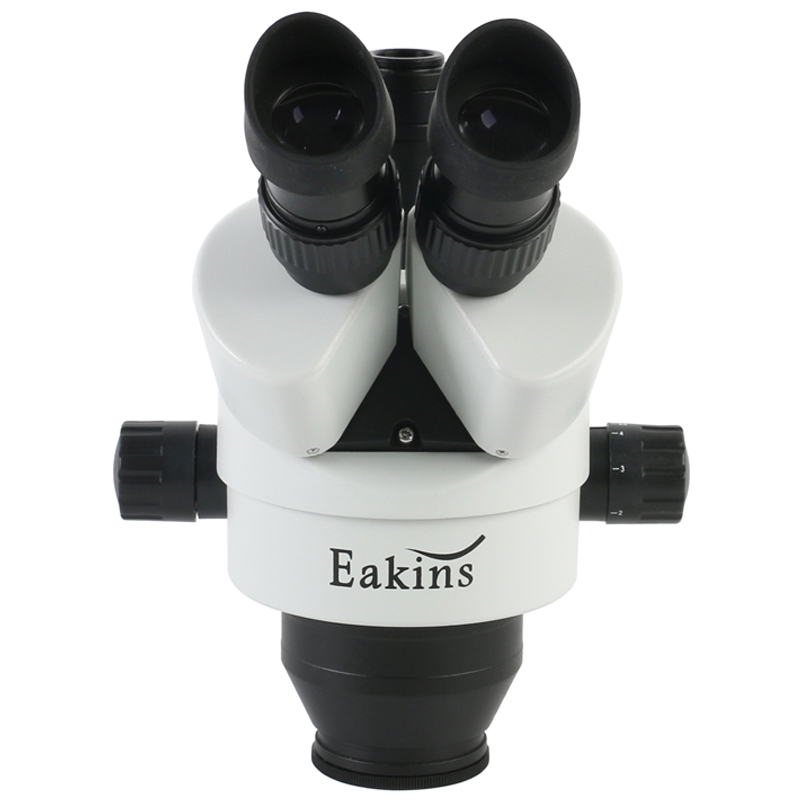

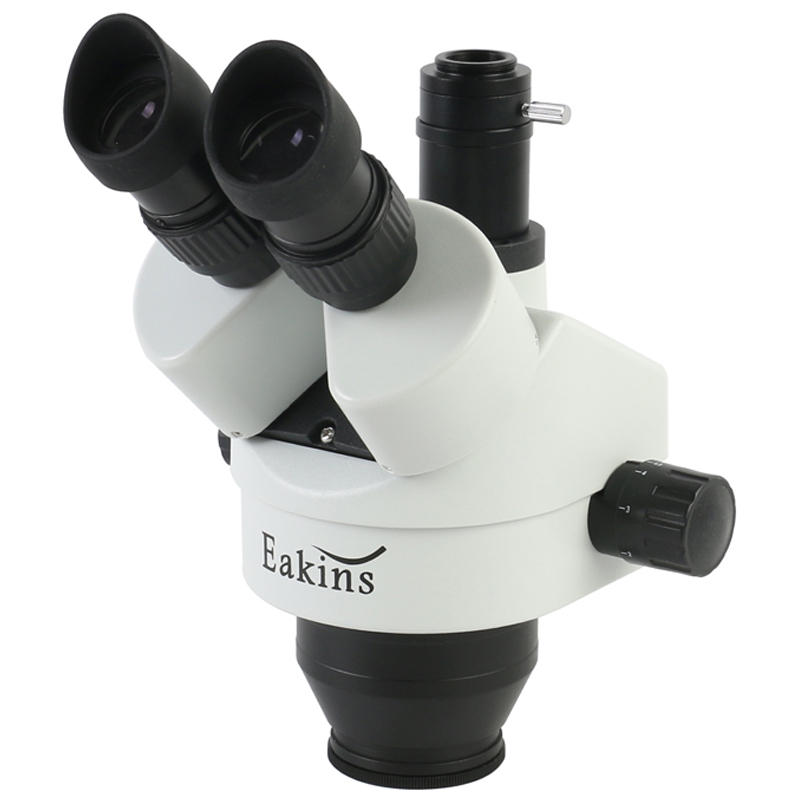

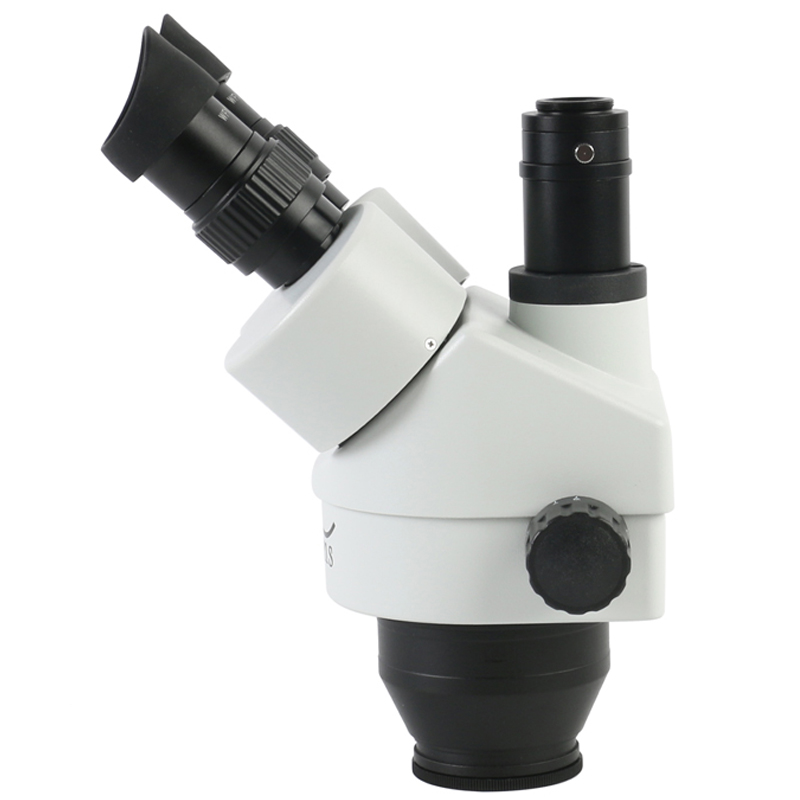

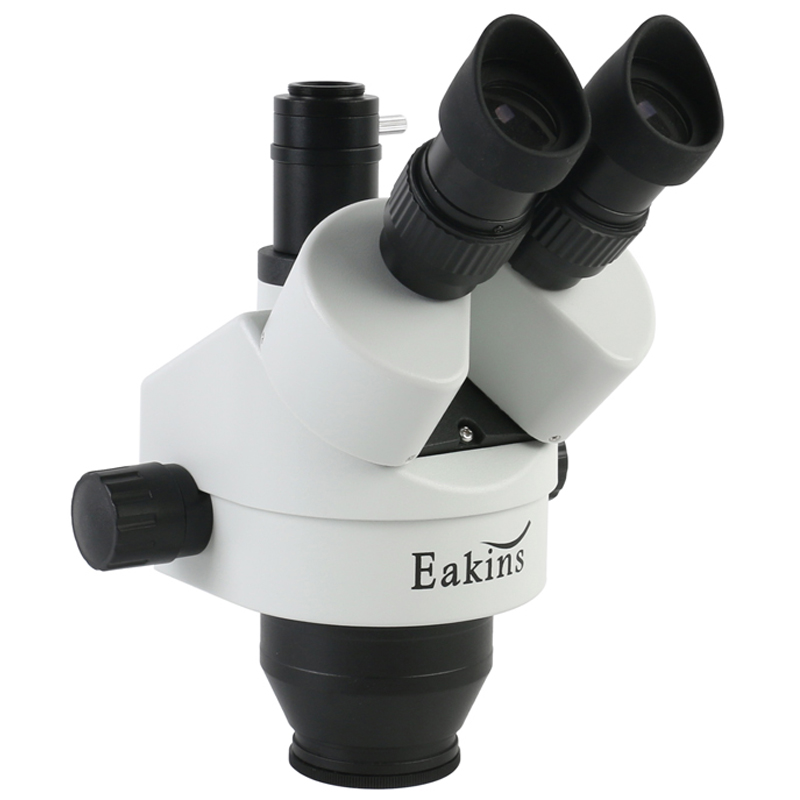

Trinocular Stereo Zoom Head
Pair of Super Widefield 10*20mm Eyepieces
144-LED Ring Light
76mm Focusing Rack
Pair of Eye-Guards

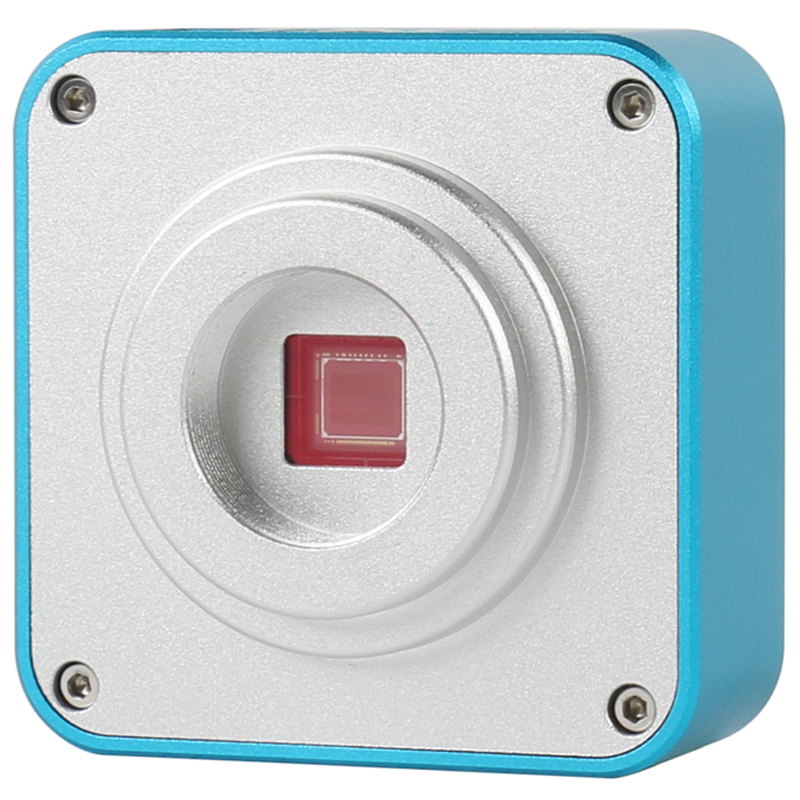

Camera
SZMCTV 1/2 Lens
Dust Cover
Protection Glass
0.5X Microscope Auxiliary Objective Lens (Working Distance 165mm)
2.0X Microscope Auxiliary Objective Lens (Working Distance 165mm)

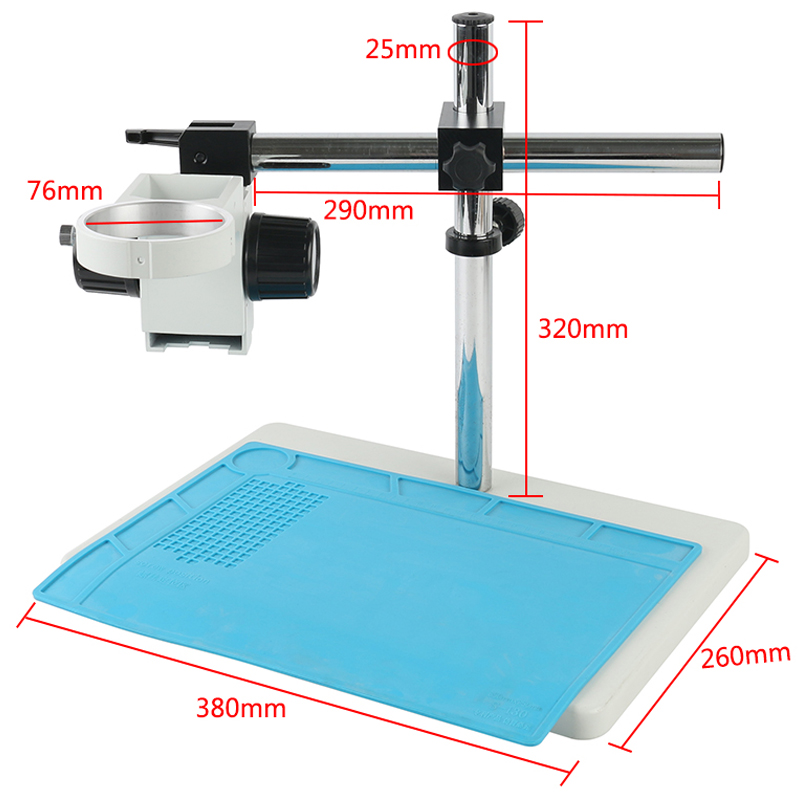

Metal Stand
Power Supply Adapter
Packing Box
 |
