Description:

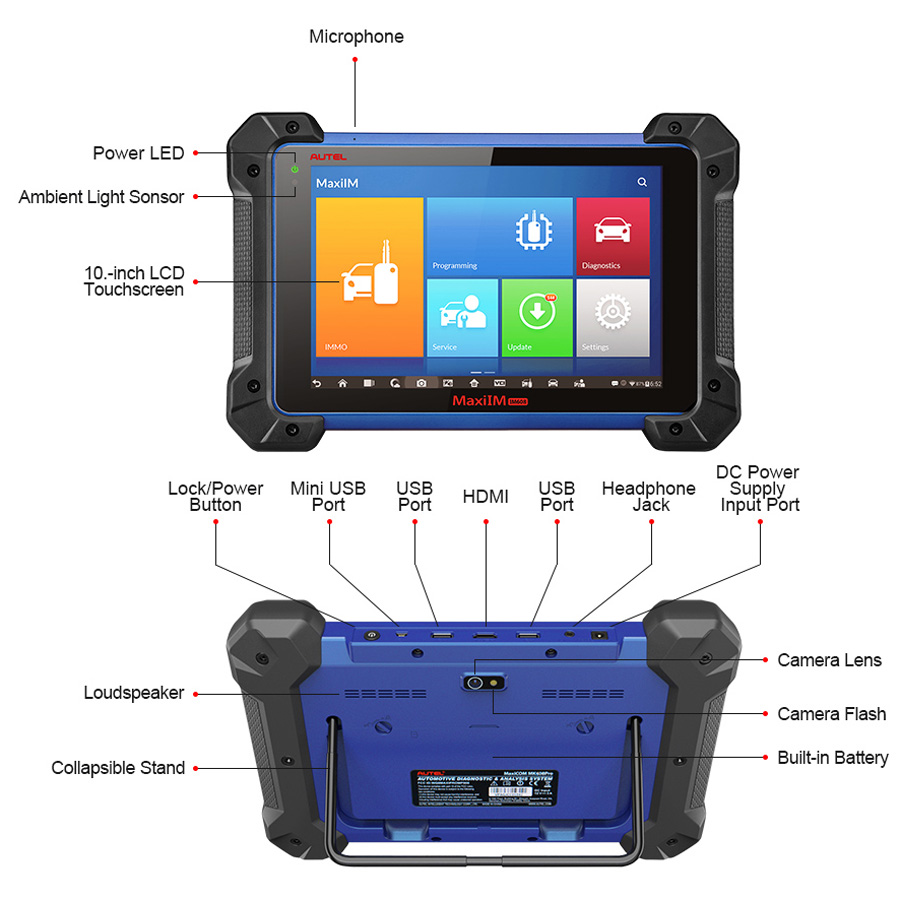

Autel MaxiIM IM608 Pro with upgraded Autel XP400 Pro Key Programmer is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android-based 10.1-inch touch screen tablet.



Autel MaxiIM IM608 Pro features an automated and guided Smart Mode to help technicians perform key learning effortlessly, and an Expert Mode to provide experienced technicians with quick access to desired functions. It supports all the functions of the previous MaxiIM IM608 with more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key.

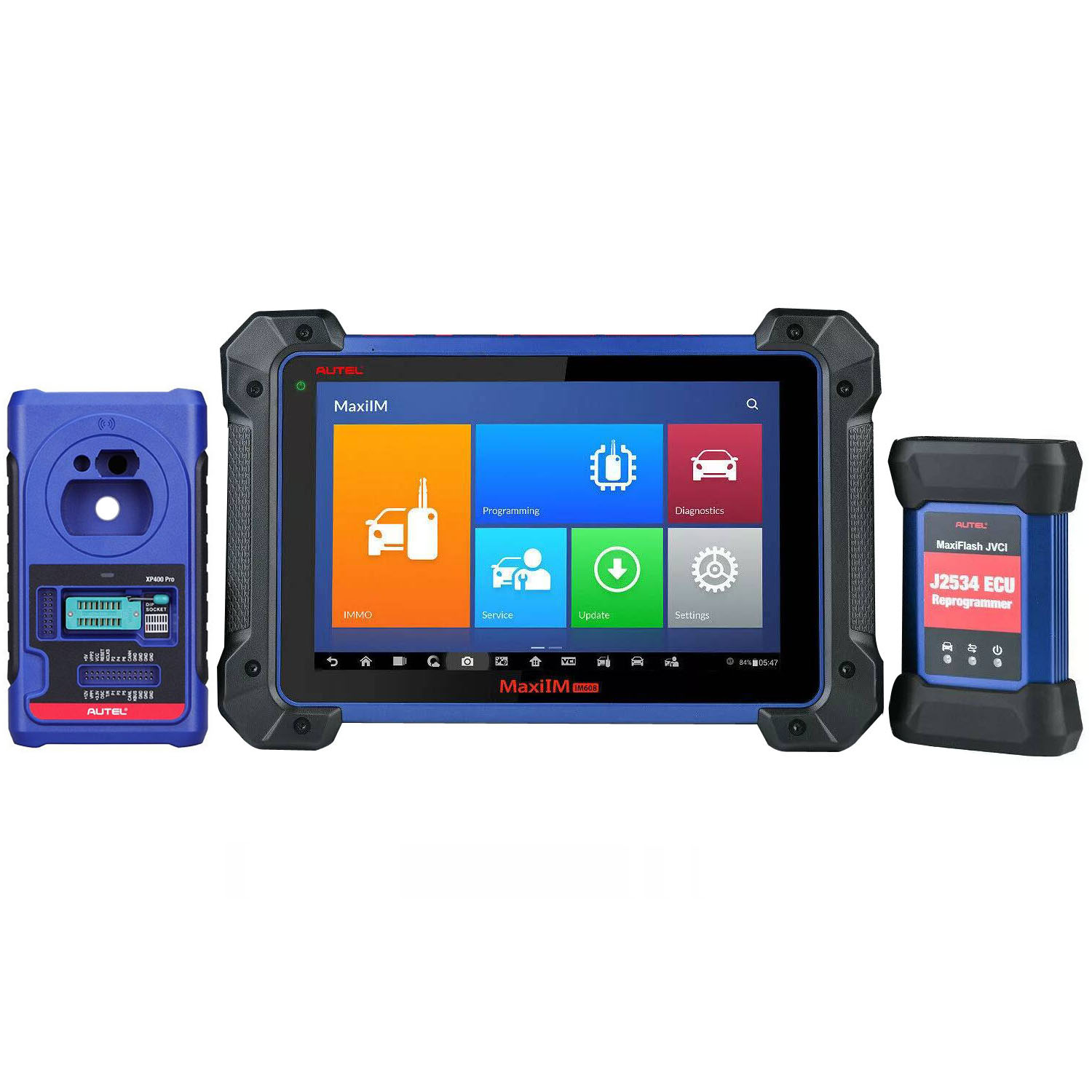

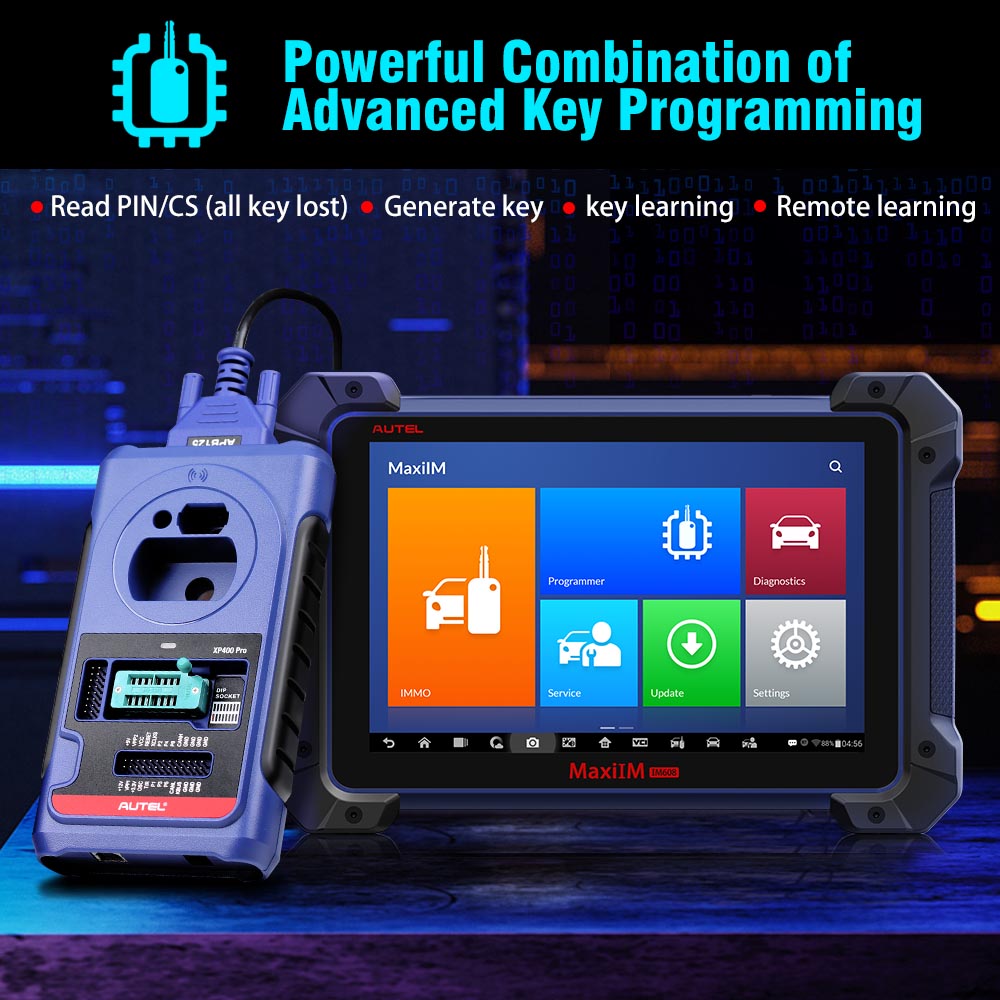

Autel IM608 Pro Key Programming Kit is a comprehensive Immobilizer and Key Programming device composed of Autel MaxiIM IM608 10.1-inch Android touchscreen tablet and Autel XP400 Pro Key and Chip Programmer, the wireless JVCI J2534 pass thru programming device and the optional Autel IMKPA Key Programming Adapter Kit.



Autel IM608 Pro enables key learning directly through the OBD-II port for 85% of vehicles in North America. Autel IM608 tablet can read the immobilizer pins and passwords directly from the vehicle and stores this information to use later when learning the newly programmed keys to vehicle.  The IM608 tablet provides all the diagnostics capabilities of Autel MaxiSys MS908S including all system AutoSCAN, active tests, special functions, coding, initialization and memory relearns.



Autel IMKPA Programming Adapter Kit is compatible with the Autel XP400 Pro Key and Chip Programmer, includes 12 adapters for the XP400 Pro that enables read / write / erase for Mercedes Benz ESL_W209/W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen / Audi / BMW/ Benz Key Unlock.



Highlights:



1. Autel MaxiIM IM608 Pro is upgraded version of Autel MaxiIM IM608.

2. One year FREE update online on Autel official website.

3. Aute IM608 Pro comes with Autel XP400 Pro which adds more functionality for BMW, Mercedes-Benz as well as EEPROM reading.

4. Could be used with Autel IMKPA Key Programming Accessories Kit (Need to Buy Separately) which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read / write / erase.

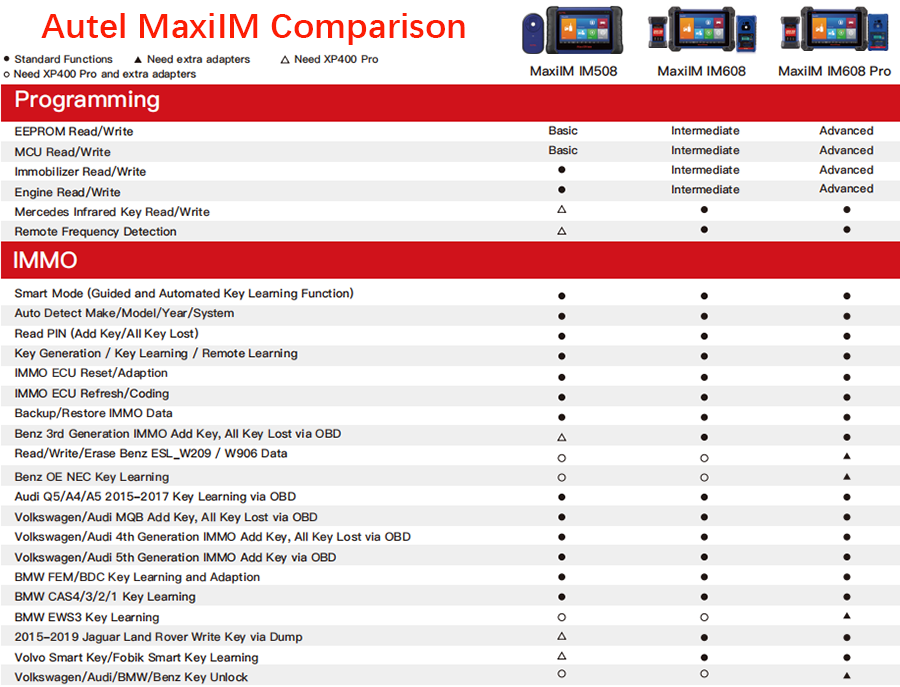

Compare with Autel MaxiIM IM608, the New Autel IM608 Pro has following new features:



1. BMW EWS3 Key Learning (with APB114 Adapter)

2. Mercedes-Benz W209 EIZ Read / Write / Erase (with APB118 Adapter)

3. OEM Mercedes-Benz NEC Key Learning (with APB115 Adapter)



Read / Write Data:



EEPROM - added 60 chip types, now supports 445 types (with APB119, 121, 122, 123 and 126 Adapters);

MCU - added 32 chip types, now supports 2067 types (with APB120, 127 and 128 Adapters);

Odometer – will add 162 chip types, will be able to support 171 types in July;

Engine ECU – added 1 chip type, now supports 41 chip types;

Immobilizer ECU – added 3 chip types, now supports 181 chip types.

Key Unlock – supports 11 key types (with APB113 Adapter).



In a word, Autel MaxiIM IM608 Pro supports all the functions of the previous MaxiIM IM608 with a more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key with a more stable EEPROM platform.



Functions:



1. IMMO Functions



Auto Detect Make/Model/Year/System

Read PIN (All Key Lost)

Key Learning

IMMO ECU Reset / Adaptation

IMMO ECU Refresh / Coding

Remote Learning

AUDI Q5/A4/A5 2015-2017 Key Learning

VW MQB Key Learning

BMW FEM/BDC Key Learning and Adaptation

BMW CAS4 Key Learning and Adaptation

Mercedes Key Learning

2015-2018 Land Rover & Jaguar Write Key via Dump

Volvo Smart Key Learning / Knob-style Smart Key

Advanced Programming Functions

EEPROM Read / Write

MCU Read / Write

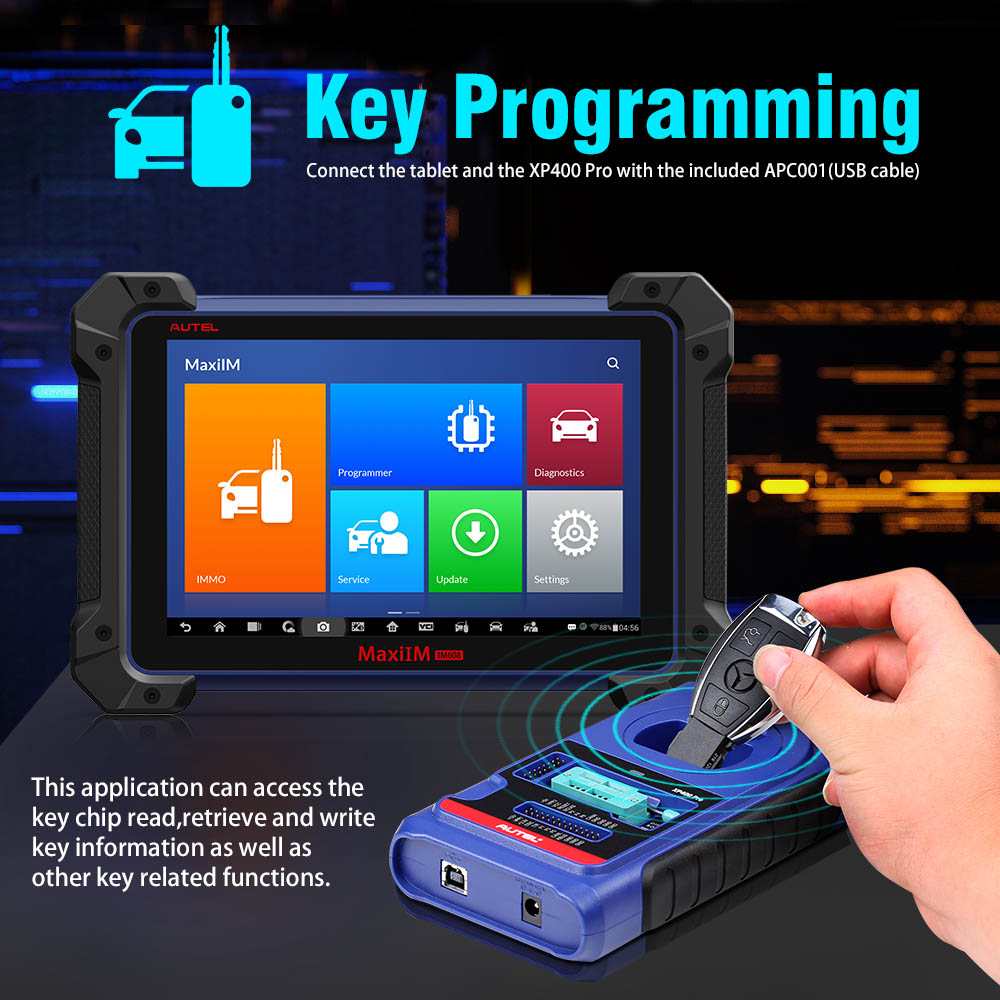

Key Programming

Mercedes Key Read / Write

Remote Frequency Detect

OE-Level Diagnostics



2. All system diagnostics and Advanced Service Functions (works with the Autel MaxiFlash JVCI (J2534 ECU Reprogrammer)



Oil Service Reset

Parking Brake Pad Relearn After Replacement

Steering Angle Sensor Relearn

Battery Registration and Reset

Diesel Particulate Filter Regeneration

Tire Pressure Monitoring System

Active Test

ECU Coding

VW/Audi Component Protection

Complete Service Functions



What is the Difference Between Autel IM608 and Autel IM608 Pro?



Autel IM608 Tablet and Autel IM 608Pro Tablet have no difference in terms of hardware and software. All keep the same.



The only difference is between XP400 and XP400 Pro, the main difference is Autel XP400 Pro has a more powerful hardware upgrade.



XP400 Pro programmer upgrade and improvement compare with XP400:



1. Fixed the problem of connecting the XP400 to the vehicle ODB connector causing the burnout of the device.

2. Fixed the stability problem of using APB102 IR key to read/write.

3. Upgrade the hardware of programmer, Chip read/write function is more stable and support more EEPROM chips.

4. Fixed the problem of EERPOM adaptor APB101 can’t read/write EEPROM chip and rename it as APA129.

5. Rename accessories APA104、APA105、APA106 as APA107、APA108、APA109.

6. APA108 and APA109 cable length is shorter than before, reducing the signal interference.

7. XP400 Pro adds support for following chips:



EEPROM-->>AMD-->>AM29FXXX series chip

EEPROM-->> FUJITSU-->> MB29FXXX series chip

EEPROM-->> ST-->> M29FXXX series chip

Engine control module-->> ST-->> M29FXXX series chip

IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function

IMMO-->> BMW-->>EWS3 module read/write function

REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase



8. Autel XP400 Pro adds support for following adapter board:



APB113 PCF79XX adapter board

APB114 EWS3 adapter board

APB115 NEC Adapter board

APB118 NEC ELV adapter board

APB119 TB28FXXX adapter board

APB120 TMS370 adapter board

APB121 AM29FXXX Adapter board

APB122 AM29FXXX adapter board1

APB123 AM29FXXX adapter board2

APB126 M35080/D80 adapter board

APB127 MC68HC0(7)05BXX adapter board

APB128 MC68HC05X32 adapter board



9. XP400 Pro supports 12 types of unlocking smart key:



BMW E Chassis remote control

OE 315 remote refresh

OE 868 remote refresh

Aftermarket remote control refresh

BMW F Chassis remote control

315 remote refresh

433 remote refresh

868 remote refresh

Audi--semi smart key

PCB2_8T0959754_433_REMOTE

PCB2_8T0959754D_868_REMOTE

Audi--smart key

PCB3_4H0959754DA_433_SMARTKEY

PCB3_4H0959754DB_315_SMARTKEY

PCB3_4H0959754DD_868_SMART

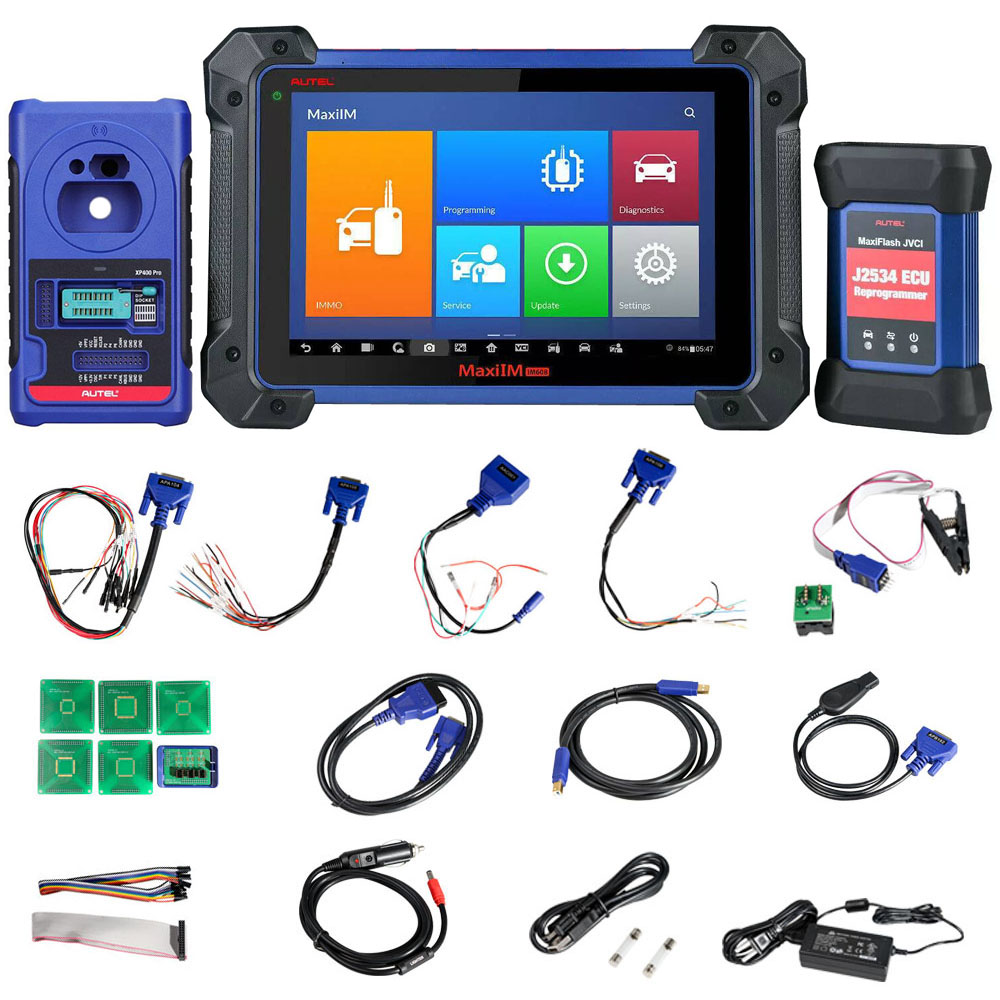

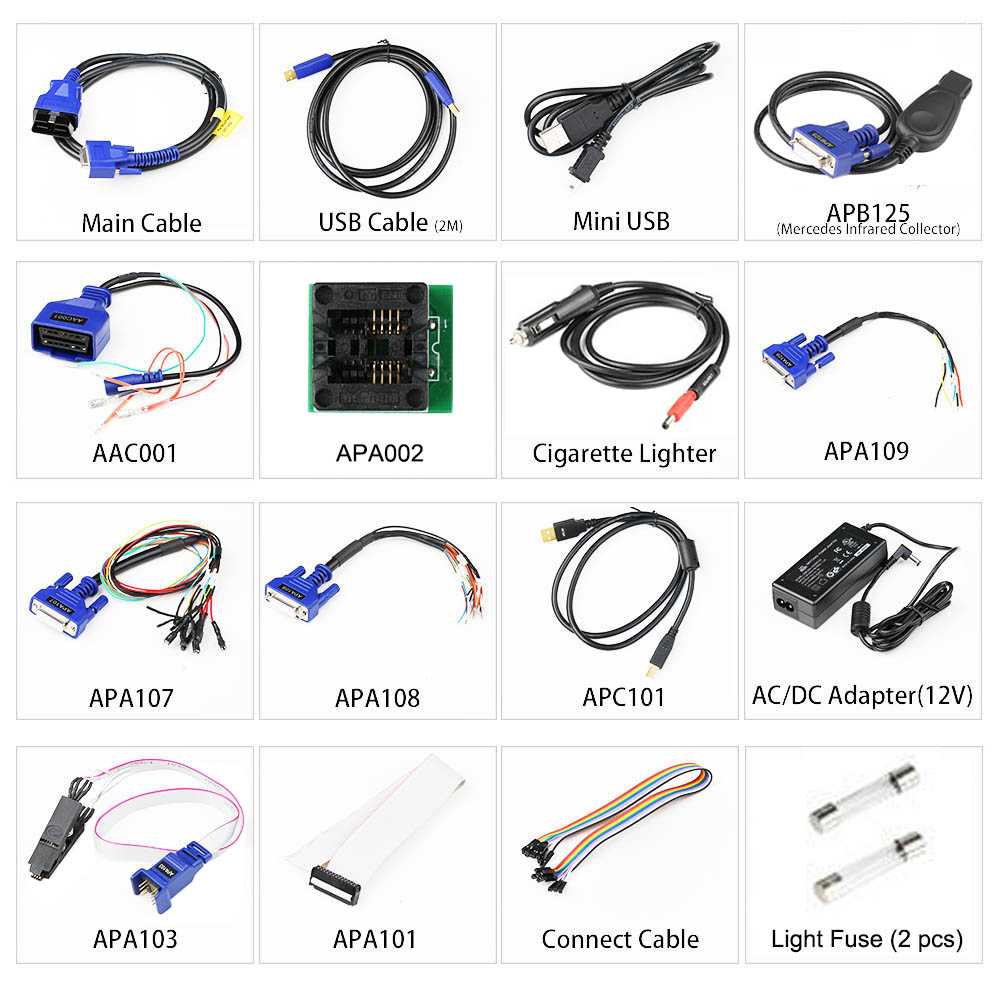

Packing List:

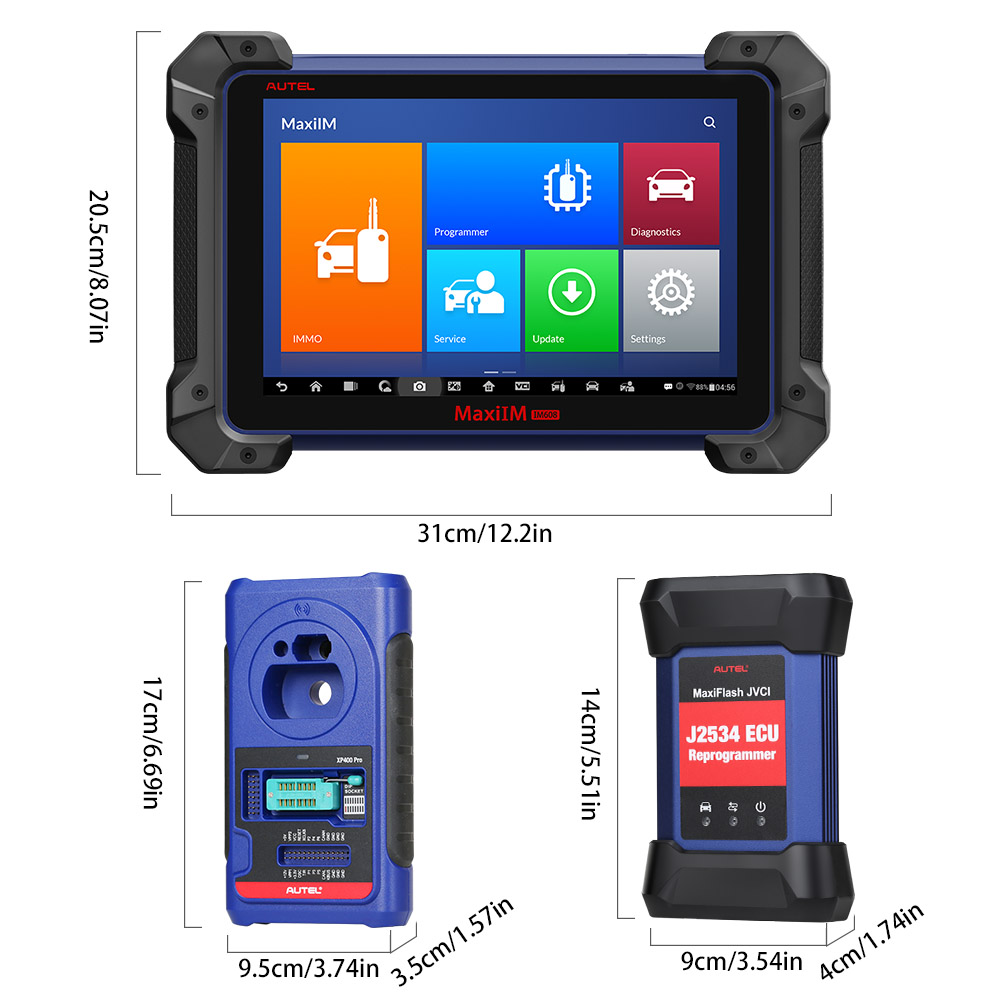

Autel MaxiIM IM608 Tablet

Autel XP400 Pro Key Programmer

Autel MaxiFlash JVCI ECU Reprogrammer

Main Cable

USB Cable (2m)

Mini USB Cable

12V AC/DC Adapter

6*30mm Light Fuse (2 pcs)

Cigarette Lighter

AAC001

APC101 (USB Cable)

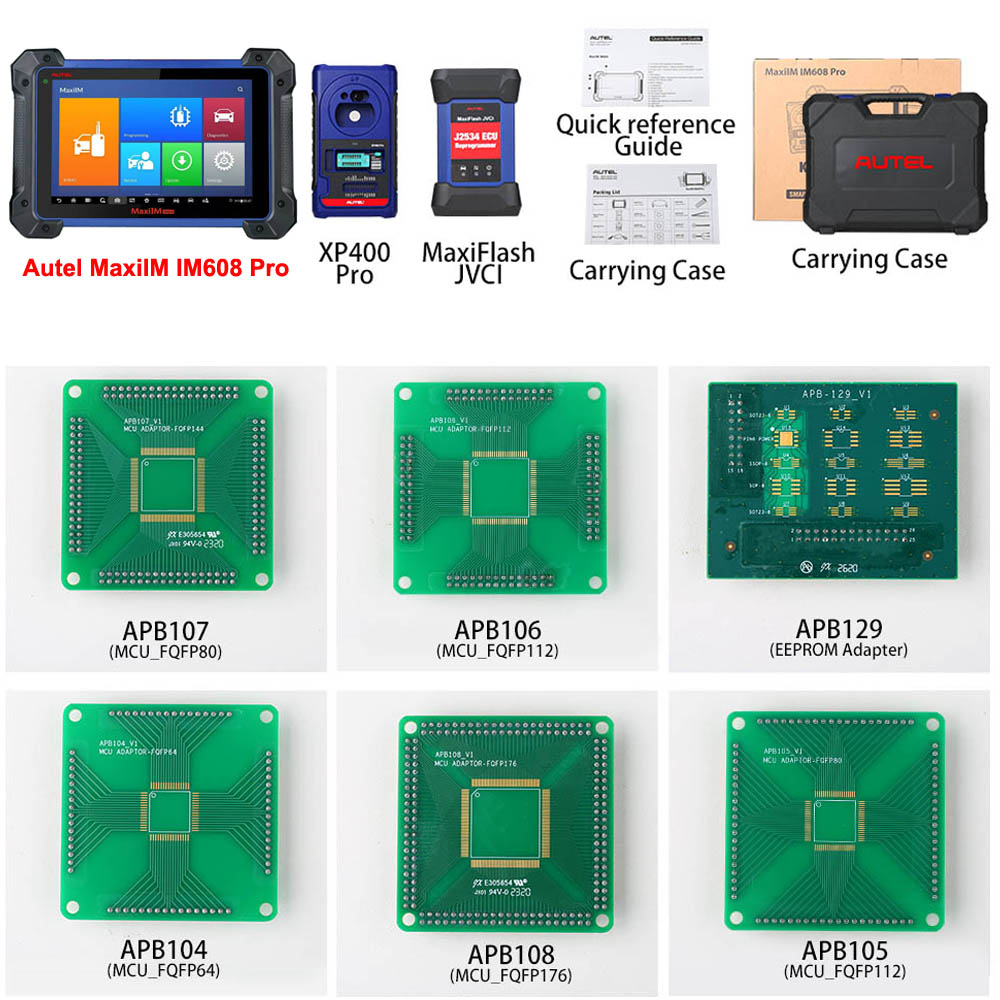

APB129 (EEPROM Adapter)

APB125 (Mercedes Infrared Collector)

APB103 (MCU_PLCC52)

APB104 (MCU_FQFP64)

APB105 (MCU_FQFP80)

APB106 (MCU_FQFP112)

APB107 (MCU_FQFP144)

APB108 (MCU_FQFP176)

APB109

APB110 (MCU_FQFP176)

APB111 (MCU_FQFP176)

APA002 (EEPROM Socket)

APA101 (Signal Cable)

APA103 (EEPROM Clamp)

APA107 (ECU Clamp)

APA108 (MCU Clamp)

APA109 (MC9S12 Clamp)

Connect Cable

Packing List

Plastic Toolbox

Packing Box
