Description:

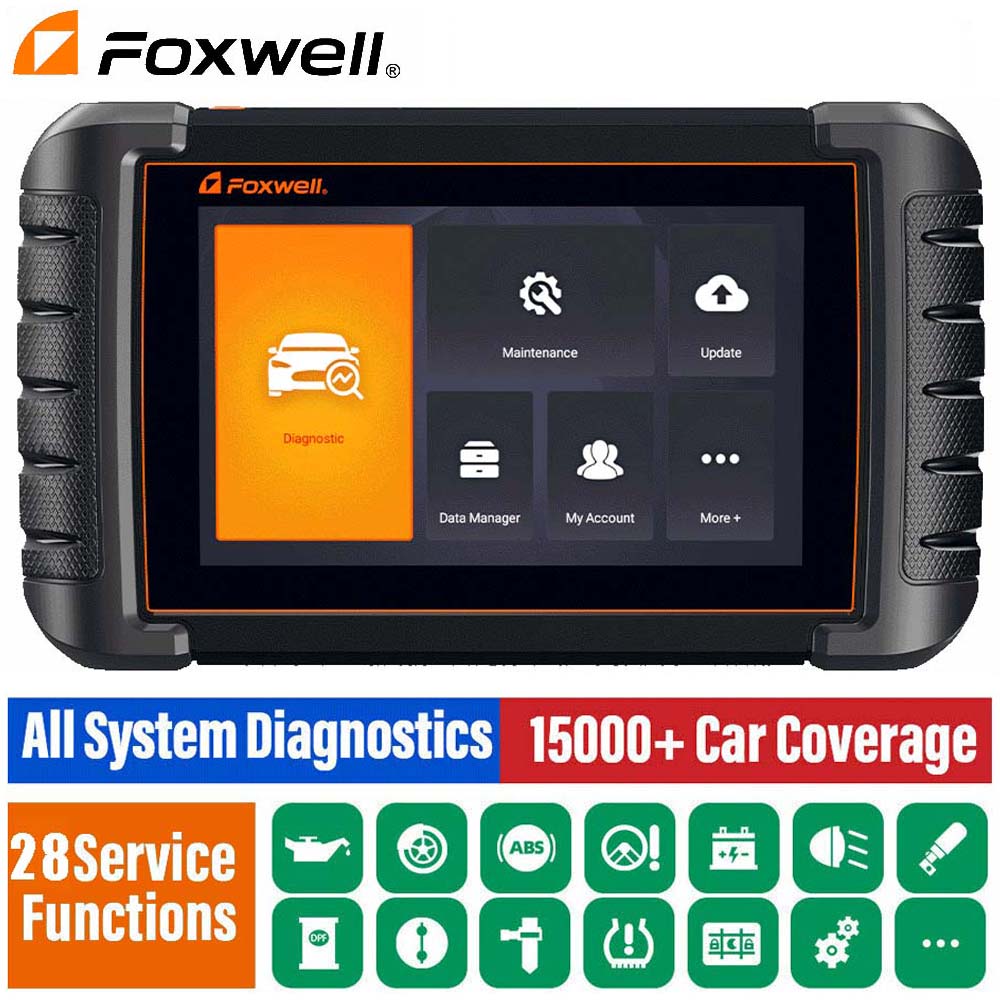

Foxwell NT809 is newly developed diagnostic scanner with Android 9.0 operating system. It inherits the same Foxwell advantages in car fault diagnostic tech, such as multi manufacturer coverage, service functions and accurate test data, making it the perfect tool for busy garages or workshops, who need the latest technology at unbeatable value.



Highlights:



1. Compatible with the latest 2020 / 2021 models: including cars, SUVs, minivans, light-duty trucks sold worldwide.it is important for automotive repair shops to get as much coverage as possible to effectively and quickly service any vehicle .NT809 provides quick and easy diagnosis on more than 90 American, Asian and European vehicle makes .



2. The most affordable combination of ALL systems diagnostics and 28 (still growing) service functions in one Android based 7”touchscreen tablet tool.



3. A full detection for ALL systems (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.).



4. 28 commonly used hot services functions covered for complete diagnosis and reset functions in routine maintenance.

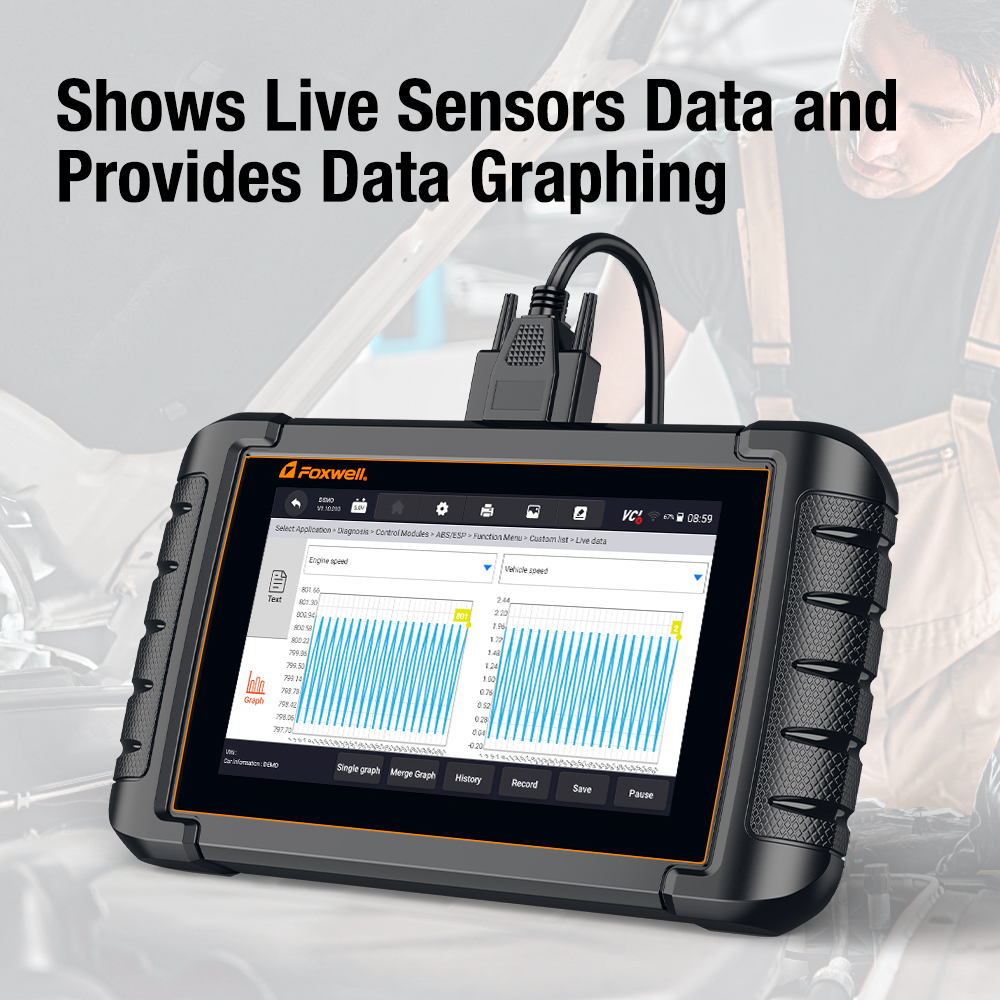

5. Supports 10 Modes of OBD-II operations in 4 display modes (Analog Gauge, Text, Waveform Graph, Digital Gauge).



6.  Extensive coverage of over 105 car brands worldwide.



7. One Touch AutoVIN & AutoScan for smart diagnostics.



8. One click software update via Wi-Fi.



9. Team Viewer: Instant support available from our technical team by Team Viewer remote control.



10. One year warranty.



Supported 13 Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Polish, Swedish, Japanese, Korean, Traditional Chinese



Software Update:



Free update online for 18 months.



For further update after 18 months, USD200/1 year; USD320/2 years; USD400/3 years. You can still use your current version software if you do not want to pay and get new update.



Functions:

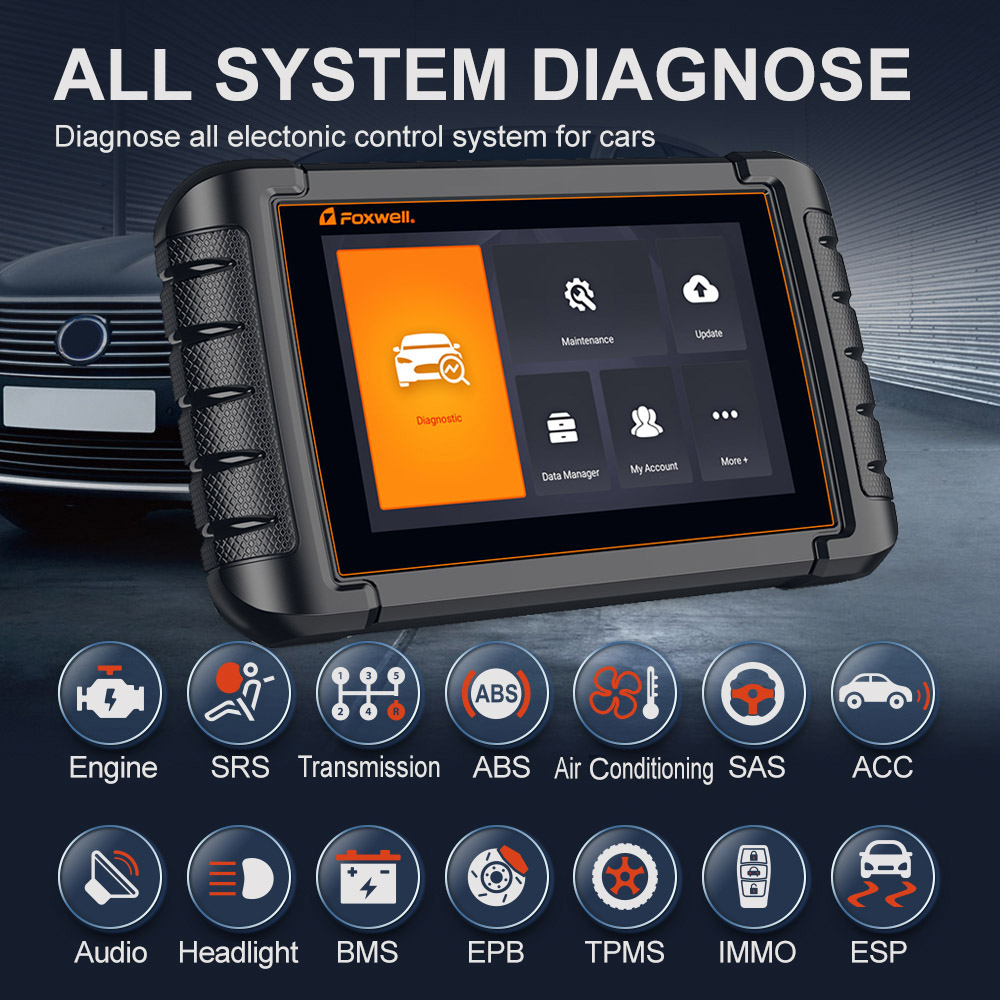

Full System Diagnosis:



Read and Clear Codes of All Electronic Modules, help you accurately identify car problem!



This option allows you to detect whether following system parameters are normal or not:



ABS System

Engine System

SAS System

TPMS System

IMMO System

Battery System

Oil Service System

SRS System

DPF System

Air Conditioning System

Transmission System

ect...



28 Special Reset Functions:



1. BAT Battery Service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



2. CVT (Continuously Variable Transmission)

On these CVT transmissions, the timing of the release and application of elements (clutch packs and bands) is controlled by the transmission control module (a microprocessor).



3. DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



4. EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.



5. Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.



6. Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.



7. Cluster Calibration

This function allows you to revise the data and write the original data into new instrument.



8. Oil Reset

Allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.



9. SAS Reset (Steering Angel Sensor)

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



10. TPS System

Also called TBA, throttle body alignment. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).



11. TPMS Reset (Tire Pressure Monitoring System)

Makes TPMS sensor in displaying sensor IDs from the vehicle ECU, inputting TPMS sensor replacement IDs and activate TPMS sensors.



12. ABS Bleeding (Anti-lock Brake System)

Helps clear the fault Airbag memories to reset.



13. PFP



14. Seat Match

A memory seat is essentially an electrically-adjustable car seat which can be moved into pre-set positions at the push of a button. As a result of the removal of the DCC fuse, the "driving position memory" function of the driver and passenger side seat will be inoperative due to the loss of seat.



15. A/F Adjust

Correspondingly change the fuel supply to change the steam production of boiler and maintain the energy balance in the combustion process.



16. Clutch Adaptation

Importance of clutch pedal free-play. Anything less than the correct amount of free play (or clearance) will result in clutch slip, because the pressure plate will be unable to exert its full pressure on the friction plate, clutch linkage adjustment to compensate for clutch wear.



17. Language Change

This function is used to change the system language of the vehicle central control panel.



18. Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.



19. Turbo

The routine is required if the secondary turbo charger is replaced. This will learn the PFF set values for the turbine shut-off value.



20. Headlamp

Allowing for adaptive headlights to be relearned.



21. Transmission Adaption

This command allows the adaptive shift points to be relearned.



22. TCMOIL

This routine is used to clear the oil degradation and downgrade counter.



23. Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.



24. EVAP Test / Smog Test

The EVAP system monitor checks for fuel vapor leaks by performing either a pressure or vacuum test on the fuel system.



25. EGR Reset（Exhaust Gas Recirculation）

1). Reduce the exhaust temperature, reduce the production of NO compounds and CO carbon monoxide.

2). Can appropriately reduce fuel consumption and improve engine efficiency



26. ODSINIT



27. OPDSINIT



28. OSTEST

Nox sensor is a sensor used to detect the content of Nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.



Full OBD2 Basic Function:



01 - Request Current Powertrain Diagnostic Data

02 - Request Powertrain Freeze Frame Data

03 - Request Emission-Related Diagnostic Trouble Codes

04 - Clear/Reset Emission-Related Diagnostic Information

05 - Request Oxygen Sensor Monitoring Test Results

06 - Request On-Board Monitoring Test Results for Specific Monitored Systems

07 - Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle

08 - Request Control of On-Board System Test or Component

09 - Request Vehicle Information

10 - Request Emission-Related Diagnostic Trouble Codes with Permanent Status

Read ECU Info. & Auto VIN Scan:

Identifies cars quickly and easily with one-key VIN reading



Diagnosis Health Report Share & Print:

You can share the health report of your car with others via email, and you can also send it to yourself. find out the problem quickly and easily, assist your car repairing!



One Touch Upgrade Via WiFi:

Easily download software upgrades, simple operation, one-click connection to your car, solve almost all problems of your car!



Supported Cars:



Supports over 90 makes, over 20000 car models, include newest 2020/2021 car models.



American:

Chrysler, Dodge, Jeep, Ford, GM, GM Brazil(for Brazilian market only)



Asian:

Acura, Daewoo, Daihatsu, Ford AU, Fuso, Hino, Holden, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Isuzu Truck, Kia, Lexus, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, Ssangyong, Subaru, Suzuki, Toyota, GTR, ,d AU, , Holden (for Australia market only), Mahindra, , Tata(for India market only)



European:

Abarth, Alfa, Aston Martin, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, Ferrari, Fiat, Ford EU, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Samsung, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VW_CV



Specifications:



Screen : 7 inch diagonal, daylight readable color LCD screen with 1024*600 pixel

Operating system: Android 9.0

Memory+SSD Hard Drive: 1G+32G

Communication Mode: WiFi

Connection: Bluetooth

Built-in Battery: 4000mAh

Working Temperature: -10 to 70

Storage Temperature: -20 to 80

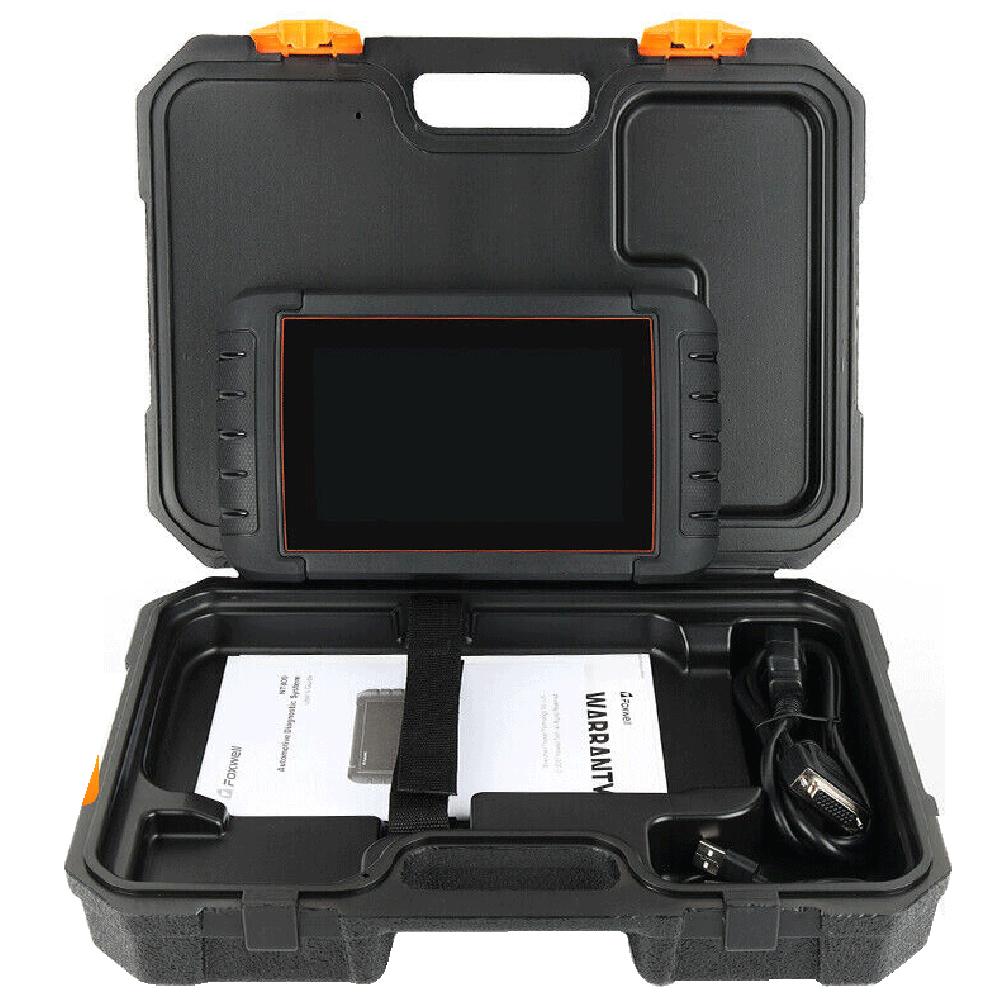

Packing List:



Foxwell NT809 All System Diagnostic Scanner

Diagnostic Cable

USB Type-C Cable

USB Charging Adapter

User Manual

Quick Start Guide

Warranty Card

Packing List

Plastic Toolbox

Packing Box
