Description:



Autel MaxiSys MS909CV provides the full functionality and online repair information you need when diagnosing vehicles, identifying faults and researching repair issues. It features a powerful Octa-Core processor and 9.7-inch TFT-LCD capacitive touchscreen for swift diagnosis and optimum viewing.



As an intelligent diagnostics and information system, Autel MaxiSys MS909CV not only displays the relevant repair fixes and cases gathered from experienced industry experts, but provides step-by-step guidance to ensure the repair is done correctly and efficiently.



Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tool that is compatible with more than 80 models of light, medium and heavy duty vehicles. The 9.7-inch wireless Android-based truck scanner performs extensive vehicle diagnostics including the ability to read/erase codes, view, and graphs live data, and perform active tests.



Autel MaxiFlash VCI is compatible with the latest J2534 protocols (DoIP) and is compliant with RP1210 and ISO 22900.

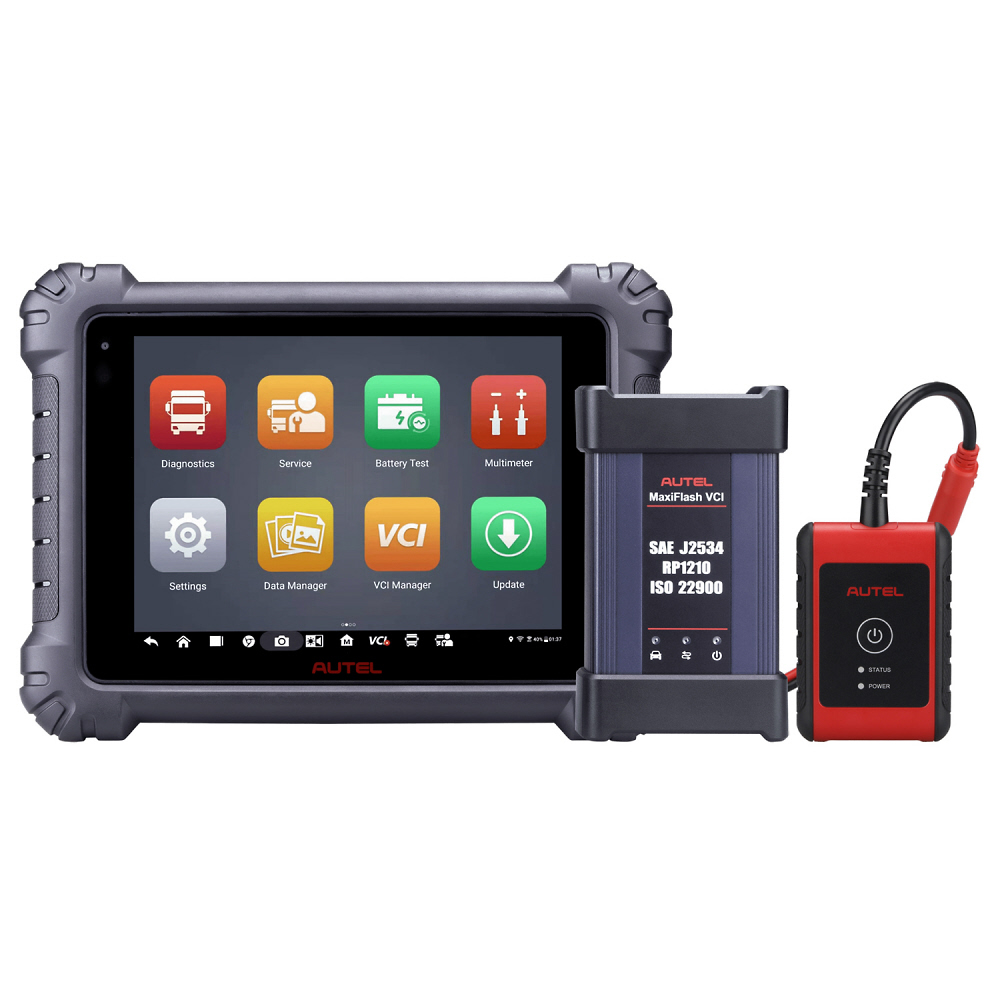

Autel MS909CV scanner includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, Autel MaxiBAS B200 battery, starting and charging system test device and alligator clamps, and a multimeter and amp clamp. It also includes ADAS calibration software for class 3-5 vehicles and class 6 to 8 vehicles with Dynamically Calibrated Systems.



Software Update: one year free update



Highlights:



1. Autel MaxiSYS MS909CV performs enhanced all system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles.

2. Upgraded Octa-Core processor and 128GB storage and 9.7-inch Wireless Android-Based Touchscreen and the whole-new Autel MaxiFlash VCI (J2534 PassThru programming device ) to deliver smooth operation.

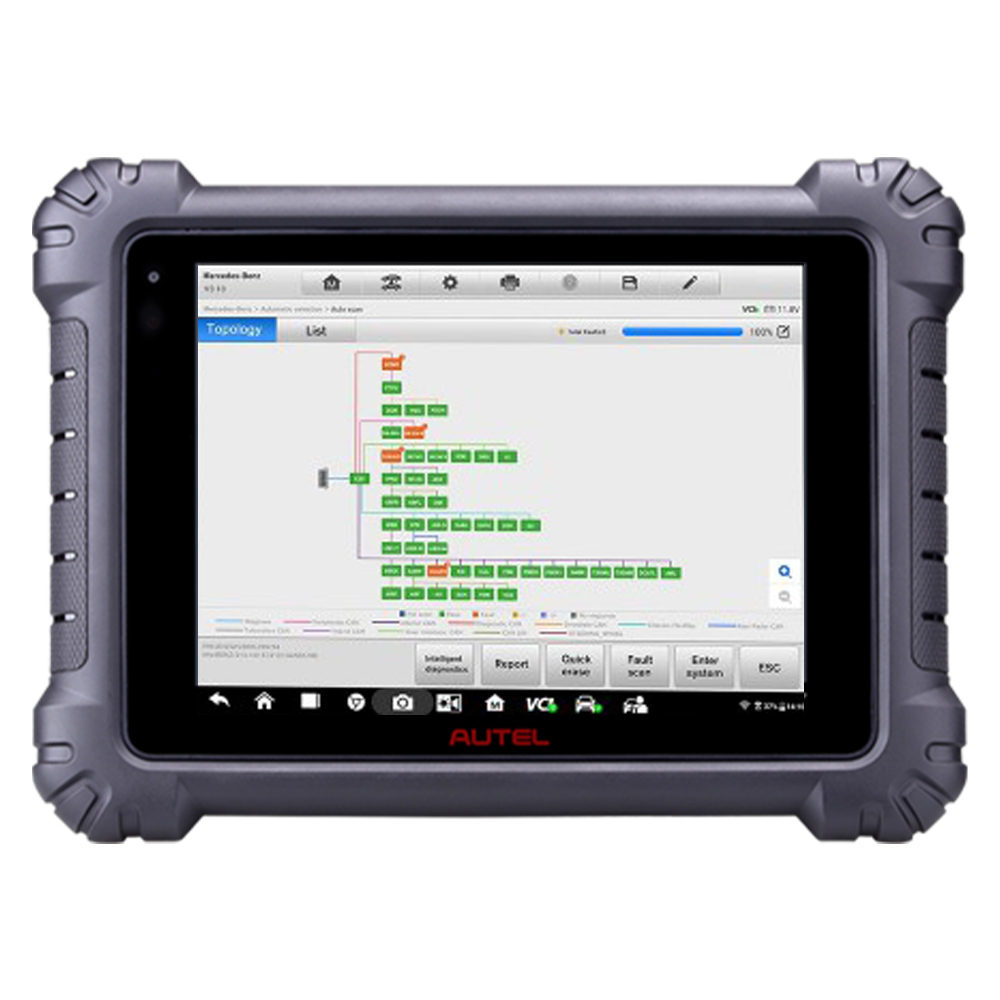

3. Intelligent Diagnostics with Topology Module Mapping and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist.

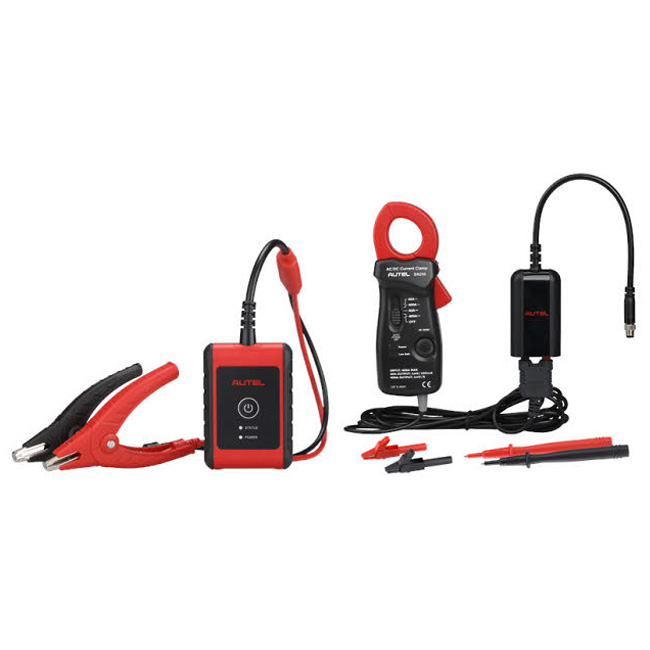

4. Support Heavy Duty Battery Test & Health Report with included MaxiBAS B200 Tester with alligator clamps.

5. Includes Multimeter & Amp Clamp.

6. ADAS Calibration Software for class 3-5 vehicles and class 6 to 8 vehicles with Dynamically Calibrated Systems.



Functions:



Intelligent Diagnosis:



• Enhanced AutoSCAN / VINScan for easy vehicle identification

• DTC Analysis / Repair Guided Assist

• Pre/Post scan reports

• Module Topology on Select Vehicles (coming soon)



ADAS Calibration:



Class 6-8 Dynamic Calibration

Class 3-5 Complete ADAS Coverage

Class 6-8 Static Calibration (coming soon)



Battery Analysis:



Heavy Duty Battery Test & Health Report

Includes the BT506 and the BTAK



Tablet Features:



CPU: Octa-Core Processor

OS: Android 7.0 Operating System

Display: 9.7 inch touchscreen

RAM: 4GB

Memory: 128GB

Cameras: front 5.0MP / rear 16MP; autofocus with flashlight

Connectivity: WiFix2, BT, GPS, USB 2.0 (2 USB Host Type A, 1 USB mini device), HDMI 2.0, SD card (supports up to 256GB)

Battery: 15000mAh 3.8V lithium-polymer battery charging via 12V AC/DC power supply

PC Connection: print via WiFi to PC with Autel "Maxi PC Suite" software; save reports in PDF and E-mail.
