Description:

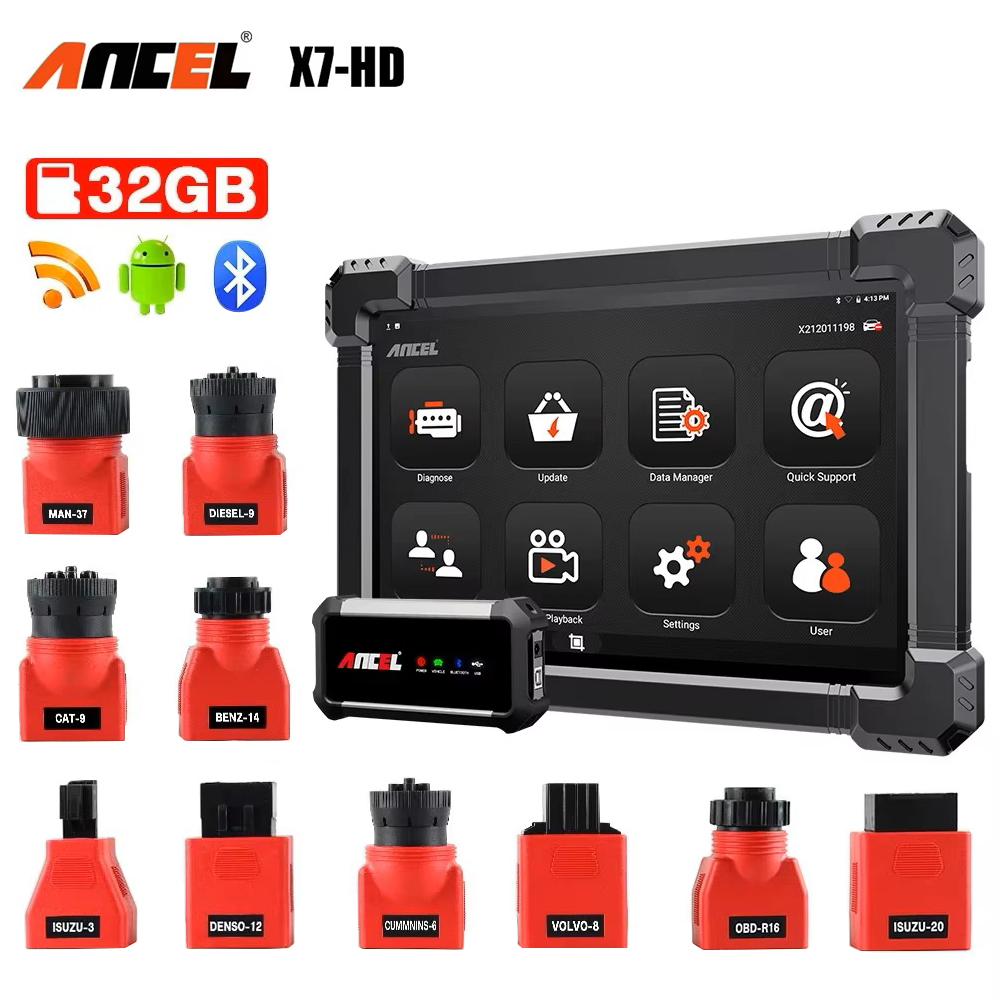

Ancel X7-HD Kit is an Android based brand new-generation overall diagnostic tool for heavy duty trucks and commercial vehicles and machinery. With 10-inch high-qualified industrial diagnostic tablet PC, in which software covering more trucks, buses, machineries from home and abroad with extensive diagnostic functions. Featuring new diagnostic experience and cost performance, it can be a better choice for all users.

Features:



1. 15 Special Functions

On the base of Full System Scan, ANCEL X7HD supports 15 Special Functions, such as Clear Spec. DTO, ECU Reset, PRV Test, D.P.F, Broken Cylinder Test.



2. Full System Scan

ANCEL X7HD Kit supports more than 30 System Diagnostic Analysis (Engine, ABS, Air Conditioner, Gearbox, Battery, Oil Lamp Reset, Airbag, Safety Lock Alarm, Tire Pressure, D.P.F, DTO, ECU and other systems). Complete function capability including DTC, DTC Freeze Info, Live data, Operation Test and Special Function.



3. Full Engine Check

ANCEL X7 HD Kit supports to check the full engine, which support to read and clear error code, live data, I/M Readiness, VIN and so on, covers 10 modes full engine scan.



4. Wireless Bluetooth Connection

Bluetooth connection, WiFi upgrade, diagnosis can be done even when leaving the car, no need to diagnose through OBD interface.



Highlights:



1. Can Diagnose HGV Truck Lorry, Van, Bus, Construction, Plant Machine, Agricultural / Forestry, Mining Off-Road Machinery.



2. Diagnose All Systems including Powertrain, Chassis, Body, Transmission, ABS, SRS, Brake, DPF, Suspension, Instrumentation, Tachograph, Safety, Retarder, CAB Climate, Security, Auxiliary, Engine, ACM, TECU, VMCU,TPMS...



3. Professional ABS Diagnosis, ABS Exhaust, ABS Bleeding, supports BOSCH, ALLISON,  BENDIX, WABCO, DELPHI, DENSO, VOITH...



4. Wide range of supported functions including: Truck Full System Diagnostic, Reset Service Function, Coding Programming Function, DTC, DTC Freeze Information, Real-Time Data Test Information, Special Functions



5. Advanced Bi-Directional Actuation Test



6. Cummins Automatically Matches



7. Equipped with different OBD Interface: Standard 16-Pin OBD2, Cummins-6, VOLVO-8, BENZ-14, MAN-37, DIESEL-9, CAT-9, DENSO-12,ISUZU-3, ISUZU-20. Different kinds of OBD Jumpers Hub, ECU Jumper Leads.



8. Powerful Exhaust Aftertreatment



9. Support calibration functions.



10. Automatically save original file data while Cummins ECU programming.



11. Stable and fast data writing.



12. One-click online upgrade via Wi-Fi.



13. Professional DPF functions, DPF Regeneration free for compatible models.



14. Support many machinery and agriculture vehicles.



15 . The hardware runs stably with built-in over-voltage protection to avoid hardware damage due to voltage instability and good operation in low and high temperature environments.



16. Compared with repair service workshop, compared with similar products, cost-effective, save money



17. Supports a wide range of languages, global version, no IP limit. Can be used anywhere in the world.



18. Cummins ECU original data flashing, Bosch ECU data read.



Functions:

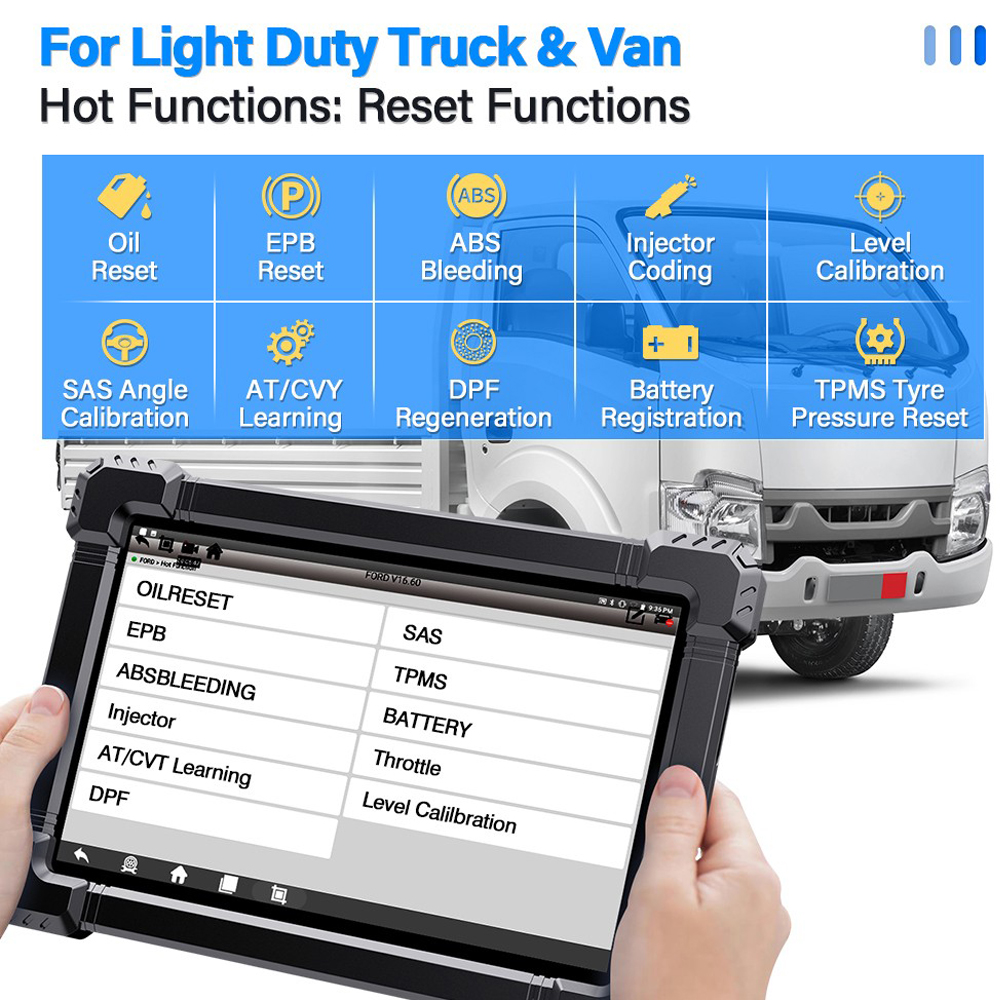

1. Hot functions for light duty truck and van:

Oil Reset

EPB Reset

ABS Bleeding

Injector Coding

DPF Regeneration

Battery Registration

Tire Pressure Reset

Steering Angle Calibration

Transmission Learning

Level Calibration



2. All Systems Diagnosis:

1). Engine System

2). Body Control System

3). SRS System Airbag

4). ABS(Anti-Lock Brake System)

5). Instrument System

6). Transmission System

7). Brake Control System

8). Unit Pump System

9). Common Rail System

10). Electronical Control System

11). Natural Gas System

12). Tail Gas After-Treatment System

13). Air-Conditioning System

14). ATA(Anti-Theft Alarm) System

15). AHA(Auxiliary Heating System) Air-To-Air

16). AUS(Audio System)

17). BMS(Brake Management System)

18). Bosch DENOX AdBlue System

19). Break Control System

20). BWS-Preparation System

21). CCS(Climate Control System)

22). Comfort/Assistance/Safety Systems

23). Compressed Air Reserve System

24). CSS(Collision Safety System)

25). CTS(Clock and Time System)

26). EBS-Electronically Controlled Brake System

27). EHLA(Electro-Hydraulic Steering System)

28). EMS(Engine Management System)

29). Fuel System

30). Exhaust Pressure Adjustment Systems

31). ECM(Engine Control Module)

32). Speed control Systems

33). Turbo Control Systems

...



3. 15+Special Reset Service Functions:

1. ABS(Anti-Lock Brake System) Bleeding

2. D.P.F Regeneration

3. Oil Reset

4. PRV Value Test

5. ECU Reset

6. Broken Cylinder Test

7. Cylinder Shut Off Test

8 .Cylinder Balancing Test

9. EGR(Exhaust Gas Re-Circulation) Solenoid Test

10. EGR Pulse Ratio Test

11. ECU Programming

12. ECU Coding

13. Basic Reset

14. Clear Spec DTC

15. Bi-Directional Active Test



4. Professional ABS Bleeding & D.P.F Regeneration:

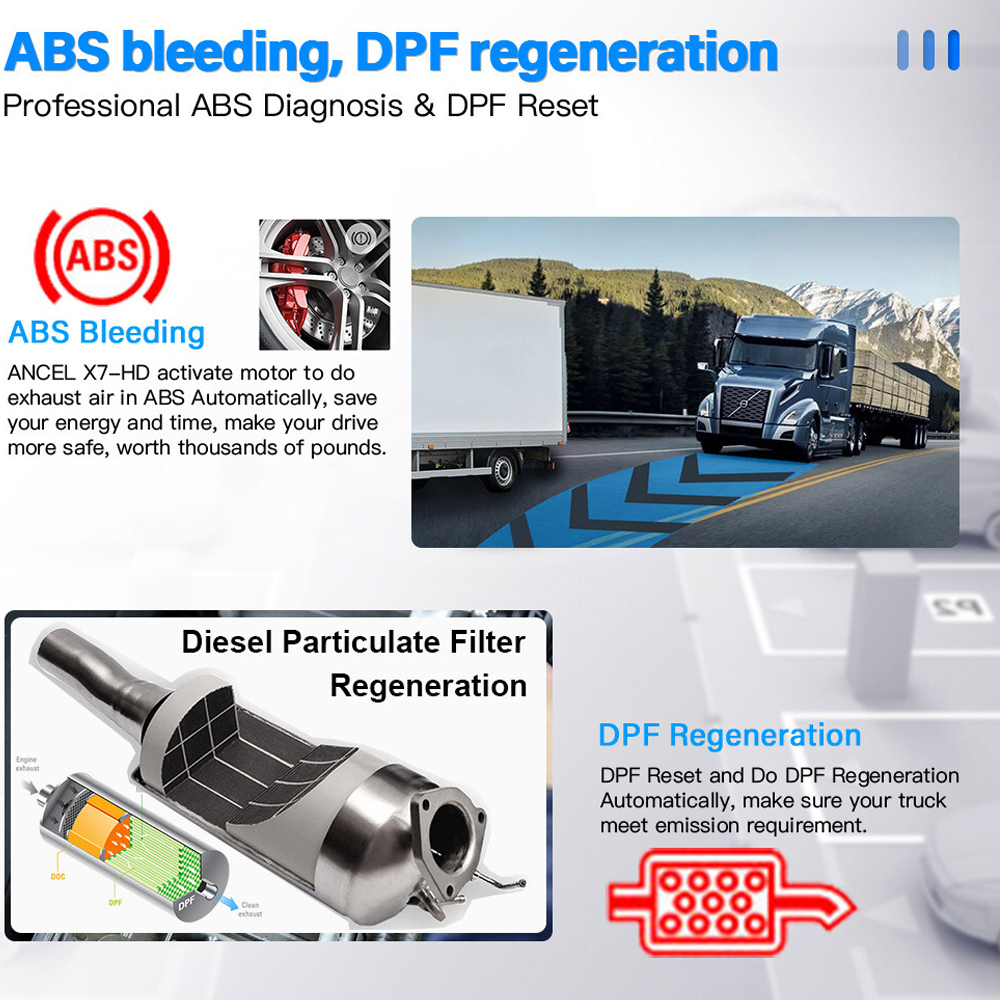

1). ABS Bleeding:

ANCEL X7-HD activate motor to do exhaust air in ABS automatically, save your energy and time, make your drive more safe, worth thousands of pounds.



2). D.P.F Regeneration:

D.P.F Reset and do D.P.F Regeneration automatically, make sure your truck meet emission requirement.



5. Full OBD2 Function:

1). Read ECU Info.

2). Read Fault Code: Read DTCs, Clear DTCs.

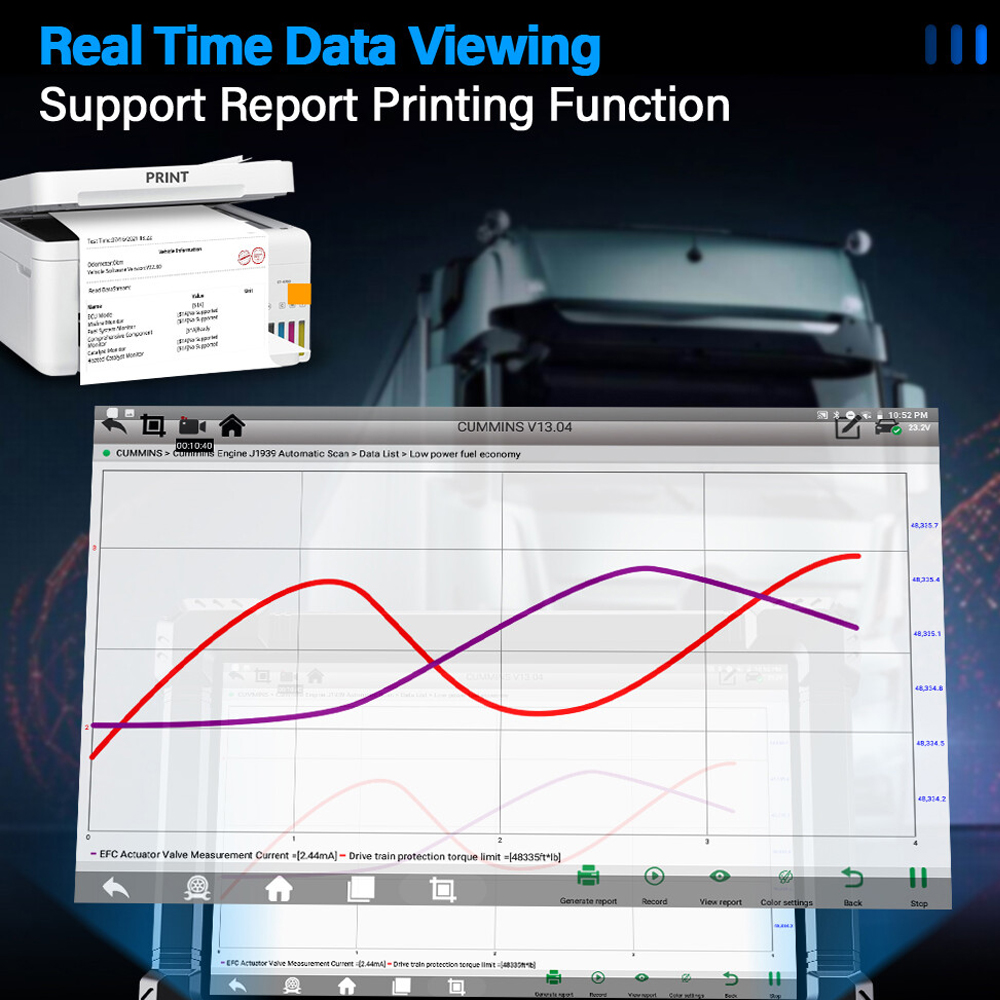

3). Read Live Data: Data Stream Waveform Display.

4). Read Freeze Frame Data

5). Data Manage: Can manage Vehicle App,Testing Pictures, etc. Users can make effective management of files and storage.

6). System Auto Detected: Automatically identify the vehicle model and information.



6. Coding & Programming

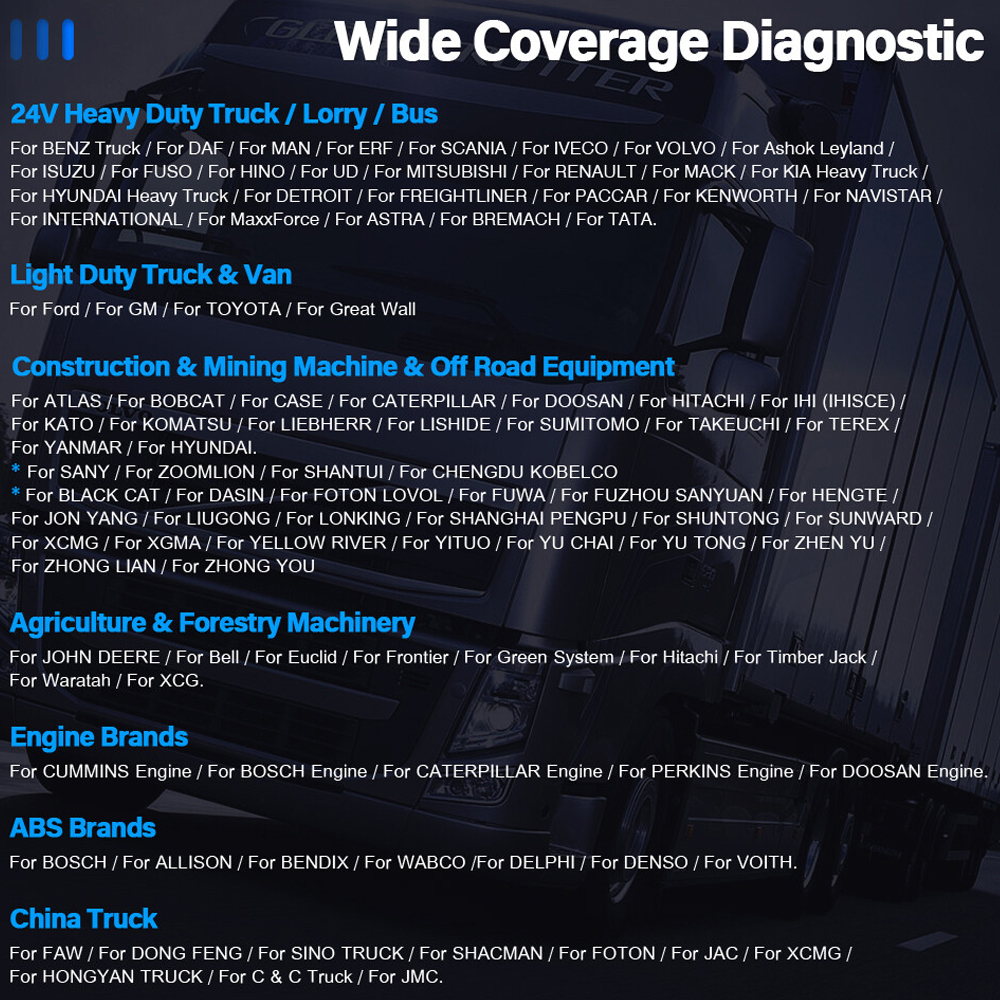

Supported Vehicles:



1. 24V Heavy Duty Truck/Lorry/Bus

BENZ TRUCK, DAF, MAN, ERF, SCANIA, IVECO, VOLVO, ASHOK LEYLAND, ISUZU, FUSO, HINO, UD, MITSUBISHI, RENAULT, MACK, KIA HEAVY TRUCK, HYUNDAI HEAVY TUCK, DETROIT, FREIGHTLINER, PACCAR, KENWORTH, NAVIATAR, INTERNATIONAL, MAXXFORCE, ASTRA, BREMACH, TATA



2. Light Duty Truck & Van

FORD, GM, TOYOTA, GREAT WALL



3. Construction & Mining Machine & Off Road Equipment

ATLAS, BOBCAT, CASE, CATERPILLAR, DOOSAN, HITACHI, IHI(IHISCE), KATO, KOMATSU/LIEBHERR, LISHIDE, SUMITOMO, TAKEUCHI, TEREX, For YANMAR, HYUNDAI, SANY, ZOOMLION, SHANTUI, CHENGDU KOBELCO, BLACK CAT, DASIN, FOTON LOVOL, FUWA, FUZHOU SANYUAN, HENGTE, JON YANG, LIU GONG, LON KING, SHANGHAI PENGPU, SHUN TONG, SUNWARD, XCMG, XGMA, YELLOW RIVER, YITUO, YU CHAI, YU TONG, ZHEN YU, ZHONG LIAN, ZHONG YOU



4. Agriculture & Forestry Machinery

JOHN DEERE, BELL, EUCLID, FRONTIER, GREEN SYSTEM, HITACHI, TIMBER JACK, WARATAH, XCG



5. Engine Brands

CUMMINS Engine, BOSCH Engine, CATERPILLAR Engine, PERKINS Engine, DOOSAN Engine



6. ABS Brands

BOSCH, ALLISON, BENDIX, WABCO, DELPHI, DENSO, VOITH



7. China Truck

FAW, DONGFENG, SINO TRUCK, SHAC MAN, FOTON, JAC, XCMG, HONG YAN TRUCK, C&C Truck, JMC



Specifications:

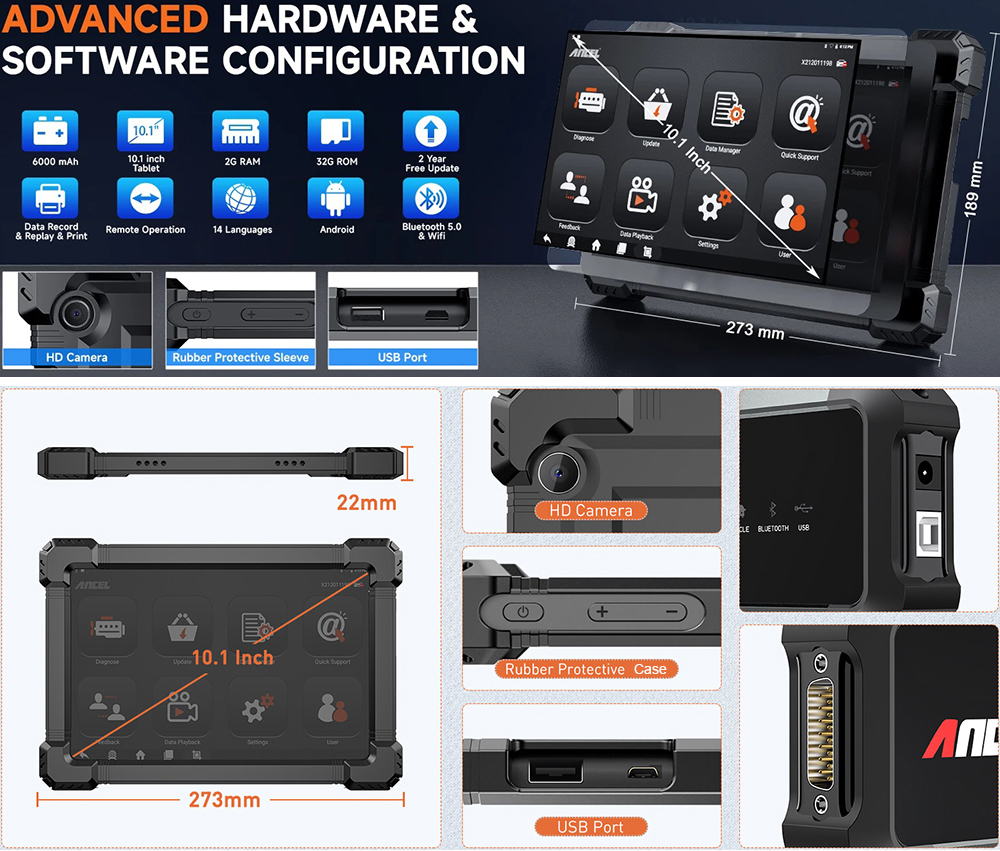

Tablet PC:

Screen: 10.1-inch

CPU: 4-Core A53 1.5GHz

RAM: 2GB

ROM Storage: 32GB

Battery: 6000mA

Camera: HD camera

Operating Temperature: 10 to 70℃ @ Relative Humidity: <90%

Size: 273*189*22mm

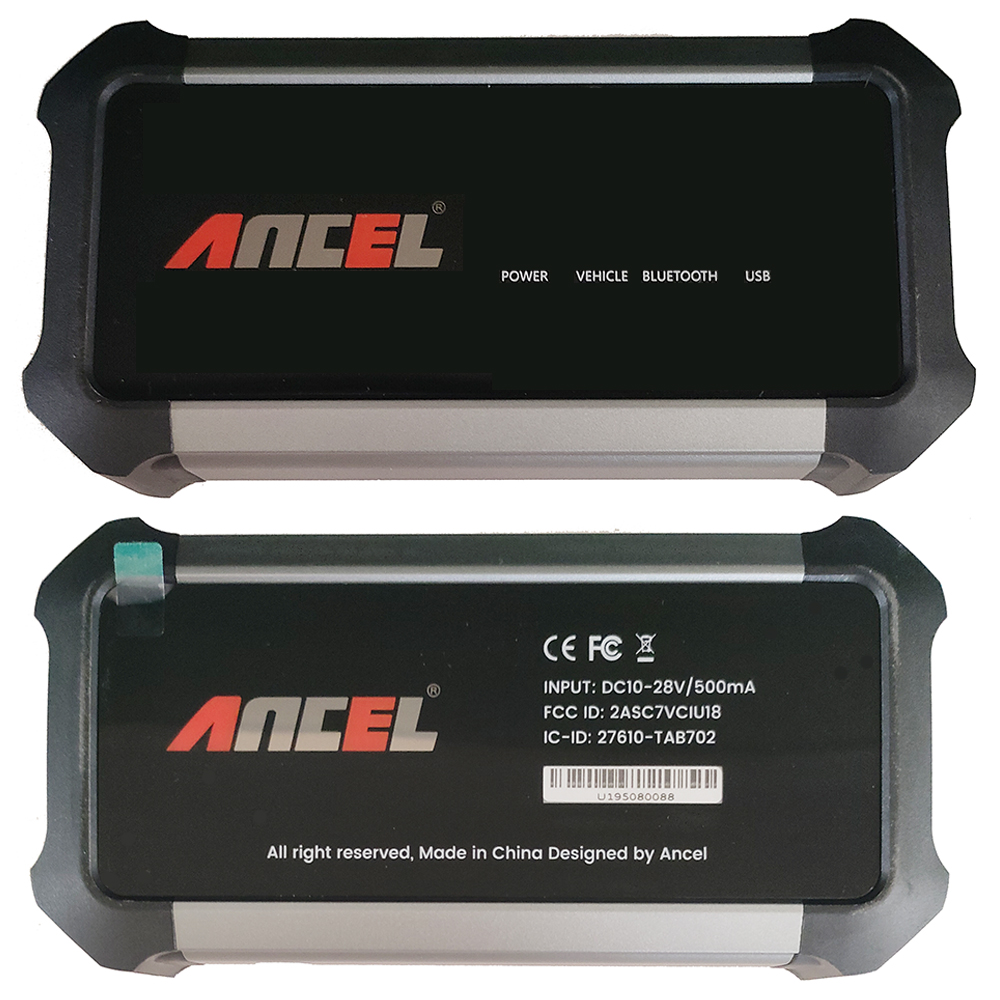

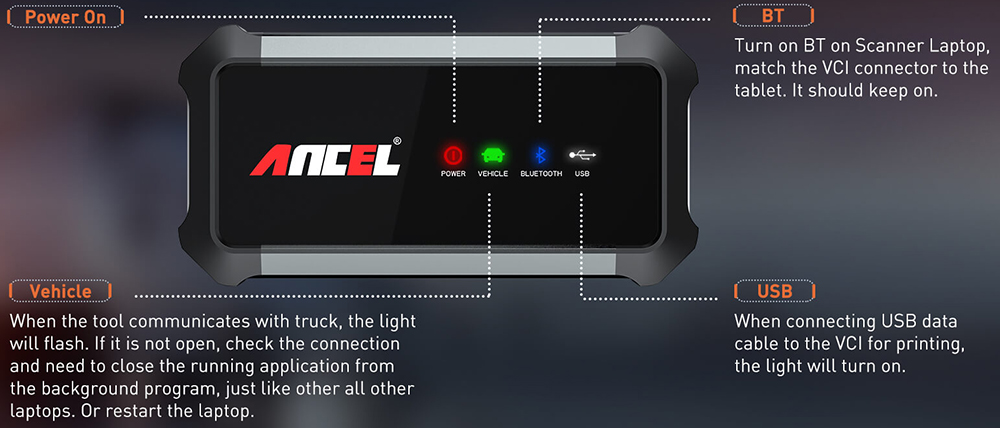

Bluetooth VCI Box:

Processor: ARM 32-bit Cortex processor

Input Voltage: DC 8V-30V

Operating Temperature: -10 to 70℃ @ Relative Humidity: <90%

Storage Temperature: -30 to 120℃ @ Relative Humidity:<90%

Communication Model :Bluetooth / USB

Supported Protocols: J1939, J1708, J1587, ISO 9141, ISO14230, ISO15765, ISO11898, SAE-J1850 VPW, SAE-1850 PWM, UDS, K/L Lines, High-Speed CAN, Middle-Speed CAN, Low-Speed CAN and Single-Wire CAN

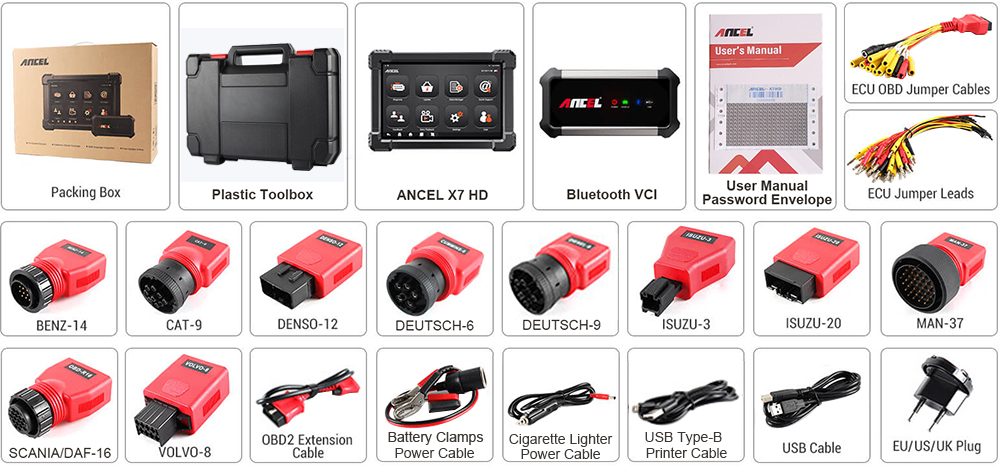

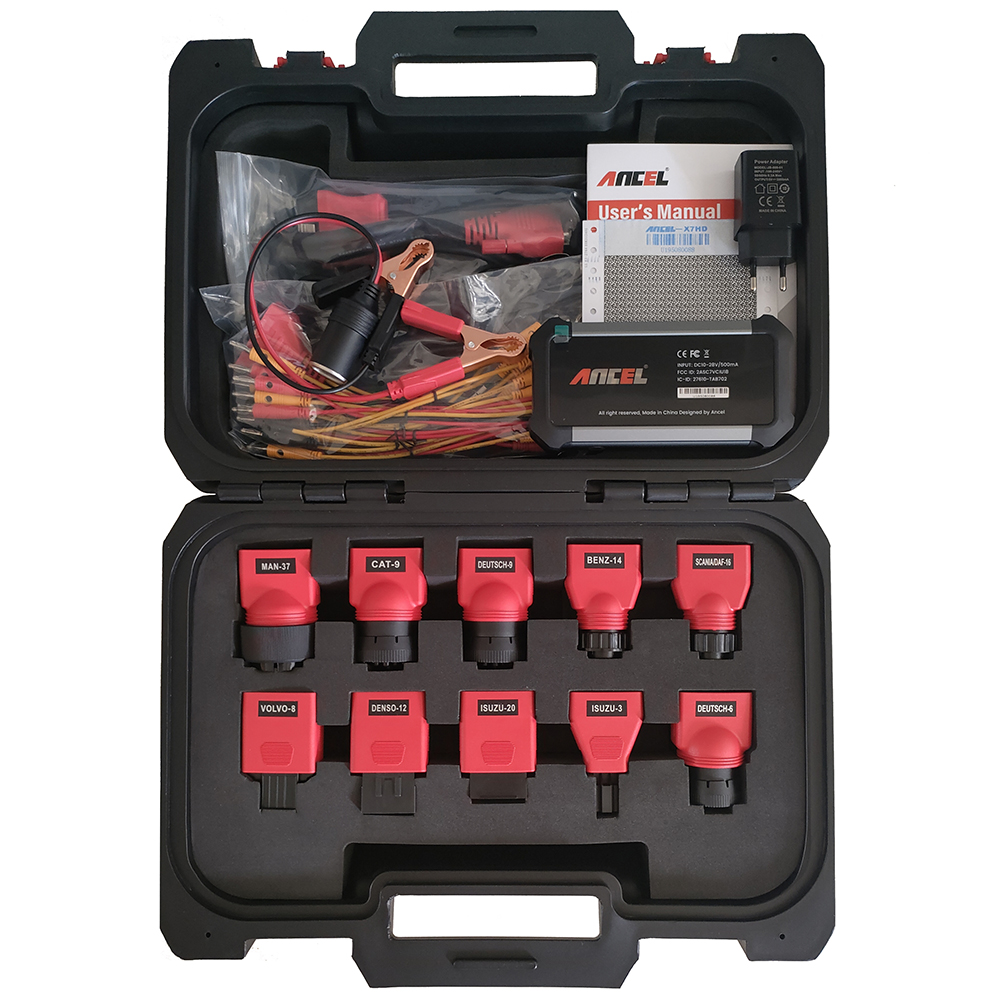

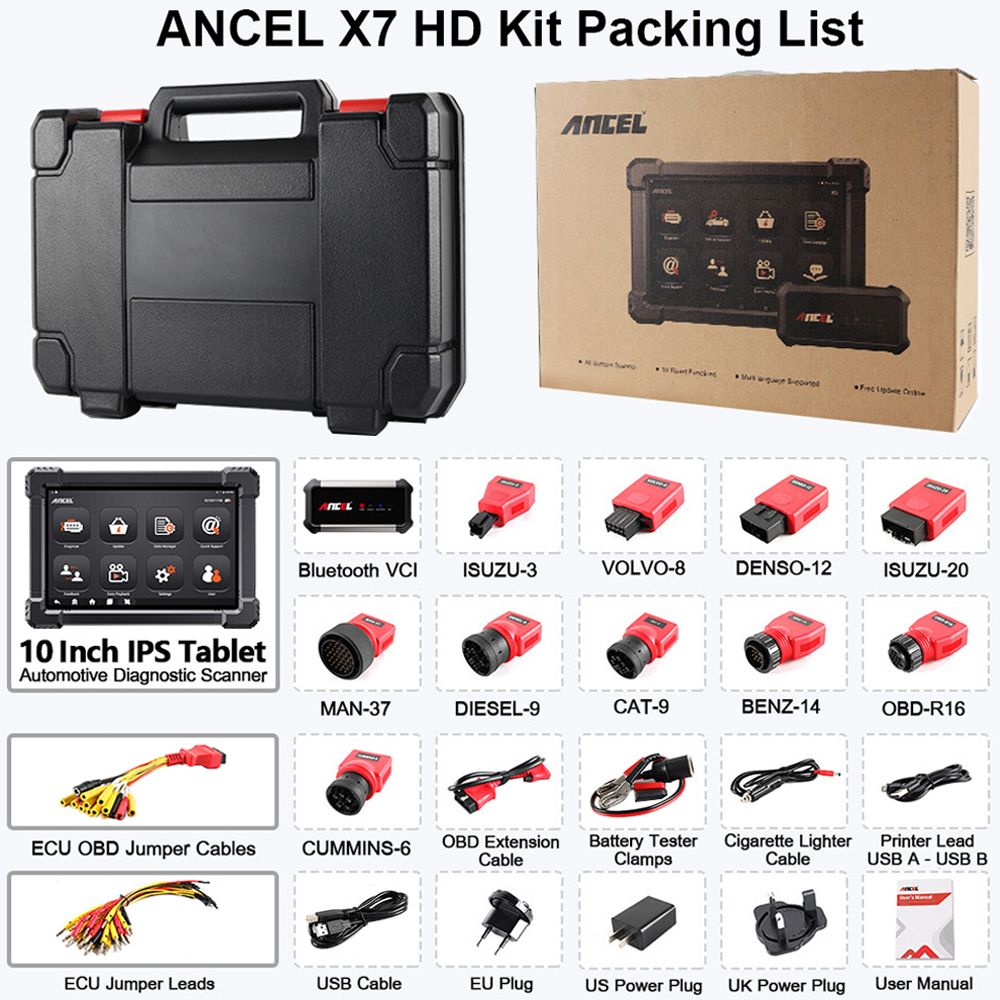

Packing List:



ANCEL X7 HD (10-Inch IPS Screen Tablet PC)

Bluetooth VCI

BENZ-14 Connector

CAT-9 Connector

DENSO-12 Connector

DEUTSCH-6 Connector

DEUTSCH-9 Connector

ISUZU-3 Connector

ISUZU-20 Connector

MAN-37 Connector

SCANIA/DAF-16 Connector

VOLVO-8 Connector

OBD Extension Cable

Battery Clamps Power Cable

Cigarette Lighter Power Cable

ECU OBD Jumper Cables

ECU Jumper Leads

USB Type-A to USB Type-B Printer Cable

USB Cable

EU/US/UK Power Plug

User Manual

Password Envelope

Plastic Toolbox

Packing Box
