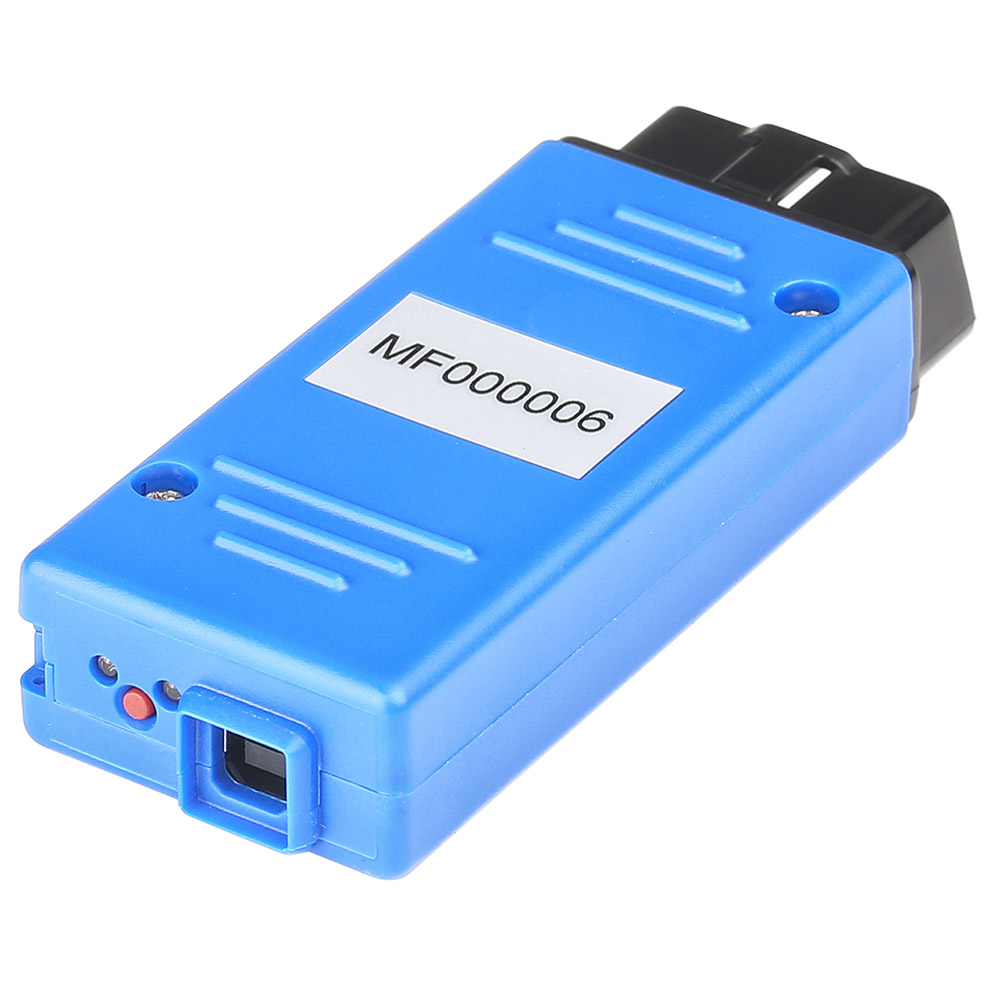

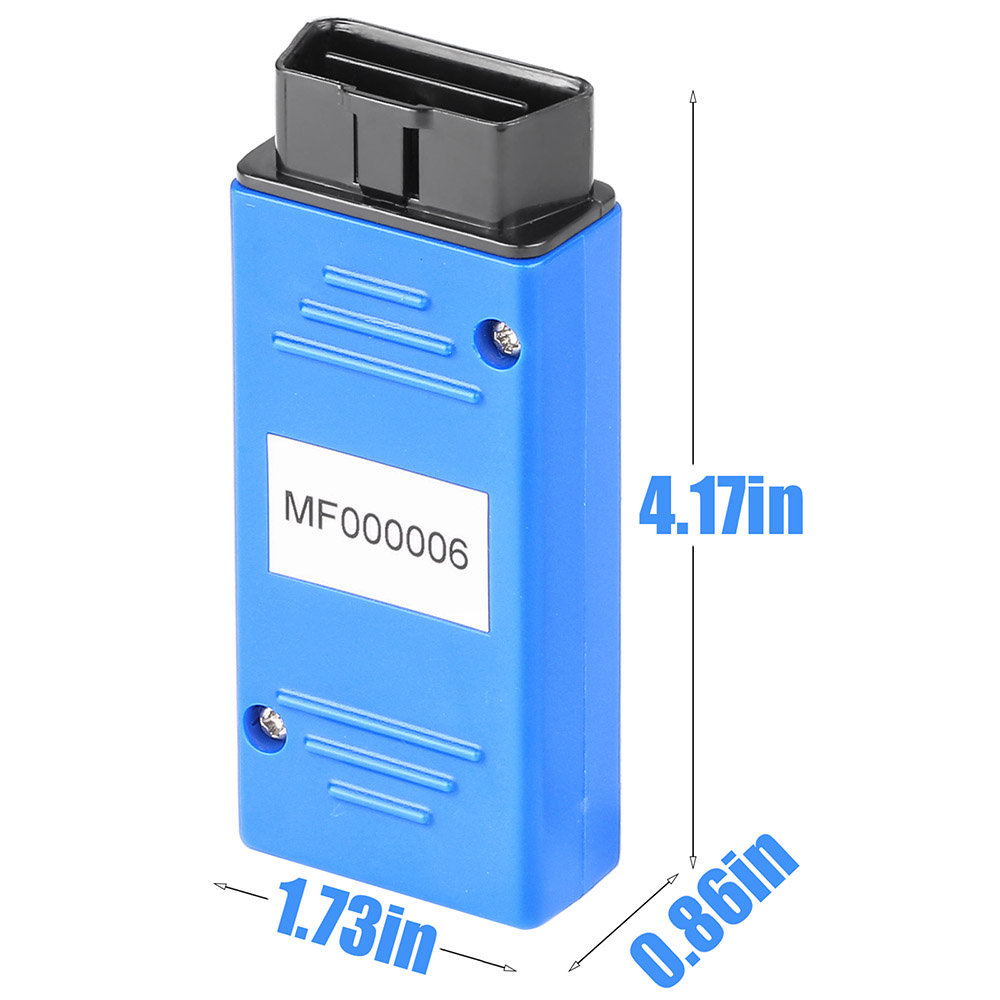

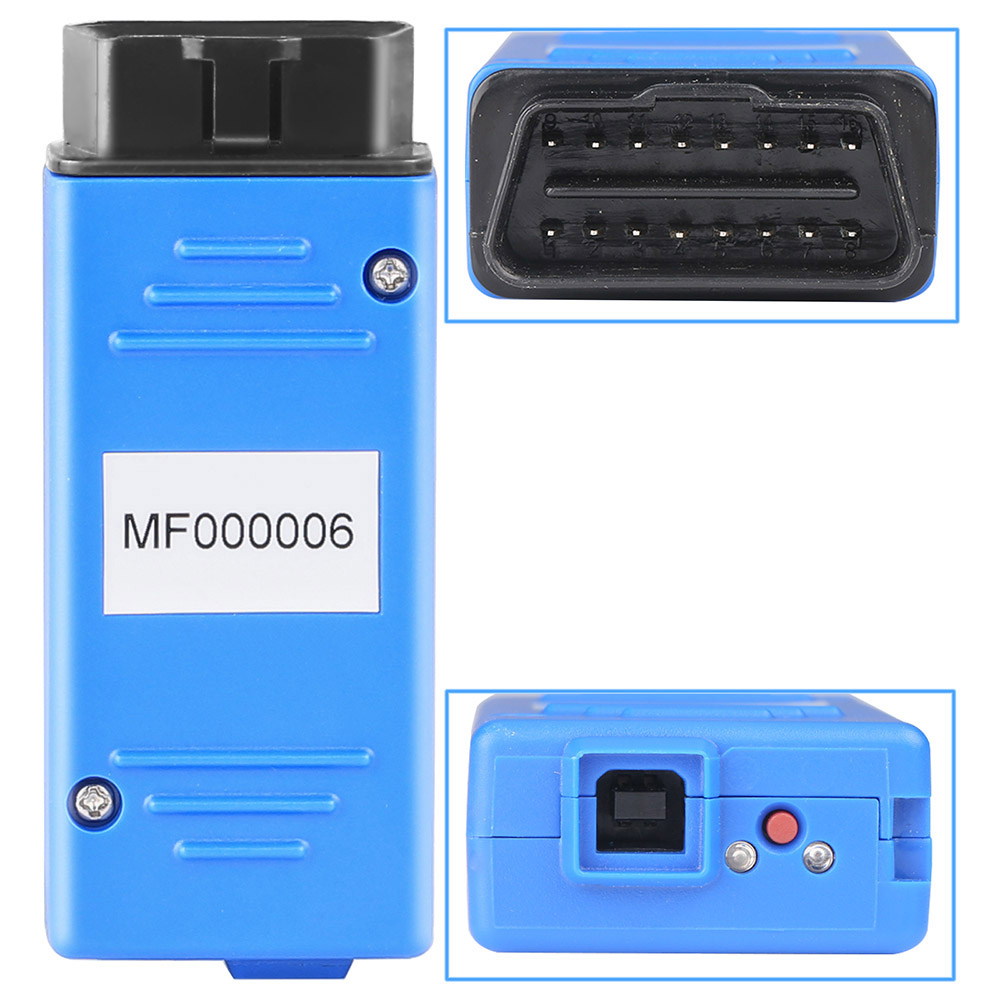

Name: VNCI MF J2534 for Ford & Mazda
Description:
VNCI (Vehicle Network Communication Interface) MF J2534 Diagnostic Tool for Ford & Mazda is a device that works between diagnostic software and vehicle. It is compatible with J2534 PassThru and ELM327 protocol.
Functions:
1. Compatible with Ford IDS and Mazda IDS newest version.
2. Supports many J2534 compatible software (HDS, TIS, SDD2, VIDA, PCMFLash ...).
3. Supports most all of ELM327 software (ELMConfig, Forscan, ScanMaster ...).
Advantages:
1. High speed communication. Program most of modules in 5 minutes.
2. More stable. Never let you down while reprogramming.
3. More coverage. Support J1850 PWM programming for Ford before MY2006.
Hardware Specification:
1. High Speed CAN (OBD-II PIN 6 and PIN 14: Speed 500Kbps)
2. Middle Speed CAN (OBD-II PIN 3 and PIN 11: Speed 125Kbps)
3. ISO9141 and ISO14230 K Line (OBD-II PIN 7 and PIN 15)
4. J1850 PWM (AKA Ford SCP. OBD-II PIN 2 and PIN 10)
5. Ford FEPS (OBD-II PIN 13. programming voltage up to 20V)

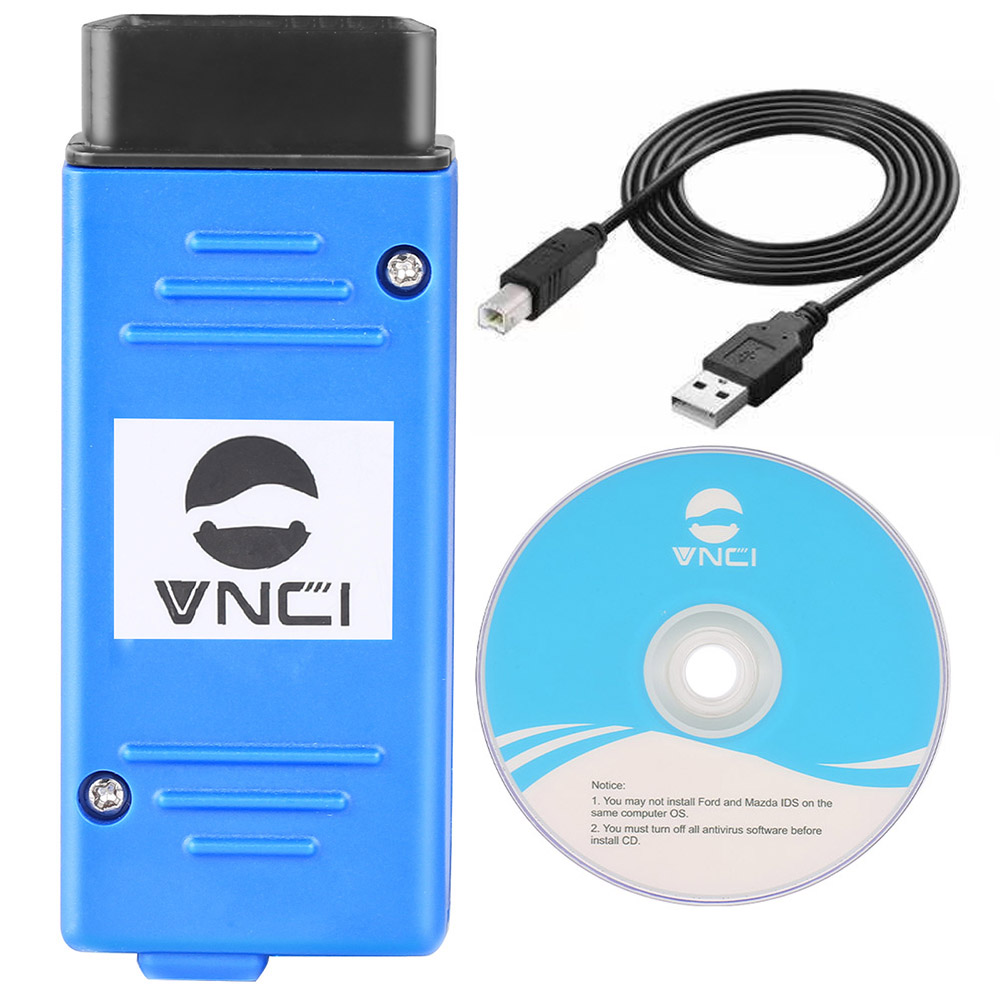

Packing List:
VNCI MF J2534 Scanner
USB Cable
Software CD

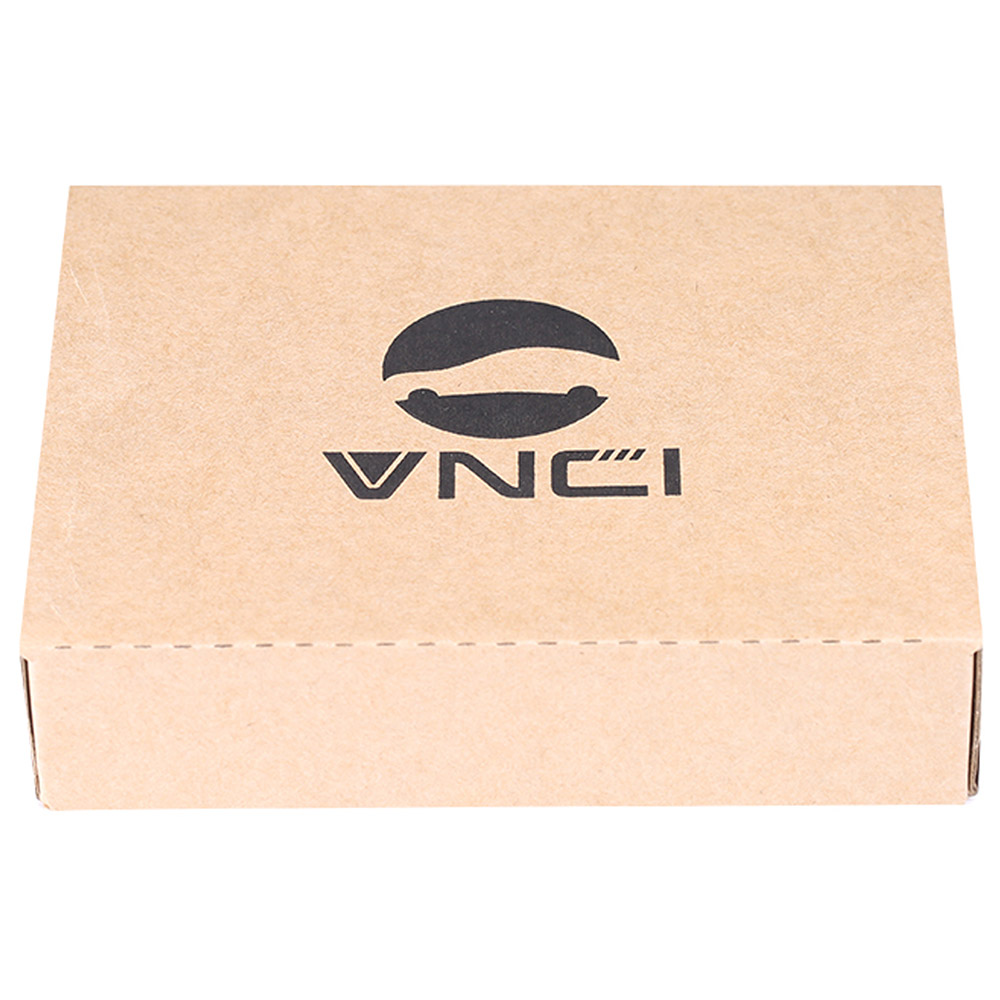

Packing Box
|
