Description:

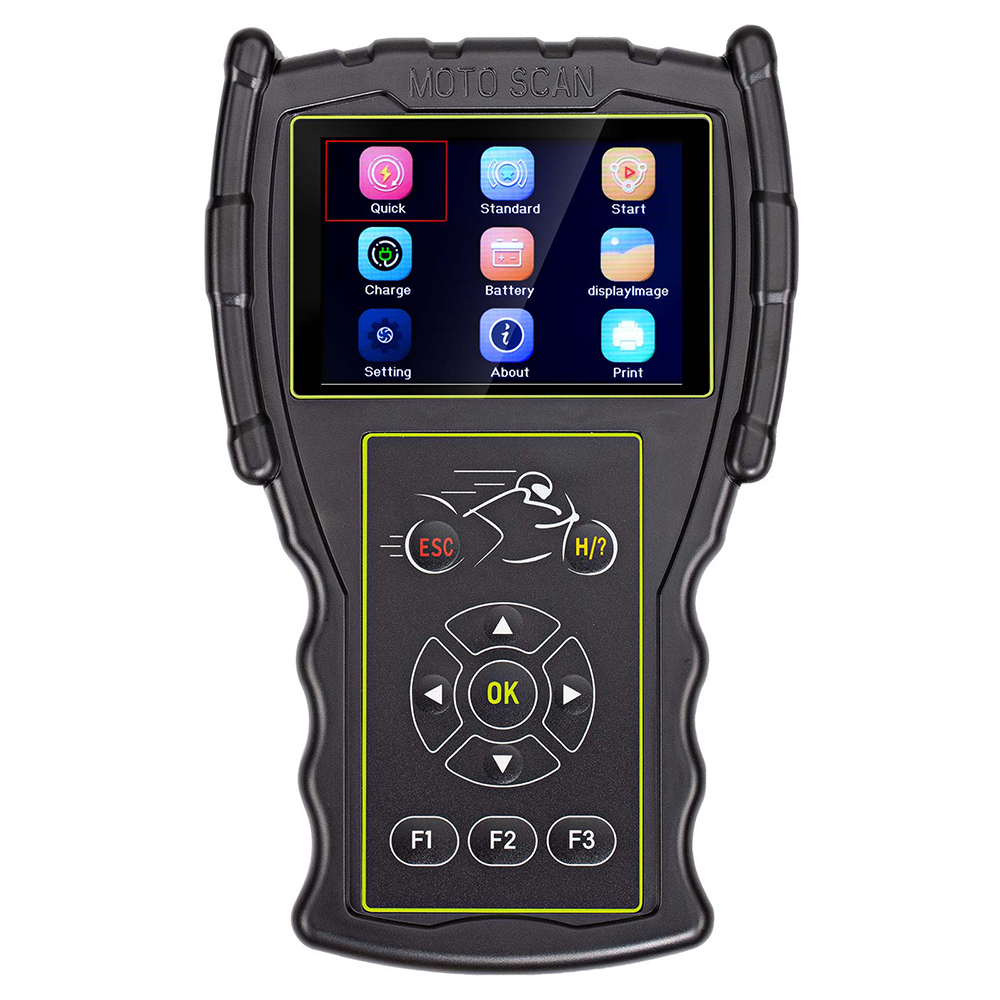

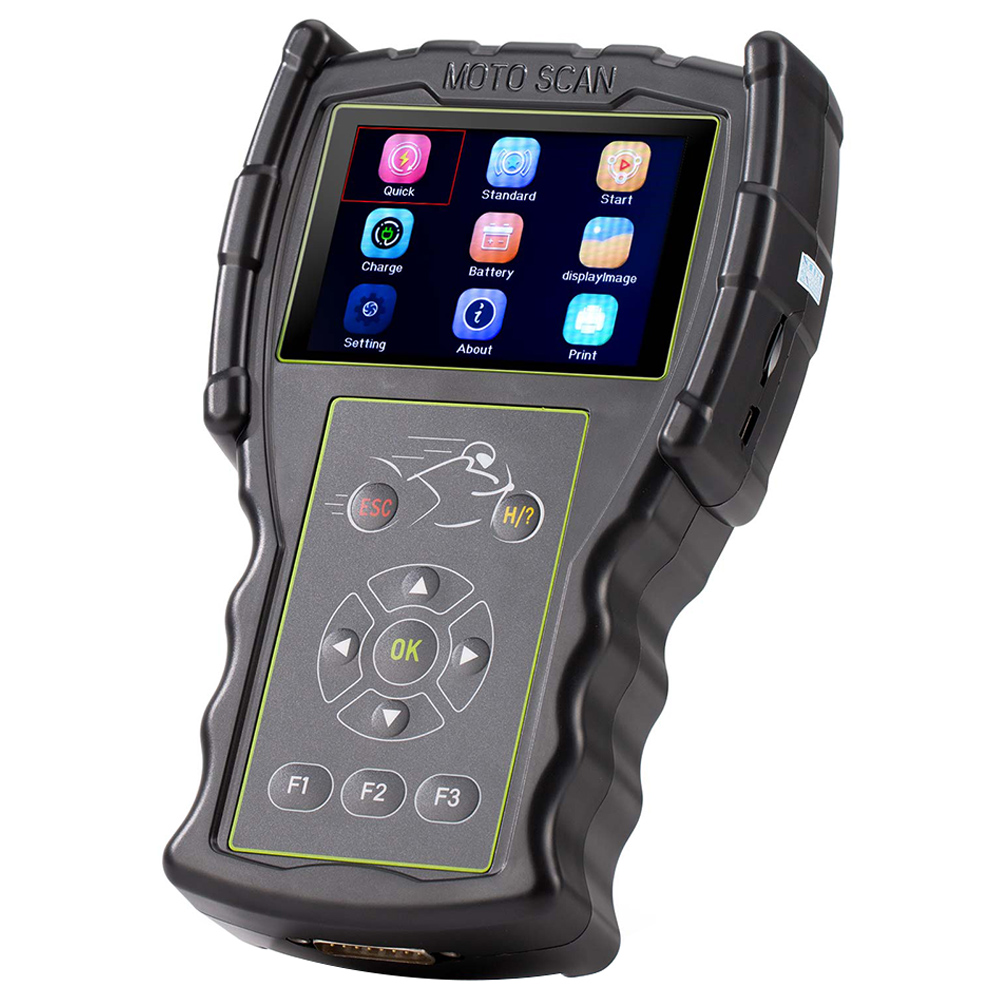

JDiag M100 Pro is a new generation of upgraded intelligent motorcycle electronic fuel injection system diagnostic instrument based on JDiag M100.



JDiag M100 Pro has a large 3.5-inch color screen, new appearance and more atmospheric; more intuitive model / function icons;  more comprehensive motorcycle models coverage, more comprehensive and powerful functions. It adopts a new generation of processing chips. The data reading speed is faster, and the detection speed is more efficient and fast.

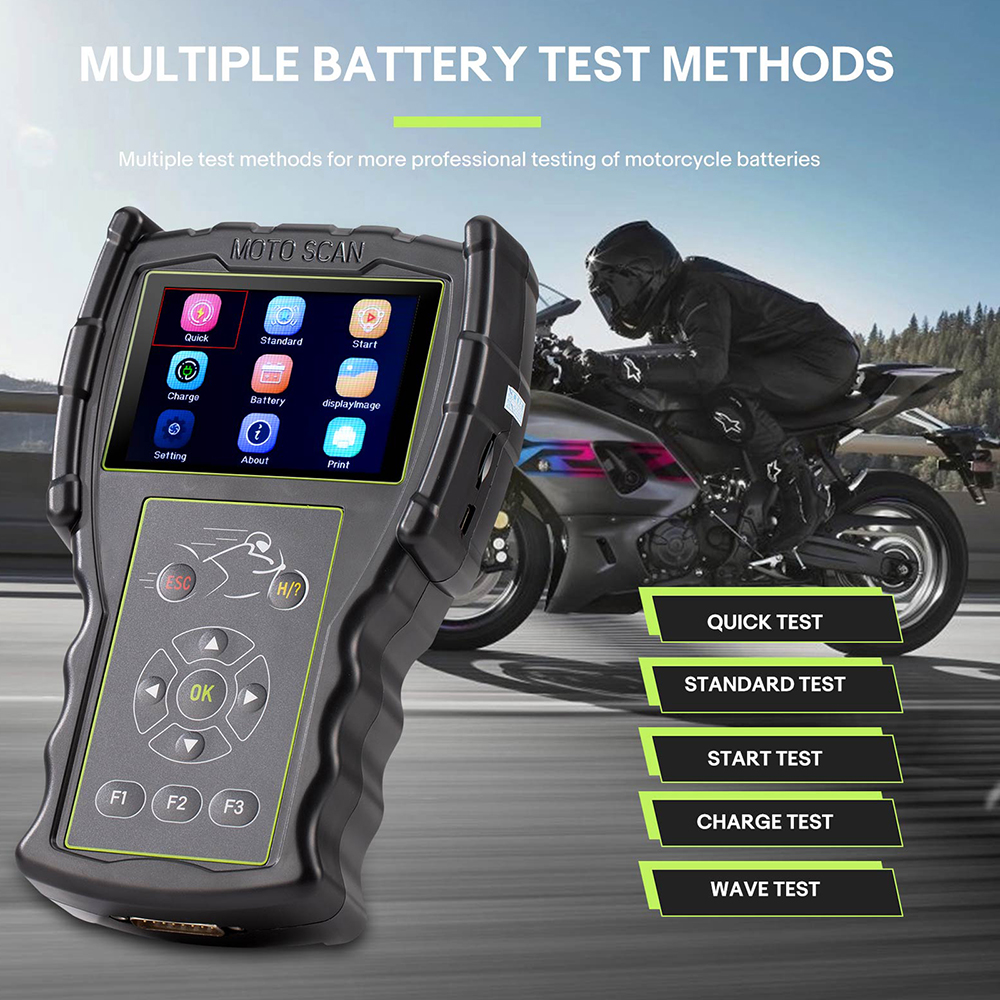

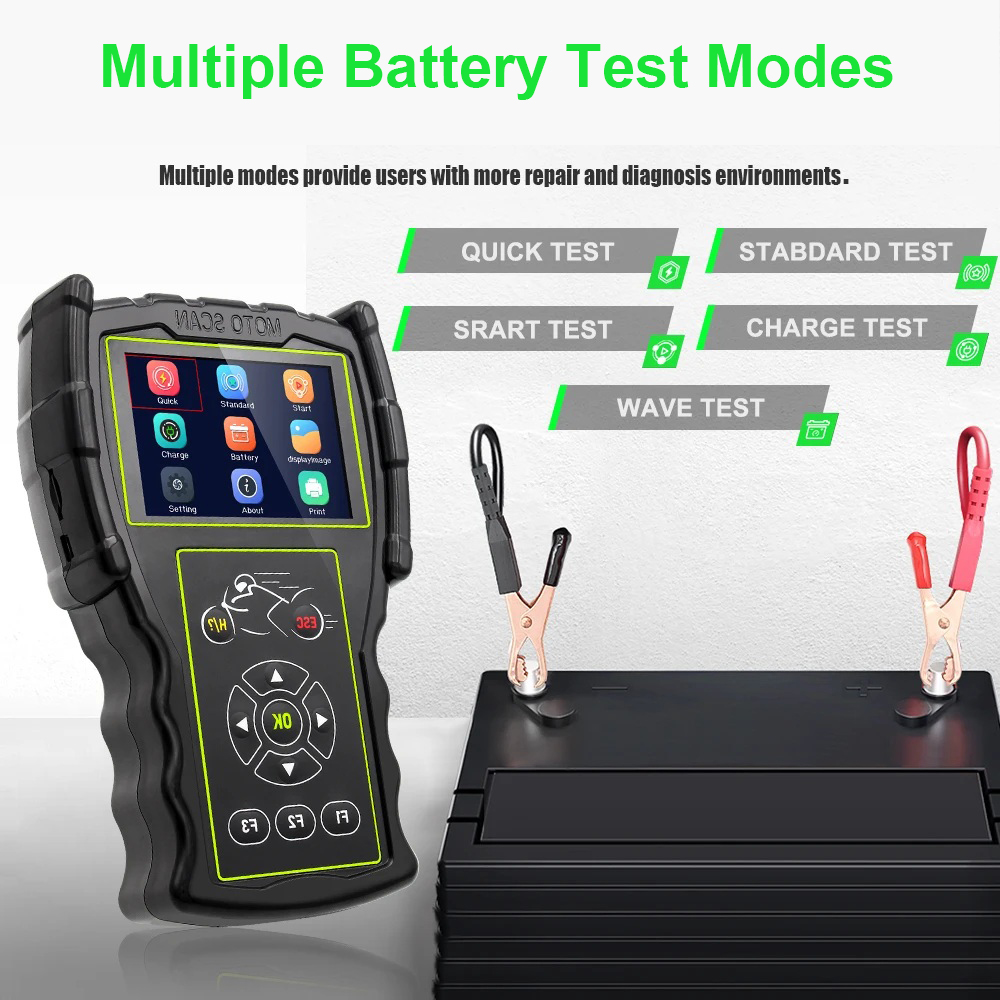

Moreover, it has dual system detection: EFI System Detection + Battery Detection. JDiag M100 Pro shows live data, displays ECU data, reads stored faults(history) or live data (RPM, battery voltage, throttle angle).



JDiag M100 Pro Moto Scanner is the new generation Handheld motorcyle diagnostics tool. It covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).



JDiag M100 Pro allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

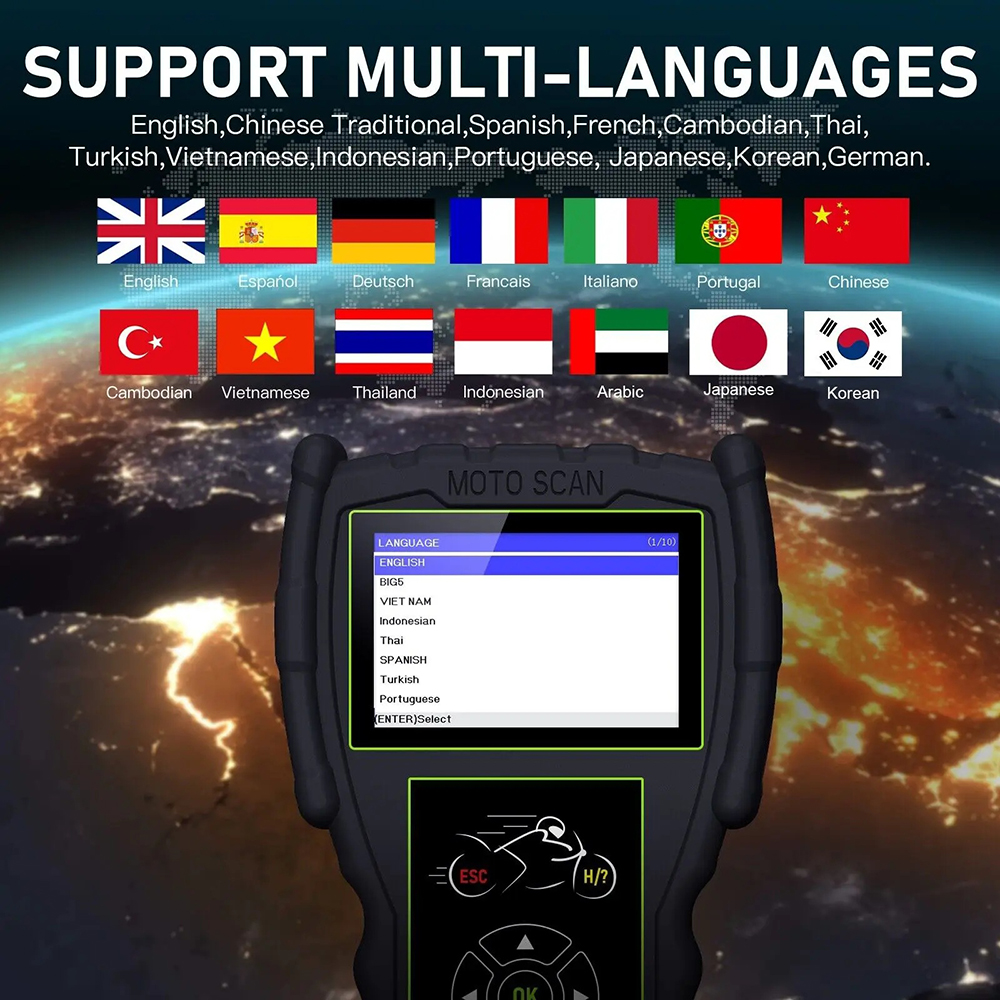

Supported Languages:



English, French,  German, Spanish, Portuguese, Turkish, Thai, Vietnamese, Cambodian, Indonesian, Japanese, Korean, Chinese Traditional



Features:

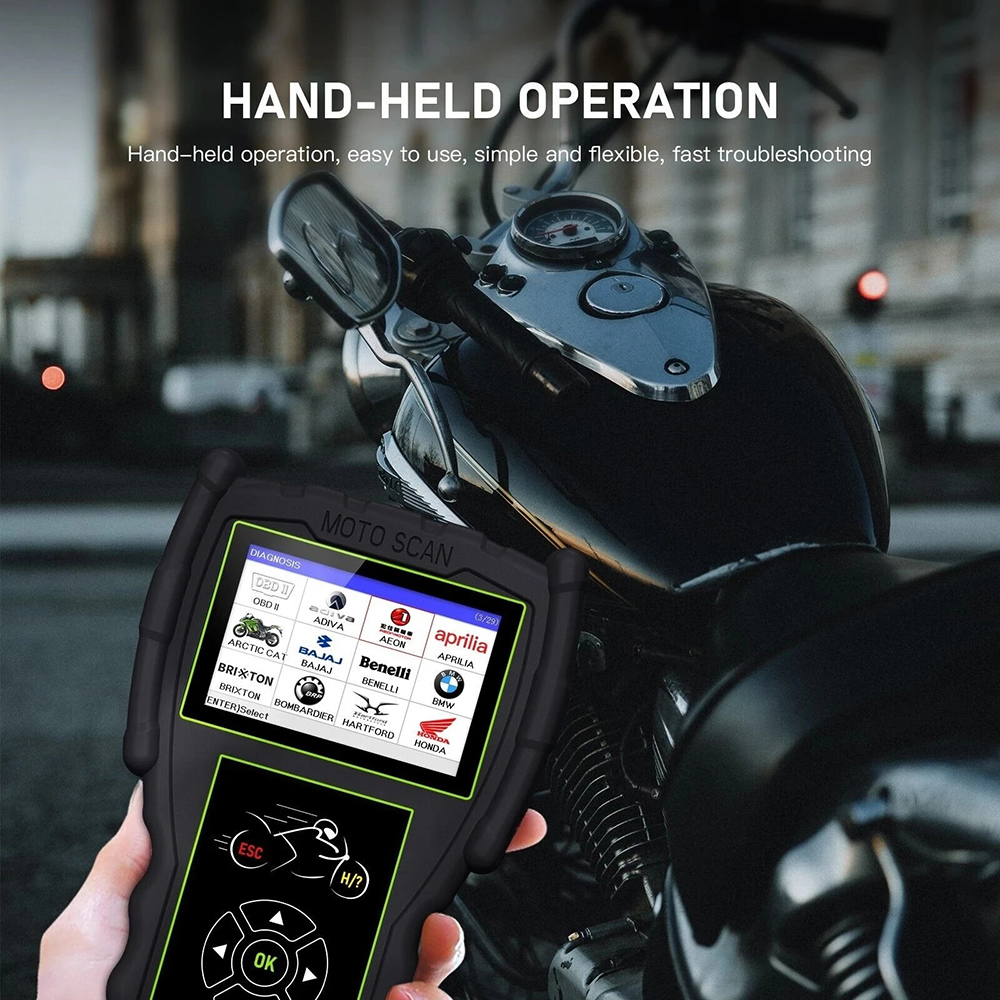

1. Handheld operation, convenient and flexible to use.

2. Supports SD card for storing data and upgrading.

3. Reserved CAN BUS interface.

4. 3.5-inch color screen for clear display.

5. Dynamic data with numerical and waveform.

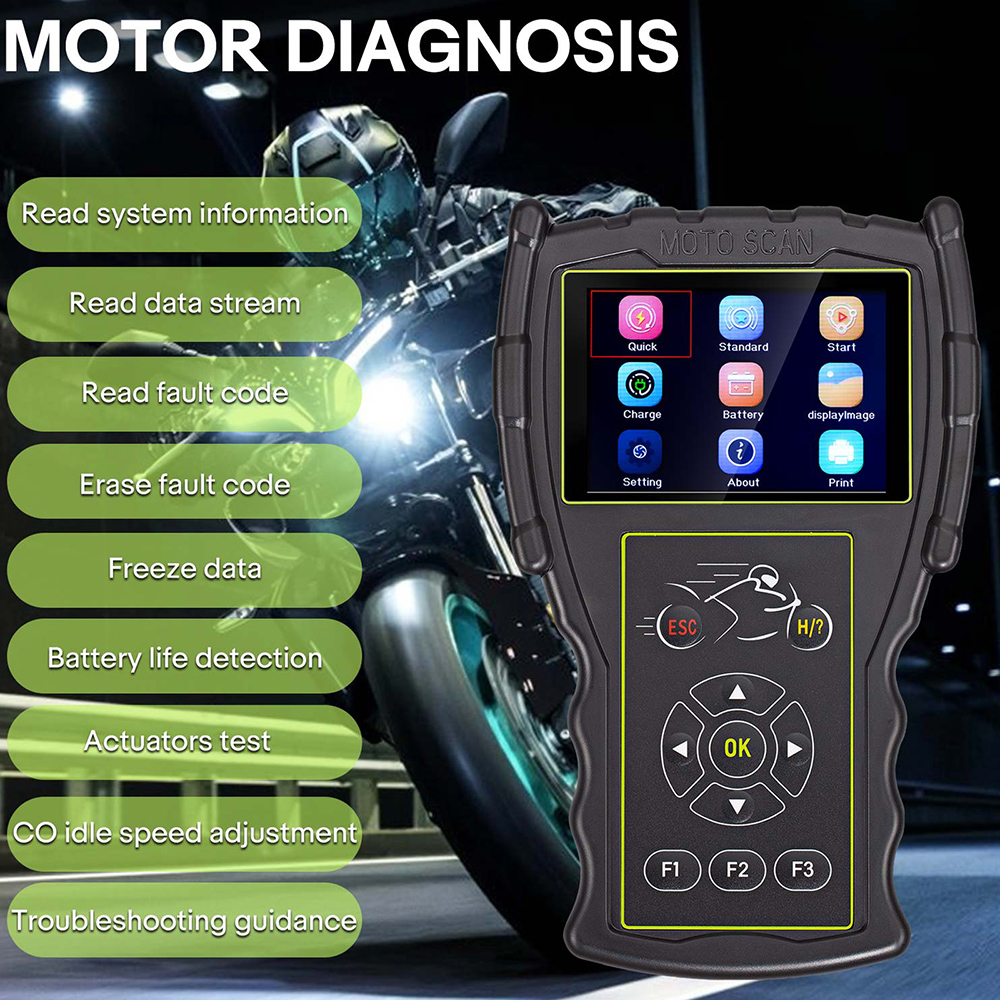

Functions:



1. Read System Information

2. Read Data Stream

3. Read Fault Code

4. Erase Fault Code

5. Freeze Data

6. Co Idle Speed Adjustment

7. ABS System Test



Supported Motorcycles:



Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc.



Specifications:



Power: DC 10V to 15V

Operating Current: 250mA

Operating Temperature: 0 to 70℃
Storage Temperature: -10 to 85℃

Humidity: <90%

Upgrade Ports: USB port

Communication Ports: COM port

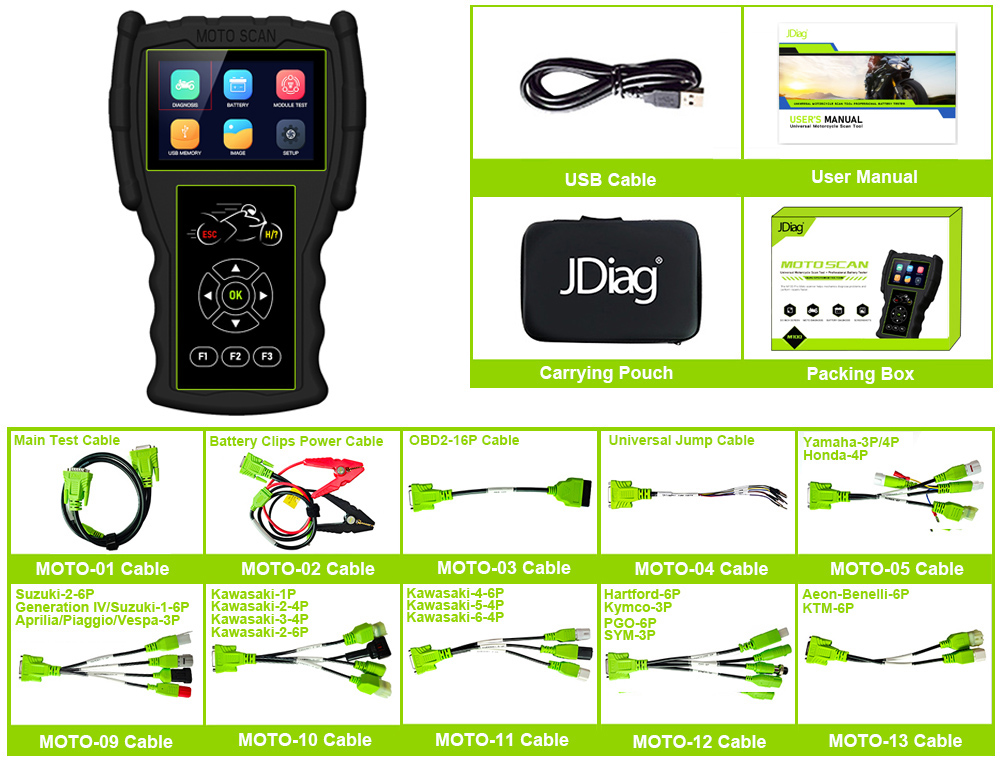

Packing List:



JDiag M100 Pro Motorcycle Scanner

MOTO-01 Main Test Cable

MOTO-02 Battery Clips Power Cable

MOTO-03 OBD2-16P Cable

MOTO-04 Universal Jump Cable

MOTO-05 Yamaha-3P/4P & Honda-4P Cable

MOTO-06 BMW-10P Cable

MOTO-07 Ducati-4P Cable

MOTO-08 Harley-4P/6P Cable

MOTO-09 Suzuki-2-6P & Generation IV/Suzuki-1-6P & Aprilia/Piaggio/Vespa-3P Cable

MOTO-10 Kawasaki-1P / Kawasaki-2-4P / Kawasaki-3-4P / Kawasaki-2-6P Cable

MOTO-11 Kawasaki-4-6P / Kawasaki-5-4P / Kawasaki-6-4P Cable

MOTO-12 Hartford-6P / Kymco-3P / PGO-6P / SYM-3P Cable

MOTO-13 Aeon-Benelli-6P / KTM-6P Cable

USB Type-B Cable

User Manual

Carrying Pouch

Packing Box
