Description:



Launch X431 V+ HD III is a modified version of the multi-brand scanner Launch X-431 Pro which, in its new edition, received a more powerful tablet and a diagnostic function for heavy duty vehicles. The device includes all the advantages of the Pro series and is presented with advanced diagnostic algorithms that allow you to quickly and deeply test the car. The complete set HD - is intended for trucks diagnostic.

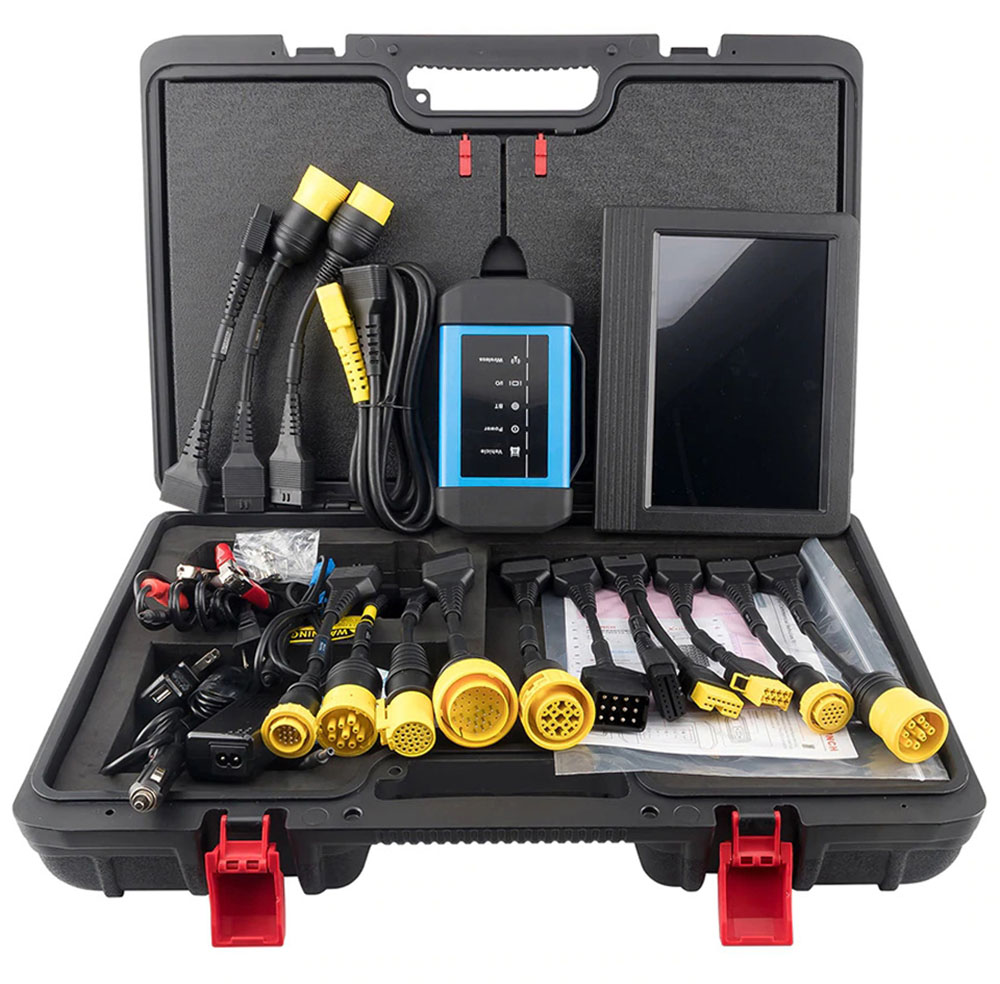

Launch X431 HD 3 package is a set of Launch x431 V+ plus the diagnostic module of trucks Launch HD Box 3.0. It turns out cheaper than buying everything separately.



Launch X431 V+ HD3 is a brand new advanced automotive fault diagnostic tool based on Android system. It passes on Launch advantages in automotive fault diagnostic technology, such as wide Car and Truck model coverage, powerful function, abundant special function and accurate test data, etc.



Launch X-431 V+ and HD3 achieve full diesel truck model and full system fault diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminal.



Software Update: 1 year free update online

Supported Languages: English, French, German, Spanish, Italian, Russian, Janpanese, Chinese

Features:
How to Activate Launch X431 HD-3 & Download Software?



If you had a diagnostic tool of 12V passenger car configuration and intend to extend the diagnostics of commercial vehicles, follow the steps described below to activate the HD III:



(Note: Please make sure that the diagnostic tool is properly connected to the Internet before proceeding this step.)



1. Launch the application, and log in the system using the existing user account of Passenger Vehicle Configuration, and then tap “Personal Center (or )” -> “Activate VCI (or “Activate Connector )”.



2. Input the Product S/N and Activation Code, which can be found in the supplied Password Envelope, then tap “Activate” to activate the HD III.



3. Tap “Update” to enter update center, tap “Update” to download and install the diagnostic software of commercial vehicles.



4. After the software download is complete, a new “Heavy-duty” tab will appear on the Diagnostic main menu screen.



Software List:





FAQs:



1.Communication error with vehicle ECU?

Please confirm:

1) Whether the VCI is properly connected.

2) Whether the vehicle ignition switch is ON.

3) If all checks are normal, send vehicle year, make, model and VIN number to

us using Diagnostic Feedback feature.



2. Failed to enter into vehicle ECU system?

Please confirm:

1) Whether the vehicle is equipped with the system.

2) Whether the VCI is correctly connected.

3) Whether the vehicle ignition switch is ON.

4) If all checks are normal, send vehicle year, make, model and VIN number to

us using Diagnostic Feedback feature.



3. How to save power?

1) Please turn off the screen while X-431 V+ keeps idle.

2) Set a shorter standby time.

3) Decrease the brightness of the screen.

4) If WLAN connection is not required, please turn it off.

5) Disable GPS function if GPS service is not in use.



4. How to handle when you encounter “Insufficient Storage Space”?

If this happens while downloading the diagnostic software, please proceed as

follows:



1) Get your X-431 V+ username and password ready. If you forgot the

password, please dial our after-sales support center hotline to retrieve it with

the product Serial Number.



2) Reset the X-431 V+ to the default factory settings (For details, please refer to Item 5 in this Chapter).



3) Tap “Settings” -> “WLAN”, slide the switch to ON and then choose the

desired WLAN network to connect.



4) Open the browser and visit www.dbscar.com to download and install the

latest App.



5) After the installation is complete, launch the application and login with your

username and password.



6) Tap“Update” to download the diagnostic software.



(Note: For new App, the software structure and storage space occupied by the vehicle software have been optimized so as to avoid the occurrence of insufficient storage.)



5. How to reset Launch X-431 V+?



(Notice: Resetting may cause data loss. Before doing so, please make sure important data and information has been backed up.)



1) Tap “Settings” -> “Back & Reset”.

2) Tap “Factory data reset”.

3) Tap “Reset tablet”.

4) Tap “Clear all data” to start resetting until the tool automatically reboots.



6. The diagnostic application is failing.

1) Press the Home key on the tool.

2) Select “Settings”-> “Apps”.

3) Select the application name from the Apps list.

4) Select “Force Stop”, and then press “OK” to confirm.

5) Select “Clear Data”, and then press “OK” to confirm.

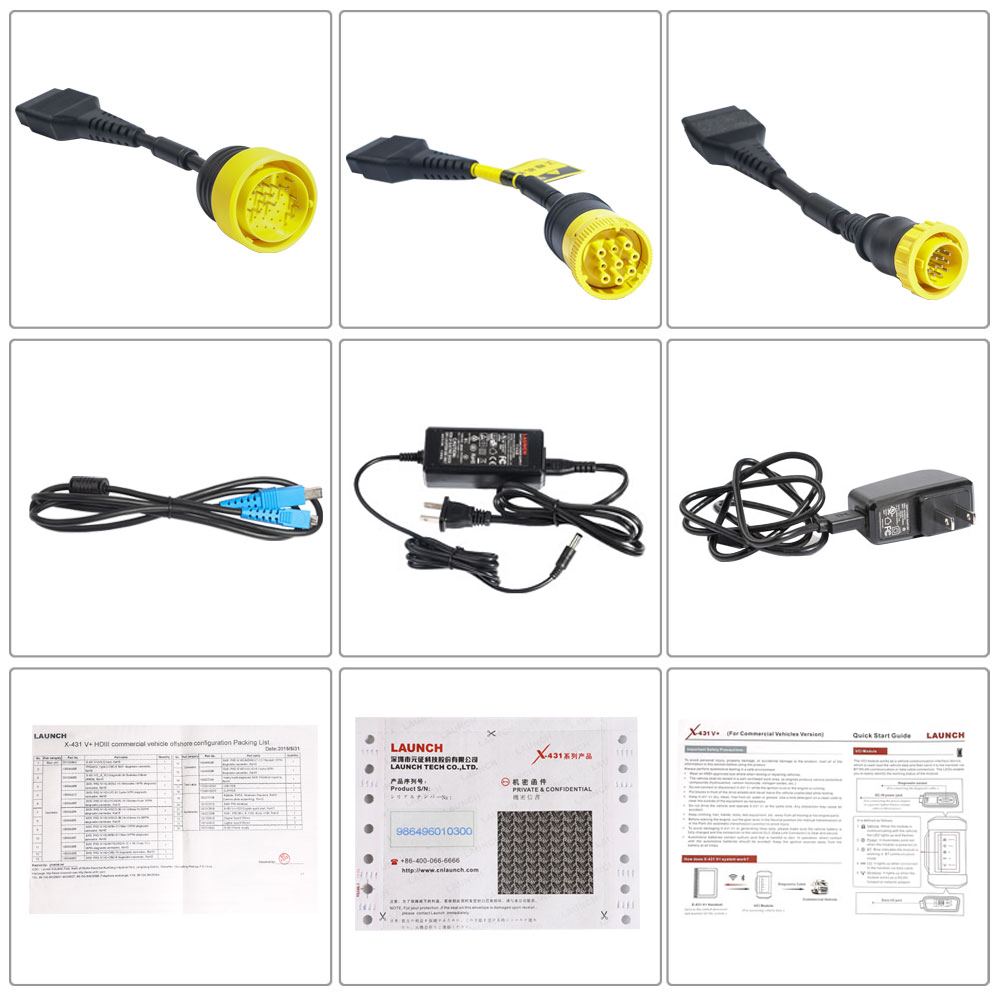

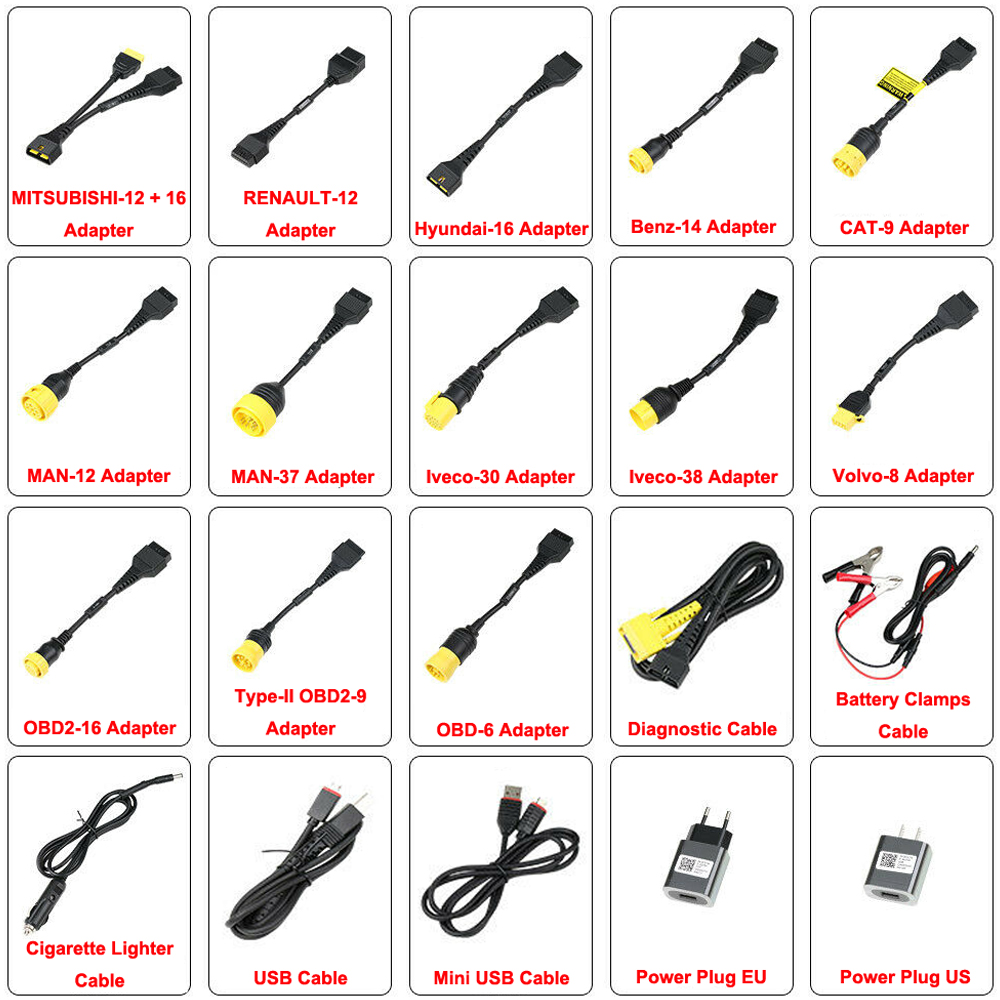

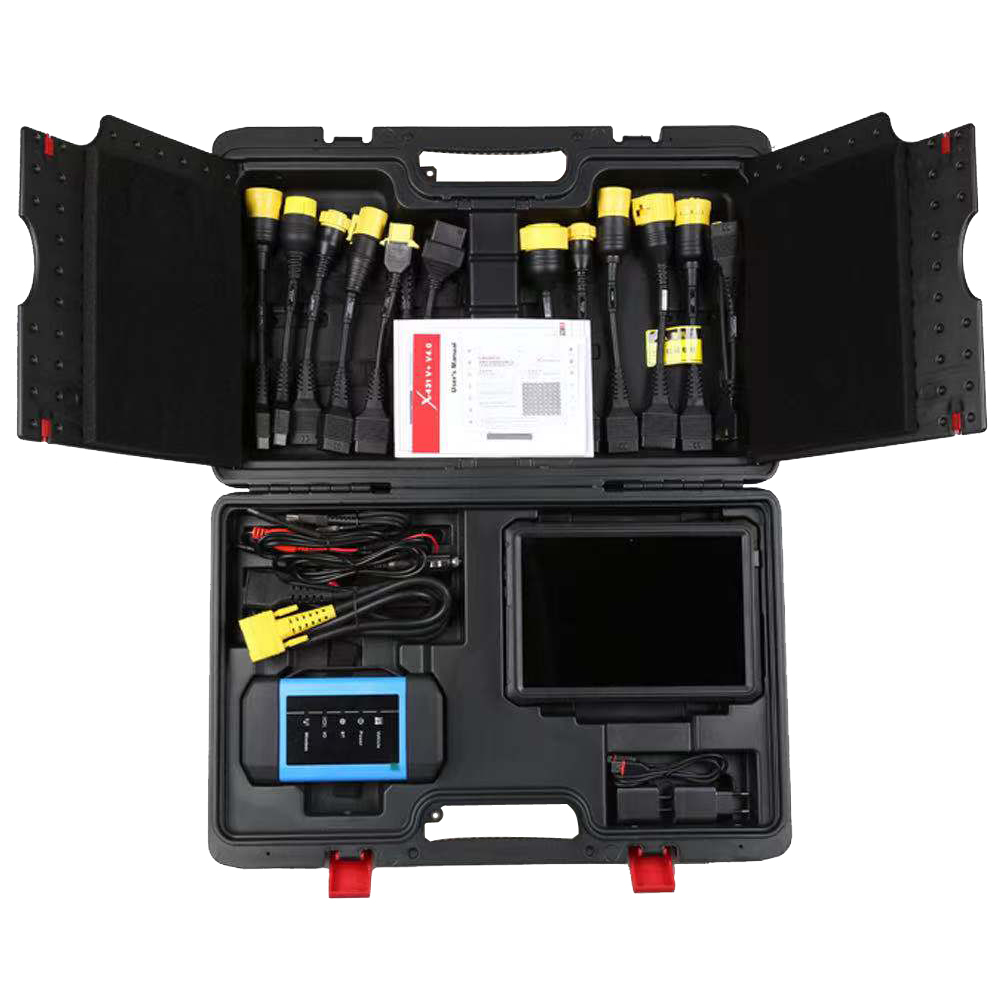

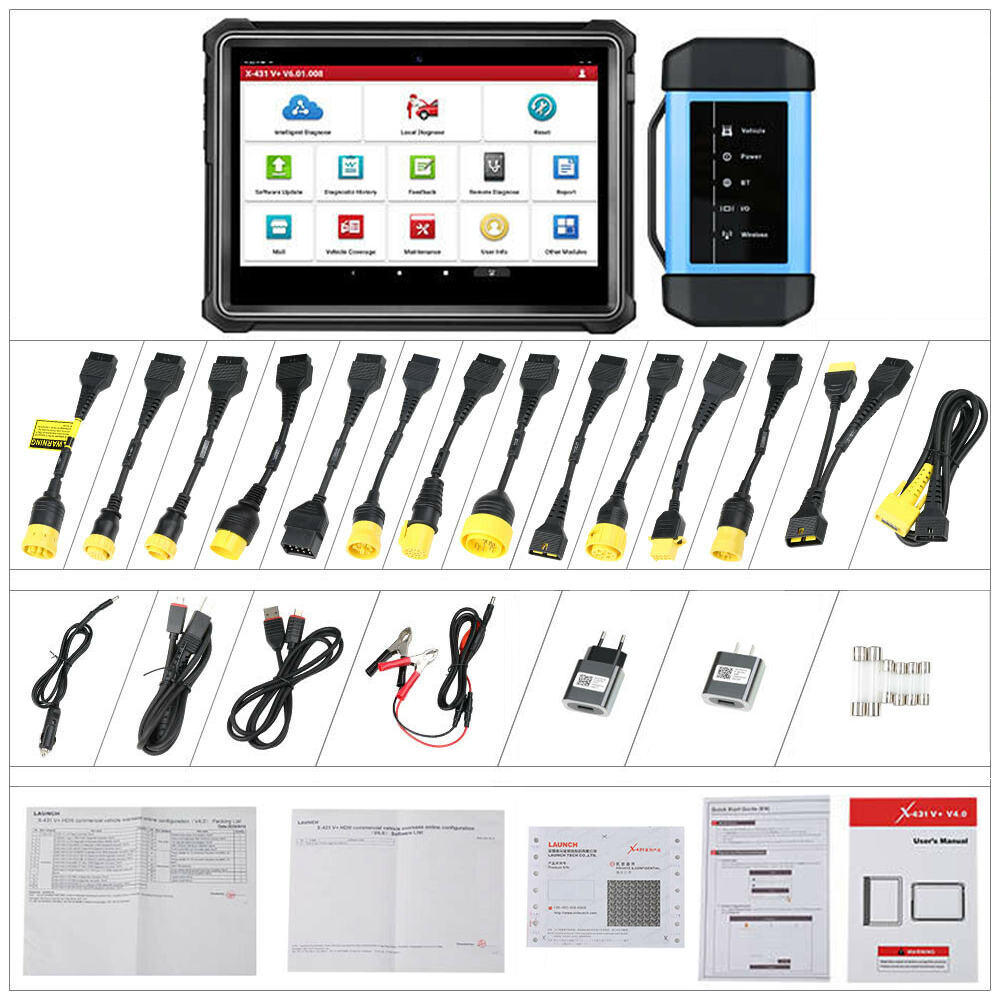

Packing List:



Launch X-431 V+ Pad

Launch X431 HD-III VCI

OBD2 Main Cable

HD3 Main Cable
USB Cable
Mini USB Cable

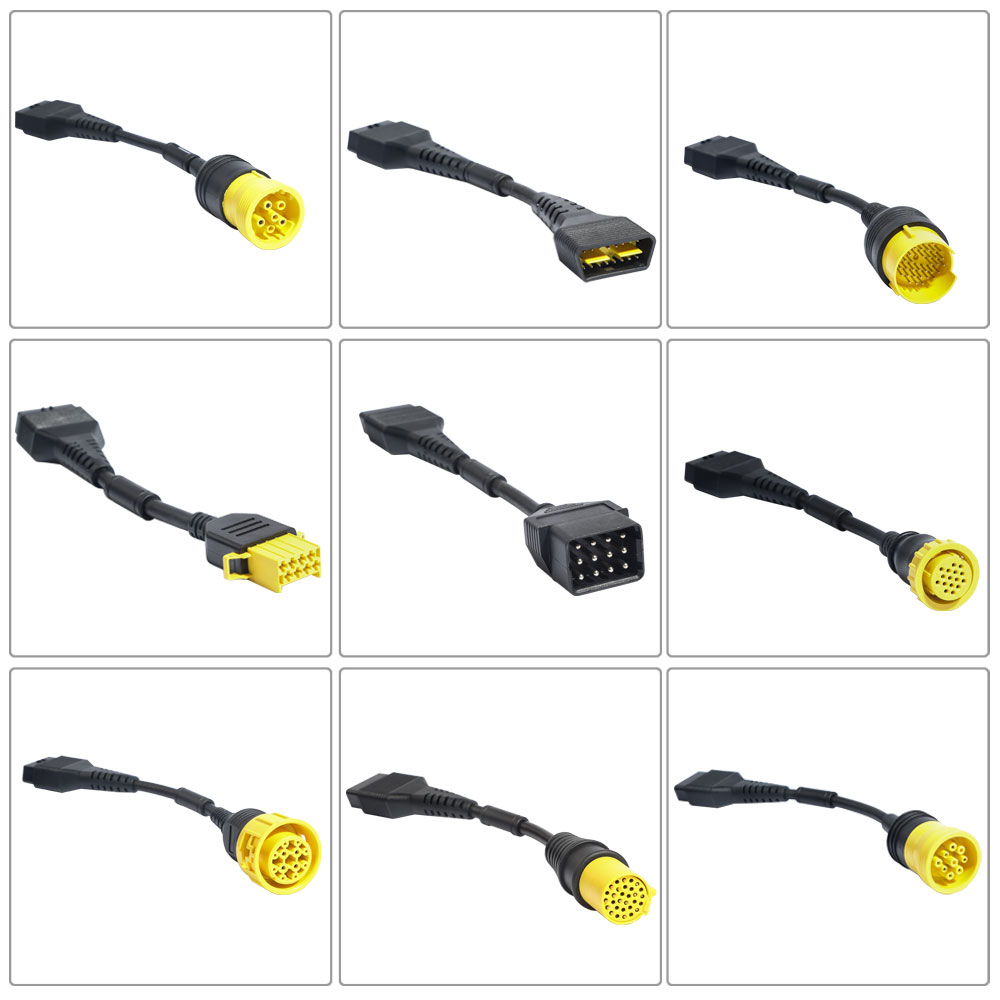

OBD2-6 Connector

OBD2-9 Connector

BENZ-14 Connector

CAT-9 Connector

HYUNDAI-16 Connector

IVECO-30 Connector

IVECO-38 Connector

MAN-12 Connector

MAN-37 Connector

MITSUBISHI-12 + 16 Connector

RENAULT-12 Connector

VOLVO-8 Connector

Cigarette Lighter Cable

Battery Clip Cable

Launch X-431 V+ Power Supply Adapter

HD3 5V/2A Power Supply Adapter

Battery Clip Cable Fuse(5*20mm) (4 pcs)

Cigarette Lighter Cable Fuse(6*30mm) (2 pcs)

Plastic Toolbox

Packing Box
