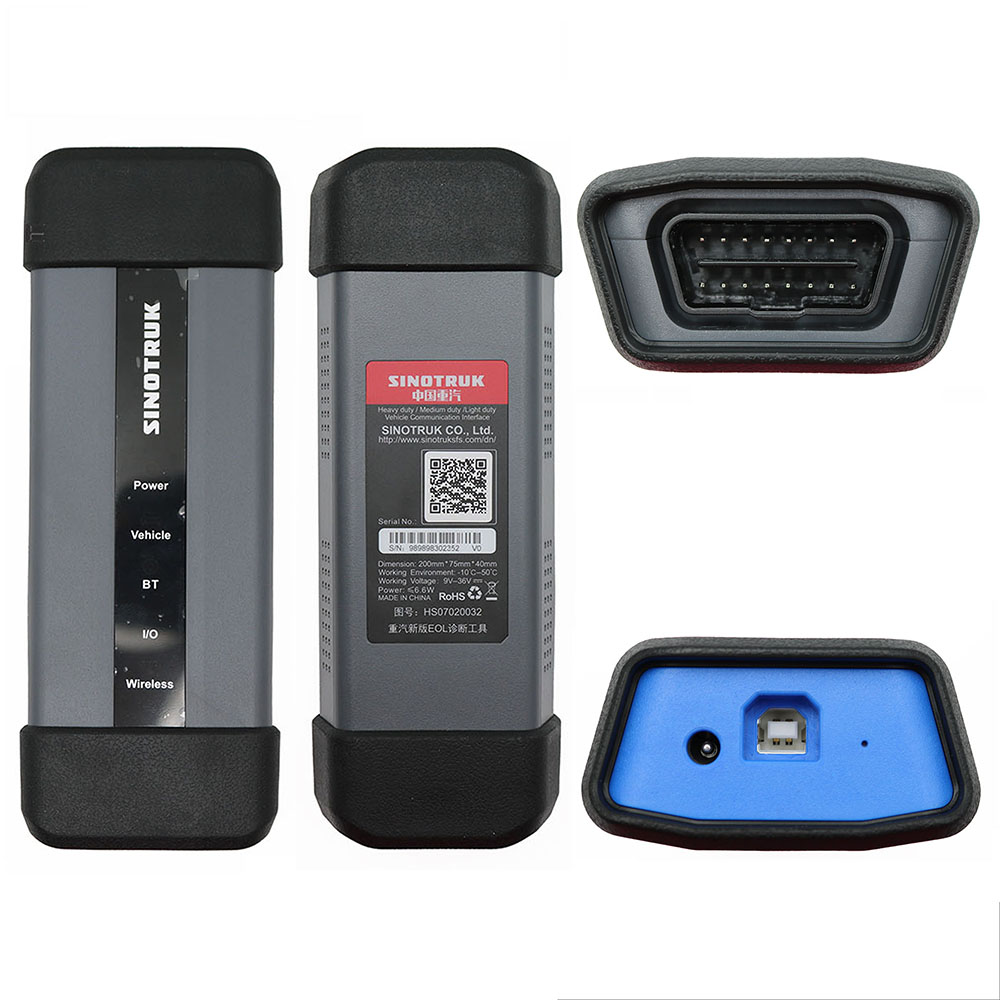

Name: SinoTruk EOL OBD Diesel Truck Scanner
Description:
SinoTruk EOL OBD Diesel Truck Diagnostic Tool for Howo A7 / T7H / Sitrak / Hohan.
SinoTruk EOL OBD Diesel Truck Scanner supports diagnosing, programming, calibration of control units and removal of speed limits for Novo, SITRAK, etc.
SinoTruk EOL Truck Scanner is original dealer diagnostic tool for SinoTruk, Howo trucks. This dealer scanner allows you to access to control units: ECU, CBCU, DCU, ATM, ABS, EGR, SCR, etc.
SinoTruk EOL is compatible with Weichai Diagsmart. Weichai Diagsmart is a new generation engine diagnostic tool developed by Weichai. It supports various types of engines under Weichai, integrating data flashing, body diagnosis, and maintenance.
SinoTruck EOL OBD Diesel Truck Scanner integrates vehicle function calibration and other functions, and can be operated on Windows, Android, iOS...
EOL OBD Truck Diagnostic Scanner supports SinoTruk, Sitrak, Sinotruck, Howo, Weichai, Shancman, Denso.
New Features:
1. Supports Bluetooth/ WiFi.
2. Compatible with Weichai Diagsmart.

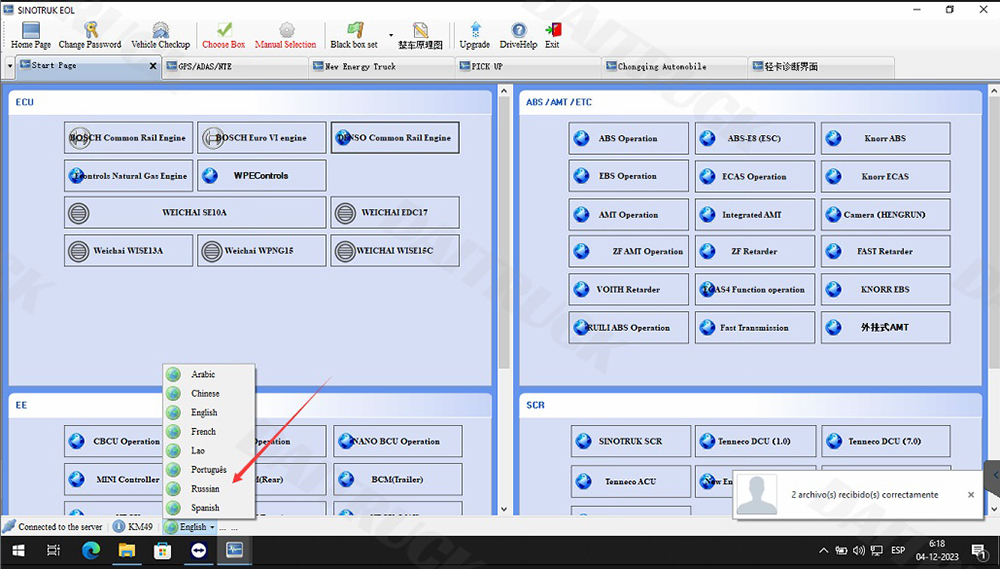

Supported Languages: English, French, Spanish, Portuguese, Russian, Arabic, Lao, Chinese
Main Functions:
Reading and Clearing Fault Codes
Data Monitoring
Parameter Setting
Signal Monitoring
Active Testing
Updating
Flashing
Changing Speed Limit
Supported Protocols:
SinoTruk EOL Diesel Truck Scanner is complies with J2534. RP1210 Standard, CAN BUS, CAN-FD, ISO 15765, DoIP, J1850, BTSJ1708 and other protocols
Specifications:
Operating System: Linux
Processor: dual processor Cortex-A7+Cortex-M7
RAM: 256MB
Storage: 8GB
Power Supply: DC 9V - 36V
USB: Type-B USB2.0
Wi-Fi: 2.4GHz/5GHz dual band
Weight: 310g
Working Temperature: -10℃ to 50℃
Storage Temperature: -20℃ to 70℃

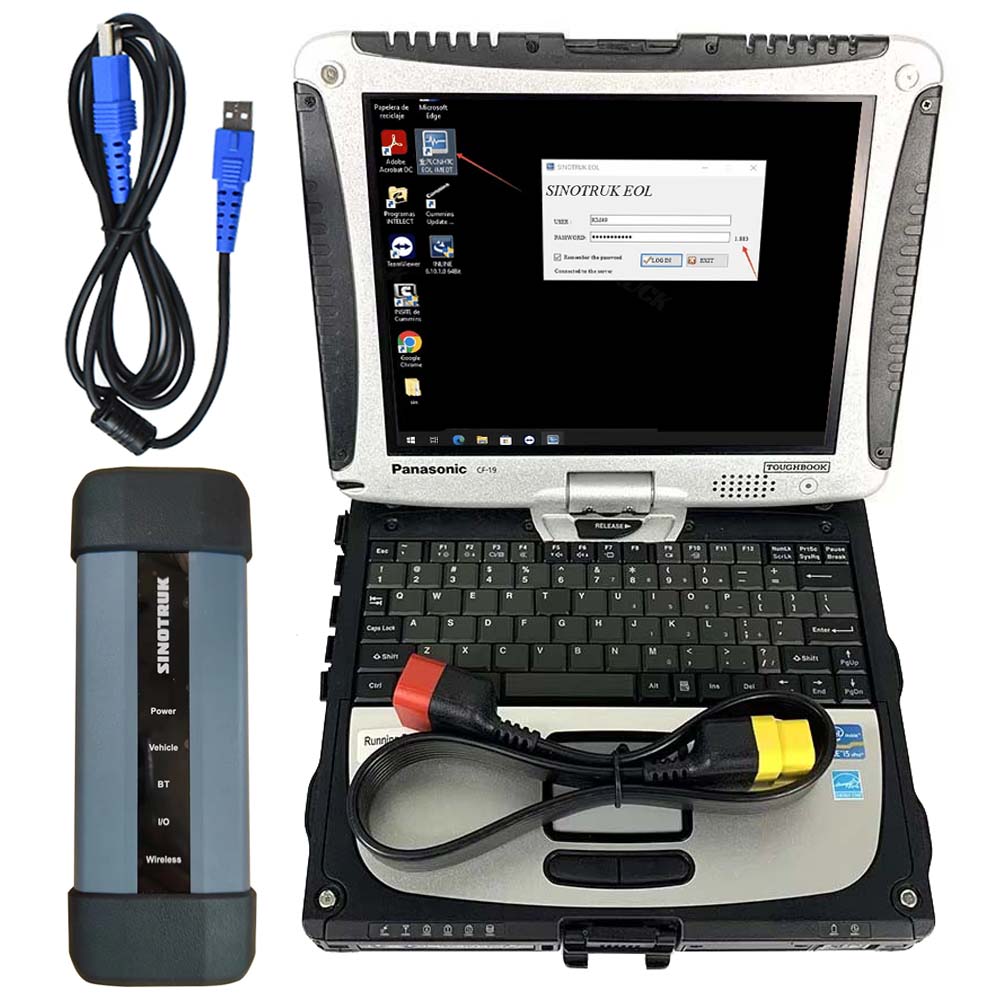

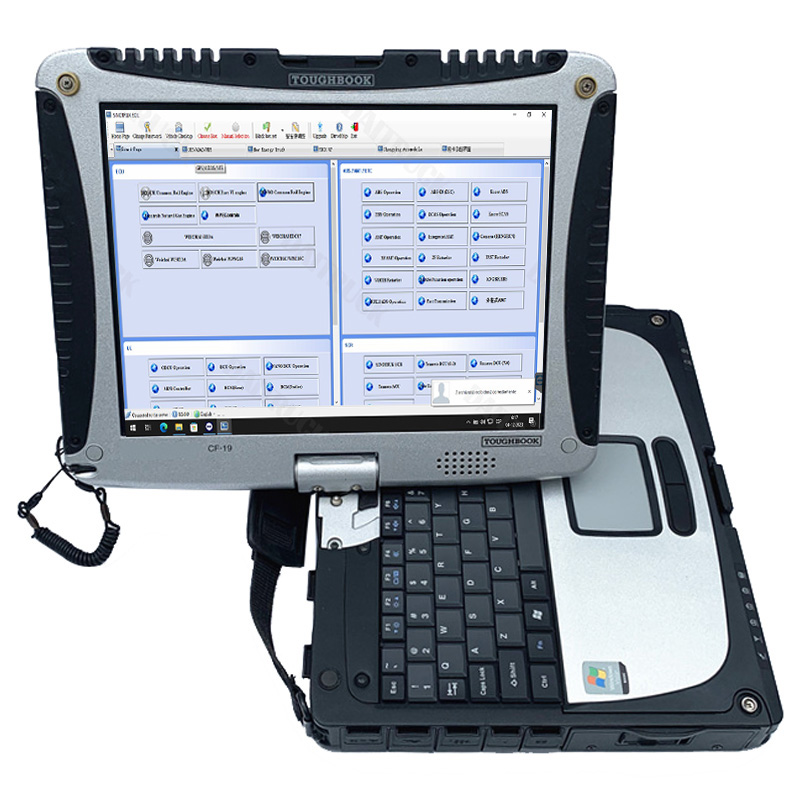

Panasonic CF19 Laptop Specification (Optional):
Condition: second-hand
Brand: Panasonic
Model: ToughBook CF-19
CPU: Intel i5
RAM: 8GB
Display: rotatable 10.4 inch touch screen with 1024*768 resolution
Ports: USB / VGA / PCMCIA card slot / SD card slot / 1394 / RS232 / headphones
Hard Disk: 500GB SSD
OS: English Windows 7/10

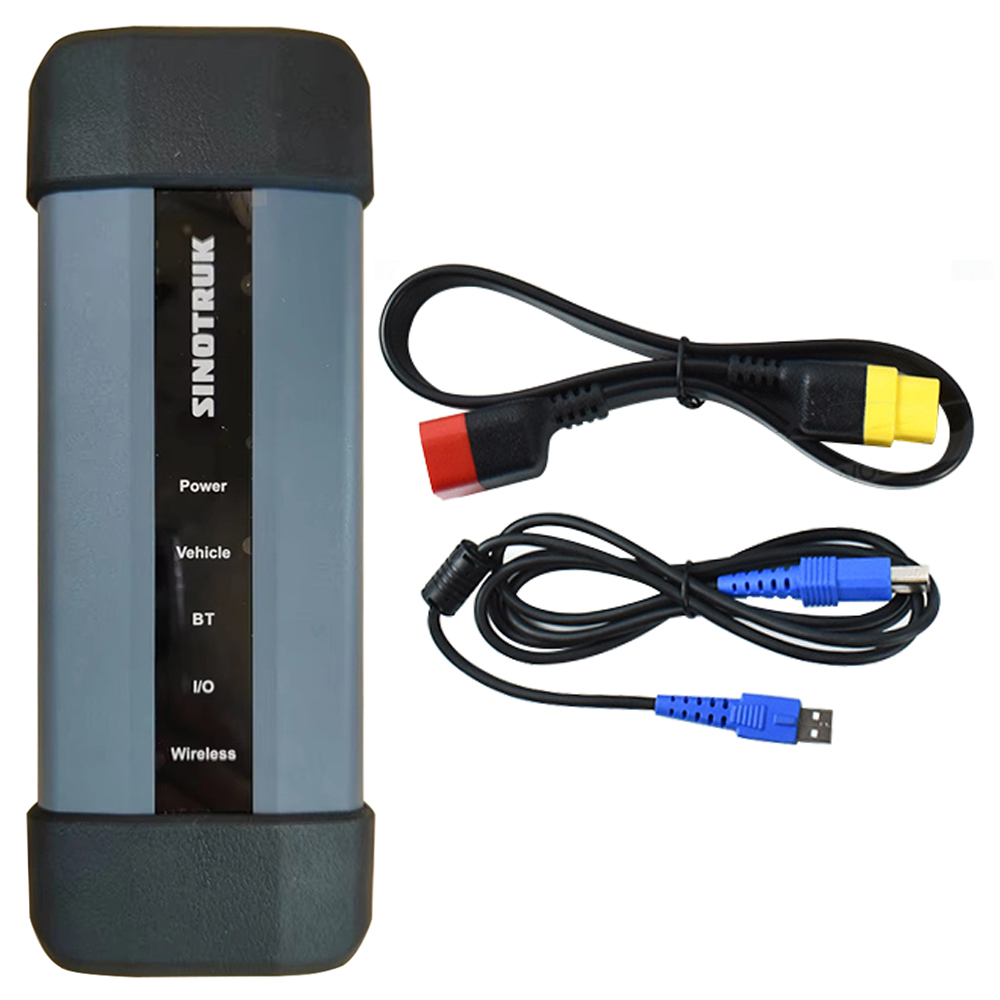

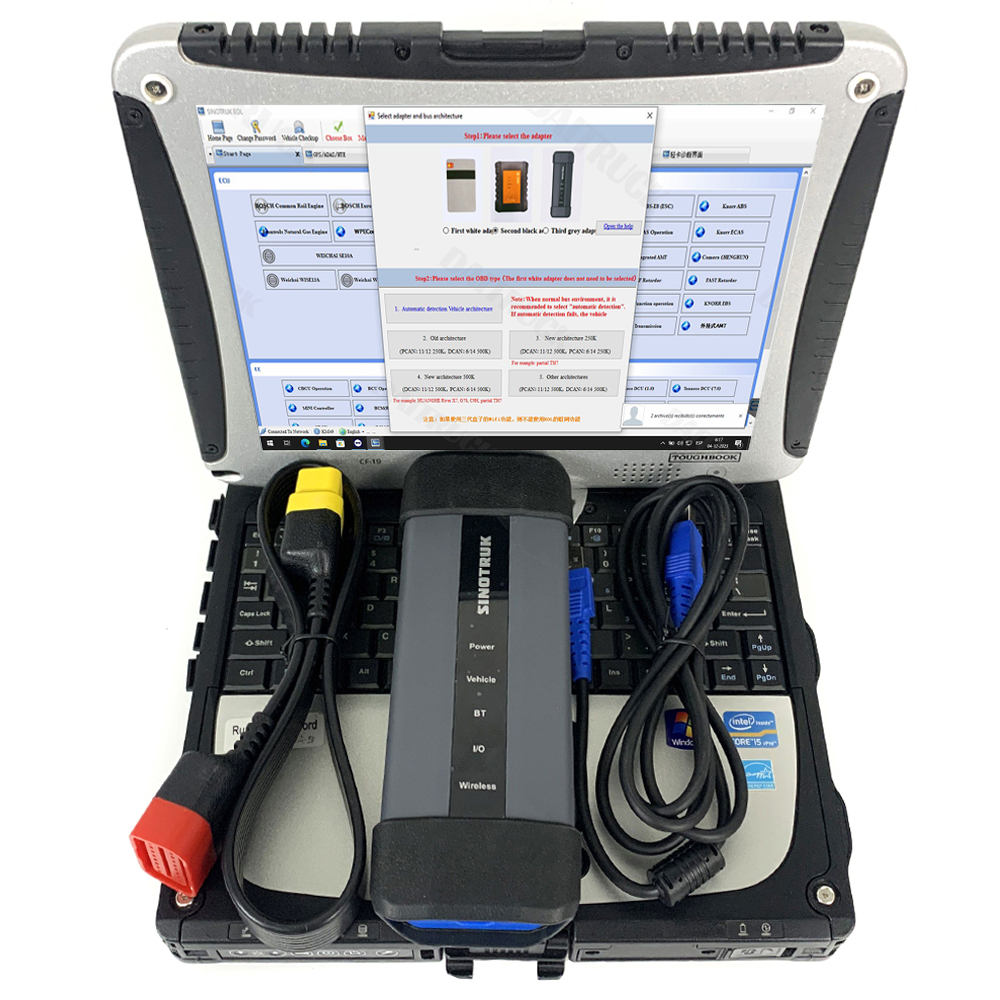

Packing List:

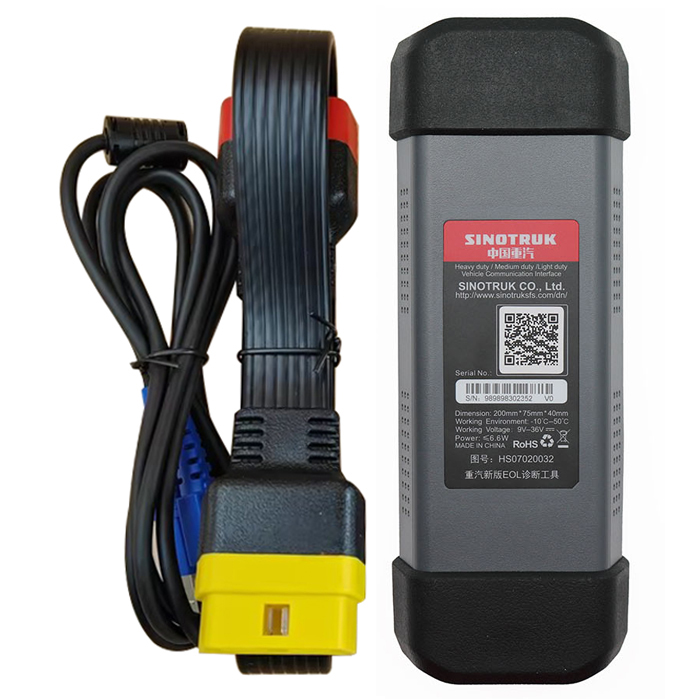

SinoTruk EOL Truck Scanner

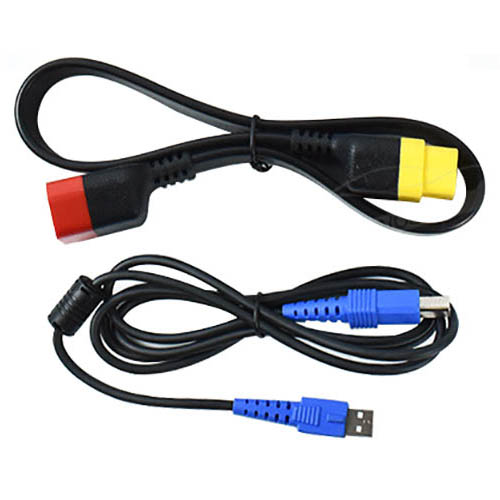

OBD Cable
USB Type-B Cable
Panasonic CF-19 Laptop with Software (optional)

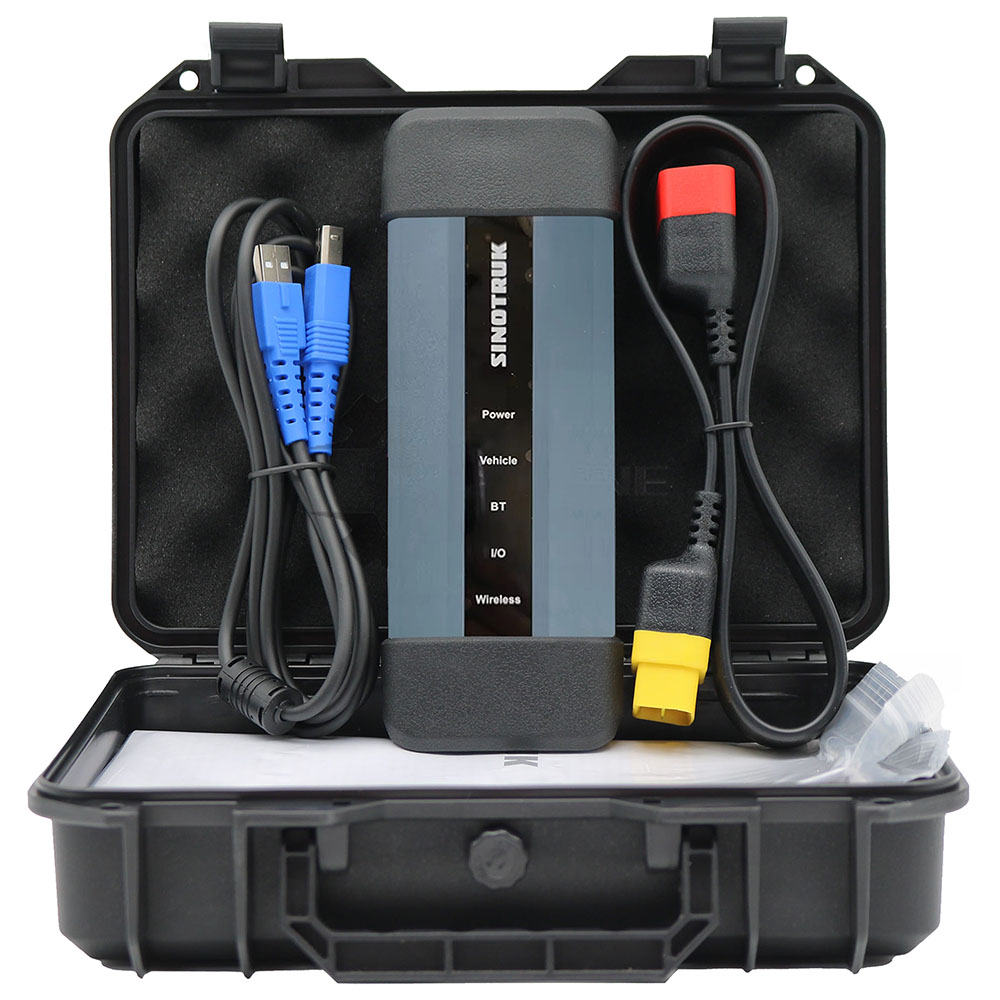

Plastic Toolbox
|
